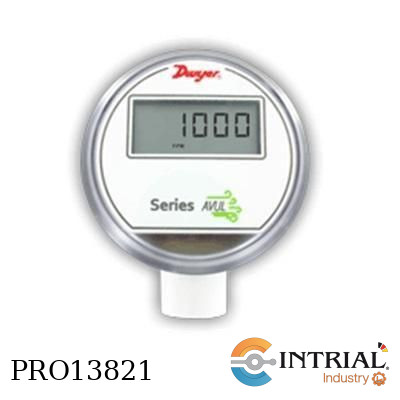

AIR VELOCITY TRANSMITTERS<br />
Brand. Dwyer<br />
[AVUL-5DA1-LCD]: Air velocity transmitter, 5% accuracy, duct mount, Universal current/voltage outputs, with LCD.<br />
Service: Clean air and non-combustible, compatible gases.<br />
Range: 1000, 2000, 3000, 4000 FPM (5, 10, 15, 20 m/s); Field selectable.<br />
Temperature Limits: 0 to 50°C.<br />
Power Requirements: 24 VDC ±20% or 24 VAC ±20%.<br />
Humidity Limits: 5 to 95% RH, non-condensing.<br />
Output Signals: 4 to 20 mA, 0 to 5 VDC, 0 to 10 VDC.<br />
Response Time (90%): 10 s, typical.<br />
Zero & Span Adjustments: Digital push buttons.<br />
Output Load Resistance: Current output: 0 to 1100 Ω max.; Voltage output: Minimum load resistance 1 kΩ.<br />
Current Consumption: 60 mA max.<br />
Display (optional): 5 digit LCD.<br />
Electrical Connections (Analog): Power and output: four-wire removable<br />
European-style terminal block for 16 to 26 AWG.<br />
Electrical Entry: 1/2" NPS thread. Accessory (A-151): Cable gland for 5 to 10 mm diameter cable.<br />
 Mounting Orientation: Flow direction must be parallel to the sensor tip.

Termometro DWYER<br />
Modelo : ITA9357D<br />
Rango : 50 a 400 ºF / 10 a 204 ºC<br />
Marca : Dwyer<br />
Peso: Aluminio fundido ahusado con relleno de grafito.<br />
Entradas: Aluminio<br />
Impedancia de entrada: 1%.<br />
Exactitud:Vidrio <br />
Fuente de alimentación :Aluminio pintado de blanco con marcas negras.<br />
Intervalo y cero:Rosca NEF 1-1/4-18.<br />
Pantalla:Tubo lleno de líquido orgánico azul.<br />
Puntos decimales: Tallo ajustable: plano vertical 180°; plano horizontal 360°.

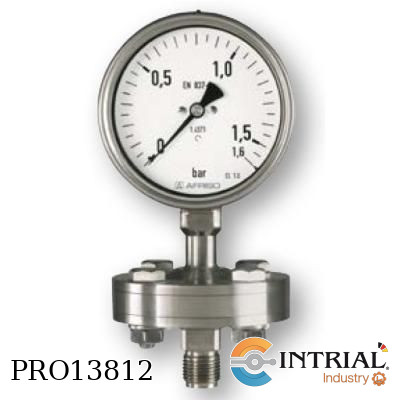

<strong>MANÓMETRO TIPO BOURDON CON SILICONA</strong><br />
•         Marca: AFRISO (Alemania)<br />
•         Rangos: -1 a 0 bar<br />
•         Diámetro de Carcasa: 4''(100 mm)<br />
•         Precisión: 1.0<br />
•         Temperatura operación medio: Max 150°C<br />
•         Material caja /conexión: Acero inoxidable 304/Acero Inoxidable 316<br /><br /><strong>MD30 (31417W) <br />
SELLO DE DIAFRAGMA MD 30 EN ACERO INOXIDABLE</strong><br />
•         Marca: AFRISO (Alemania)<br />
•         Presión Nominal: PN25<br />
•         Conexión a Proceso: ½” NPT<br />
•         Conexión a Instrumento: Conexión Soldada<br />
•         Material del diafragma: Acero Inoxidable 316

FLUJOMETRO EN POLICARBONATO<br />
Marca: DWYER<br />
RMA 2" escala<br />
Con  válvula en Acero Inoxidable<br />
24: Rango:  5 a 70 LPM;  Aire<br />
Proceso de conexión: 1/8"<br />
Precision: 4%<br />
Límite de temperatura: 130°F (54°C)<br />
Límite de presión: 100 psi (6,9 bar)<br />
Materiales en contacto: Cuerpo: en policarbonato<br />
O-ring: neopreno y buna-N<br />
Piezas de metal: Acero Inoxidable<br />
Flotador: Acero Inoxidable

VANE OPERATED FLOW SWITCH<br />
Brand: DYWER<br />
Service: Gases or liquids compatible with wetted materials.<br />
Vane: 316 SS;<br />
Body: 316 SS standard;<br />
Temperature Limit: -4 to 275°F (-20 to135°C) standard,<br />
ATEX and IECEx options,<br />
Ambient temperature -4 to 163°F (-20 to 73°C);<br />
Process temperature -4 to 163°F (-20 to 73°C).<br />
Pressure Limit: 316 SS body 2000 psig (138 bar),<br />
available with 316 SS body and SPDT switch only.<br />
Switch Type: DPDT contact.<br />
Electrical Connections: UL and CSA models: 16AWG,<br />
6" (152 mm) long. ATEX and IECEx unit:Terminal block.<br />
Process Connection: 1 1/2" male NPT.<br />
Mounting Orientation: Within 5° of vertical for proper operation.<br />
Units for horizontal installation (vertical pipe with up flow) available.<br />
Set Point Adjustment: For universal vane: five vane combinations.<br />
Agency Approvals: ATEX, CE, CSA, FM, IECEx, UL<br />
Electrical Rating: UL, FM, ATEX and IECEx models 10A @ 125/250 VAC<br />
V: Vertical up flow, option for upward flow in vertical pipe<br />
****Instalacion horizontal del equipo para tuberia vertical****

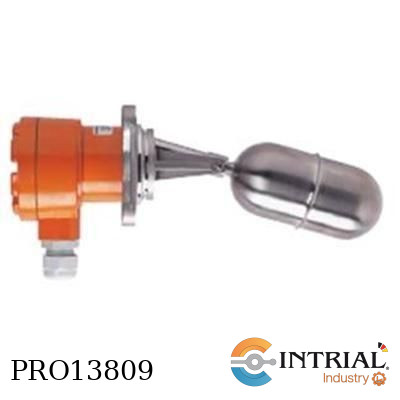

INTERRUPTOR DE NIVEL FLOTADOR MAGNETICO NGS-21<br />
Brand: Kobold<br />
Installation from side<br />
max. temperature 250 °C<br />
Microswitch SPDT, with 2 switch contacts<br />
Electrical connection M20x1,5<br />
Process connection, 2” NPT<br />
Arm length,0 mm<br />
Certification, None

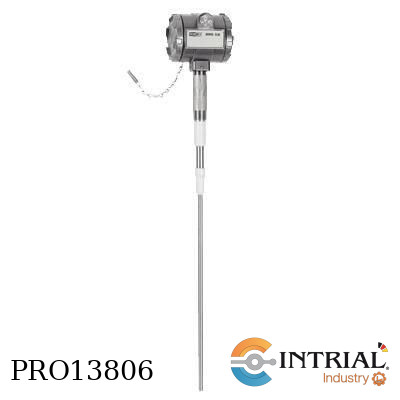

CAPACITIVE LEVEL SWITCH<br />
Brand: DWYER(USA)<br />
Powder, Bulk, or Liquids, Auto-Calibration<br />
[CLS2]: Series, Capacitive level switch.<br />
[W]: Enclosure, Weatherproof NEMA 4X (IP66).<br />
[1]: Switch, DPDT rated 8 A @ 12/240 VAC, 30 VDC res.<br />
[1]: Power Supply, 12-240 VAC/DC<br />
[R]: Probe Type, Standard rod: 316 SS, .375” diameter.<br />
[K]: Insulator Material, PVDF.<br />
[1]: Process Connection, ¾” male NPT<br />
[009]: Probe Length, Insertion length in inches: 9" <br />
Service: Liquids, powder, and bulk materials compatible with wetted materials.<br />
Wetted Materials:  316 SS and polyvinylidene fluoride (PVDF).<br />
Temperature Limits: Ambient: -40 to 185°F (-40 to 85°C).<br />
 Pressure Limit: 365 psi (25 bar).<br />
Mounting Orientation:  Vertical or horizontal.<br />
Response Time: 0.2 s.<br />
time Delay: Adjustable, 0 to 60 s.<br />
Spark/Static Protection: 10 M Ω dissipation resistance with spark gap. Surge current to 100A max.

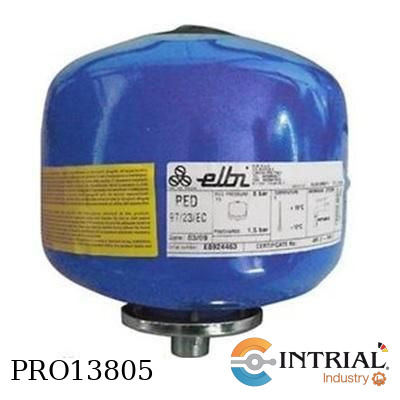

VASOS DE EXPANSIÓN DE MEMBRANA RECAMBIABLE PARA AGUA SANITARIA<br />
• Marca: ELBI<br />
• Capacidad: 25 litros<br />
• Membrana intercambiable: EPDM<br />
• Presión máxima: 8 bar.<br />
• Presión de precarga : 1.5 bar.<br /><br /><br />


Modelo : 04100C1(10 ppmCO)<br /><br />

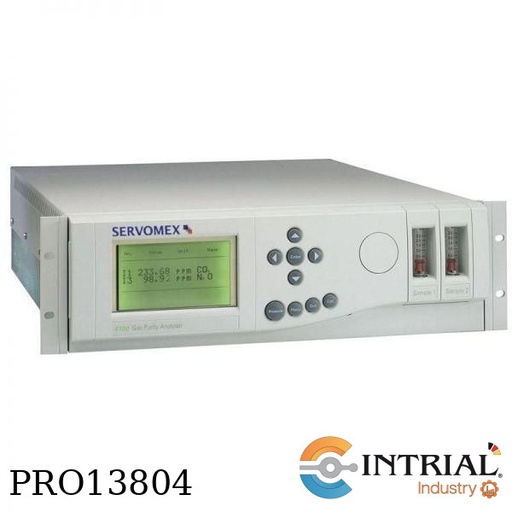

SERVOPRO 4100 Gas Purity Analyser<br />
Voltage: EUR 170-264V 50/60Hz<br />
Module 1 GFX CO 0-10/50vpm<br />
Sample System Module 1 Flow Driven<br />
Chassis Type: Long Chassis<br />
Left Flowmeter: Not Fitted<br />
Right Flowmeter: 2500ml/min Fitted to Module 1<br />
Internal Sample: Filter Not Fitted<br />
Autocalibration Not Fitted<br />
Mounting 19" Rack Mount Ears Only<br />
User Manual

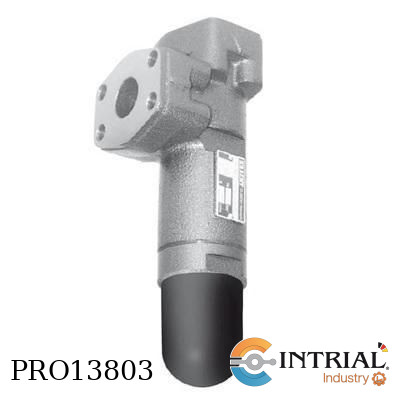

PRESSURE RELIEF VALVE<br />
• Brand: KRACHT<br />
• Materials<br />
• Material Housing Grey cast iron EN-GJL 300<br />
• Material Sealing O-Ring NBR<br />
• Product data<br />
• Nominal Size 10<br />
• Type of design Sliding piston - directly operated<br />
• Mounting type Inline type<br />
• Type of pipe connection Threaded connection G 1/2"<br />
• Type of actuation Set screw<br />
• Specific data<br />
• Flow maximum 40 l/min.<br />
• Max. operating pressure 120 bar<br />
• Pressure setting range 4 bar...12 bar<br />
• Fluid temperature -20°C...+80°C<br />
• Ambient temperature -20°C...+60°C

<div>

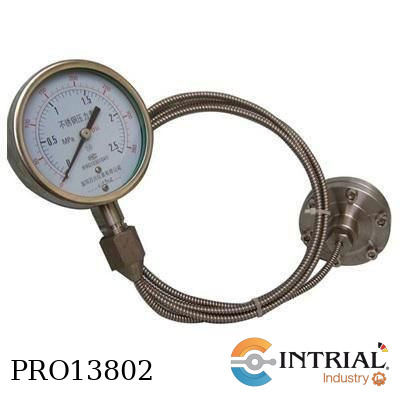

<div>RF 160 Ch D402<br />
BOURDON TUBE PRESSURE GAUGE WITH DIAPHRAGM SEAL<br />
• PN 25<br />
• Diameter: 160 mm<br />
• Range: 0 / 6 bar<br />
• Pointer: Micro-adjustable pointer for zero correction<br />
• Housing: Stainless steel 304 with bayonet bezel 304<br />
• Window: Laminated safety glass<br />
• Accuracy: 1.0</div>

<div>MD 30<br />
• Diaphragm seal: MD 30 with threaded connection<br />
• Nominal pressure: PN 25<br />
• Process connection: 1/2-14 NPT male<br />
• Material body: Stainless steel 316<br />
• Material diaphragm: Hastelloy C-276<br />
• Material tightening rings: ST 52 steel<br />
• Wetted parts: Stainless steel 316 Hastelloy C-276<br />
• Transmission liquid: Silicon oil</div>

<div>5m CAPILLARY TUBE<br />
• Mounting (Instrument connection):Bottom<br />
• Welded connection<br />
• Via 5 m capillary tube<br />
• Stainless steel TAG plate with TAG no. printed on sticker</div>
</div>

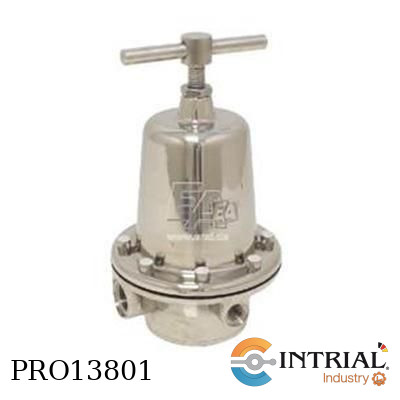

PRESSURE REDUCER<br />
• Brand: END ARMATUREN<br />
• G1/2"<br />
• stainl.steel/FKM, <br />
• inlet pr.:max.25bar<br />
• outlet pr.:2-10bar

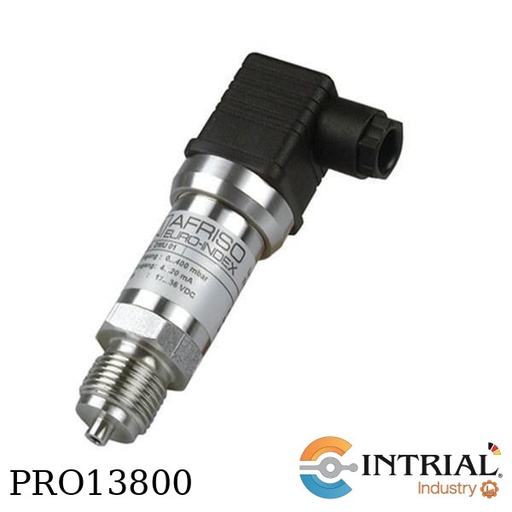

TRANSMISOR DE PRESION <br />
Marca: AFRISO (Alemania) <br />
Principio de Medición: Piezoresistivo<br />
Precisión: 0.5 % FSO<br />
Conexión: ½” NPT <br />
Salida: 4-20 mA, 2 Hilos <br />
Alimentación: 8-32 VDC <br />
Conector y Caja segun ISO 4400 DIN 43650-A <br />
Rango: -1 a 3 bar

MULTI-JET BRASS BODY WATER METER<br />
NSF Certified, Lead Free, Economical<br />
Brand: DWYER (USA)<br />
Coupling Size: 1-1/2" NPT<br />
GPM (Gallons Per Minute)<br />
Max Flow: 100<br />
Nominal Flow Range: 5 to 100<br />
Transitional Flow: 1.25<br />
Service: Water.<br />
Wetted Materials: Body: ECO BRASS®; Couplings: ECO BRASS®; Measuring<br />
Chamber: ABS Plastic.<br />
Flow Range: See model chart.<br />
Accuracy: Transitional Flow: ± 3%; Nominal Flow: ±1.5%.<br />
Temperature Limit: 122°F (50° C).<br />
Pressure Limit: 150 psi (10 bar).<br />
Totalizing Display Maximum: See model chart.<br />
Output Signal: Pulse output with frequency proportional to flow rate.<br />
Pulse Options: 0.1 gal, 1 gal, 10 gal, 100 gal per pulse.<br />
Electrical Rating: 0.01 A @ 24 VAC/DC.<br />
Electrical Connections: Color-coded lead wires, 4.5´ (1.5 m) long.<br />
Mounting Orientation: Horizontal with register facing up.<br />
Weight: See dimension chart.<br />
Agency Approvals: NSF

VANE OPERATED FLOW SWITCH<br />
Brand: DYWER<br />
Service: Gases or liquids compatible with wetted materials.<br />
Vane: 316 SS;<br />
Body: 316 SS standard;<br />
Temperature Limit: -4 to 275°F (-20 to135°C) standard,<br />
ATEX and IECEx options,<br />
Ambient temperature -4 to 163°F (-20 to 73°C);<br />
Process temperature -4 to 163°F (-20 to 73°C).<br />
Pressure Limit: 316 SS body 2000 psig (138 bar),<br />
available with 316 SS body and SPDT switch only.<br />
Switch Type: DPDT contact.<br />
Electrical Connections: UL and CSA models: 16AWG,<br />
6" (152 mm) long. ATEX and IECEx unit:Terminal block.<br />
•Process Connection: 1 1/2" male NPT.<br />
Mounting Orientation: Within 5° of vertical for proper operation.<br />
Units for horizontal installation (vertical pipe with up flow) available.<br />
Set Point Adjustment: For universal vane: five vane combinations.<br />
Agency Approvals: ATEX, CE, CSA, FM, IECEx, UL<br />
Electrical Rating: UL, FM, ATEX and IECEx models 10A @ 125/250 VAC<br />
Conduit Connection: Incluye adaptador de 3/4" a ½ “ NPT (A-2024-6)<br />
V: Vertical up flow, option for upward flow in vertical pipe<br />
****Instalacion horizontal del equipo para tuberia vertical****

All Stainless Steel- Pressure Gauges with Bourdon Tube<br />
Brand: KOBOLD<br />
Model: MAN-RF76-B8<br />
[MAN-RF76]:<br />
Accuracy class: 1.0<br />
Diameter: 100 mm<br />
Housing: VA, filled*<br />
*Standard filling: Glycerin<br />
Connection: stainless steel 1.4571<br />
Thread connection: G 1/2 male<br />
Max. medium temperature: 80°C<br />
Contact compatible: Yes, special safety only inductive<br />
[B8] Indication range: 0...16 bar

EPS MAGNETIC INDUCTIVE FLOWMETER<br />
Brand: Kobold–Heinrichs<br />
Material – lining, PTFE<br />
Process Connection, 1/2" Class 150 RF<br />
Material electrodes, Stainless steel 1.4571 (316 TI)<br />
Earthing electrode: w/o<br />
Power supply, 24 VDC (+15%)<br />
Output signal, 1: 0(4) - 20mA, HART protocol

COMPACT THREADED OR FLANGED WITH NECK PIPE<br />
Brand: KOBOLD<br />
Process connection: 2” Class 150 RF<br />
1 x Pt100 class A (-70-+600 °C)<br />
RTD wiring: 3-wire<br />
Aluminium head with LCD display and HART transmitter included<br />
Head transmitter: 5333D transmitter 4 - 20 mA 2-wire<br />
Longitud: 500 mm

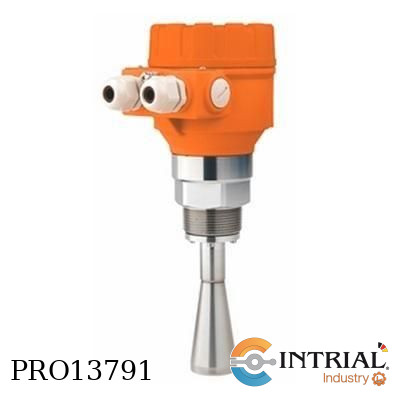

Non-Contact Radar Level Transmitter<br />
Brand: Kobold(Alemania)<br />
Model: NRM-4A-S-N80-10-0<br />
[NRM-4A]:<br />
Measuring range on liquids 0,2-18 m<br />
Power supply 20...36 VDC (Ex: 20-30 VDC), 2-wire<br />
max. temperature  -30...+100 °C (HT-Version: +180°C)<br />
max. pressure 25 bar (3 bar PP)<br />
min. dielectric constant Er of medium, 1,9<br />
[S]: Material antenna/housing, 1.4571/Aluminum (paint coated)<br />
[N80]: Connection, 1 1/2 NPT male<br />
[10]: Output/Version/Approval, 4-20 mA, HART®/ with display / without<br />
[0]: Options, without

SIGHT FLOW INDICATOR<br />
Brand: DWYER<br />
Tube type with 8 blade<br />
Acetal impeller and integral wipers to clean<br />
Tube interior, tempered borosilicate tube<br />
Fluoroelastomer gaskets<br />
Body Style: 316SS body<br />
Body Size: 1 Inch female NPT connection size<br />
Service: Compatible gases and liquids<br />
Temperature Limit: 212°F (100°C)<br />
Pressure Limit: 230 psig (15.86 bar)<br />
Connections: Threaded.
