MULTI-JET HOT WATER METER<br />
MARCA: DWYER INSTRUMENTS<br />
3/4" pipe size<br />
Max Flow: 20 GPM<br />
Nominal Flow Range: 1 to 20 GPM<br />
1 gal pulse output<br />
Temperature Limit: 190°F (88°C).
<div>
<div class="gtx-trans-icon"></div>
</div>

<div>
<div>CPU-PROSCAN-BRD-VERS3 CPU BOARD ASM W<br />
•OUTPUT PROTECTION DIODE<br />
•ELECTRONIC MAINBOARD<br />
•Brand: AW LAKE</div>
</div>

<div>INSERT-PROSCAN2-V2-ASSY TO ASSEMBLE INSERT, USE 10</div>

<div>•<span> </span>INFRARED SENSOR</div>

<div>•<span> </span>Brand: AW LAKE</div>

<div>SAPPHIRE </div>

<div>•<span> </span>GLASS LENS</div>

<div>•<span> </span>Brand: AW LAKE</div>

MULTI-JET HOT WATER METER<br />

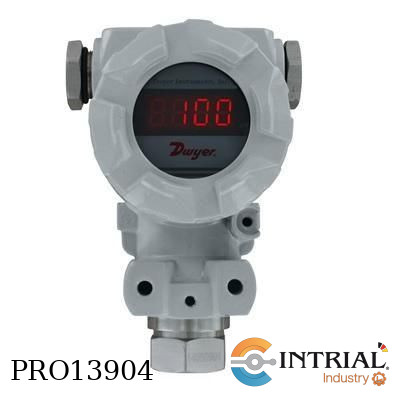

INDUSTRIAL WEATHERPROOF PRESSURE TRANSMITTER<br />
Exceptional Reliability for Harsh Environments<br />
Brand: DWYER INSTRUMENTS<br />
Pressure Range: 0 to 200 psig<br />
Service: Gases and liquids compatible<br />
with wetted materials.<br />
Wetted Materials: 304 and 316 stainless steel.<br />
Accuracy: 0.5% FS.<br />
Stability: <0.2% FS per year.<br />
Temperature Limits: -22 to 203°F (-30 to 95°C).<br />
Compensated Temperature Limits: 32 to 158°F (0 to 70°C).<br />
Pressure Limits: 1.5 x pressure range.<br />
Temperature Coefficient: 0.3% FS per 10°C.<br />
Power Requirements: 12 to 36 VDC.<br />
Output Signal: 4 to 20mA.<br />
Loop Resistance: 1200 Ωmax.<br />
Electrical Conduit Connection: 1/2" female NPT.<br />
Process Connection: 1/2" female NPT.<br />
Enclosure Rating: IP65.

RF160 Ch,D402(85266402) <br />
MANÓMETRO TIPO BOURDON CON GLICERINA <br />
Marca: AFRISO(Alemania)  <br />
Rango: 0 a 16 Bar<br />
Diámetro de Carcasa: 6''(160 mm)  <br />
Precisión: 1.0  <br />
Dial: Micro-adjustable pointer for zero correction<br />
Temperatura operación medio: Max 150°C  <br />
Material caja /conexión:Acero inoxidable 304/Acero Inoxidable 316<br />
Doble escala: Bar y PSI<br /><br />

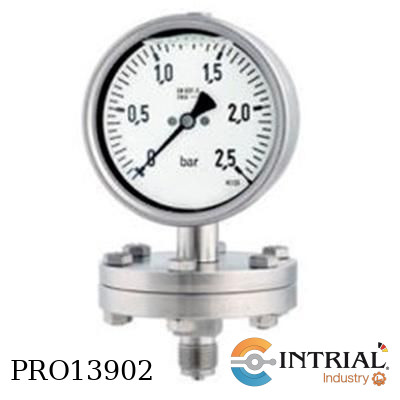

MD30 (31417W) <br />
SELLO DE DIAFRAGMA MD 30 CON RECUBRIMIENTO EN HASTELLOY<br />
Marca: AFRISO (Alemania)<br />
Presión Nominal: PN25<br />
Conexión a Proceso: ½” NPT<br />
Conexión a Instrumento: Conexión Soldada<br />
Material del diafragma: Hastelloy

<strong>CONTROLADOR ELECTRÓNICO DE TEMPERATURA<br />
• THERMOTRONIK<br />
• Brand: BUHLER TECHNOLOGIES GMBH</strong><br />
• [TT-77]: Series, model<br />
• [VA]: Stainless steel<br />
• [2T]: 2 x PNP output Max. 0.5 A<br />
• [70]: Length, 70 mm<br />
• Supply voltage: 10 – 30 VDC<br />
• Resolution: 0.5 °C<br />
• Accuracy: 1%

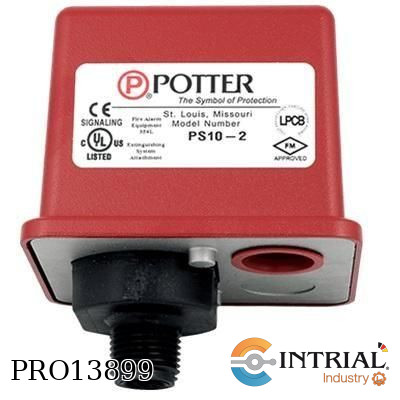

PRESSURE SWITCH<br />
• Brand: POTTER<br />
• Pressure Connection: Nylon 1/2" NPT Male<br />
• Factory Adjustment: 4 - 8 PSI<br />
• Maximum System Pressure: 300 PSI<br />
• Switch Contacts: SPDT (Form C) 125/250VAC<br />
• Environmental Specifications: NEMA 4/IP66<br />
• Temperature range:  (-40°C to 60°C)

SERIES SFI-100 & SFI-300 SIGHT FLOW INDICATOR<br />
Brand: DWYER (USA)<br />
SFI: Model Designator<br />
Sight flow indicator, tempered glass Standard<br />
Buna-N gaskets standard<br />
Female NPT connections standard<br />
300: Body Style: Double window, bronze body, ABS Impeller<br />
SS: Body Options: 316SS body option for 300, 350, 360<br />
1: Body Size: 1 inch connection size<br />
I2: Options: 316SS impeller (Not on 350, 360)

HANDHELD DIGITAL MANOMETER<br />
Measures Pressure, Flow and Velocity; ±0.5% Accuracy<br />
Range: 0 to 40.00 in w.c.<br />
Brand: DWYER (USA)<br />
Service: Air and compatible gases.<br />
Wetted Materials: Consult factory.<br />
Accuracy: ±0.5% FS, 60 to 78°F (15.6 to 25.6°C); <br />
±1.5% FS from 32 to 60°F and 78 to 104°F (0 to 15.6°C and 25.6 to 40.0°C)<br />
Pressure Hysteresis: ±0.1% FS.<br />
Pressure Limits: 10 psig.<br />
Temperature Limits: 0 to 140°F (-17.8 to 60°C).<br />
Compensated Temperature Limits: 32 to 104°F (0 to 40°C).<br />
Storage Temperature Limits: -4 to 176°F (-20 to 80°C).<br />
Display: 0.42" (10.6 mm) 4 digit LCD.<br />
Resolution: See chart.<br />
Units of Pressure: in w.c., ft w.c., in Hg,<br />
psi, oz/in2, mm w.c., cm w.c., mm Hg,<br />
mbar, Pa, kPa, hPa.<br />
Units of Velocity: fpm, fps, mph, m/h, m/s, k/h, knot.<br />
Velocity Range: fpm: 25.33k; m/s: 128.7<br />
Units of Flow: cfm, m3/h, m3/s.<br />
Power Requirements: 9 V alkaline<br />
battery, installed non-functional, user replaceable.<br />
Weight: 10.2 oz (289 g).<br />
Process Connections: Two barbed<br />
connections for use with 1/8" (3.18 mm) or 3/16" (4.76 mm). <br />
Agency Approvals: CE.

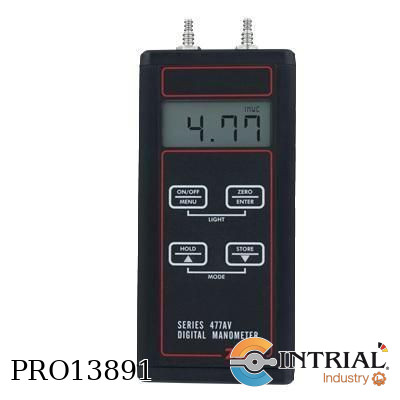

HANDHELD DIGITAL MANOMETER<br />
Measures Pressure, Flow and Velocity; ±0.5% Accuracy<br />
Range: 0 to 20.00 in w.c.<br />
Brand: DWYER (USA)<br />
Service: Air and compatible gases.<br />
Wetted Materials: Consult factory.<br />
Accuracy: ±0.5% FS, 60 to 78°F (15.6 to 25.6°C); <br />
±1.5% FS from 32 to 60°F and 78 to 104°F (0 to 15.6°C and 25.6 to 40.0°C)<br />
Pressure Hysteresis: ±0.1% FS.<br />
Pressure Limits: 10 psig.<br />
Temperature Limits: 0 to 140°F (-17.8 to 60°C).<br />
Compensated Temperature Limits: 32 to 104°F (0 to 40°C).<br />
Storage Temperature Limits: -4 to 176°F (-20 to 80°C).<br />
Display: 0.42" (10.6 mm) 4 digit LCD.<br />
Resolution: See chart.<br />
Units of Pressure: in w.c., ft w.c., in Hg,<br />
psi, oz/in2, mm w.c., cm w.c., mm Hg,<br />
mbar, Pa, kPa, hPa.<br />
Units of Velocity: fpm, fps, mph, m/h, m/s, k/h, knot.<br />
Velocity Range: fpm: 1.791 k; m/s: 90.97<br />
Units of Flow: cfm, m3/h, m3/s.<br />
Power Requirements: 9 V alkaline<br />
battery, installed non-functional, user replaceable.<br />
Weight: 10.2 oz (289 g).<br />
Process Connections: Two barbed<br />
connections for use with 1/8" (3.18 mm) or 3/16" (4.76 mm). <br />
Agency Approvals: CE.

OSIRDJX<br />
--------------<br />

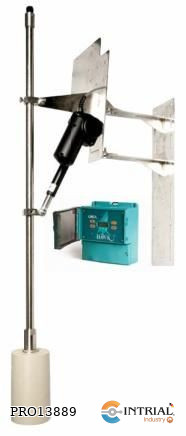

ORCA Remote Sonar Level Transmitter, 3 relay alarms<br />
* Power Supply: System can work with 90-250 VAC or 24-30VDC indistinctly<br />
* Sealing: IP67<br />
* Communication: 2 x 4-20mA Analog Output modules with HART<br />
* Display: LCD Display (2 line x 12 digit alphanumeric)<br />
OSIRT302SHXC15<br />
----------------------------<br />
ORCA Remote Sonar Transducer<br />
* 150 kHz for Industrial and Mining Application<br />
* Maximum Range: 25 mts<br />
* Full Fiberglass high temp version for Facing & Housing Material<br />
* No Approval standard required<br />
* End Connection: 1" NPT<br />
* IP 68 Sealed with 15 mts cable<br />
A C C E S S O R I E S<br />
================<br />
OSIRSC-A<br />
--------------<br />
Automatic Scum Cleaner<br />
* 24VDC Electric Actuator incl. Mounting Accessories<br />
OSIRMEL-5<br />
---------------<br />
Mounting Extension Pipe<br />
* Stainless Steel Pipe with a length of 5 mts<br />
HAWKLINK<br />
---------------<br />
Usb cable and converter for Goshawk Software

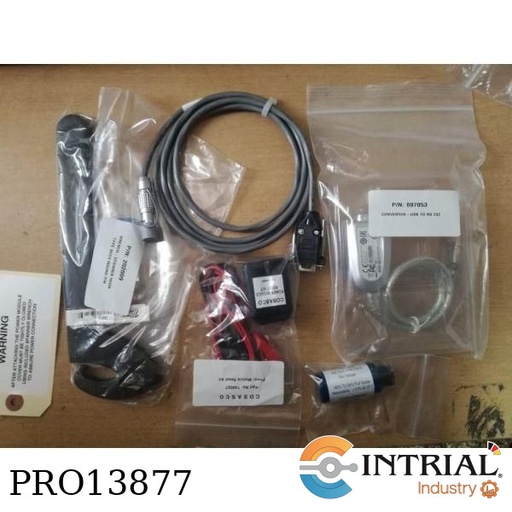

<div>M-310 Installation Kit (702406-MWT)<br />
• Wireless HART7</div>

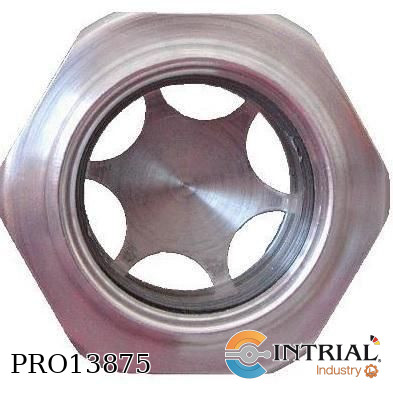

Visor para nivel de aceite forma hexagonal<br />
Material Aluminio<br />
Marca: INTRIAL<br />
Rosca G 1 1/4"<br />
***Incluye Junta Exterior (35683803320)
<div>
<div class="gtx-trans-icon"></div>
</div>

<strong><span style="font-size:13.5pt;line-height:107%;font-family:Calibri, sans-serif;">ELECTRONIC FLOW SWITCHES</span><br />
Brand: AMERITROL</strong><br />
PROCESS CONNECTION: 1/2” MNPT<br />
INSERTION LENGTH: 1.8” STANDARD<br />
POWER INPUT: 117 VAC (90-132VAC)<br />
PROCESS TEMPERATURE:  -50F TO +350F<br />
RELAY OUTPUTS: SPDT 3 AMP RESISTIVE
<div>
<div class="gtx-trans-icon"></div>
</div>

• Manometro 0/60 mbar/mmH2O<br />
• Manómetro tipo membrana<br />
• Marca AFRISO(Alemania)<br />
• Diámetro de Carcasa 4''(100mm)<br />
• Precisión 1.6(EN 837-1/6)<br />
• Temperatura operación Max 120°C<br />
• Conexión INFERIOR,1/2 ''NPT acero inox<br />
• Material: caja en acero inoxidable

• Manometro 0/40 mbar/mmH2O<br />
• Manómetro tipo membrana<br />
• Marca AFRISO(Alemania)<br />
• Diámetro de Carcasa 4''(100mm)<br />
• Precisión 1.6(EN 837-1/6)<br />
• Temperatura operación Max 120°C<br />
• Conexión INFERIOR,1/2 ''NPT acero inox<br />
• Material: caja en acero inoxidable

• Manometro 0/60 mbar/mmH2O<br />
• Manómetro tipo membrana<br />
• Marca AFRISO(Alemania)<br />
• Diámetro de Carcasa 2 1/2''(63mm)<br />
• Precisión 1.6(EN 837-1/6)<br />
• Temperatura operación Max 120°C<br />
• Conexión INFERIOR,1/4 ''NPT acero inox<br />
• Material: caja en acero inoxidable<br />


• Manometro 0/40 mbar/mmH2O<br />
• Manómetro tipo membrana<br />
• Marca AFRISO(Alemania)<br />
• Diámetro de Carcasa 2 1/2''(63mm)<br />
• Precisión 1.6(EN 837-1/6)<br />
• Temperatura operación Max 120°C<br />
• Conexión INFERIOR,1/4 ''NPT acero inox<br />
• Material: caja en acero inoxidable

CONTROL DIGITAL DE TEMP, 4 DÍG<br />
Marca : AUTONICS<br />
W48xH48mm,<br />
Ent universal<br />
Alim 100-240VAC<br />
Salida a relevador
