Pelican 1650 - Color Black Filled with Pick & Pluck Foam - Color Black

Case para Transporte, Color Negro Relleno de espuma Pick & Pluck<br />
Pelican 1610

<div>Model: TD350A-M Manual</div>

<div></div>

<div>GENERAL</div>

<div>•<span> </span>Valve<span> </span>TriDART Manual Valve 400mm (14")</div>

<div>•<span> </span>Model<span> </span>TD350A (14”)</div>

<div>•<span> </span>Serial No<span> </span> </div>

<div>•<span> </span>Tag Number/s<span> </span> </div>

<div>•<span> </span>eDART Number<span> </span>.</div>

<div>•<span> </span>Estimated Weight (Kg)<span> </span>185kg each.</div>

<div>•<span> </span>Data Book required<span> </span>Yes</div>

<div></div>

<div>VALVE FRAME<span> </span> </div>

<div>•<span> </span>Type<span> </span>TriDart</div>

<div>•<span> </span>Size<span> </span>350mm A(14”)</div>

<div>•<span> </span>Bellows Seal<span> </span>No</div>

<div>•<span> </span>Guide Bar Material<span> </span>Mild Steel + Polyurethane</div>

<div>•<span> </span>Guide Bar Length #2<span> </span>1010 mm</div>

<div>•<span> </span>Flange Type / Drilling<span> </span>Clamp Down    /   450NB SANS 1123</div>

<div>•<span> </span>PU Shaft Guard<span> </span>Yes</div>

<div>•<span> </span>Shaft Material<span> </span>304 StSt</div>

<div>•<span> </span>Valve shaft guide<span> </span>HDPE</div>

<div></div>

<div>Pedestal<span> </span> </div>

<div>•<span> </span>Type<span> </span>Standard</div>

<div>•<span> </span>Material<span> </span>Mild Steel</div>

<div>•<span> </span>Anti-rotation arm<span> </span>Yes.</div>

<div>•<span> </span>Painting Jotun Phenolic - Yellow</div>

<div></div>

<div>TRIM<span> </span> </div>

<div>•<span> </span>Characteristic<span> </span>Linear</div>

<div>•<span> </span>Flow Direction<span> </span>Over the plug</div>

<div>•<span> </span>Plug - Type / Size<span> </span>Head Guided    /      350mm</div>

<div>•<span> </span>Plug - Material<span> </span>Mild Steel + Polyurethane</div>

<div>•<span> </span>Backing Cone<span> </span>Yes</div>

<div>•<span> </span>Seat - Type / Size<span> </span>Full bore - A     350mm</div>

<div>•<span> </span>Seat - Material<span> </span>Mild Steel + Polyurethane</div>

<div> <span> </span> </div>

<div>Actuator<span> </span> </div>

<div>•<span> </span>Type / Feedback<span> </span>Handwheel Mechanical<span> </span>  NOTES</div>

<div>•<span> </span>Material / Style<span> </span>Standard/EDT<span> </span></div>

<div>•<span> </span>Air failure<span> </span>None<span> </span> </div>

<div>•<span> </span>Fail Method<span> </span>None<span> </span> <span> </span> <span> </span> <span> </span> <span> </span> <span> </span> </div>

<div>•<span> </span>Act Model No<span> </span>#N/A<span> </span> <span> </span> <span> </span> <span> </span> <span> </span> <span> </span> </div>

<div>•<span> </span>Fitting and Piping<span> </span>Plastic<span> </span> <span> </span> <span> </span> <span> </span> <span> </span> <span> </span> </div>

<div>•<span> </span>Stroke<span> </span>245<span> </span>mm<span> </span> </div>

<div>•<span> </span>Air Presure: NA <span> </span> <span> </span> <span> </span> </div>

<div></div>

<div>VALVE DESIGN DATA<span> </span>Maximum<span> </span>Nominal<span> </span>Minimum<span> </span>Units</div>

<div>•<span> </span>Maximum Pressure<span> </span> <span> </span>300<span> </span> <span> </span>kPa(g)</div>

<div>•<span> </span>Minimum Temperature<span> </span> <span> </span>2<span> </span> <span> </span>ºC</div>

<div>•<span> </span>Maximum Temperature<span> </span> <span> </span>60<span> </span> <span> </span>ºC</div>

<div>•<span> </span>% CV<span> </span> <span> </span> <span> </span> <span> </span> </div>

<div>•<span> </span>% Opening<span> </span> <span> </span> <span> </span> <span> </span>%</div>

<div>•<span> </span>Maximum Velocity<span> </span> <span> </span> <span> </span> <span> </span>m/s</div>

<div>Model: TD400A-M-Manual</div>

<div></div>

<div>GENERAL</div>

<div>•<span> </span>Valve<span> </span>TriDART Manual Valve 400mm (16")</div>

<div>•<span> </span>Model<span> </span>TD400A (16”)</div>

<div>•<span> </span>Serial No<span> </span> </div>

<div>•<span> </span>Tag Number/s<span> </span> </div>

<div>•<span> </span>eDART Number<span> </span>.</div>

<div>•<span> </span>Estimated Weight (Kg)<span> </span>205kg each.</div>

<div>•<span> </span>Data Book required<span> </span>Yes</div>

<div></div>

<div>VALVE FRAME<span> </span> </div>

<div>•<span> </span>Type<span> </span>TriDart</div>

<div>•<span> </span>Size<span> </span>400mm A(16”)</div>

<div>•<span> </span>Bellows Seal<span> </span>No</div>

<div>•<span> </span>Guide Bar Material<span> </span>Mild Steel + Polyurethane</div>

<div>•<span> </span>Guide Bar Length #2<span> </span>1010  mm</div>

<div>•<span> </span>Flange Type / Drilling<span> </span>Clamp Down    /   450NB SANS 1123</div>

<div>•<span> </span>PU Shaft Guard<span> </span>Yes</div>

<div>•<span> </span>Shaft Material<span> </span>304 StSt</div>

<div>•<span> </span>Valve shaft guide<span> </span>HDPE</div>

<div></div>

<div>Pedestal<span> </span> </div>

<div>•<span> </span>Type<span> </span>Standard</div>

<div>•<span> </span>Material<span> </span>Mild Steel</div>

<div>•<span> </span>Anti-rotation arm<span> </span>Yes.</div>

<div>•<span> </span>Painting Jotun Phenolic - Yellow</div>

<div></div>

<div>TRIM<span> </span> </div>

<div>•<span> </span>Characteristic<span> </span>Linear</div>

<div>•<span> </span>Flow Direction<span> </span>Over the plug</div>

<div>•<span> </span>Plug - Type / Size<span> </span>Head Guided    /      400mm</div>

<div>•<span> </span>Plug - Material<span> </span>Mild Steel + Polyurethane</div>

<div>•<span> </span>Backing Cone<span> </span>Yes</div>

<div>•<span> </span>Seat - Type / Size<span> </span>Full bore - A     400mm</div>

<div>•<span> </span>Seat - Material<span> </span>Mild Steel + Polyurethane</div>

<div> <span> </span> </div>

<div>Actuator<span> </span> </div>

<div>•<span> </span>Type / Feedback<span> </span>Handwheel Mechanical<span> </span>  NOTES</div>

<div>•<span> </span>Material / Style<span> </span>Standard/EDT<span> </span></div>

<div>•<span> </span>Air failure<span> </span>None<span> </span> </div>

<div>•<span> </span>Fail Method<span> </span>None<span> </span> <span> </span> <span> </span> <span> </span> <span> </span> <span> </span> </div>

<div>•<span> </span>Act Model No<span> </span>#N/A<span> </span> <span> </span> <span> </span> <span> </span> <span> </span> <span> </span> </div>

<div>•<span> </span>Fitting and Piping<span> </span>Plastic<span> </span> <span> </span> <span> </span> <span> </span> <span> </span> <span> </span> </div>

<div>•<span> </span>Stroke<span> </span>280<span> </span>mm<span> </span> </div>

<div>•<span> </span>Air Presure: NA <span> </span> <span> </span> </div>

<div></div>

<div>VALVE DESIGN DATA<span> </span>Maximum<span> </span>Nominal<span> </span>Minimum<span> </span>Units</div>

<div>•<span> </span>Maximum Pressure<span> </span> <span> </span>300<span> </span> <span> </span>kPa(g)</div>

<div>•<span> </span>Minimum Temperature<span> </span> <span> </span>2<span> </span> <span> </span>ºC</div>

<div>•<span> </span>Maximum Temperature<span> </span> <span> </span>60<span> </span> <span> </span>ºC</div>

<div>•<span> </span>% CV<span> </span> <span> </span> <span> </span> <span> </span> </div>

<div>•<span> </span>% Opening<span> </span> <span> </span> <span> </span> <span> </span>%</div>

<div>•<span> </span>Maximum Velocity<span> </span> <span> </span> <span> </span> <span> </span>m/s</div>

THERMOWELL AC. INOXIDABLE SS316<br />
•    Largo del bulbo de acuerdo a pt-100 (PTS-635-0020)<br />
•    Conexión a instrumento 1/2'' Hi Npt<br />
•    Conexión a proceso 1/2" He Npt.<br />
•    Marca: Intrial

SENSOR PT-100, 3 HILOS<br />
Marca: INTRIAL<br />
Modelo: PTS-635-0020<br />
• Bulbo Acero Inoxidable SS 316.<br />
• Diámetro del bulbo 1/4"<br />
• Largo del Bulbo 20 cm + Hilo<br />
• Conexión a Proceso 1/2'' NPT He.<br />
• Conexión eléctrica 1/2'' NPT<br />
• Cabezal de Aluminio Grande<br />

<div>
<div class="gtx-trans-icon"></div>
</div>

CONVERTER<br />
•TRIO-PS/1AC/24DC/ 5 - 2866310 <br />
•Manufacturer: PHOENIX CONTACT

IDP082X3V<br />
O RING    70/80 Grad Shore<br />
•Brand: STEIMEL<br />
•82x3 mm  Viton<br />
•For: Model: SF 8/400 RD-LF<br />
•(serial 1.PU13 0335-1)

O-RING 70/80 Grad Shore<br />
Brand: STEIMEL<br />
150x4 mm Viton

Radial shaft seal VITON<br />
Brand: STEIMEL<br />
30x42x6mm<br />
Mat. 75 FKM 595<br />
Original Freudenberg

ELB-404440MD01<br />
Bearing bush MULTILAYER<br />
•Brand: STEIMEL<br />
•For: Model: SF 8/400 RD-LF<br />
•(serial 1.PU13 0335-1)

<div>///096-3533-01///: <span> </span>ALUMINUM ENCLOSURE, STANDARD DISPLAY, PLASTIC END CAP (Transmisor Universal que se puede usar para todo tipo de Sensores)</div>

<div>Material de la carcasa: ///Aluminio libre de cobre///</div>

<div>Voltaje de servicio 2 hilos: /// 10-30 VCC (24 VCC nominal)///</div>

<div>Protección de la carcasa NEMA 4X, IP66</div>

<div>Alarmas: 3 alarmas programables con inicio y reseteo (banda muerta ajustable); 1 fallo de sistema fail-safe</div>

<div>Relés Cuatro relés tipo C, con corriente nominal de 5 A a 30 VCC/240 VCA, cargas resistivas</div>

<div></div>

<div>Modelo : 096-3473-54</div>

<div>MERIDIAN NITROGEN DIOXIDE SENSOR - NO2( 0 – 10ppm)</div>

<div>Modelo : 096-3473-54</div>

<div>MERIDIAN NITROGEN DIOXIDE SENSOR - NO2( 0 – 10ppm)</div>

<div>
<div class="gtx-trans-icon"></div>
</div>

Single Pump Unit Series<br />
MOG 5011-FL<br />
Flanged Connection with Integral overflow Valve<br />
Pump Type: VBHGP-I-2-10<br />
Flow: 3600 l/h  at 60 Hz<br />
Presure range: 2<br />
Adjustable: 2-9 bar<br />
Connections: DN32<br />
Medium: Diesel<br />
Three Phase Motor: B3/B14<br />
Power: 1.5Kw<br />
Speed: 1700min-1 al 60Hz<br />
Voltage: 480 V at 60Hz<br />
Tolerance: +/-5%<br />
Efficiency Class: IE2<br />
Degree of protection: IP55<br />
Filter: DN32<br />
Insert: 100um<br />
Oil Pan: 1400x500x800mm<br />
Vacuum gage: -1..+5 bar<br />
Pressure gage: 0-10 bar

758 (1 1?2")<br />
CAST IRON FLANGED ENDS Y STRAINERS<br />
•Brand: MUELLER STEAM<br />
•Sizes: 1 1?2" (40 mm)<br />
•Class 125<br />
•With standard 1/16" perf<br />
•304SS Screen

RANGO : 0 a 250 bar/0 to 3625 psi<br />
Manómetro, tipo Bourdon<br />
Marca: AFRISO(Alemania)<br />
Diámetro de Carcasa 4''(100mm)<br />
Precisión 1.6(EN 83,7-1/6)<br />
Temperatura operación Max 120°C<br />
Conexión INFERIOR,1/2''NPT<br />
Material:caja y conección en acero inoxidable 1.4571.<br />
Con o/sin glicerina,especificar al momento de ordenar

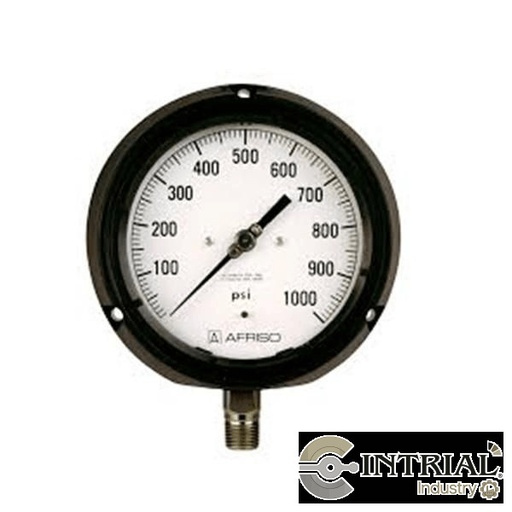

RF130PG,D102(0 a 1700 Kpa) <br />
MANOMETRO TIPO FENOLICO CON GLYCERINA<br />
Marca: AFRISO(Alemania)<br />
Dial Ø: 4 ½ “<br />
Carcaza: PP-GF 20, negra<br />
Elemento de medición: Acero Inoxidable 316Ti/316 L<br />
Precisión Clase: Grado 2A según ANSI B 40.1 (correspondiente para clase 0.5)<br />
Conexión: ½ NPTM- Inferior<br />
Rango: 0 a 1700 KPa<br />
Doble escala: PSI; Kpa

MANOMETRO TIPO FENOLICO CON GLYCERINA<br />
Marca: AFRISO(Alemania)<br />
Dial Ø: 4 ½ “<br />
Carcaza: PP-GF 20, negra<br />
Elemento de medición: Acero Inoxidable 316Ti/316 L<br />
Precisión Clase: Grado 2A según ANSI B 40.1 (correspondiente para clase 0.5)<br />
Conexión: ½ NPTM- Inferior<br />
Rango: 0 a 1200 KPa<br />
Doble escala: PSI; Kpa

RF130PG,D102 (0 a 600 Kpa)<br />
MANOMETRO TIPO FENOLICO CON GLYCERINA<br />
Marca: AFRISO(Alemania)<br />
Dial Ø: 4 ½ “<br />
Carcaza: PP-GF 20, negra<br />
Elemento de medición: Acero Inoxidable 316Ti/316 L<br />
Precisión Clase: Grado 2A según ANSI B 40.1 (correspondiente para clase 0.5)<br />
Conexión: ½ NPTM- Inferior<br />
Rangos de 600 Kpa<br />
Doble escala: PSI; Kpa
