SWITCH DE NIVEL TILT<br />
Marca: CONVEYOR COMPONENTS<br />
UNIDAD DE CONTROL CON GABINETE NEMA 12<br />
TENSION DE ENTREDA: 120 VAC, 50/60 Hz<br />
SALIDA TIPO RELE DP/DT: 5A RESISTIVO @120V

<strong>SWITCH DE NIVEL<br />
Brand: Conveyor Components</strong><br />
Tilt Switch CT 200G<br />
Sonda de 6IN Long

<div>Modelo: DWB077A50 </div>

<div>•<span> </span>Campana decorativa BOSCH DWB077A50 </div>

<div>•<span> </span>Campana decorativa de pared, 70 cm, Potencia extracción 690 m3/h , Inox, Motor EcoSilence Drive, 58 dB</div>

<div>•<span> </span>RF MAGNET ANTENNA EN868 2.5 M</div>

<div>•<span> </span>BRAND: .STEUTE</div>

<div>•<span> </span>RF Magnet antenna EN868 2.5 m</div>

<div>•<span> </span>Material number: 1186143 (Material number old: 01.08.0386)</div>

<div>•<span> </span>Features/Options</div>

<div>•<span> </span>RF magnet antenna with straight SMA plug-in connector withoutferrite core</div>

<div>•<span> </span>Cable length 2.5 m Frequency 900 / 1800 / 1900 MHz</div>

<div>•<span> </span>Type Magnet foot antennaImpedance 50 Ohm</div>

<div>•<span> </span>Gain 0 dBColour black</div>

<div>•<span> </span>Dimensions Ø foot 34 mm</div>

<div>•<span> </span>high approx. 105 mm</div>

<div>•<span> </span>Cable 2.5 m RG174Connector SMA (male)</div>

<div>•<span> </span>Weight 90 g</div>

<div>•<span> </span>WIRELESS RECEIVER RF RX EN868-1W 24 VDC</div>

<div>•<span> </span>BRAND: STEUTE</div>

<div>•<span> </span>Wireless receiver RF Rx EN868-1W 24 VDC</div>

<div>•<span> </span>Material number: 1186059 (Material number old: 90590007) </div>

<div>•<span> </span>Features/OptionsEnOcean® </div>

<div>•<span> </span>wireless technology</div>

<div>•<span> </span>1 potential-free relay output1 change-over contact</div>

<div>•<span> </span>Transmitter/receiver assignment by teaching mode</div>

<div>•<span> </span>LEDs for indication of switching state</div>

<div>•<span> </span>SMA plug-in connector for external antenna Standards EN 60947-5-1; EN 61000-6-2, -6-3, EN 61000-4-2, -4-20, -4-4, -4-5,-4-6; EN 60068-2-6, EN 60068-2-27; EN 301 489-1; EN 301 489-3; EN 300 220-1; EN 300 220-2Number of channels 1</div>

<div>•<span> </span>Mounting DIN rail mounting</div>

<div>•<span> </span>Connection terminals with CAGE CLAMP</div>

<div>•<span> </span>WAGO Series 236: 0.08 … 2.5 mm²/ AWG 28-12, AWG 12: THHN</div>

<div>•<span> </span>THWN, stripping length 5 … 6 mm / 0.22 in</div>

<div>•<span> </span>Degree of protection IP 20 to IEC/EN 60529</div>

<div>•<span> </span>Inputs 1 wireless channel, max. 10transmitters per channel</div>

<div>•<span> </span>Output 1 change-over contact (relay)</div>

<div>•<span> </span>Rated operating current Ie max. 0.08 A</div>

<div>•<span> </span>Rated operating voltage Ue 24 VDC -15 % … +10 %Ie/Ue of output contacts 6 A/250 VAC; 2 A/24 VDC</div>

<div>•<span> </span>Utilisation category AC-15Ui 250 VAC</div>

<div>•<span> </span>Uimp 2.5 kVFrequency 868.3 MHz</div>

<div>•<span> </span>Display green LED: operating state,orange LED: switching conditions</div>

<div>•<span> </span>Operation cycles approx. 9000 telegrams atrepetitions/h</div>

<div>•<span> </span>Degree of pollution 2 to IEC/EN 60664-1</div>

<div>•<span> </span>Ambient temperature 0 °C … +55 °C</div>

<div>•<span> </span>Storage and shipping</div>

<div>•<span> </span>temperature–25 °C … +85 °C</div>

<div>•<span> </span>Vibration resistance NO contact 20 g</div>

<div>•<span> </span>NC contact 5 gExternal antenna always required for optimumsensing range</div>

<div>•<span> </span>Note Inductive loads (contactors, relaysetc.) are to be suppressed bysuitable circuitry</div>

<div>•<span> </span>WIRELESS POSITION SWITCH RF 98 DS EN868</div>

<div>•<span> </span>BRAND: STEUTE</div>

<div>•<span> </span>Wireless position switch</div>

<div>•<span> </span>RF 98 DS EN868</div>

<div>•<span> </span>Material number: 1189912 (Material number old: 9109291101) </div>

<div>•<span> </span>Features/Options</div>

<div>•<span> </span>Metal enclosureDesign to EN 50041EnOcean® </div>

<div>•<span> </span>wireless technology</div>

<div>•<span> </span>No power supply</div>

<div>•<span> </span>no wiring and pipe laying required</div>

<div>•<span> </span>Easy programming of receiver</div>

<div>•<span> </span>Multi-network capable Standards EN 60947-5-1; EN 61000-6-2, -6-3,EN 61000-4-2, -4-20;EN 301 489-1; EN 301 489-3;EN 300 220-1; EN 300 220-2</div>

<div>•<span> </span>Enclosure aluminium die-cast,powder-coated</div>

<div>•<span> </span>Cover aluminium die-cast,powder-coated</div>

<div>•<span> </span>Degree of protection IP 67 to IEC/EN 60529</div>

<div>•<span> </span>Protocol EnOcean®Ambient temperature –20 °C … +65 °C</div>

<div>•<span> </span>Operation cycles approx. 9000 telegrams atrepetitions/h</div>

<div>•<span> </span>Voltage supply Electrodynamic energy generator</div>

<div>•<span> </span>Frequency 868.3 MHz</div>

<div>•<span> </span>Transmission power max. 10 mW</div>

<div>•<span> </span>Data rate 120 kbps</div>

<div>•<span> </span>Channel bandwidth 280 kHzSensing range max. 200 m outside</div>

<div>•<span> </span>max. 20 m inside</div>

<div>•<span> </span>Mechanical life > 1 million operations</div>

<div>•<span> </span>Actuating time min. 80 ms</div>

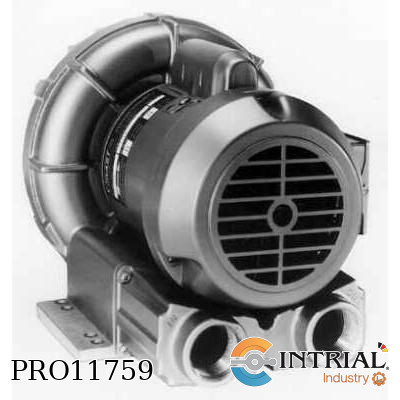

​BLOWER<br />
•MARCA: GAST<br />
•42.4 CFM / OPEN FLOW / 47" WC MAX<br />
•PRESS. 0.5 HP/460V-3 FASE/CLASE B/TEFC MOTOR

PHURE SENSOR (52002447)<br />
•Replacement Combination electrode with RTD<br />
•PH Range: 1-11  <br />
•Rating: 0-80 C / 35 Psi (Can withstand 100Psi)<br />
•Temperature compensator: PT1000<br />
•Flow Rate: 50-150 mL /min<br />
•Connection: VP

PH SENSOR (52002559-C-H)<br />
PH, general purpose & Moderate Pure Water<br />
Rating: 0-100 C / 60 Psi<br />
Temperature compensator: PT1000<br />
PH Range: 0-14<br />
Maximum Flow: 10ft/s (3 m/s)<br />
INCLUDE:<br />
=========’<br />
Cable 5 mts Length<br />
Housing SS

Patch Cord for Conductivity Sensors<br />
•For conexión between sensor and Instrument<br />
•Patch Cord Type “S”<br />
•Lenght: 25ft (7.6m)

Conductivity Electrodo (K=0.01)<br />
Range: 0.002-200 uS/cm<br />
Fitting: 3/4" NPT<br />
Cable Lenght: 1.5 ft (0.5 Mts)<br />
Connector: Type “S”, Patch Cord is required<br />
Insertion Length of probe: 60mm<br />
M300 Analytical Sensor

<div>Modelo: XS8C4A1PCG13<br />
Marca: Schneider Electric<br />
Características:</div>

<div style="margin-left:40px;">•<span> </span>Size: 117 mm</div>

<div style="margin-left:40px;">•<span> </span>Material: Plastic</div>

<div style="margin-left:40px;">•<span> </span>Wiring technique: 4-wire</div>

<div style="margin-left:40px;">•<span> </span>[Sn] nominal sensing distance: 20 mm</div>

<div style="margin-left:40px;">•<span> </span>Discrete output function 1 NO + 1 NC</div>

<div style="margin-left:40px;">•<span> </span>Discrete output type PNP</div>

<div style="margin-left:40px;">•<span> </span>Rated supply: 12..48VDC</div>

Independización de líneas de muestreo para la adquisición de data en 4-20mA por cada línea de Gas de manera continua (N2, Ar, O2 95%, O2 99%), con la incorporación de 02 sensores adicionales de Medición y la capacidad de calibración automática por cada sensor.<br /><br />
Consistente en lo sgte:<br />
Ingeniería, Mano de Obra, Materiales de Integración, Dossier de calidad y Manual de Operación en español.<br /><br />
Detalles:<br />
======<br />
* Adición de 01 sensor de Oxigeno O2ppm (Zirconio)  con tarjeta independiente y salida de 4-20 mA<br />
* Adición de 01 sensor de Oxigeno O2% (Paramagnético) con tarjeta independiente y salida de 4-20 mA<br />
* Cambio de Chasis existente por uno mas largo…<br />
* 02 Manifold de 4 vías con sus respectivas válvulas solenoides (Para ingreso de una línea independiente y control de calibración automática)<br />
* 02 Reguladores de Presión (5 Psi) antes del ingreso de muestra al analizador (Montado en Panel Frontal)<br />
* 02 Manómetros de 0-25 Psi para ajuste de Presión (Montado en Panel Frontal)<br />
* 02 Flujometros de Medición 0-500 ccm (Montado en Panel Frontal)<br />
* 02 Flujometros de Purga 0-5 LPM (Montado en Panel Frontal)<br />
* 04 Botella de Calibración adicionales con sus respectivos manómetros (02 Cero; 01 Spam)<br />
* Nuevo recorrido de tuberías inox de ingreso de muestra, purga y calibración para las 4 líneas independientes de muestra.<br />
* Perforación de Paneles frontales y superiores<br />
* Conectores Swagelok y demás insumos necesarios para dicho conexionado<br />
* Reprogramación del PLC y HMI para medición independiente de cada línea y calibración automática de cada una de manera independiente.<br />
* Reprogramación y reseteo de Analizador Servomex para operar con 04 analizadores independientes.<br /><br />
NOTA: El Proyecto incluye el suministro de todos los equipos arriba mencionados, servicio de arranque, puesta en marcha y entrenamiento.<br />
Se adjunta detalle de plano de nueva distribución del Tubing….

21GRFK<br />
* Fittings kit for 2100 series grab sampler

21GRABXP<br />
* Grab sampler / FAST QC upgrade module to fit existing 2111XP, 2111XPEN, 2110XP, 2110XPEN, 2117HL, 2117HLEN, 2117XP, 2117XPEN, 2120XP and 2120XPEN analyzers

AQUAPRO RDO PRO<br />
Digital Input Card<br />
(two 4-20mA Included)

• Marca: INTRIAL(USA)<br />
• Gas Mixture: 50 ppm O2, NItrogen Balance ,Manufacturing standard - Analytical Tolerance<br />
• Cilinder:116L<br />
• Valve: C10<br />
• Fill Pressure: 70 bar(1000 psi)<br />
• Volume: 116 liters<br />
• Dimensions: AL, Height 365 mm, Diameter 90 mm, weigth: 1.19 Kg<br />
• Shelf life (months): 36 moths

Part Number: HS45WADXX6CGA000<br />
HS45 HOLLOW SHAFT HEAVY MILL DUTY MAGNETIC ENCODER<br />
Including the following features & options:<br />
•    20mm bore via insert: universal end of shaft and thru shaft fit<br />
•    Left Output: 4096 PPR<br />
•    Right Output: No Right Output<br />
•    5-24v in, 5-24v out (7272) recommended for single-ended wiring (A,B,Z, no A/,B/,Z/)<br />
•    10 pin MS style w/Plug, Avtron/BEI Pinout, LED Diagnostics<br />
•    Threaded rod arm kit, adjustable 70-500mm (4.25"-19")<br />
•    Output Channels: Standard, All Channels A,A\,B,B\,Z,Z\<br />
•    Special Options: No Special Options<br />
•    Accessories: None

Electrode set  (5 each per set)<br />
For Bio Probe Systems<br />
COSASCO

Retractable System BIO-PROBE<br />
=========================<br />
Complete Bio Probe Assembly<br />
Pressure rating: 1500 Psi<br />
Mounting: 1 ½” Full Port Valve Minimum<br />
Temperature rating: 260C<br />
Material: 316 SS<br />
Order length: 24 Inches<br />
Alloy: K03005 (Pipe Grade Carbon Steel)<br />
Safety Clamp: INCLUDED
