Digital pressure gauges with ceramic sensor
Brand: Kobold (Alemania)
Model: MAN-BF20-B2-A4-G
[MAN-BF26]:
Version Diff. Diff. pressure 2 ext. sensor + clamp
Accuracy class 0,5
Diameter 100 mm
Housing st.st. 1.4301
Connection G 1/2 male made of st.st. 1.4571
Power supply 18-30 V
Medium temperature -20..+85 °C
Protection IP 65
[B2]: Measuring range*0...1 bar
[A4]: Analogue output 4-20mA
[G]: Contact output 2 limit switches

Digital pressure gauges with ceramic sensor
Brand: Kobold (Alemania)
Model: MAN-BF28V-B1-A4-
[MAN-BF28V]:
Version Diff. Diff. pressure with 2 ext. sensor
Accuracy class, 0,5
Diameter 100 mm
Housing st.st. 1.4301
Connection G 1/2 male made of st.st. 1.4571
Power supply 18-30 V
Medium temperature -20..+85 °C
Protection IP 65
[B1]: Measuring range, 0...0,6 bar
[A4]: Analogue output 4-20mA
[G]: Contact output 2 limit switches

Digital pressure gauges with ceramic sensor
Model: MAN-BF26-B8-A4-G-FSLO
Brand: Kobold
[MAN-BF26]:
Version Diff. pressure with ext. sensor
Accuracy class 0,5
Diameter 100 mm
Housing st.st. 1.4301
Connection G 1/2 male made of st.st. 1.4571
Power supply 18-30 V
Medium temperature -20..+85 °C
Protection IP 65
[B8]: Measuring range* 0...16 bar
[A4]: Analogue output 4-20mA
[G]: Contact output 2 limit switches
Options:
[F]: *flunsh membrane
* G 1/2 with internal sensor and with external sensor for measuring range  2.5 bar
[S]: min/max memory
[L]: Longer sensor cable, 20m
[O]: scalable output


Digital pressure gauges with ceramic sensor
Model: MAN-BF26-B7-A4-G-F-S-L-O
Brand: Kobold
[MAN-BF26]:
Version Diff. pressure with ext. sensor
Accuracy class 0,5
Diameter 100 mm
Housing st.st. 1.4301
Connection G 1/2 male made of st.st. 1.4571
Power supply 18-30 V
Medium temperature -20..+85 °C
Protection IP 65
[B7]: Measuring range* 0...10 bar
[A4]: Analogue output 4-20mA
[G]: Contact output 2 limit switches
Options:
[F]: *flunsh membrane
* G 1/2 with internal sensor and with external sensor for measuring range  > 2.5 bar
[S]: min/max memory
[L]: Longer sensor cable, 20m
[O]: scalable output

Pressure sensor with ceramic sensor element
Brand: KOBOLD (Alemania)
Model: SEN-9601-0-B085-A-0
[SEN-9601]
Version: with internal sensor
Pressure type: relative pressure
Accuracy: < +/- 1% of range
Medium temperature: -25..+85 °C
Pressure conn. :AISI 316 L
Options: see below
Protection: IP 65
measuring principle: ceramic
[0] Output/ power supply: 4....20 mA (8-30 VDC), standard
[B085] Measuring range: 0...16 bar
[A] Mech. Connection: G 1/2, standard, male
[0] Options: without

Digital pressure gauges with ceramic sensor<br />
Brand: Kobold (Alemania)<br />
Model: MAN-BF26-B6-A4-G<br />
[MAN-BF26]:<br />
Version Diff. pressure with ext. sensor<br />
Accuracy class 0,5<br />
Diameter 100 mm<br />
Housing st.st. 1.4301<br />
Connection G 1/2 male made of st.st. 1.4571<br />
Power supply 18-30 V<br />
Medium temperature -20..+85 °C<br />
Protection IP 65<br />
[B6]: Measuring range* 0...6 bar <br />
[A4]: Analogue output 4-20mA<br />
[G]: Contact output 2 limit switches

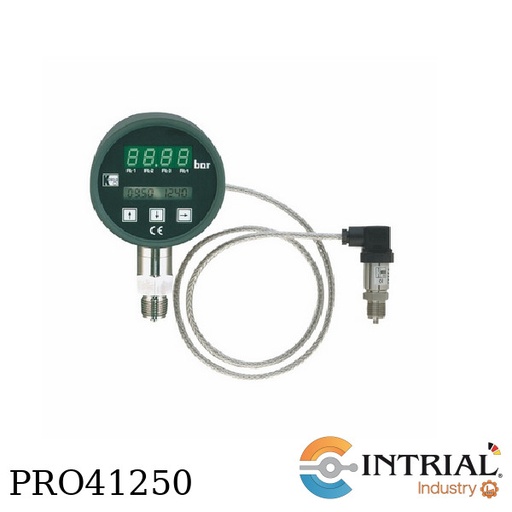

Digital pressure gauges with ceramic sensor<br />
Brand: Kobold (Alemania)<br />
Model: MAN-BF26-B6-A4-M-R-L-Y<br />
[MAN-BF26]:<br />
Version Diff. pressure with ext. sensor<br />
Accuracy class 0,5<br />
Diameter 100 mm<br />
Housing st.st. 1.4301<br />
Connection G 1/2 male made of st.st. 1.4571<br />
Power supply 18-30 V<br />
Medium temperature -20..+85 °C<br />
Protection IP 65<br />
[B6]: Measuring range 0...6 bar <br />
[A4]: Analogue output 4-20mA<br />
[M]: Contact output, 4 limit switches<br />
[R]: Option, nterface RS 232<br />
[L]: Longer sensor cable, 2m<br />
[Y]: Process Connection: 1/2 NPT<br />
**The static pressure for MAN-BF is 25 Bar

<strong>Digital pressure gauges with ceramic sensor<br />
Brand: Kobold (Alemania)<br />
Model: MAN-BF20-B2-A4-G-Y</strong><br /><br />
[MAN-BF26]:<br />
Version Diff. Diff. pressure 2 ext. sensor + clamp<br />
Accuracy class 0,5<br />
Diameter 100 mm<br />
Housing st.st. 1.4301<br />
Connection G 1/2 male made of st.st. 1.4571<br />
Power supply 18-30 V<br />
Medium temperature -20..+85 °C<br />
Protection IP 65<br />
[B2]: Measuring range*0...1 bar<br />
[A4]: Analogue output 4-20mA<br />
[G]: Contact output 2 limit switches<br />
[Y]: Process Connection: 1/2 NPT<br />
**The static pressure for MAN-BF is 15 Bar

Digital pressure gauges with ceramic sensor<br />
Brand: Kobold (Alemania)<br />
Model: MAN-BF26-B9-A4-G-F-L<br />
[MAN-BF26]:<br />
Version Diff. pressure with ext. sensor<br />
Accuracy, class 0,5<br />
Diameter, 100 mm<br />
Housing, st.st. 1.4301<br />
Connection, G 1/2 male made of st.st. 1.4571<br />
Power supply, 18-30 V<br />
Medium temperature, -20..+85 °C<br />
Protection, IP 65<br />
[B9]: Measuring range, 0...25 bar <br />
[A4]: Analogue output, 4-20 mA<br />
[G]: Contact output, 2 limit switches <br />
[F]: Option, Flush membrane*<br />
*G 1/2 with internal sensor and with <br />
external sensor for measuring range > 2.5 bar<br />
[L]: Longer sensor cable, 2m

Digital pressure gauges with ceramic sensor<br />
Model: MAN-BF26-B9-A4-M-L<br />
Brand: Kobold<br />
[MAN-BF26]:<br />
Version Diff. pressure with ext. sensor<br />
Accuracy class 0,5<br />
Diameter 100 mm<br />
Housing st.st. 1.4301<br />
Connection G 1/2 male made of st.st. 1.4571<br />
Power supply 18-30 V<br />
Medium temperature -20..+85 °C<br />
Protection IP 65<br />
[B9]: Measuring range 0...25 bar <br />
[A4]: Analogue output 4-20mA<br />
[M]: Contact output, 4 limit switches<br />
[L]: Longer sensor cable, 3m

Digital pressure gauges with ceramic sensor<br />
Brand: Kobold (Alemania)<br />
Model: MAN-BF28V-B9-AV-M<br />
[MAN-BF28V]:<br />
Version, Diff. pressure with 2 ext. sensor<br />
Accuracy class, 0,5<br />
Diameter 100 mm<br />
Housing st.st. 1.4301<br />
Connection G 1/2 male made of st.st. 1.4571<br />
Power supply 18-30 V<br />
Medium temperature -20..+85 °C<br />
Protection IP 65<br />
[B9]: Measuring range, 0...25 bar <br />
[AV]: Analogue output 0-10 V<br />
[M]: Contact output 4 limit switch
