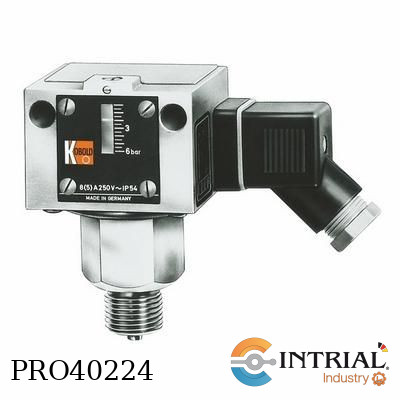

Pressure Switch for Overpressure SCH-DCM, 0.2-1.6Bar
Pressure Switch for overpressure
Brand: Kobold (Alemania)
Model: SCH-DCM-1
[SCH-DCM]:
Functional principle: Mechanical Pressure Switch
Mounting postition: arbitrary preferably verical
Version: standard
Repeat accuracy: < 1 % of the working range
(for pressure ranges > 1 bar)
Protection: IP 54
Max. Temperature: 70 °C
Max. Pressure: according to switching range
Material Probe Housing: Cu/brass or VA
Material Balg/Membran: NBR, brass or VA
[1]: Switching range: 0,2...1,6 bar
Options: w/o option
