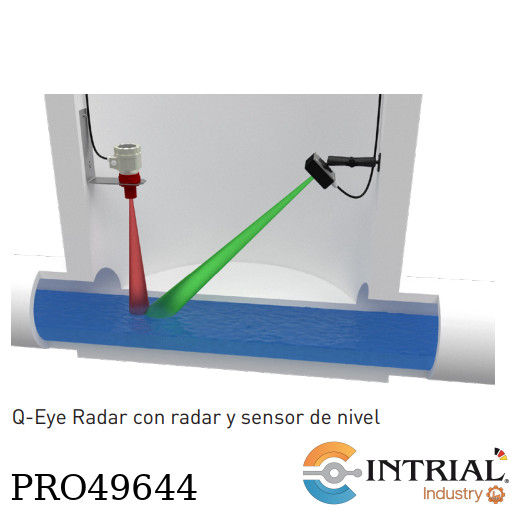

Q-Eye Radar Portable

Q-Eye Radar Portable<br />
Brand: GWF - Alemania<br />
Model: Q-Eye-3QA1<br />
3QA1 000A 010A 020A 030C 040A 050A 060B<br />
070A 080B 081A 090A 100B 110GWF<br />
Mobile non-contact flow meter<br />
for open channels and partially filled pipes<br />
Measurement of low velocities down to 0.05 m/s<br />
Uncertainty in flow measurement typically < ± 5% of reading<br />
Transmitter Portable HPX resin case<br />
with internal microSD card (16 GB)<br />
LC Display, 20 characters, 4 lines<br />
IP67<br />
Power Supply: 2x Li-ion batteries<br />
Communication: Standard (WiFi + 4G + 2x 4-20 mA IN)<br />
Incluide: external LTE rod antenna,Battery charger<br />
Power supply: 100-240 V AC (50-60 Hz)<br />
Sensor type: Radar velocity sensor RV11<br />
Distance to fluid 0.2-10 m<br />
incl. ball-joint mount for quick and easy installation<br />
Cable radar sensor: RV11<br />
Cable for outdoor application: Shielded cable, twisted pair<br />
Outside Diameter: Ø = 7.40 mm ± 0.30 mm<br />
Material: polyamide 10 m<br />
Calibration: Incl. factory calibration certificate<br />
Radar level sensor<br />
Ultrasonic level sensor<br />
Downlooking ultrasonic level sensor, range 0.2-4m<br />
Accuracy: 0.2 % of distance or 0.05 % of range<br />
Frequency: 80 kHz<br />
Mounting: 1½" BSP/NPT, incl. mounting bracket<br />
Cable ultrasonic level sensor<br />
For level sensors 080 B, 080 C and 080 D<br />
Material: PE (Polyethylen)10 m<br />
Language documentation: English
