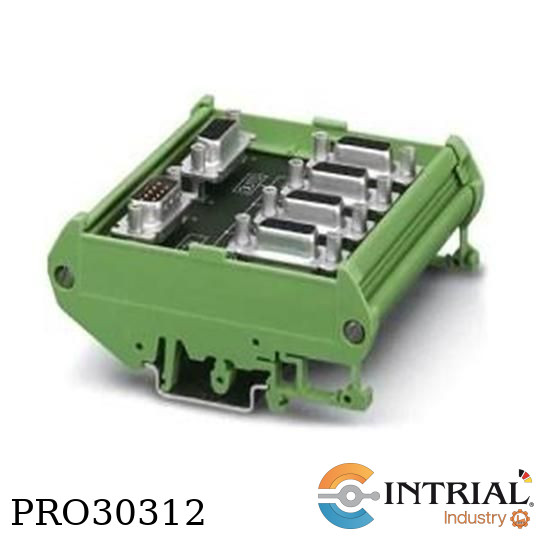

CONNECTION DISTRIBUTOR Passive RS-485 T-distributor

CONNECTION DISTRIBUTORBrand. PHOENIX CONTACTPassive RS-485 T-distributorFitted with one 9-pin D-SUB pin strip and five 9-pin D-SUB socket stripsTechnical dataDimensionsWidth 89.8 mmHeight 89.6 mmLength 39 mmAmbient conditionsAmbient temperature (operation) -25 °C ... 70 °CNominal voltage UN 60 V AC/DCNominal current IN 1 ABus system RS-485Shielding D-SUB frameTest voltage 500 V AC (50 Hz, 1 min, rms)Housing material PVCFlammability rating according to UL 94 V0Pin assignment all 1:1Connection dataConnection IncomingNumber of positions 9Connection method D-SUB 9 plugConnection OutgoingNumber of positions 9Connection method D-SUB-9 female connectorConnection BranchingNumber of positions 9Connection method 4 x D-SUB-9 socketConformance/approvalsDesignation EACIdentification EACStandards and RegulationsFree from substances that could impair the application of coating according to P-VW 3.10.7 57 65 0 VW-AUDI-Seat central standardFlammability rating according to UL 94 V0Environmental Product ComplianceChina RoHS Environmentally friendly use period: unlimited = EFUP-eNo hazardous substances above threshold values
