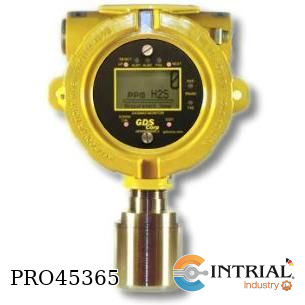

GASMAX II Gas Monitor for Toxics, Combustible and VOCs

<div class="MsoNormal" style="line-height:normal;"><strong>GASMAX II Gas Monitor for Toxics, Combustible and VOCs<br />
Model: GMII-1-15-6-0-00-0-1-0<br />
Brand: Brand: GDS Corp Headquarters - USA</strong><br />
Technical Specification:<br />
- Power Input : 10-30VDC at < 4 watts (167 mA) with relay board.<br />
Max Inrush current < 5x steady state current for < 33 mSec<br />
- Display: 64 x128 pixel LCD with engineering units, bar graph and 30-minute trend<br />
- Channel One Input : Microamp-level input for local or remote GDS Corp toxic gas sensors / Optional 4-20mA input for remote sensor transmitters, GDS-IR, GDS-50 or other 4-20mA source<br />
- Accuracy +/- 5% of full scale (typical)<br />
Standard Output: Dual three-wire 4-20mA current source outputs with fault and overrange indication.<br />
Maximum loop resistance is 750 ohms with standard 24VDC supply<br />
- Temperature:  Electronics -40°C to +60°C. See Sensor Manual for additional details<br />
- Memory: On-board non-volatile memory retains all user settings<br />
- Housing:  Aluminum housing with epoxy paint standard; #316 stainless steel optional<br />
- Approvals:  CSA Certified Division 1 & 2 Groups B, C, D. Suitable for explosion-proof installations with flame arrestor<br />
//////////CODIGOS PARA ORDENAR///////<br />
[GMII] GASMAX II Gas Monitor for Toxics<br />
[1] Local sensor head<br />
[15] Sensor Type: Hydrogen Sulfide<br />
[6] Target Gas Range: 0 -100 ppm<br />
[0] No sensor head<br />
[00] No sensor<br />
[0] None<br />
[1] Output: Alarm Relay Board (3x 5A SPDT) and RS-485 Modbus RTU<br />
[0] Standar temperature range</div>
