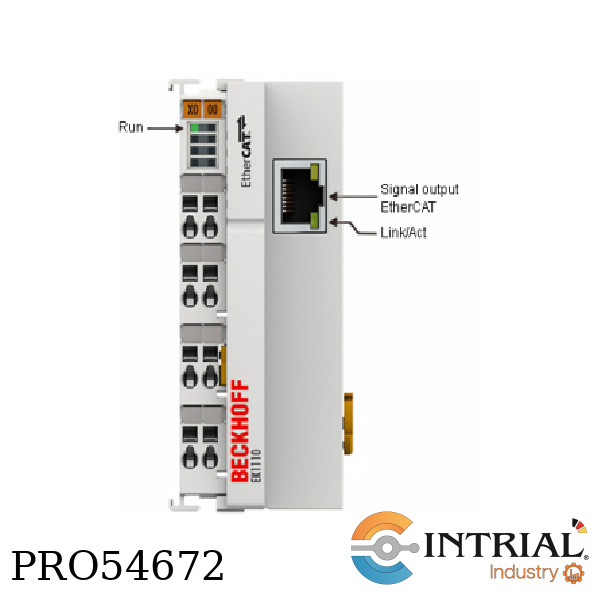

ETHERCAT EXTENSION BECKHOFF RJ45
ETHERCAT EXTENSION<br />
BRAND: BECKHOFF<br />
MODEL: EK1110<br /><br />
RJ45<br />
TASK IN THE ETHERCAT SYSTEM: CONVERSION OF THE E-BUS SIGNALS TO 100BASE-TX ETHERNET FOR EXTENSION OF THE ETHERCAT NETWORK<br />
TRANSMISSION MEDIUM: ETHERNET CAT 5 CABLE (SHIELDED)<br />
CABLE LENGTH BETWEEN TWO BUS COUPLERS: MAX. 100 M (100BASE-TX)<br />
PROTOCOL / BAUD RATE: ANY ETHERCAT PROTOCOL / 100 MBAUD<br />
DELAY: APPROX. 1 ΜS<br />
CONFIGURATION: NO ADDRESS AND CONFIGURATION SETTINGS REQUIRED<br />
BUS CONNECTION: 1 X RJ45<br />
POWER SUPPLY: FROM E-BUS<br />
CURRENT CONSUMPTION: TYP. 130 MA<br />
DIELECTRIC STRENGTH: DIELECTRIC STRENGTH<br />
DIMENSIONS (W X H X D): APPROX. 44 MM X 100 MM X 68 MM<br />
WEIGHT: APPROX. 50 G<br />
PERMISSIBLE AMBIENT TEMPERATURE RANGE DURING OPERATION: -25°C ... +60°C (EXTENDED TEMPERATURE RANGE)<br />
PERMISSIBLE AMBIENT TEMPERATURE RANGE DURING STORAGE: -40°C ... + 85°C
