Tubo de vidrio cónico
Tapered Glass Tube
Brand: Kobold Spare part
Model: ERS-FR (9/8 mm)
Flowmeter tube, Loadability: 100 °C max. /6 bar
Diameter of measuring tube: 9 mm. above - 8 mm. down
Length: 300 mm
Measuring tube material: borosilicate glass.
With label "Made in Hungary"
Wall Thickness: 2 mm
S/ 73.39 73.39 PEN

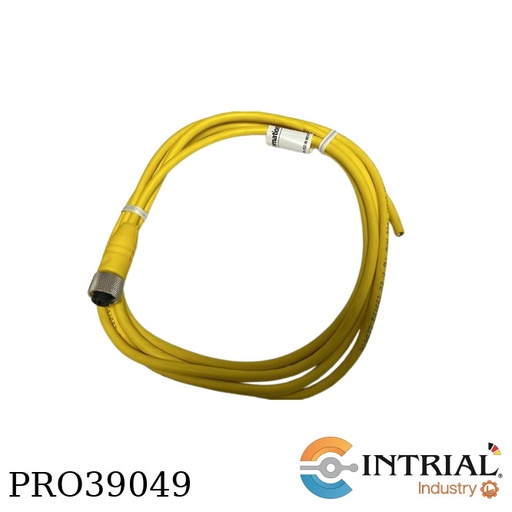

Conector de accesorios
Accessorio
Model: 807.037
Brand: Kobold - Usa
[807.037] = Mating 4-PIN Micro-DC Plug with 6ft.
Cable for Output F300, L342, L343 & Z340
S/ 97.96 97.96000000000001 PEN
Certificado de Calibración
Certificado de Calibración para 05 Puntos de Medición
S/ 282.98 282.98 PEN
ACCESORIO ZUB
Accessories (For programming the Transmitter)
Model: ZUB-Y
Brand: Kobold (Alemania)
USB LoopLink configuration Kit for transmitter 5300 Series
***********************************************************************************
Datasheet: http://www.kobold.com/uploads/files/mwd-gb-temperature.pdf
S/ 1,240.23 1240.23 PEN
Protector de suciedad de acero inoxidable-MRF
St. Steel Dirt Arrester
Brand: Kobold (Alemania)
Model: MFR-D0-R10
[MFR-D0]:
version Dirt Arrester
colander type/material single / st. steel 316
filter fineness G 1/4 - G 3/8, 200 mesh/75 µm
housing material st. st. 1.4408
seal PTFE
O-ring FPM
max. temperature  -30 …+160 °C
nominal pressure PN 40
thread DIN ISO 228 T1
[R10]: connection, female G 3/8
S/ 174.14 174.14000000000001 PEN
Stainless Steel Pipe Fitting
Stainless Steel Pipe Fitting, Reducing Bushing, 1/2 in. Male NPT x 1/4 in. Female NPT
S/ 112.47 112.47 PEN
Brass Ball Valves
Brass Ball Valve KUG
Brand: Kobold (Alemania)
Model: KUG-TBR10
[KUG-TB]:
Version, standard
Drive, manually operated
Design, full throat / 2 ways
Housing material, brass, nickel plated
Temperature range, -20...+120 °C
Nominal pressure, PN 25
[R10]: Thread, female G3/8
Datasheet: http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/z1gb_kug-tb.pdf
S/ 21.77 21.77 PEN
Relés de protección de contacto de pulso
Pulse-Contact Protect. Relays
Model: MSR-020
Brand: Kobold (Alemania)
Input, contact
Output, 2 SPDT
Max. load, 250 V; ca. 8A; 1760 VA
Power supply, 230 VAC
Voltage output, 24 VDC; 20 mA
Protection, IP 40/IP 20
Ambient temperature, 0-70 °C
Mounting, rail
electr. connection, terminal strip
S/ 983.19 983.19 PEN
Installation Systems, weld-in sleeves, G1/2
Model: LZE-Z2
Brand: Kobold
[LZE-Z]
Type of sleeve, Cylindrical
Description, for tanks
Material, st. st. 1.4404
Surface, Hygiene class H3
Max. temperature, 250 °C
Max. operating pressure, 10 bar
[2]: Measuring unit connection, G 1/2
*************************************************
Datasheet: http://www.kobold.com/uploads/files/lze-gb-food.pdf
S/ 90.70 90.7 PEN
Brass Ball Valve KUG
KUG-TB-R40
Brass Ball Valve KUG
version, standard
drive, manually operated
design, full throat
housing material, brass, nickel plated
temperature range, -20...+120 °C
nominal pressure, PN 25
thread, female G 1 1/2
Datasheet: http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/z1gb_kug-tb.pdf
S/ 152.38 152.38 PEN

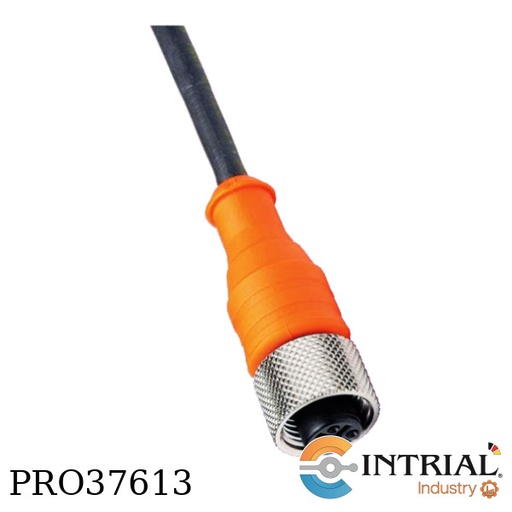

Accessories Round Plug
Accessories Round Plug
Brand: Kobold (Alemania)
Model: ZUB-KAB-12-K005
[ZUB-KAB-12]
[K005]: Version: M12x1 socket with 5 m cable, 4 pins
S/ 130.61 130.61 PEN
Certificate of material 3.1 for SZM
Certificate of material 3.1 for SZM
S/ 773.49 773.49 PEN
Float Switch-NSP
Float Switch
Brand: Kobold (Alemania)
Model: NSP-SW-YYFEP
[NSP-SW]:
Float material: Polypropylene.
max. temperature: FEP= 85 °C
max. pressure:  1 bar
min. density:  0,9 kg/dm³
Contact version: microswitch
Contact:  N/C or. N/O
Protection: IP 68
[YYFEP] Cable: Special length FEP-cable: 2m
INCLUDE:
BESCHWER
[NSP] Accesories for NSP
[Beschwer] : ballast weight, PP
S/ 856.21 856.21 PEN
Electronic Cards for ZOK-E5
Flow Counter and Batch controller
Model: ZOK-E5-K-2F-3-P0
Serial Number: E009550-E009551-E009552
Sensor repair service "Change of new cards"
Replace new processing boards and the interface boards of the 3 units and apply Ex checks and new serial numbers in the 3 units,
S/ 1,306.08 1306.08 PEN
Screw-In Resistance Thermometers MWE
Screw-In Resistance Thermometers with cable
Model: MWE-2-5-C08-C-3-T-0
Brand: Kobold
[MWE-2]
Version, Immersion tube without filling, not removable
Material immersion tube, St. steel 1.4404 / 316 L
Max. pressure (@ 20°C) 30 bar
Temperature range -70…+250 °C (depending on cable material)
Connection, slidable compression fitting
Connection cable, Cable acc. customer specification with bend protection spring
[5] Diameter / length immersion tube, 5 mm, Longitud  de bulbo 50 mm
[C08] Process connection, Compression fitting 1/4 NPT male
[C] Sensor type, 1x Pt100, cat. A (-70..+250 °C)
[3] Wiring, 3 wires
[T] Cable material, PTFE (max. 220°C), 5 m
[0] Options, without
S/ 266.30 266.3 PEN
Accessory MIM
Accessories
Model: ZUB-AD2G15P15
Brand: Kobold-(Alemania)
Meter connection: G ½ female
Fitting set type: Adapter

Note: All fitting kits include 2 x Klinger
SIL® flat sealing gaskets
S/ 232.19 232.19 PEN
Regleta Roller
Magnetic roller indicator
Model: RR_DM
*Modelo DEMO*
S/ 0.00 0.0 PEN
Electronic Cards for ZOK-E5
Flow Counter and Batch controller
Model: ZOK-E5-K-2F-3-P0
Serial Number: E009552
S/ 302.32 302.32 PEN
Electronic Cards for DON-1
Oval Gear Flow Meter / Counter:
Model: DON-1-40H-N9-1-RE-N-0
Serial Number: 422726
S/ 199.54 199.54 PEN
Rotor for DON-1
Rotor for DON-1
Oval Gear Flow Meter / Counter:
Model: DON-1-40H-N9-1-RE-N-0
Serial Number: 422726
S/ 199.54 199.54 PEN
