DOUBLE VANE PUMPS
Brand: YUKEN
[76] Small Volume Pump Nominal Displacemen cm^3 /rev
[200] Large Volume Pump Nominal Displacemen cm^3 /rev
[F] Mounting
[R] Direction of Rotation (view from shaft end)
[F] Small Volume Pump Discharge Port Position (view from shaft end); Right up
[A] Large Volume Pump Discharge Port Position (view from shaft end); Upwards
[R] Suction Port Position (view from shaft end); Upwards
[35] Design Number

GEAR PUMP
Brand: STEIMEL
Model: BZP056180RD--165R
SF6/180RD-O
FKM, 2-16 bar, geräuschoptimiert
gear pump: SF 6/180 RD
Artikel-Nr.: BZP056180RD--165R
dimensional drawing: DMB056D-01R
list of spare parts: DET056180RD--165R
suction and pressure connections: SAE 2 ½ ( 65 )
materials:
casing parts: EN-GJL 250 (GG-25)
shafts: 16MnCrS5
gear wheels: GGG-40, ionitrided
helical toothed
toothing: noise-optimized
bearing: multilayer MD
shaft sealing: radial shaft sealing ring
elastomers: FKM
flow medium: lube oil
viscosity: 50-5000 cSt
fflow rate: approx. 240,5 ltr/min
pressure: 8 bar
speed: 1450 1/min
sense of rotation: clockwise
finish: primer HDO058 - green
type plate: ETY924-D-E--PE01
with free shaft end

PUMP
Brand:IMO
3217/574 / G12DB-275

EWN-R Series Electromagnetic Metering Pumps​Brand: WALCHEMModel: EJ-B16VCURMax Output: 0.8 GPHMax Pressure: 90 PSIPump Head: PVCValve Seats: FKMO-Rings: FKMValve Balls: CeramicDiaphragm: PTFE (+ EPDM Backer)Gaskets: PTFETubing: ?" OD PEElectrical: 115 VAC US PlugControl Module: Manual Digital Speed Control, External Pulse & Stop/Start InputsAverage Power: 12 WattsMax Current: 0.8 AmpDiaphragm Diameter: 16mmWeight: 8 lbs
Brand: WALCHEM
Model: EJ-B16VCUR
Max Output: 0.8 GPH
Max Pressure: 90 PSI
Pump Head: PVC
Valve Seats: FKM
O-Rings: FKM
Valve Balls: Ceramic
Diaphragm: PTFE (+ EPDM Backer)
Gaskets: PTFE
Tubing: ?" OD PE
Electrical: 115 VAC US Plug
Control Module: Manual Digital Speed Control, External Pulse & Stop/Start Inputs
Average Power: 12 Watts
Max Current: 0.8 Amp
Diaphragm Diameter: 16mm
Weight: 8 lbs

GEAR PUMP
Brand: KRACHT
KF 63 RF 2 - D 15
P.013219004
Materials
Material Housing Grey cast iron EN-GJL 250
Material integrated valve Grey cast iron EN-GJL 250
Material Gears Steel, case hardened
Material O-rings FKM
Shaft sealing Single radial lip-type seal FKM
Bearing Multi component sleeve bearings P10
Product data
Geometrical Displacement 63,18 cm³/r
Direction of rotation clockwise (seen on shaft end)
Type of fixation DIN flange
Outboard bearing no
Type of pipe connection Flange connection SAE 1 1/2"
Shaft end cylindrical ø 24mm
integrated valve D-valve 0...15 bar
Specific data
Operating pressure (suction side) -0.4...+4 bar (max 1500 rpm),-0.4...+3 bar (max 2000 rpm)
-0.4...+2 bar (max 3000 rpm), -0.4...+1.5 bar (max 3600 rpm)
max. operating pressure (pressure side) 25 bar
(depending on viscosity, speed and power)
Fluid temperature -20°C...+150°C
Ambient temperature -20°C...+60°C
Minimum viscosity 1.4 mm²/s (max. 3 bar)
6 mm²/s (max. 12 bar)
12 mm²/s (max. operating pressure)
Maximum viscosity depending on suction conditions, speed and power
Speed range 200...3600 rpm
(depending on pressure, viscosity and power)
ATEX marking product exec. does not correspond to the ATEX directive

PUMP WITH EPDM
Brand: GENERAL PUMP
Max Flow: 2.3 GPM
Max Pressure: 1500 PSI
RPM: 1750 RPM
Bore: 18 mm
Stroke: 7.5 mm
Crankcase Capacity: 12 oz.
Max Temp: 140º F
Inlet Ports: 1/2" NPTF
Outlet Ports: 3/8" NPTF
Shaft Diameter: 5/8"

MOTOR PUMP
Brand: hpTECHNIK
SMG 1629-I-3-10
with industrial pump series VB/R
integr. overflow valve and bypass
Tested according : DIN/EN 12514-1
Pump type : VBHRM-I-3-10
Flow : 1200 l/h at 30 bar
1500 l/h at 9 bar
Pressure stage : 3
Adjustable : 6 - 25 bar
Three phase motor : B3/B14
Power : 2,2 KW
Speed : 1400 min-1
Dvoltage : 230/400 V
Frequency : 50 Hz
Degree of protection : IP 55
Efficiency class : IE3

Copper addition
Motor: 2,2 kW

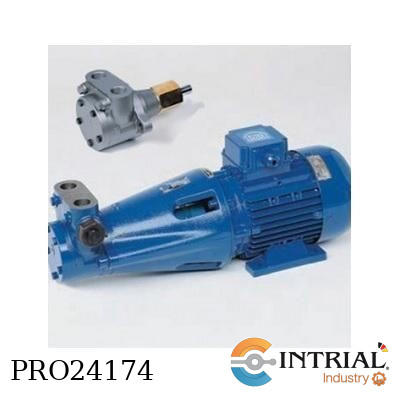

MOTOR PUMP
Brand: hpTECHNIK
SMG-1628-I-3-10
with industrial pump series VB/R
integr.overflowvalve and bypass
Tested according : DIN/EN 12514-1
Pump type : VBHRP-I-3-10
Flow : 700 l/h at 30 bar
1000 l/h at 9 bar
Pressure stage : 3
Adjustable : 6 - 25 bar
Three phase motor : B3/B14
Power : 1,5 kW
Speed : 1400 min-1
Voltage : 230/400 V
Frequency : 50 Hz
Degreee of protection : IP 55
Efficiency class : IE3

Copper addition
Motor: 1,5 kW

MOTOR PUMP
Brand: hpTECHNIK
SMG-1627-I-3-10
with industrial pump series VB/R
integr. overflowvalve and bypass
Tested according : DIN/EN 12514-1
Pump type : VBGRG-I-3-10
Flow : 540 l/h at 30 bar
600 l/h at 9 bar
Pressure stage : 3
Adjustable : 6 - 25 bar
Three phase motor : B3/B14
Power : 0.75 KW
Speed : 1400 min-1
Voltage : 230/400 V
Frequency . 50 Hz
Degree of protection : IP 55
Efficiency class : IE3
P.-no.

Copper addition
Motor: 0,75 kW

BOMBA DE MANO DE CALIBRACION NEUMATICA
Marca: DWYER
Rangos de salida: -28 en Hg a 600 psi (-0.945 a 40 bar).
Conexión de proceso: 1 / 4 NPT / BSP.
Conexión Gage: 1 / 8 NPT / BSP.
Materiales: accesorios SS, carcasa de aluminio anodizado, mangos de plástico / caucho y
juntas tóricas de nitrilo.
Peso: 2 lb (0.91 kg)

MOTOR LDM090-04-105
Drehstrommotor 090-04, IE2 B5
1,3 kW, 1800, 254/440V, 60Hz, IP55, Iso.F

BKUA040-1424-301 coupling PUR, AL

MOTOR LDM090-04-224
1,75 kW, 1800, 440V Stern, 60Hz, IP66, Iso.F

HYDRAULIC END SERVICE KIT FOR TROJAN
Brand: TROJAN

AIR END SERVICE KIT FOR TROJAN
Brand: TROJAN

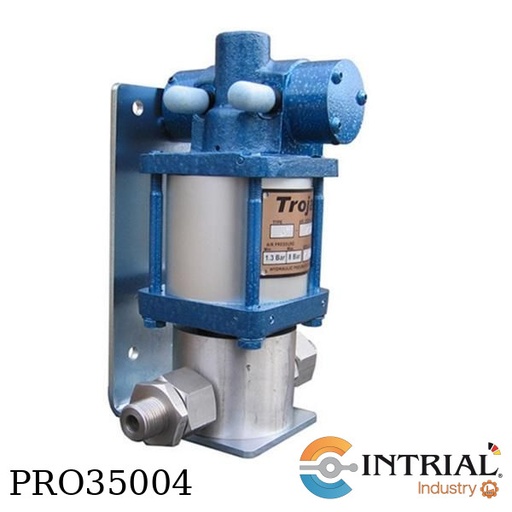

TROJAN PUMP
Brand: TROJAN
Type J
II 2GDT5 (100°C)
Air hydraulic ratio 11:1
Air pressure Min 1.3 bar
Max 8 bar

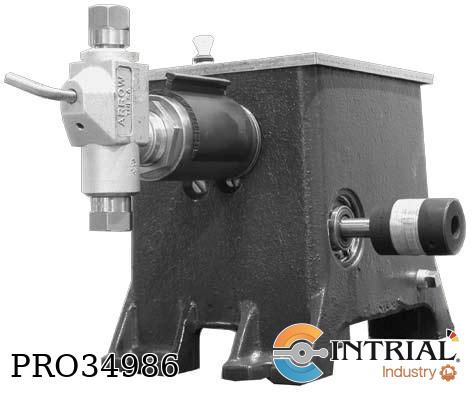

430 Chemical Injection Pump Arrow Series with Buna Packing
* Model: 430-44S
* Plunger Size ½”
* Gear Ratio 50:1
* Pump Material: 316 Stainless Steel Head
* Discharge Pressure: 600 psi Max
* Max Flow: 160 GPD (40 GPD per Head)
* INCLUDE electric Motor BALDOR Installed “EXPLOSION PROOF” 3/4Hp(0.75Hp)/60HZ/230-460V

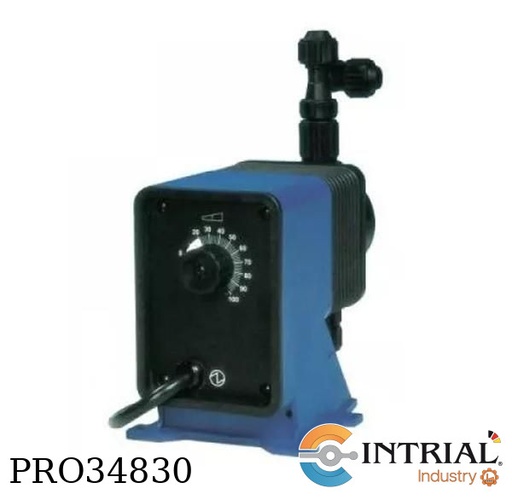

METERING PUMP
Brand: PULSAFEEDER
12 GPD @ 80 PSI
230 VAC

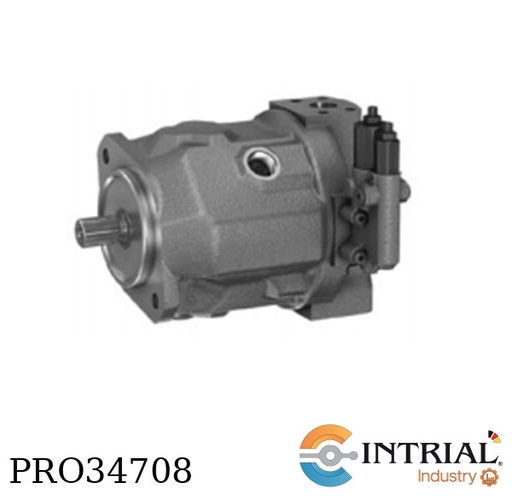

AXIAL PISTON VARIABLE PUMP
Brand: BOSCH REXROTH
Swashplate design, variable, nominal pressure 4100 psi (280 bar), maximum pressure
Operating mode, Pump, open circuit
Control device, with flow controller – hydraulic - X-T open
Series 3, index 1
Direction of rotation, Viewed on drive shaft – clockwise
Sealing materia, FKM (fluoroelastomer)
Drive shaft, 9 Splined shaft ANSI B92.1a - standard shaft
Mounting flange, ISO 3019-1 - 2-hole

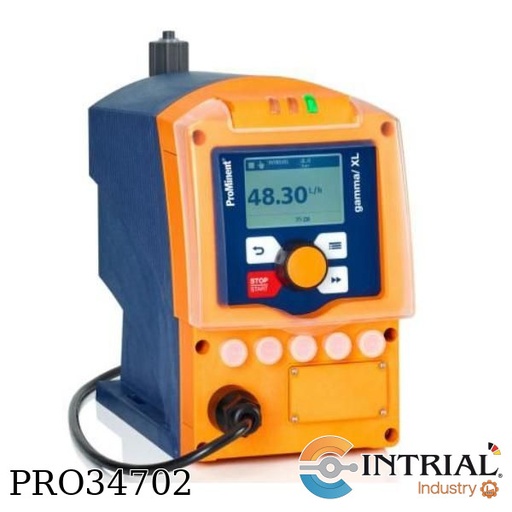

BOMBA GAMMA/XL GXLA0450SST
Marca: ProMinent®
Procedencia: Alemania
Certificado: ISO 9001
Caudal máximo*: 0 – 50 l/h
Contra presión máx.: 4 bar
Aspiración máxima: 3 mca
Pulsos por minuto: 200 max.
Capacidad: 4.2 ml/pulso
Suministro eléctrico: Monofásico 100-230 V ± 10% 60 Hz
Cables y enchufes: 2m, USA
Protección: IP66
Peso: 11 kg
Modo de Control
Indicadores: 3 Leds de operación/ advertencia/ falla
Display LCD para control de parámetros
Opciones de control: Regulación de longitud de carrera manual 0 – 100 %
Regulación manual de frecuencia (1-12000 pulsos/h)
Control por pulsos
Control analógico 0/4 – 20 mA
Materiales
Cabezal dosificador: Acero inoxidable 1.4404
Diafragma: PTFE (Teflón)
Válvulas: Acero inoxidable 1.4404
Sellos: PTFE (Teflón)
Bolas: Cerámica
Conexiones: DN10 – R¾”
