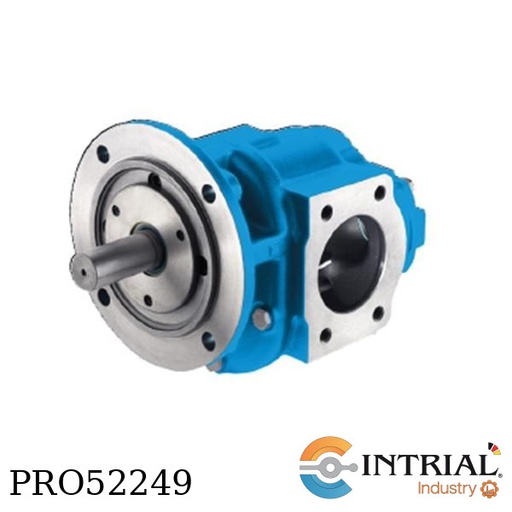

GEAR-PUMPS<br />
Brand: KRACHT<br />
Size: 4<br />
Nominal displacement: 150<br />
Selection flange mounting cover: KF 4<br />
Direction of rotation: Clockwise<br />
Outboard flanges: Mounting angle<br />
Construction of housing and mounting surface: Housing with flanged pipe connections<br />
Shaft end (drive): Straight shaft end with outboard bearing<br />
Shaft end (throug driver): Without<br />
End covers: Without end  cover<br />
Housing material and plain bearings: Cast iron with multicomponent plain bearing bushes<br />
Types of gear: Helical gears<br />
Seals: FKM<br /><br />
PUMP SIZE DKF, Size: 4, 8 ..... 16 bar<br />
Brand: KRACHT<br />
Size: 4<br />
Materiales: Housing GG, Seal FKM,ν ≤ 150°C<br />
Pressure setting ranges: 8 ..... 16 bar

PUMP SIZE DKF<br />
Brand: KRACHT<br />
Size: 4<br />
Materiales: Housing GG, Seal FKM,ν ≤ 150°C<br />
Pressure setting ranges: 8 ..... 16 bar

GEAR-PUMPS<br />
Brand: KRACHT<br />
Size: 4<br />
Nominal displacement: 150<br />
Selection flange mounting cover: KF 4<br />
Direction of rotation: Clockwise<br />
Outboard flanges: Mounting angle<br />
Construction of housing and mounting surface: Housing with flanged pipe connections<br />
Shaft end (drive): Straight shaft end with outboard bearing<br />
Shaft end (throug driver): Without<br />
End covers: Without end  cover<br />
Housing material and plain bearings: Cast iron with multicomponent plain bearing bushes<br />
Types of gear: Helical gears<br />
Seals: FKM

SOLENOID DOSING PUMP<br />
BRAND: SEKO <br />
MODEL: APG-600<br />
FLOW RATE: 2.5 – 3.0 LPH<br />
PRESSURE: 6-20 BAR

KIT DE INSTALACION, REPUESTO PARA BOMBA<br />
DOSIFICADORA SEKO MODELO TEKNA EVO 600,<br />
PVDF/SELLOS EPDM<br />
Tipo :ACCESORIOS Y REPUESTOS<br />
Sub tipo :EQUIPO DISPENSADOR<br />
Marca :SEKO<br />
Modelo: EM99106511<br />
Procedencia :Italia

Bare shaft pump<br />
Brand: IMO PUMP<br />
Model: E4-060-N1-LRBE<br />
[E4]: Serial, 507728TR<br />
[060]: size, diameter of power rotor, (mm)<br />
[N]: rotor cable, normal<br />
[1]: Generation, Standard: 060-070 with SAE flange connections<br />
[L]: Pump body material, Aluminum<br />
[R]: Shaft seal, radial shaft seal, nitrile (= pump with connection frame/front cover)<br />
[B]: Mounting design, flange mounting<br />
[E]: Other features, Without valve<br />
Does not include motor connection

BOMBA DOSIFICADORA<br />
Marca :SEKO<br />
ANALOGICA<br />
SERIE KOMPACT<br />
3 - 5 LPH<br />
10 - 8 BAR<br />
100/240 V<br />
50/60 HZ<br />
CUERPO DE PVDF<br />
OPCION SALIDA A NIVEL<br />
Sub tipo :DE DIAFRAGMA

INCLINOMETRO<br />
Marca: POSITAL<br />
Modelo: AGS015-2-SC1-H0-CRW<br />
Tensión de Alimentación 10 – 30 VDC<br />
Temperatura de Operación: [-30 to 80]°C<br />
Tipo de Conexión: Cable 1 m<br />
Material/Tipo: PVC<br />
Tipo de Salida Corriente: 4 – 20 mA<br />
Controlador de Salida: RS232

SONAR SENSOR<br />
Marca: LINCOLN<br />
Modelo: 205U1-10BL-L220<br />
N° producto: 664-36909-4

Gear Pump<br />
Brand: KRACHT<br />
Model: KF-32-RF-2-D15<br />
HS-No.: 84136031<br />
Materials:<br />
Material Housing Grey cast iron EN-GJL 250<br />
Material integrated valve Grey cast iron EN-GJL 250<br />
Material Gears Steel, case hardened<br />
Seal material FKM<br />
Shaft sealing Single radial lip-type seal<br />
Bearing Multi component sleeve bearings P10<br />
Product data:<br />
Geometrical Displacement 32,12 cm³/r<br />
Direction of rotation clockwise (seen on shaft end)<br />
Type of fixation DIN flange<br />
Outboard bearing no<br />
Type of pipe connection Flange connection SAE 1 1/2"<br />
Shaft end cylindrical ø 24mm<br />
integrated valve D-valve 0...15 bar<br />
Mounting position optional<br />
Specific data:<br />
Operating pressure (suction side) -0.4...+6 bar (max 750 rpm), -0.4...+5 bar (max 1000 rpm)<br />
-0.4...+4 bar (max 1500 rpm),-0.4...+3 bar (max 2000 rpm)<br />
-0.4...+2 bar (max 3000 rpm), -0.4...+1.5 bar (max 3600 rpm)<br />
max. operating pressure (pressure side) 25 bar<br />
(depending on viscosity, speed and power)<br />
Fluid temperature -20°C...+150°C<br />
Ambient temperature -20°C...+60°C<br />
Minimum viscosity 1.4 mm²/s (max. 3 bar)<br />
6 mm²/s (max. 12 bar)<br />
12 mm²/s (max. operating pressure)<br />
Maximum viscosity depending on suction conditions, speed and power<br />
Speed range 200...3600 rpm<br />
(depending on pressure, viscosity and power)

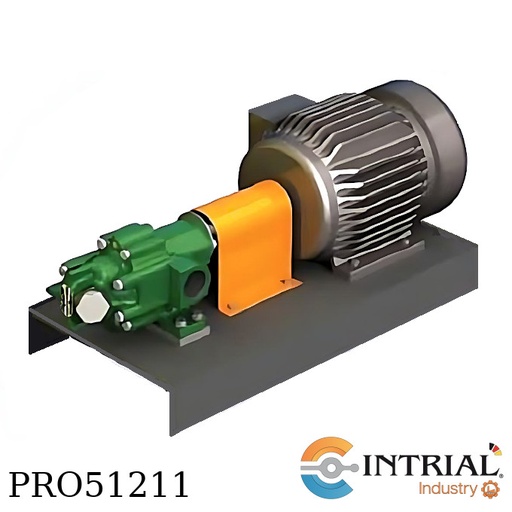

MODELO: 2AM08-HBK-30TG-3-18 <br /><br />
Condiciones de Operación:<br />
Fluido : Aceite de motor <br />
Caudal : 15.0 GPM <br />
Presión : 75 PSI <br />
Velocidad : 1725 rpm <br /><br />
Características de la Bomba:<br />
Cuerpo : Hierro Fundido <br />
Engranajes : Hierro Dúctil <br />
Bocinas : Bronce <br />
Ejes : Acero <br />
Sello de eje : Mecánico <br />
Válvula de alivio : Hierro Fundido <br />
Diám. succión : 1-1/4” NPT <br />
Diám. descarga : 1-1/4” NPT <br />
Pot. absorbida : 2,3 HP <br /><br />
Datos del motor:<br />
Marca : General Electric <br />
Potencia : 3 HP <br />
Velocidad : 1750 rpm <br />
Frame : 100L1 <br />
Factor de servicio : 1.15 <br />
Voltaje : 220/440v <br />
Fases : 3 (trifásico) <br />
Frecuencia : 60 Hz<br />
 <br />
LA BOMBA SE SUMINISTRARÁ CON MOTOR ELECTRICO, ACOPLE DIRECTO Y GUARDA COPLE MONTADOS EN PLACA BASE DE ACERO ESTRUCTURAL REFORZADA A36

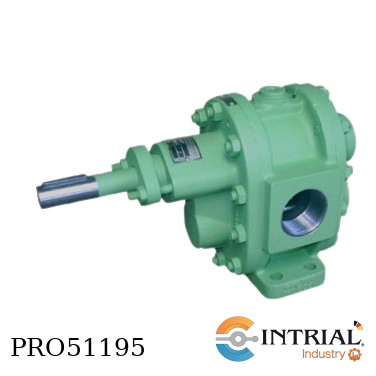

Gear pump: T 3-80 P<br />
Brand: STEIMEL<br />
Model: BZP003--080P-G30U<br />
dimensional drawing: DPP003--080P--30U<br />
spare parts list: DET003--080P-G30U<br />
suck and pressure port: G 1<br />
material:<br />
casing parts: EN-GJL-250 (GG-25)<br />
pinion shaft: 16 Mn Cr S 5, <br />
case-hardened<br />
 straight toothed <br />
bearing housing: bronze AW<br />
shaft seal: gasket <br />
exhaust bore: without <br />
flow medium: solvent colours and varnish<br />
flow rate: 60 ccm/rotation <br />
rotational speed: up to approx. ca. 500 1/min.<br />
pressure: up to approx. 5 bar<br />
sense of rotaion: CW and CCW<br />
Finish : primer HDO058<br />
type plate : ETY924-D-E--PE01<br />
with free shaft end

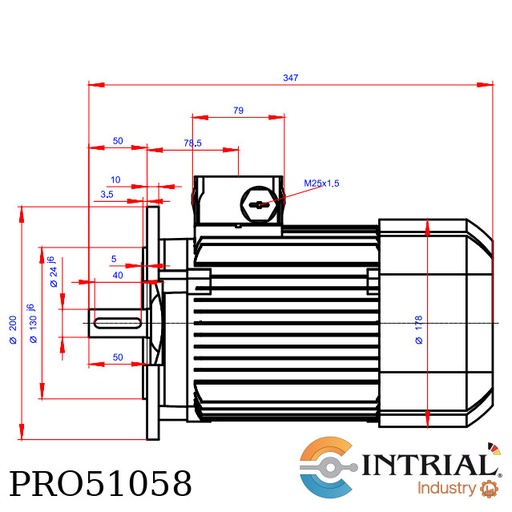

MOTOR LDM090-06-028<br />
Drehstrommotor 090-06, IE3 B5<br />
0,75kW, 1000, 230/400V, 50Hz, IP55, Iso.F

BOMBA A EJE LIBRE<br />
Fabricante : IMO PUMP<br />
Modelo: G6UVF-187P<br />
Carcaza: Hierro fundido de grano cerrado de alta calidad<br />
Presión: 2500 PSI máx.<br />
Presión de entrada: 50 PSI máx.<br />
Viscosidad: 60 - 3000 SSU<br />
Temperatura: 0 - 180°C<br />
Unidad: 3600 RPM máx.

NON-METALLIC DIAPHRAGM PUMP<br />
Brand: ARO<br />
Air Inlet 1/4 - 18 NPTF<br />
Configuration 1-Piece Manifold<br />
Connection Size 1"<br />
Connection Type 1- 11-1/2 NPTF -1<br />
Diaphragm PTFE / Santoprene<br />
Discharge Volume Per Cycle 0.17 Gal (0.64 Lit)<br />
Inlet Pressure (PSI) 120 psig (8.3 bar)<br />
Liquid End Configuration Colorless Polypropylene Fluid Caps & Manifold<br />
Material Aluminum Center Body<br />
Maximum Flow (GPM) 47 GPM (177.9 LPM)<br />
Maximum Working Pressure (PSIG) 120 psi (8.3 bar)<br />
Max Suction Lift 15 Feet (4.6m)<br />
Solids (Inches) 1/8" (3.2mm)<br />
Temperature Range 40° to 175° F (4° to 79° C)<br />
Type Standard Pump<br />
Valve Balls PTFE<br />
Valve / Seat / O-Ring Polypropylene

AIR POWERED DOUBLE DIAPHRAGM AODD PUMPS<br />
BRAND: YAMADA<br />
Family: NDP<br />
Power Source: Air Operated<br />
Max Flow Rate: 620 LPM<br />
Seats/Balls/Diaphragms: EPDM/EPDM/EPDM<br />
Body Material: Aluminum<br />
Porting: Flanged / NPT<br />
Material: Aluminium

AIR POWERED DOUBLE DIAPHRAGM AODD PUMPS<br />
BRAND: YAMADA<br />
Family: NDP<br />
Power Source: Air Operated<br />
Max Flow Rate: 405 LPM<br />
Seats/Balls/Diaphragms: EPDM/EPDM/EPDM<br />
Body Material: Aluminum<br />
Porting: Flanged / NPT<br />
Material: Aluminium

KOPkit for PULSAtron pumps size 3 with VTC1 wet end code<br />
Brand: Pulsafeeder<br />
Model: K3VTC1<br />
Head Size: 3<br />
Head Material: PVC (Polyvinyl Chloride)<br />
Seat/O-Rings: TFE (Teflon)<br />
Valve Ball: Ceramic<br />
Connection Type: Tubing 0.25" x 0.38"

ELECTROBOMBA CENTRÍFUGA MULTIETÁPICA HORIZONTAL<br />
Marca: WILO<br />
Modelo: MHI204-1/E/3-60-2/IE3<br />
Fluido, agua limpia<br />
Caudal, 3.6 m3/h<br />
HDT, 45.0 m.<br />
Carcasa, impulsores y etapas, acero inoxidable 304<br />
Eje, acero inoxidable 304  <br />
Sello mecánico, Carbón/Cerámica/EPDM<br />
Ø Succión x Descarga, 1"x1"(rosca NPT)   <br />
Motor, norma IEC, 1.5HP, 3600rpm, 3f, 220/380/440V, 60hz, IP54, FS 1.0

ELECTROBOMBA CENTRÍGUFA MULTIETÁPICA HORIZONTAL<br />
Marca: WILO<br />
Modelo: MHI203-1/E/3-60-2/IE3<br />
[MHI]: Design, Bomba centrífuga de alta presión multietapas, horizontal<br />
[2]: Caudal, 2 m3/h<br />
[03]: Número de rodetes, 6<br />
[1]: Material, 1.4301 (AISI 304)<br />
[E]: Tipo de juntas, EPDM<br />
[3]: Corriente, trifásica<br />
[60]: Frecuencia, 60 Hz<br />
[2]: Número de polos, 2<br />
[IE3]: Motor, IE3
