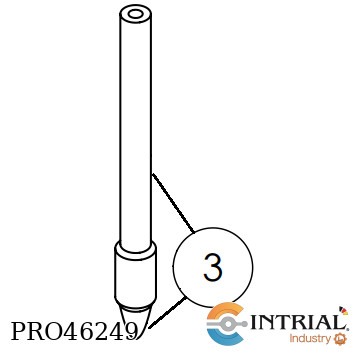

<strong>PLUG<br />
Brand: EDART<br />
Code: SK55-0081 </strong><br />
Description:<br />
Plug and Shaft DOS50-50-25 TC

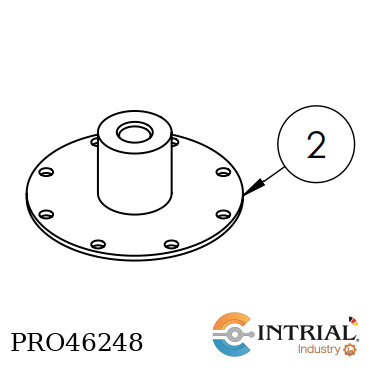

<strong>SEAT<br />
Brand: EDART<br />
Code: SK04-0027</strong>  <br />
Description:<br />
Seat DOS50-25

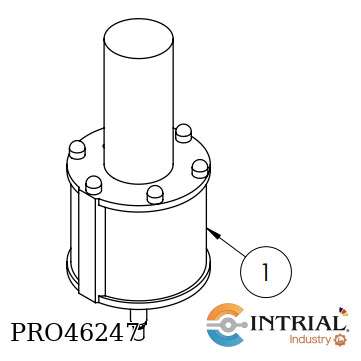

<strong>Actuador<br />
Brand: EDART<br />
Code: ACT-0162</strong><br />
Description:<br />
EDT160-056-DA-M-035

SINGLE VANE PUMP<br />
Brand: YUKEN<br />
Series Number: PVR50<br />
Type of Mounting:  F, Flange Type<br />
Type of Pipe Connection: F, Flange Connection<br />
Nominal Displacement: 39<br />
Direction of Rotation: R, Clockwise (Normal)<br />
Discharge Port Position: A, Normal (Upward)<br />
Suction Port Position: R, Right<br />
Design * Number: 31

HIGH PRESSURE GEAR PUMP<br />
Brand: KRACHT<br />
Material Housing Grey cast iron EN-GJL 300<br />
Material Flange cover Grey cast iron EN-GJL 300<br />
Material Gears Steel, case hardened<br />
Seal material FKM<br />
Bearing Multi component sleeve bearings P10<br />
Geometrical Displacement 244,70 cm³/r<br />
Direction of rotation clockwise (seen on shaft end)<br />
Type of fixation T/C - SAE-C-2-bolt-flange, LA = 181, Ø Z = 127<br />
Outboard bearing yes<br />
Type of pipe connection K - 2 1/2" SAE (Ø 65) M12 / 2" SAE (Ø 50) M12<br />
Shaft end T - Gear shaft profile SAE-C, DP 12/24, z= 14 a= 30° 500 Nm max<br />
Operating pressure (suction side) -0.4...+2 bar<br />
max. operating pressure (pressure side) 100 bar (depending on viscosity, speed and power)<br />
Fluid temperature -20°C...+80°C<br />
Ambient temperature -20°C...+60°C<br />
Minimum viscosity 13 mm²/s<br />
Maximum viscosity 600 mm²/s<br />
Speed range 800...1600 rpm (depending on pressure, viscosity and power)<br />
Part. Number: 0151260013<br />

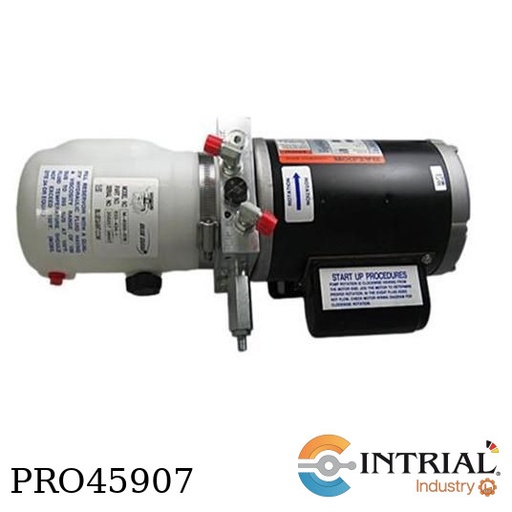

PUMP UNIT<br />
Brand: BUCHER HYDRAULICS<br />
Model: M-4560-0113<br />
115/230V, 1P<br />

PLUNGER NUT; 3/4-16 UNF<br />
Brand: FMC

WASHER <br />
Brand: FMC

GASKET; CYLINDER COVER<br />
Brand: FMC<br />
2.88 ID X 3.88 OD X .06<br />
THICK, KEVLAR/NITRILE

GASKET<br />
STUFFING BOX<br />
Brand: FMC<br />
2.37 ID X 2.67 OD X .06<br />
THICK, KEVLAR/NITRILE

PISTON CUP<br />
Brand: FMC<br />
2.75 OD X .75 ID X 1.17 LONG<br />
HEMISPHERE STYLE<br />
NEOPRENE AND COTTON

GASKET; STUFFING BOX<br />
Brand: FMC<br />
2.89 ID X 3.25 OD X .06<br />
THICK, KEVLAR/NITRILE<br />

BALL 1-1/8 SST<br />
Brand: FMC<br />

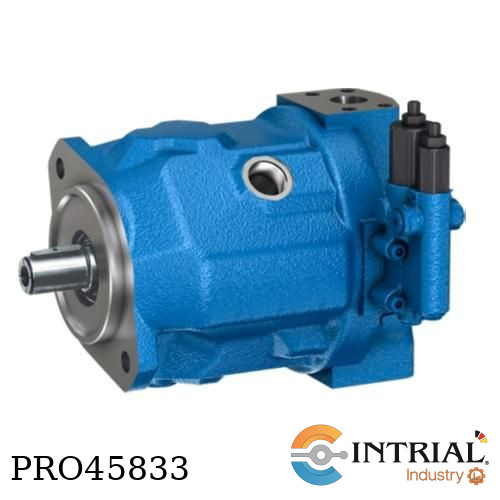

PUMP, AXIAL PISTON<br />
Brand: BOSCH REXROTH<br />
Standard version for mineral oil (without code)<br />
Operating mode: Pump, open circuit<br />
Control device: with flow controller hydraulic X-T open<br />
Series 3, index 1<br />
Direction of rotation: Viewed on drive shaft clockwise<br />
Sealing material: FKM (fluorocarbon rubber)<br />
Drive shaft: Parallel keyed shaft<br />
DIN 6885; permissible through-drive torque<br />
Mounting flange: ISO 3019-2 2-hole<br />
(MOD)-A10VSO 45DFR1/31R-VPA<br /><div>
<div class="gtx-trans-icon"></div>
</div>

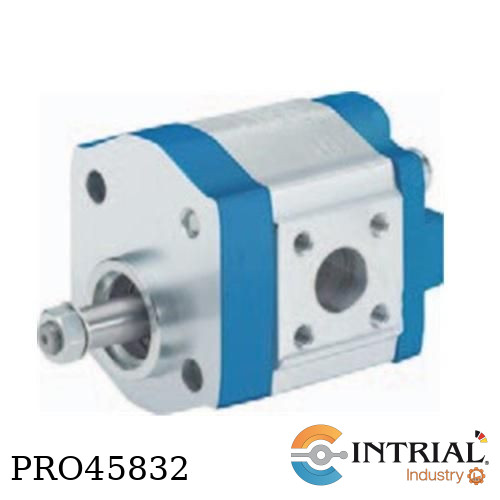

PUMP, GEAR <br />
Brand: BOSCH REXROTH<br />
External gear unit: External gear <br />
Nominal size: 2.00 cm3 <br />
Series: 1 cm³/rev … 7.1 cm³/rev, Standard Performance, Platform B<br />
Bearing journal ⌀12 mm, installation identical to Series 1<br />
Corrosion-resistant, pinned<br />
Direction of rotation As viewed on drive shaft Clockwise<br />
Drive shaft Tapered shaft: 1:5<br />
Front cover: 2-hole flange ⌀32 mm<br />
Line connection: DIN 3852-T1 metric thread<br />
Sealing material: NBR (nitrile rubber)<br />
Rear cover: Without valve (standard)<br />
(MOD)-AZPB-32-2.0RCP02MB
<div>
<div class="gtx-trans-icon"></div>
</div>

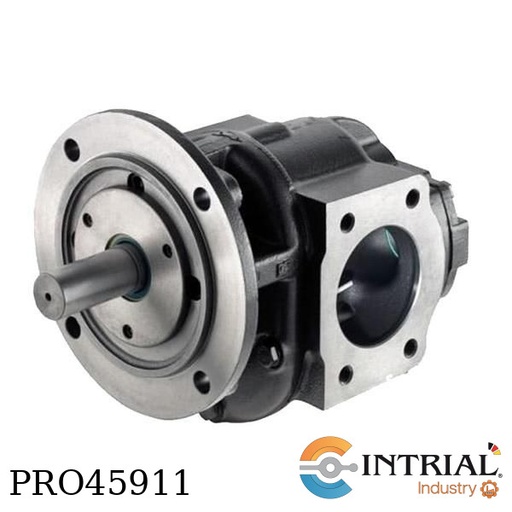

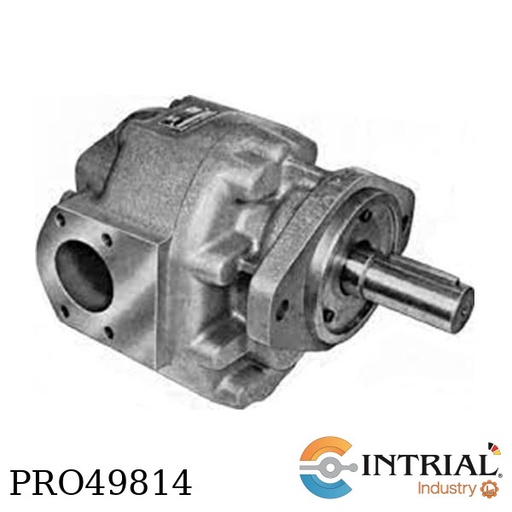

HIGH PRESSURE GEAR PUMP<br />
Brand: KRACHT<br />
Material Housing Grey cast iron EN-GJL 300<br />
Material Flange cover Grey cast iron EN-GJL 300<br />
Material Gears Steel, case hardened<br />
Seal material FKM<br />
Bearing Multi component sleeve bearings P10<br />
Geometrical Displacement 196,10 cm³/r<br />
Direction of rotation counterclockwise (seen on shaft end)<br />
Type of fixation V/E - SAE-C-4-bolt-flange, LA = 114,55/114,55, Ø Z = 127<br />
Outboard bearing yes<br />
Type of pipe connection K - 2 1/2" SAE (Ø 65) M12 / 2" SAE (Ø 50) M12<br />
Shaft end T - Gear shaft profile SAE-C, DP 12/24, z= 14 a= 30° 500 Nm max<br />
Operating pressure (suction side) -0.4...+2 bar<br />
max. operating pressure (pressure side) 100 bar (depending on viscosity, speed and power)<br />
Fluid temperature -20°C...+120°C<br />
Ambient temperature -20°C...+60°C<br />
Minimum viscosity 13 mm²/s<br />
Maximum viscosity 600 mm²/s<br />
Speed range 800...1800 rpm<br />
Min. Media temperature [° C] -15<br />
Speed range (depending on pressure, viscosity and power)<br />
Max. Media temperature [° C] 150<br />
Min. ambient temperature [° C] -15<br />
Max. ambient temperature [° C] 60<br />

Type 52SSAR Auto Filter<br />
Model: 960-611-000<br />
Brand: MARSH BELLOFRAM<br />
Filter: Built in 25 micron filter with auto-drain<br />
Maximum Supply Pressure: 425 psig (29.3 BAR)<br /><br />
63mm Severe Service Gauge<br />
Model: J6654<br />
Brand: BELGAS<br />
0 to 200 PSI<br />
1⁄4 NPT

Type 52SSAR Auto Filter<br />
Model: 960-611-000<br />
Brand: MARSH BELLOFRAM<br />
Filter: Built in 25 micron filter with auto-drain<br />
Maximum Supply Pressure: 425 psig (29.3 BAR)

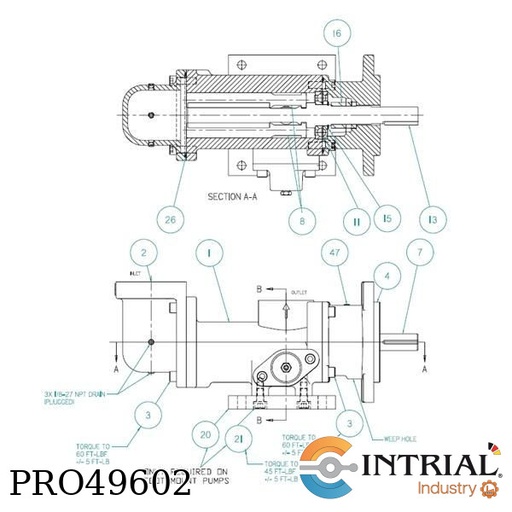

PUMP<br />
Brand: IMO<br />
Hardened Screw Set: No<br />
Seals: Fluorocarbon (Viton) Elastomer Bellows Mech.Seal, carbon on Ni-Resist, Viton, 0-Ring Seat<br />
Case Materials: Iron with SAE 4-Bolt Pad Discharge Port<br />
Inlet Type: Radial with SAE 4-Bolt Pad and Weep Hole<br />
Mounting: SAE 4 bolt flange mount<br />
Relief Valve Set Range: No Relief Valve

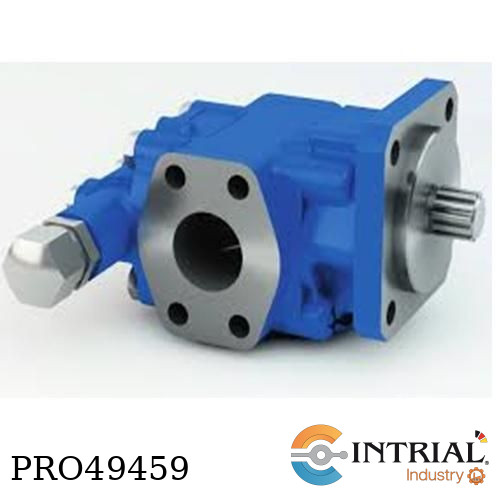

PUMP<br />
Brand: RICKMEIER<br />
suction connection acc. SAE1.1/2 (without counterflange)<br />
pressure connection acc. SAE1.1/2 (without counterflange)<br />
pump data:<br />
Pumping medium mineral oil ISO VG 220<br />
fluid temperature in deg. C +40 (+20...+80)<br />
kin. viscosity in mm²/s 220 (75.....10)<br />
oil flow approx. in dm³/min 54 (p1=0 bar, p2=3 bar, v=220 mm²/s)<br />
inlet pressure in bar 0 (-0,4...+0,5)<br />
outlet pressure in bar 3<br />
speed in rpm 1740<br />
Sense of rotation (seen on the shaft) cw<br />
kind of shaft sealing rubber radial shaft sealing<br />
pressure relief valve yes (with internal backflow)<br />
opening pressure (valve) in bar 3,5<br />
pressure range (valve) in bar 1...7<br />
pump materials:<br />
casing 5.1301 (EN-GJL-250)<br />
gear shafts 1.7139 (16MnCrS5+FP)<br />
elastomere NBR<br />
further data<br />
Site conditions: indoor<br />
altitude above sea level in m < 1000<br />
explosion protection (pump) without<br />
Coating RM-Standard 1005-C2<br />
Referring to ISO 12944-5/C2.07-PUR Zn(PO)<br />
shade of colour RAL 7021 (black grey)<br />
Colour designation PUR COLOR PLUS<br />
base of the colour 2 K polyurethane base w. zinc phosphate<br />
Nominal dry film thickness in μm 80<br />
internal pump preservation (pump) by test fluid<br />
approx. net weight gearpump in kg 8,7<br /><br /><br />
