REJILLA FLEXIBLE <br />
Marca: FALK <br />


3-PHASE MOTOR<br />
Brand: KRACH<br />
Power class 0.75 kW<br />
Frequency 50 Hz / 60 Hz<br />
Frequency / Power 50 Hz / 60 Hz - 0,75 kW / 0,75 kW x Factor<br />
60 Hz-Power depends on<br />
manufacturer, voltage and motor type<br />
Voltage on nameplate 220-245/380-420V 50Hz / 220-280/380-480V 60Hz<br />
Frame size 90 S<br />
Degree of protection IP 55<br />
Mounting arrangement IM B35<br />
IEC/EN Efficiency class IE 3<br />
Insulation class F<br />
Motor protection with PTC-thermistors (1 set)<br />
Certificate Test report DIN EN 10204-2.2<br />
Operational type S1 - Continuos running duty<br />
Seal with shaft sealing<br />
Position Terminal box top<br />
cable entry right<br />
Paint - Colour Standard of manufacturer<br />
Motortype T3A

GEAR PUMP<br />
Brand: KRACH<br />
Material Housing Grey cast iron:  EN-GJL 250<br />
Material integrated valve Grey cast iron : EN-GJL 250<br />
Material Gears Steel:  case hardened<br />
Seal material : FKM<br />
Shaft sealing Single radial lip-type seal<br />
Bearing Multi component sleeve bearings P10<br />
Geometrical Displacement 5,05 cm³/r<br />
Direction of rotation clockwise (seen on shaft end)<br />
Type of fixation DIN flange<br />
Type of pipe connection Threaded connection G 3/4"<br />
integrated valve D-valve 0...15 bar<br />
Version noise optimized for fluids with increased air percentage<br />
Operating pressure (suction side) -0.4...+6 bar (max 750 rpm), <br />
-0.4...+5 bar (max 1000 rpm)<br />
-0.4...+4 bar (max 1500 rpm),-0.4...+3 bar (max 2000 rpm)<br />
-0.4...+2 bar (max 3000 rpm), -0.4...+1.5 bar (max 3600 rpm)<br />
max. operating pressure (pressure side) 25 bar<br />
(depending on viscosity, speed and power)<br />
Fluid temperature -20°C...+150°C<br />
Ambient temperature -20°C...+60°C<br />
Minimum viscosity 1.4 mm²/s (max. 3 bar)<br />
6 mm²/s (max. 12 bar)<br />
12 mm²/s (max. operating pressure)<br />
Maximum viscosity depending on suction conditions, speed and power<br />
Speed range 200...3600 rpm (depending on pressure, viscosity and power)

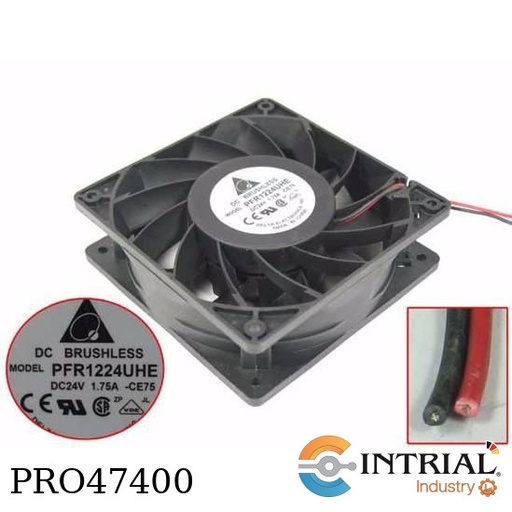

<div>VENTILADOR ENFRIADOR DE SERVIDOR DE 3 CABLES<br />
Marca<span> </span>: DELTA ELECTRONICS<br />
CA/CC<span> </span>DC<br />
Corriente: 1.75A<br />
Terminación: 2<br />
Voltaje<span> </span>: 24V</div>

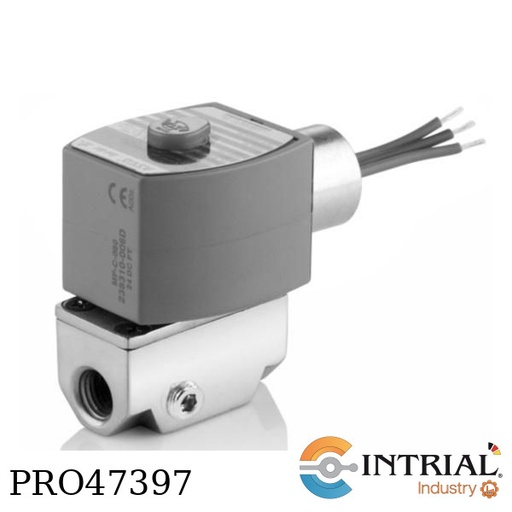

GAS SHUTOFF VALVES<br />
Brand: ASCO<br />
Fluid: Fuel Gas<br />
Body Aluminum<br />
Seals and Disc NBR<br />
Core Tube 305 Stainless Steel<br />
Core and Plugnut 430F Stainless Steel<br />
Springs 17-7 PH<br />
Shading Coil Copper<br />
Pipe Plug Zinc Plated Steel<br />
Pipe Size (in): ¼” <br />
Operating Pressure Differential (psi): 15<br />
Max. Fluid Temp.°F: 125<br />
Coil: 120V-60HZ

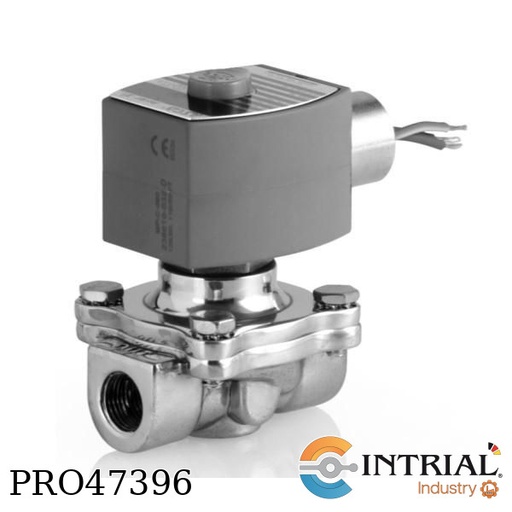

GAS SHUTOFF VALVES<br />
Brand: ASCO<br />
Body Brass<br />
Seals and Disc NBR<br />
Core Tube 305 Stainless Steel<br />
Core and Plugnut 430F Stainless Steel<br />
Springs 302 Stainless Steel<br />
Shading Coil Copper<br />
Operating Pressure Differential psi (bar): 50 (3.4)<br />
Max. Fluid Temp. °F (°C): 125 (52)<br />
Pipe Size (in): ½<br />
Orifice Size (in): 5/8<br />
Coil: 120V-60HZ

CHARACTERIZED CONTROL VALVE (CCV)<br />
Brand: BELIMO<br />
1", 2-way, Cv 19 <br />
Valve Actuator<br />
Spring return, <br />
AC/DC 24 V, On/Off<br />
Actuator fitted<br />

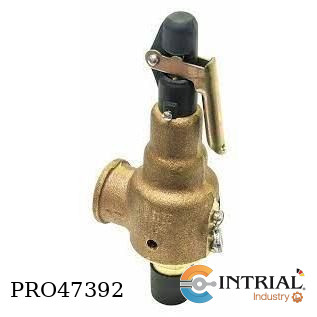

SAFETY RELIEF VALVE<br />
Brand: KUNKLER<br />
Orifice: J<br />
Inlet size: 2" (50.8)<br />
Seat material: Metal<br />
Variation (01 to 99): Plain lever<br />
Valve service: Steam ASME section I<br />
Spring material: SS<br />

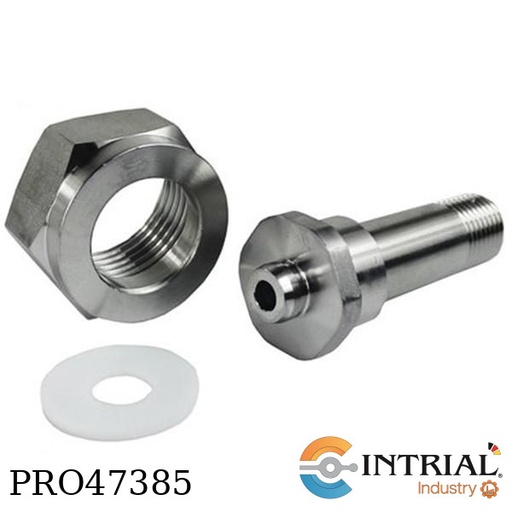

TUERCA Y NIPLE EN ACERO INOXIDABLE, SET CGAX1/4 MNPT
SET CGAX1/4 MNPT

VÁLVULAS A SOLENOIDE DE 2 VÍAS<br />
Marca: JEFFERSON<br />
2 Ways N.Closed <br />
2in. NPT <br />
Brass Solenoid Valve <br />
w/Teflon Seats (Max.Temp.:  356 F) <br />
50 mm Orifice<br />
Cv: 46.8 <br />
Pilot Operated <br />
Min/Max Diff.Pressure 7.5 / 225 PSI

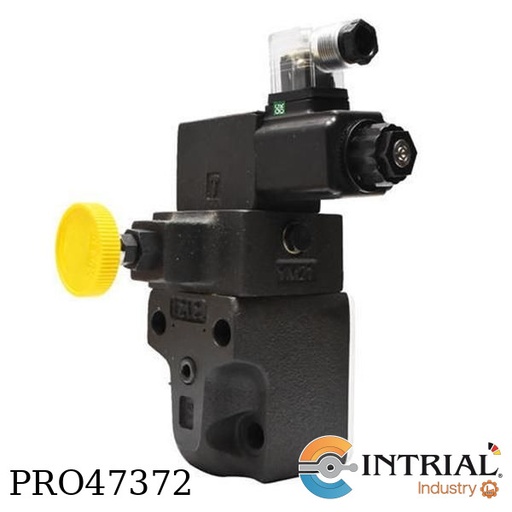

SOLENOI CONTROLLED RELIEF VALVES<br />
Brand: YUKEN<br />
Sub-plate Mounting<br />
Valve Size 03<br />
Vent Type: 2B3B<br />
Coil Type: AC 240<br />

Connector(24V) <br />
Brand: YUKEN<br />

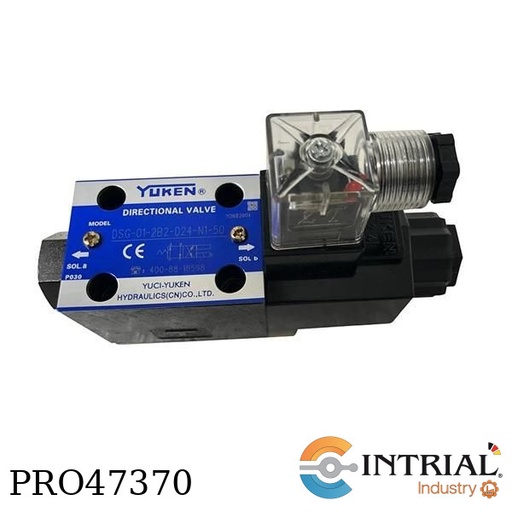

SOLENOID OPERATED DIRECTIONAL VALVES<br />
Brand: YUKEN<br />
Number of Valve Positions: Two Positions<br />
Spool - Spring Arrangement: Spring Offset<br />
Spool Type: 2<br />
Coil Type : 24 DC<br />
Electrical Conduit Connection: With Plug-in Connector with Indicator Light (Option)<br />
Design Number : 50 <br />

TEMPERATURE AND NOISE ISOLATION WASHER<br />
P/N: 287145-01<br />
MARCA: BENTLY NEVADA

Válvulas a solenoide de dos vías.<br />
Marca: Jefferson.<br />
Posición: Horizontal.<br />
Diámetro: 3” npt<br />
Cuerpo de latón forjado.<br />
Asiento de teflón (PTFE) hasta 180°C.<br />
Bobina a prueba de explosión 220v/60Hz.

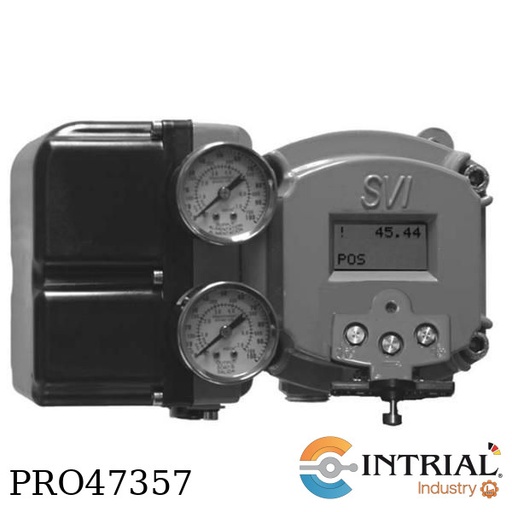

POSITIONER<br />
BRAND: MASONEILAN<br />
VALVE<br />
DIGITAL<br />
HART<br />
STANDARD DIAGTYPE 4X<br />
IP66<br />
150PSI<br />
4-20MA<br />
30V

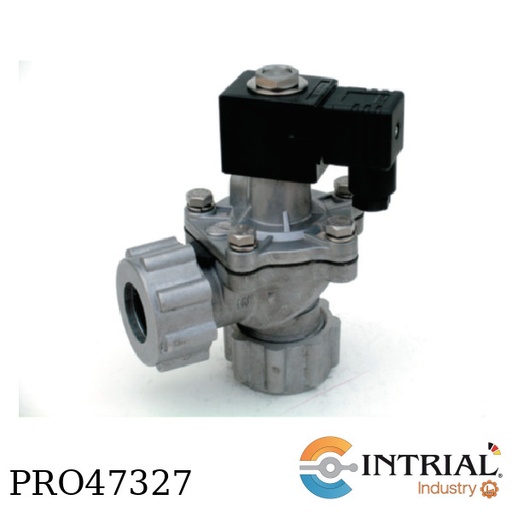

VÁLVULAS DE DIAFRAGMA<br />
Marca: DWYER<br />
[DCV] Construcción; Bobina integrada<br />
[20] Tamaño; 3/4˝<br />
[T] Conexión; NPT<br />
[1D] Voltaje; 110 VAC (solo para bobina integrada)<br />
Servicio: Gases compatibles, filtrados y exentos de aceite.<br />
Materiales húmedos: Cuerpo: aluminio; Recorte: 304 SS; Diafragma y juntas: NBR; Disco de diafragma: poliamida.<br />
Límites de presión: Mínimo de 4,4 psi (0,3 bar), máximo de 124,7 psi (8,6 bar).<br />
Límites de temperatura: -4 a 122 ° F (-20 a 50 ° C) para modelos DCV<br />
Consumo de energía: 12 W, irrupción: 17 VA; retención: 14,5 VA para modelos DCV.<br />
Conexión eléctrica: Conexión DIN para modelos DCV.<br />
Clasificación de la caja: NEMA 4X (IP65) para modelos DCV.

FIRE BALL 425 PUMP<br />
Brand: GRACO<br />
Air Inlet Thread Gender : Female<br />
Air Inlet Thread Type: NPT<br />
Fluid Outlet Size (in): 3/4<br />
Maximum Working Pressure (MPa): 3.7<br />
Maximum Working Pressure (psi): 540<br />
Power Type: Pneumatic<br />
Pump Ratio: 3:1<br />
Sound Pressure Level (dB(A)): 82<br />
Type: Pneumatic Piston Pump<br />
Wetted Material:Steel, Polyurethane, Aluminum, Nitrile

AGITADOR INDUSTRIAL <br />
MARCA: FLUIDMIX<br />
Motor: 1,5 kW, 4 polos, 220/440 V, 60 Hz, IP55, IE3<br />
Velocidad reductor: 146 rpm<br />
Fijación: Brida ø 250/210 mm<br />
Longitud eje: 1200 mm<br />
Móvil: Turbina axial de cuatro palas ø 500 mm<br />
Materiales: Brida:  Acero al carbono<br />
Eje y móvil: AISI 316 L

AGITADOR INDUSTRIAL <br />
MARCA: FLUIDMIX<br />
Motor: 1,5 kW, 4 polos, 220/440 V, 60 Hz, IP55, IE3<br />
Velocidad reductor: 323 rpm<br />
Fijación: Brida ø 250/210 mm<br />
Longitud eje: 700 mm<br />
Móvil: Turbina axial de cuatro palas ø 300 mm<br />
Materiales: Brida:  Acero al carbono Eje y móvil: AISI 316 L<br />
Densidad: 1000 kg/m3 (supuesto)<br />
Viscosidad: 1000 cps<br /><br /><br /><br /><br /><br /><br />
