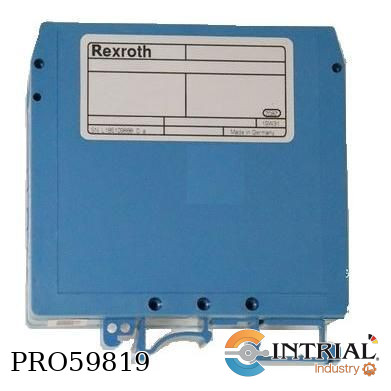

ELECTRICAL AMPLIFIER MODULE<br />
Brand: BOSCH REXROTH<br />
Model: VT11165-1X<br />
P/N: R900033024

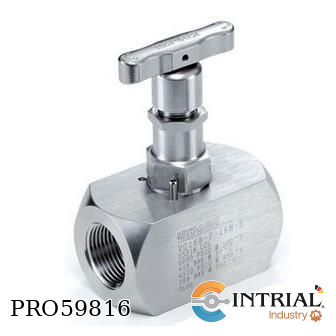

VALVULA DE AGUJA<br />
Marca: DK LOK<br />
Modelo: VG16B-F-12N<br />
IN 3/4" NPT-H<br />
OUT 3/4" NPT-H<br />
SERIE 6000<br />
SS316

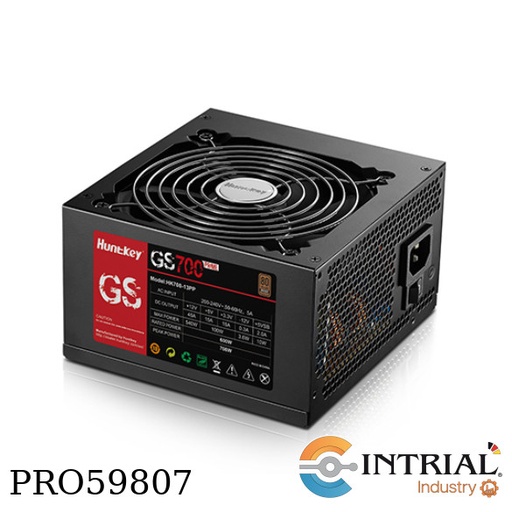

FAN<br />
Brand: HUNTKEY<br />
Model: GS700PRIME<br />
Rated Power: 600W<br />
Fan: 12cm HYB Fan <br />
Eficiency: 80PLUS Bronze<br />
12V Current: 45A<br />
Input Voltage Range: 180 - 264 V<br />
PFC Type: Active PFC<br />
Topology Structure: LLC+DC-DC<br />
CPU Power Connector: 1*(4+4+4)P<br />
GPU PCI-E Connector: 1*(6+2+6+2)P<br />
Hard Disk Connector: 4*SATA,2*PATA<br />
REC(GPUs): RTX4060Ti/RX6650XT

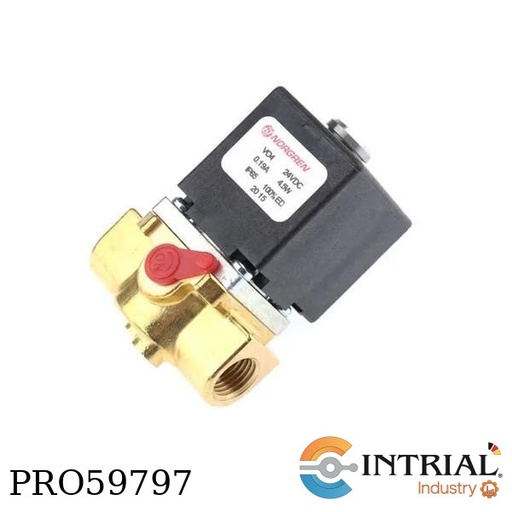

Solenoid actuated 32mm poppet valves<br />
Medio Aire comprimido<br />
Temperatura de funcionamiento -20 ... 50 °C<br />
Operating Temperature -4 ... 122 °F<br />
Presión de funcionamiento 0 ... 10 bar<br />
Operating Pressure 0 ... 145 psi<br />
Tamaño del puerto G1/4<br />
Accionamiento Electroimán directo / Retorno por muelle<br />
Diámetro del cilindro 2.5 mm<br />
Funcionamiento 2/2<br />
Materiales - Juntas Caucho nitrílico<br />
Certificación - Clasificación IP IP65 (con enchufe sellado)<br />
Country of Origin Chequia<br />
Gama V04<br />

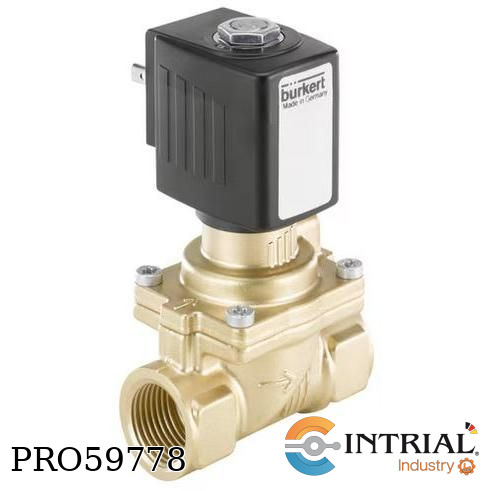

2/2-WAY-SOLENOID VALVE SERVO ASSISTED<br />
Brand: BURKERT<br />
Model: 00221862<br />
P/N: 6281-EV-A40,0BBMSGM88-5-024/DC-08<br />
[A]: Función circuito, 2/2 vias, normalmente cerrado<br />
[40,0]: Tamaño orificio, 40 mm (1-1/2")<br />
[BB]: Material junta, NBR<br />
[MS]: Material, laton<br />
[GM88]: Conexión, Rosca G1 1/2<br />
[5]: Tamaño bobina, 32 mm<br />
[024]: Voltaje, 24 V<br />
[DC]: Frecuencia, DC<br />
[08]: Consumo, 8 W<br />
<br />
Include<br />
PLUG CONNECTION FORM A<br />
Marca: Bürkert<br />
Modelo: 00314802<br />
2518-A-BCS/UC-00-3-N50-00-0-00000-JL04<br />
[2518]: Tipo, 2518<br />
[A]: Plug interface, DIN EN 175301-803<br />
[BCS]: Voltage, 0-250 V<br />
[UC]: Frecuencia, AC/DC<br />
[00]: Configuración, Estandar<br />
[3]: Número de terminales, 2+tierra<br />
[N]: Diámetro cable, 6-8 mm<br />
[5]: Screwing, 4 M16 internal thread<br />
[0]: Cable cross-section, without<br />
[00]: Diámetro cable, PO PVC oil resistant<br />
[0]: Salida cable, -<br />
[00000]: Length, -<br />
[JL04]: Caracteristica especial, UL 2238,CSA-22-2No182.3 fileE315587

316 SS BLEEDER VALVE<br />
Brand: PPC <br />
Model: VLVS1-BLEEDER<br />
316 SS Bleeder Valve<br />
<br />
<br />
<br />
<br />
<br />
<br />
<br />
<br />

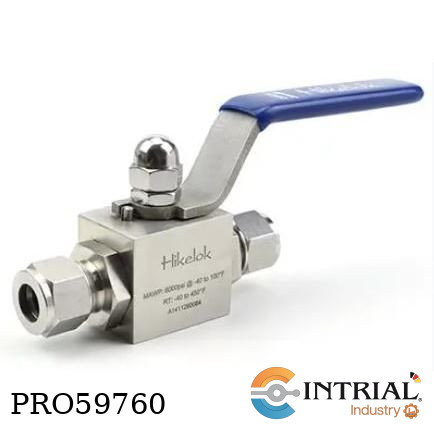

BALL VALVE<br />
Brand: HIKELOK<br />
Model: BV4-FNPT20-P25-316<br />
High pressure valve<br />
1 1/4" NPT<br />
Pressure, 350 Bar<br />
Fluid, water<br />
<br />

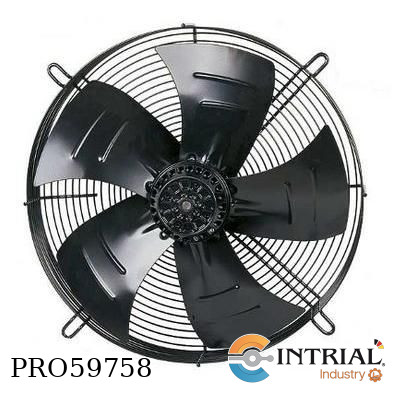

AC AXIAL FAN HYBLADE<br />
Brand: EBM-PAPST<br />
Model: S4E450-AO09-01<br />
Nominal voltage, 230 VAC<br />
Frecuency, 50/60 Hz<br />
Speed, 1310 / 1390 RPM<br />
Power consumption, 490 / 650 W<br />
Current draw, 2.36 / 2.96 A<br />
<br />

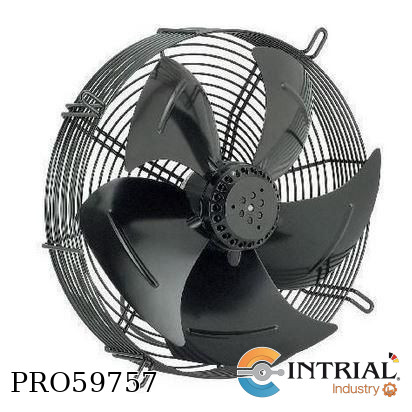

AC AXIAL FAN HYBLADE<br />
Brand: EBM-PAPST<br />
Model: S4E350-AN02-50<br />
Nominal voltage, 230 VAC<br />
Frecuency, 50 Hz<br />
Speed, 1340 RPM<br />
Power consumption, 165 W<br />
Current draw, 0.73 A

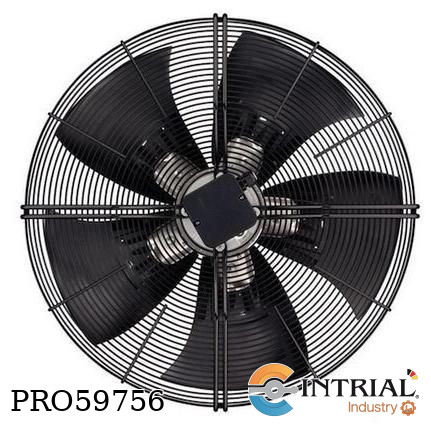

AC AXIAL FAN<br />
Brand: EBM-PAPST<br />
Model: S4E315-AS20-34<br />
Nominal voltage, 230 VAC<br />
Frecuency, 50/60 Hz<br />
Speed, 1350 / 1460 RPM<br />
Power consumption, 110 / 148 W<br />
Current draw, 0.52 / 0.66 A<br />
<br />
<br />

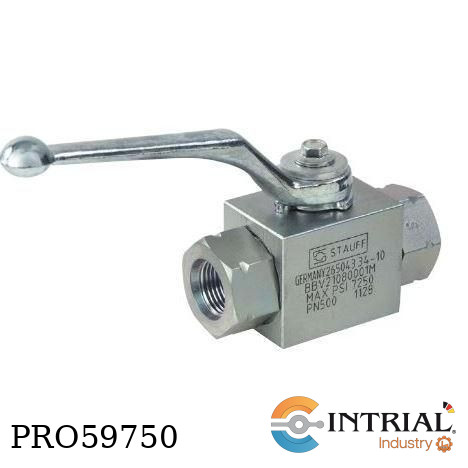

VALVULA DE BOLA<br />
Marca: STAUFF<br />
Modelo: BBV-2-N20R-8001-M<br />
[2]: Número de conexiones, 2<br />
[N]: Tipo de conexión, Rosca interior NPT (ANSI B1.20.1)<br />
[20R]: Tamaño de la conexión, 1-1/4 NPT<br />
[8]: Material/ superficie Carcasa, Acero, revestimiento de cinc/níquel<br />
[0]: Material Bola/Árbol de embrague,<br />
Bola: acero, cromado duro<br />
Eje: acero<br />
[0]: Material, Asiento de bola, Delrin (POM)<br />
[1]: Material, Juntas tóricas, FKM (Viton)<br />
[M]: Llaves de fabricación, Llaves de fabricación para todo tipo de conexiones<br />
Tamaño nominal, DN25/32 DE 315 BAR/4500 PSI

BOMBA CENTRIFUGA<br />
Marca: WILO<br />
Modelo: HELIX V606-2/25/V/KS/60<br />
[6]: Caudal nominal, 6 m3/h<br />
[06]: Número de rodetes, 6<br />
[2]: Material, Acero inoxidable de la carcasa de la bomba 1.4404 (AISI 316L)<br />
+ Conjunto hidráulico 1.4404 (AISI 316L)<br />
[25]: Conexión de tubería, bridas redondas PN 25<br />
[V]: Código del tipo de junta, FKM<br />
[K]: Junta de cartucho<br />
[S]: Linterna orientada en línea con la tubería de aspiración<br />
[60]: Frecuencia del motor, 60 Hz<br />
3.0 HP 3F 220/440V

FILTRO<br />
Marca: HYDAC<br />
Modelo: PFH-1-G-2-V-0-L24/SZ-1-40-D-V<br />
[PFH]: Tipo, Filtro PN 100<br />
[1]: Tamaño, 1<br />
[G]: Tipo de conexión, Conexión roscada G 1"<br />
[2]: Modelo del indicador de contaminación,<br />
con ind. óptico-eléctrico (PVD 2 D.0/-L..)<br />
[V]: Material de junta, FPM / FKM (de -20°C a +200 °C)<br />
[L24]: Tensión de conmutación máx. en función de la lámpara, lámpara de 24V<br />
[1]: Tamaño, 1<br />
[40]: Grado de filtración, Tejido de malla 40 μm<br />
[D]: Material del filtro, Tejido de malla, tapas de los extremos rebordeadas<br />
[V]: Material de junta, FPM / FKM (de -20°C a +200 °C)

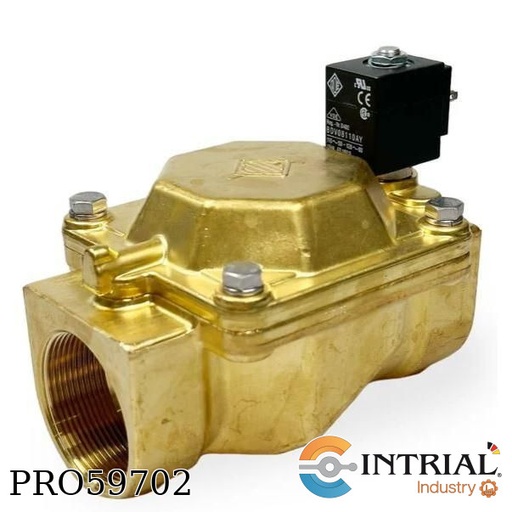

2-WAY SOLENOID VALVE<br />
Brand: ODE<br />
Model: 21W7KB500<br />
Pipe, G2<br />
Max viscosity, 12 cSt<br />
Kv, 750 l/mn<br />
Power, 8 W<br />
Pressure, 0.2-10 bar<br />
Gasket, NBR (nitrile rubber)<br />
Temperature, -10...90 °C<br />
Medium, air/inert gas/water

Positive Displacement Pump<br />
Brand: SEKO<br />
Model: 2Y86N2SSA<br />
Service/Liquid, Sulfuric Acid (90-98%)<br />
Type, Hydraulic Double Diaphragm NEXA Type<br />
Flowrate (total), 3650 l/h @ 9,8 barg (MAWP 14 barg)<br />
SPM, 161<br />
NPSHr, 5<br />
Motor, 3 kW /6 poles /460 V /60 Hz /3 Phase /Frame 132-B5<br />
Temperature, Fluid 45° C / ambient 36° C<br />
Connections, 2" ANSI 150# WN-RF<br />
Adjustment, Manual<br />
Materials<br />
 Pump Head, Hastelloy C-276<br />
 Diaphragm, PTFE<br />
 Ball, Hastelloy C-276<br />
 Valves seat, Hastelloy C-276<br />
 Gasket, PTFE

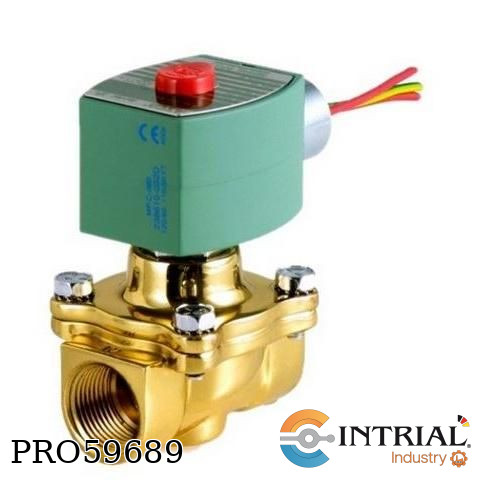

SOLENOID VALVE<br />
Brand: ASCO<br />
Model: 8210G056<br />
Pipe size, 1 1/2"<br />
Orifice size, 1 1/4"<br />
Brass body<br />
Cv flow factor, 22.5<br />
Operating pressure differential<br />
 Max. AC<br />
  Air-Inert Gas, 150 psi<br />
  Water, 125 psi<br />
  Ligth oil, 125 psi<br />
 Max. DC<br />
  Air-Inert Gas, 135 psi<br />
  Water, 120 psi<br />
  Ligth oil, 120 psi

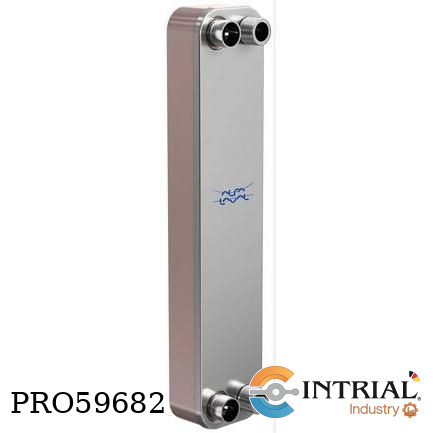

Brazed plate heat exchanger<br />
Brand: ALFA LAVAL<br />
Model: CBH60-40H<br />
Process data:<br />
 Hot side<br />
  Fluid, Water<br />
  Duty type, Liquid cooling<br />
 Cold side<br />
  Fluid, Water<br />
  Duty type, Liquid heating<br />
Heat exchanger specification:<br />
 Hot side<br />
  Relative directions of fluids, Countercurrent<br />
  Number of plates, 40<br />
  Number of passes, 1<br />
  Channel arrangement, 1*20H<br />
  Channel volume, 2,1dm³<br />
  Number of circuits, 1<br />
  Design pressure at -196 °C, 50 bar<br />
  Design pressure at 225 °C, 39 bar<br />
  Design temperature (min./max.), -196 / 225 °C<br />
  Pressure vessel code, PED/UK<br />
  Material channel plates/sealing, ALLOY 316 / Cu<br />
  Connection S1 (Hot-In), Soldering 1 3/8" ALLOY 316<br />
  Connection S2 (Hot-Out), Soldering 1 3/8" ALLOY 316<br />
  Connection S3 (Cold-In), Soldering 22 mm ALLOY 316<br />
  Connection S4 (Cold-Out), Soldering 22 mm ALLOY 316<br />
  Unit dimensions (length x width x height), 147 x 113 x 527 mm<br />
 Cold side<br />
  Relative directions of fluids, Countercurrent<br />
  Number of plates, 40<br />
  Number of passes, 1<br />
  Channel arrangement, 1*19H<br />
  Channel volume, 2,0dm³<br />
  Number of circuits, 1<br />
  Design pressure at -196 °C, 50 bar<br />
  Design pressure at 225 °C, 39 bar<br />
  Design temperature (min./max.), -196 / 225 °C<br />
  Pressure vessel code, PED/UK<br />
  Material channel plates/sealing, ALLOY 316 / Cu<br />
  Connection S1 (Hot-In), Soldering 1 3/8" ALLOY 316<br />
  Connection S2 (Hot-Out), Soldering 1 3/8" ALLOY 316<br />
  Connection S3 (Cold-In), Soldering 22 mm ALLOY 316<br />
  Connection S4 (Cold-Out), Soldering 22 mm ALLOY 316<br />
  Unit dimensions (length x width x height), 147 x 113 x 527 mm

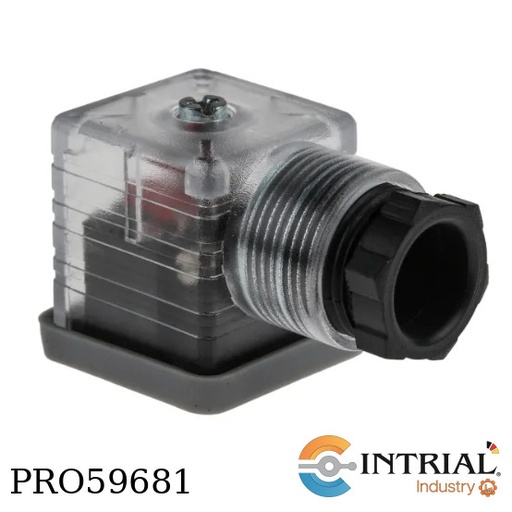

CONECTOR DE VÁLVULA DIN 43650 A RS PRO<br />
Marca: RS Pro<br />
Modelo: 8118174<br />
Hembra<br />
3P+E<br />
24 V Dc<br />
10A<br />
Prensaestopas Pg11<br />
Montaje En Cable

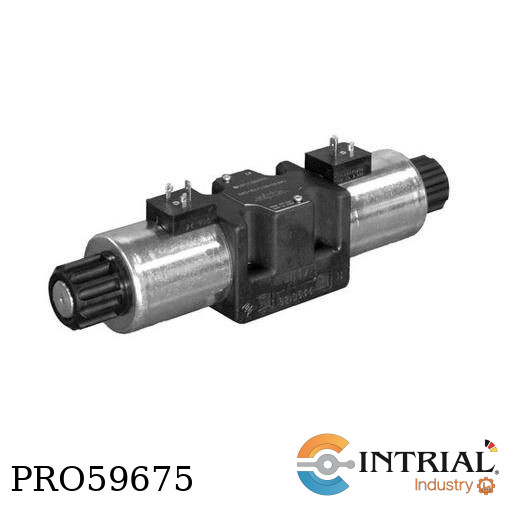

SOLENOID OPERATED DIRECTIONAL CONTROL VALVE<br />
Brand: DUPLOMATIC<br />
Model: DS5-SB4/12N-D24K1<br />
[5]: Size, ISO 4401-05<br />
[SB4]: Spool type, see datasheet<br />
[N]: Seals, NBR seals for mineral oil (standard)<br />
[D24]: DC power supply, 24 V<br />
[K1]: Coil electrical connection, plug for connector type DIN 43650 (standard)

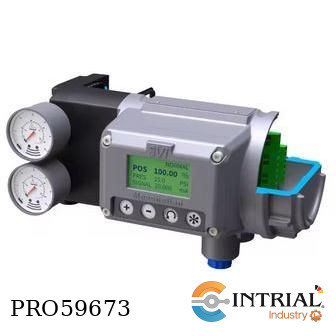

SMART VALVE INTERFACE<br />
Brand: MASONEILAN<br />
Model: SVI3-21121110<br />
P/N: 720067230-999-0000<br />
[2]: Diagnostic, Advanced Diagnostics<br />
[1]:<br />
Pneumatic Train, Single Acting<br />
Capacity, Standard Flow (Cv >=0.5)<br />
Fault State, De-energize on fault (Fail Safe)<br />
[1]: Instrument Air, Compressed Air or Natural Gas<br />
Temperature, Standard Temperature (-40°C to 85°C), Nitrile Diaphragms<br />
[2]:<br />
Construction, Aluminum<br />
Display, Display with local interface<br />
[1]: Communication, 4-20mA - HART® Communication Protocol<br />
[1]: Input/Output Options, None<br />
[1]: Agency Approvals, Hazardous Area Unilable<br />
(ATEX, IECEx, US, Canada, UKEX, EQM, RCM, CMIM)<br />
[0]: None
