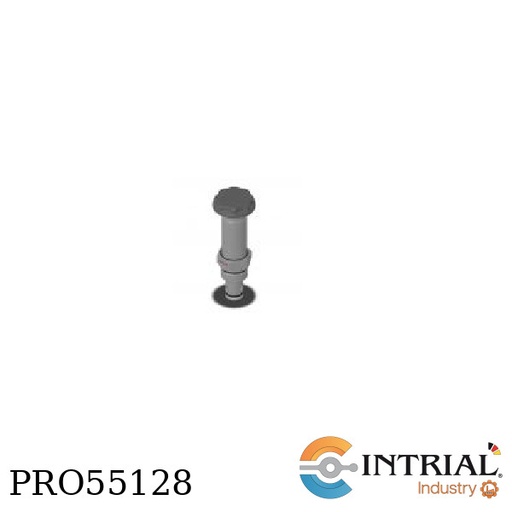

2/2 WAY DIRECTIONAL VALVE<br />
BRAND: HYDAC<br />
MODEL: WS08Z-01-C-N-24DG<br />
<br />
CONSTRUCTION TYPE: SCREW-IN<br />
GASKET MATERIAL: NBR<br />
INSTALLATION TYPE: UNF<br />
CONTROL TYPE: PILOTED<br />
QMAX VALVES [L/MIN]: 38<br />
PMAX [BAR]: 350<br />
NOMINAL SIZE: 8<br />
FLOW RATE Q [L/MIN]: 2<br />
COIL: 24V DC<br />
EMERGENCY MANUAL OVERRIDE: NONE<br />
CONNECTOR TYPE: CONNECTOR ACCORDING TO DIN EN 1<br />
DRIVE: MAGNETIC<br />
PRESSURE RANGE P [BAR]: 5 - 350<br />
PRODUCT FAMILY: WS08Z<br />
F. PROD. FLOW RANGE [L/MIN]: 2 - 38<br />
VARIANT: NONE

2/2-WAY ANGLE SEAT VALVE, PNEU. OPERATED<br />
BRAND: BURKERT<br />
MODEL: TYPE2000(178678)<br />
<br />
ON/OFF VALVES<br />
ANGLE SEAT VALVE <br />
0,00 BAR - 11,00 BAR<br />
-10,00 °C - 185,00 °C<br />
2/2 - A - NORMALLY CLOSED (NC)<br />
PTFE (POLYTETRAFLUORETHYLENE) <br />
STAINLESS STEEL<br />
INNER THREAD - G3/4

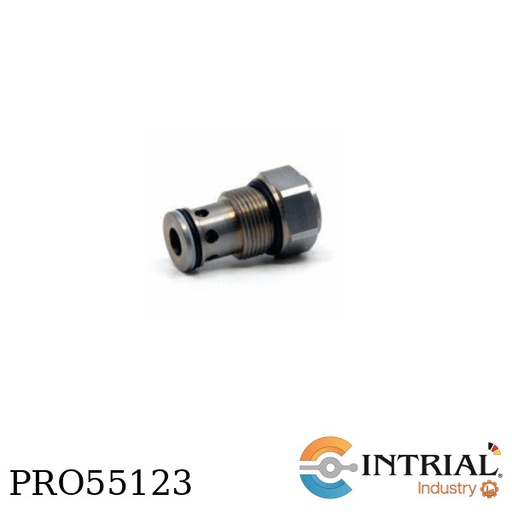

RETENTION VALVE<br />
BRAND: HYDAC<br />
MODEL: RV16A-01-C-N-05(3015349)<br />
<br />
ECLASS: SPERRVENTIL (STANDARD, HYDRAULIK<br />
NOM. SIZE: 16 <br />
PMAX [BAR]: 350,00 BAR<br />
QMAX VALVES [L/MIN]: 165,00 L/MIN<br />
<br />

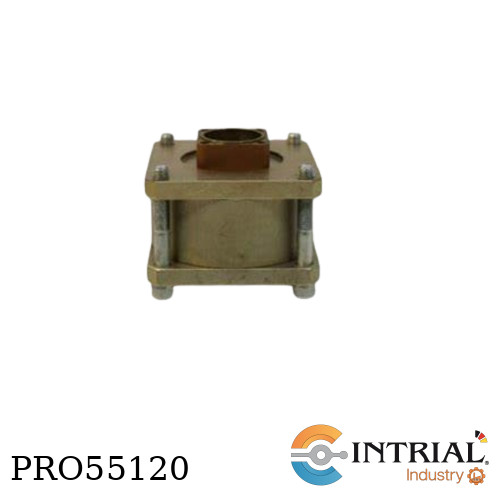

DIAPHRAGM CAP ASSEMBLY<br />
BRAND: VERSA <br />
MODEL: SA-4302-87-31<br />
<br />
FOR 1/8" THRU 1/2" VALVES

RETAINER<br />
BRAND: VERSA <br />
MODEL: 4302-43<br />
<br />
4302-43

GASKET<br />
BRAND: VERSA <br />
MODEL: 4302-44<br />
<br />
4302-44

“O” RING <br />
BRAND: VERSA <br />
MODEL: P-1000-09<br />
<br />
P-1000-09

“O” RING<br />
BRAND: VERSA <br />
MODEL: P-1100-09<br />
<br />
P-1100-09

BUSHING<br />
BRAND: VERSA <br />
MODEL: 4302-04<br />
<br />
4302-04

“O” RING <br />
BRAND: VERSA <br />
MODEL: P-1000-10<br />
<br />
P-1000-10

“O” RING<br />
BRAND: VERSA <br />
MODEL: P-1100-06<br />
<br />
P-1100-06

PLUNGER<br />
BRAND: VERSA <br />
MODEL: 4302-05<br />
<br />
4302-05<br />

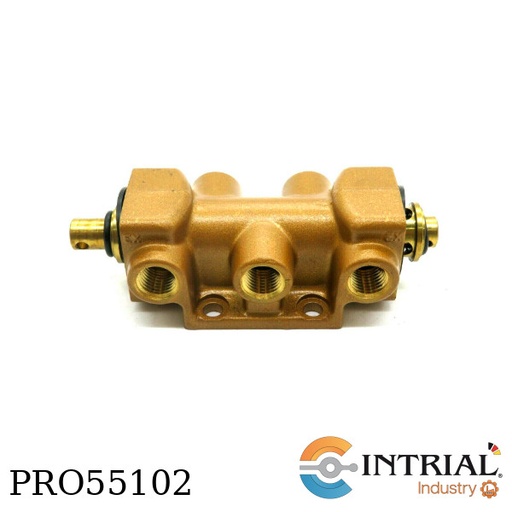

FOUR WAY VALVE <br />
BRAND: VERSA <br />
MODEL: SA-4302-61<br />
<br />
1/4" BODY ASSEMBLY<br />
<br />
INCLUDE:<br />
<br />
PRO55106: 4302-05 : 2 UDS<br />
PRO55107: P-1100-06: 4 UDS<br />
PRO55108: P-1000-10: 8 UDS<br />
PRO55111: 4302-04: 4 UDS<br />
PRO55112: P-1100-09: 4 UDS<br />
PRO55114: P-1000-09: 4 UDS<br />
PRO55115: 4302-44: 4 UDS<br />
PRO55116: 4302-43: 4 UDS

Posicionador electroneumático rotativo (Smart)<br />
Marca: Power Genex<br />
Mod. ASD-5010-IF2NONH4R<br />
Intrinsically Safe Ex ia llC, IP66<br />
Presión máxima: 10Bar (150Psi)<br />
Conexión neumática: 1/4" NPT<br />
Conexión eléctrica: 1/2" NPT<br />
Con comunicacion HART

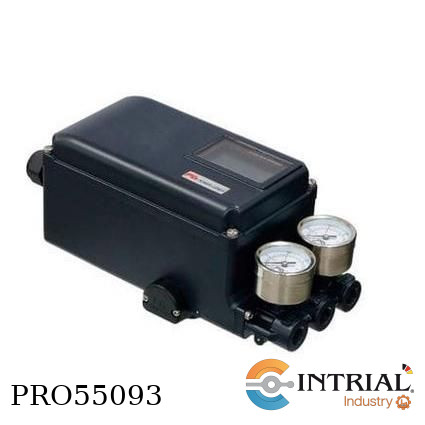

Posicionador electroneumatico lineal (Smart)<br />
Marca: Power Genex<br />
Mod. ASD-5000-IB1NONH4N0<br />
Intrinsically Safe Ex ia llC, IP66<br />
Presion máxima: 6Bar (90Psi)<br />
Conexion neumatica: 1/4" NPT<br />
Conexion electrica: 1/2" NPT<br />
Con comunicacion HART

GEAR PUMP<br />
Gear pump unit: SF6/132RD-VLFM<br />
STEIMEL part-no: ASF6-132RD162638R<br />
dimensional drawing: DPA056D-132LFM-R31<br />
list of spare parts: DET056132RD--165R<br />
Suction and pressure<br />
connections: SAE 2 ½<br />
casing parts: EN-GJL-250 (GG-25)<br />
shafts: 16 Mn Cr S 5, hardened<br />
gear wheels, noise-optimized: EN-GJS-400-15 (GGG-40)<br />
helical toothed, ionitrided<br />
shaft sealing: radial shaft sealing ring<br />
elastomers: FKM<br />
bearing: multilayer MD<br />
flow medium: lube oil<br />
viscosity: 50 - 5000 cSt.<br />
temperature: 10-60°C<br />
flow rate: 123 / 147 ltr/min.<br />
pressure: 5 bar<br />
speed: 950 / 1150 1/min.<br />
pressure relief valve<br />
- range of adjustment: 2-16 bar<br />
- opening pressure: 8 bar<br />
- sense of rotation: clockwise<br />
test run: yes, with HLPD 46<br />
coupling: BKUA065-2438-301<br />
bellhousing with base: BLF056300168LA21<br />
three-phase standard motor: LDM132-06-074 (BB)<br />
motor data:<br />
- power 1/2: 5,5/6,3 kW<br />
- speed 1/2: 1000/1200 1/min<br />
- voltage/frequency 1: 400/690 Volt 50Hz-5,5kW, efficiency class IE3<br />
- voltage/frequency 2: 460 Volt 60Hz-6,3kW, efficiency class IE2<br />
- add. plate (ohne IE3) for voltage / frequency : 380-420/660-720 Volt bei 50/60 Hz<br />
440-480 Volt bei 60 Hz<br />
- degree of protection: IP55<br />
- insulation class: F<br />
- form of construction: B 5<br />
finish : primer HDO058 - green<br />
test run : yes<br />
type plate: ETY924-D-E--PE02

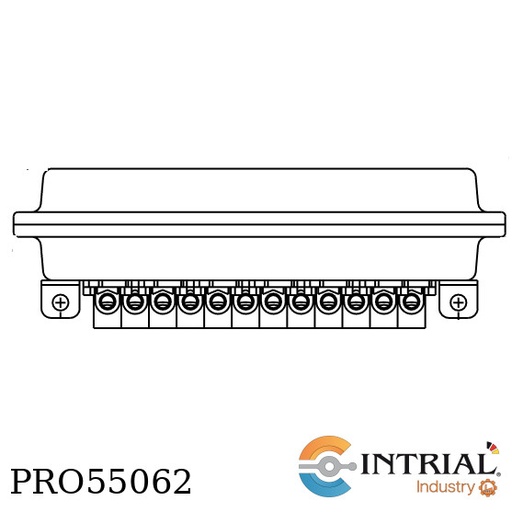

SOLENOID VALVE ENCLOUSURES<br />
Brand: DWYER<br />
Model: SVE12WP121<br />
Quantity of solenoid, 12<br />
Enclousure type, Weatherproof<br />
Voltage, 110 VAC<br />
Service, (For RSV) Compatible gases, filtered and oil free.<br />
Wetted Materials, (For RSV) Body: Aluminum; Core and spring: 304 SS; Seals:<br />
NBR.<br />
Pressure Limits, (For RSV) Min of 4.4 psi (0.3 bar), max of 124.7 psi (8.6 bar).<br />
Temperature Limits, Ambient: -4 to 122°F (-20 to 50°C); Operating: -4 to 185°F<br />
(-20 to 85°C).<br />
Power Requirement, (For RSV) 110 VAC, 220 VAC, or 24 VDC.<br />
Power Consumption, (For RSV) 12 W, inrush: 17 VA, holding: 14.5 VA.<br />
Enclosure Rating, NEMA 4X (IP66).<br />
Enclosure Material, Anodized aluminum with NBR gasket.<br />
Electrical Connection, All RSV are pre-wired to a terminal strip.<br />
Process Connection, (For RSV) 1/8˝ female NPT.<br />
Conduit Connection, 3/4˝ female NPT.<br />
Mounting Orientation, Any position.<br />
Pneumatic Tube Length, Max of 9.8´ (3 m).

DIAPHRAGM VALVES<br />
Brand: DWYER<br />
Model: RDCV35C1D<br />
[RDCV]: Construction, Remote coil<br />
[35]: Size, 1-1/2˝<br />
[C]: Connection, Coupling<br />
[1D]: Voltage, 110 VAC (for integrated coil only)<br />
Service: Compatible gases, filtered and oil free.<br />
Wetted Materials, Body: aluminum; Trim: 304 SS; Diaphragm and seals: NBR;<br />
Diaphragm disc, Polyamide.<br />
Other Materials, Cover: aluminum; Body bolts and spring: 304 SS.<br />
Pressure Limits, Minimum of 4.4 psi (0.3 bar), maximum of 124.7 psi (8.6 bar).<br />
Temperature Limits, Ambient: -4 to 140°F (-20 to 60°C) for RDCV models; -4 to<br />
122°F (-20 to 50°C) for DCV models; Operating: -4 to 185°F (-20 to 85°C).<br />
Power Requirements, 110 VAC, 220 VAC, or 24 VDC for DCV models.<br />
Power Consumption, 12 W, inrush: 17 VA; Holding: 14.5 VA for DCV models.<br />
Electrical Connection, DIN connection for DCV models.<br />
Enclosure Rating, NEMA 4X (IP65) for DCV models.<br />
Process Connection, See Catalog page.<br />
Mounting Orientation, Any position.<br />
Compliance, CE<br />
<br />

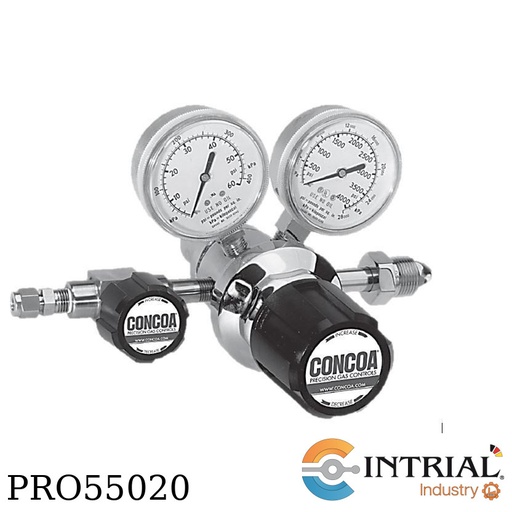

Regulador de cilindro 1 etapa, entrada CGA 580 - in: 4000psi- out: 50psi; Manómetro doble esc<br />
Etapas: 01<br />
Puertos: 04<br />
Marca: CONCOA<br />
Material: Latón Cromado<br />
Diafragma: Acero Inox 316L<br />
Presión de Entrada: 3000psig (310bar)<br />
Manómetro de entrada doble escala: 0-4000psi/0-275bar<br />
Conexión de entrada: CGA 580 (Bronce)<br />
Presión de Salida: 50psig (3,5bar)<br />
Manómetro de entrada doble escala: 0-100psi/0-7bar<br />
Conexión de Salida: 1/4 FTP

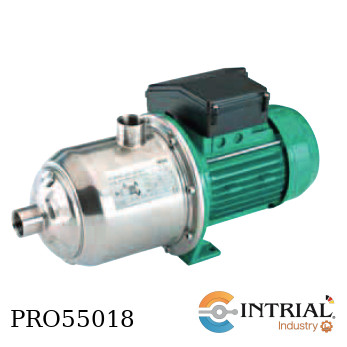

PRESSURE BOOSTING<br />
Brand: WILO<br />
Model: MHI205-2/V/1-60-2<br />
[MHI]: Multistage horizontal high-pressure centrifugal pump<br />
[2]: Volume flow in m3/h, 2<br />
[05]: Number of impellers, 5<br />
[2]: Material, 1.4404 (AISI 316L)<br />
[V]: Type of gasket, FKM (Viton)<br />
[1]: 1~ (single-phase AC)<br />
[60]: Frequency in Hz, 60<br />
[2]: Number of poles, 2
