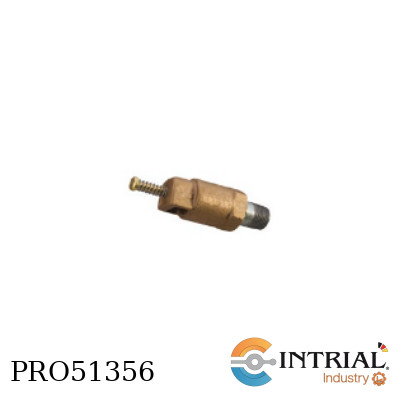

1/2" AD-1 Auto Drain Ball Drip<br />
Marca: Tyco Fire (Johnson Controls)<br />
Tyco P/N: 527932004<br /><br />
Model AD-1 Automatic Drain Valve<br />
Trim Component For Dry Pipe, Deluge Valves<br />
Maximum Pressure: 250 psi (17,2 bar)

8" DV-5 Replacement Diaphragm<br />
Marca: Tyco Fire (Johnson Controls)<br />
Tyco P/N: 924771111<br /><br />
DV-5 Deluge Valves, Diaphragm Style<br />
Nylon fabric reinforced,<br />
natural rubber per ASTM D2000<br />
Nota: Lengüeta del diafragma orientada perpendicular <br />
al cuerpo de la válvula

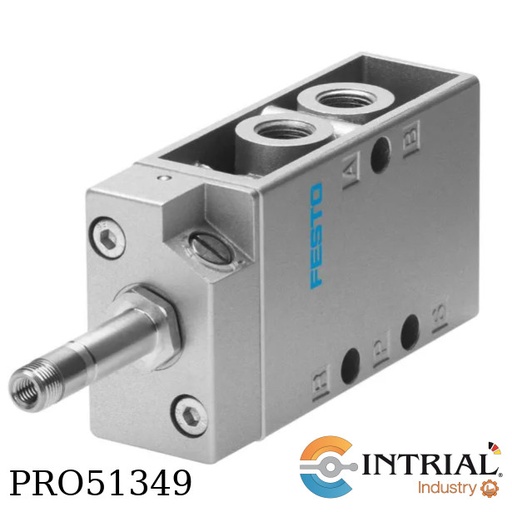

PNEUMATIC SOLENOID VALVE<br />
Brand: FESTO<br />
Model: MFH-5-1/2<br />
Valve function, 5/2-way monostable<br />
Drive type, Electric<br />
Normal nominal flow, 3700 l/min<br />
Pneumatic connection for use, G1/2<br />
Operating pressure, 0.2 MPa ... 0.8 MPa<br />
Operating pressure, 2 bar ... 8 bar<br />
Degree of protection, IP65

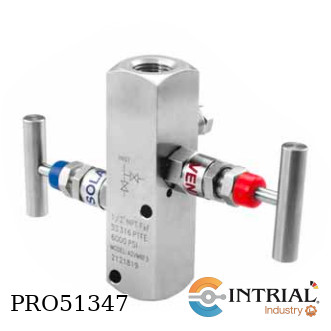

2-VALVE MANIFOLD REMOTE <br />
BRAND: APTEK<br />
MODEL: A-2VM-R-MF-N14-SSL-T <br />
[A]: APTEK(@ Valve Manofold Section Chart)<br />
[2VM]: 2 valve<br />
[R]: Remote Mounting<br />
[MF]: MaleXFemale<br />
Direct Mounting<br />
[N]: NPT<br />
[14]: 1/4<br />
6000 psi<br />
[SSL]: SS 316L<br />
[T]: PTFE Packing

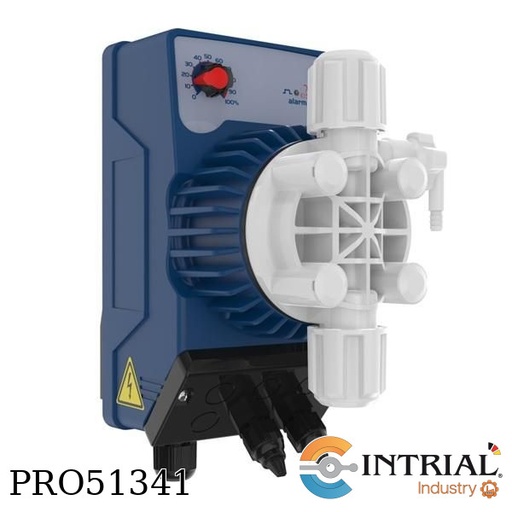

BOMBA DOSIFICADORA<br />
Marca :SEKO<br />
ANALOGICA<br />
SERIE KOMPACT<br />
3 - 5 LPH<br />
10 - 8 BAR<br />
100/240 V<br />
50/60 HZ<br />
CUERPO DE PVDF<br />
OPCION SALIDA A NIVEL<br />
Sub tipo :DE DIAFRAGMA

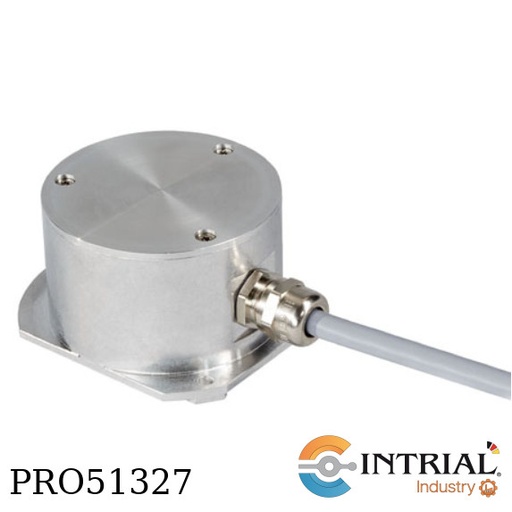

INCLINOMETRO<br />
Marca: POSITAL<br />
Modelo: AGS015-2-SC1-H0-CRW<br />
Tensión de Alimentación 10 – 30 VDC<br />
Temperatura de Operación: [-30 to 80]°C<br />
Tipo de Conexión: Cable 1 m<br />
Material/Tipo: PVC<br />
Tipo de Salida Corriente: 4 – 20 mA<br />
Controlador de Salida: RS232

SONAR SENSOR<br />
Marca: LINCOLN<br />
Modelo: 205U1-10BL-L220<br />
N° producto: 664-36909-4

Kit, Seal (3545HS) - Standard<br />
Brand: CAT PUMPS<br />
Model: 33234

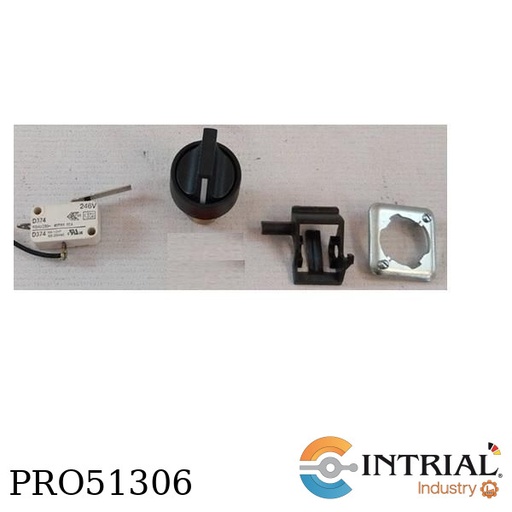

SENTRON - 3WL circuit breaker accessories<br />
Brand: SIEMENS<br />
Model: 3WL9111-0AJ06-0AA0<br />
Pollution degree: 3<br />
Shock voltage resistance rated value: 4 kV<br />
Job Strain:<br />
- With AC at 50 Hz rated value max: 250 V<br />
- With DC rated value max: 250 V
<div>
<div class="gtx-trans-icon"></div>
</div>

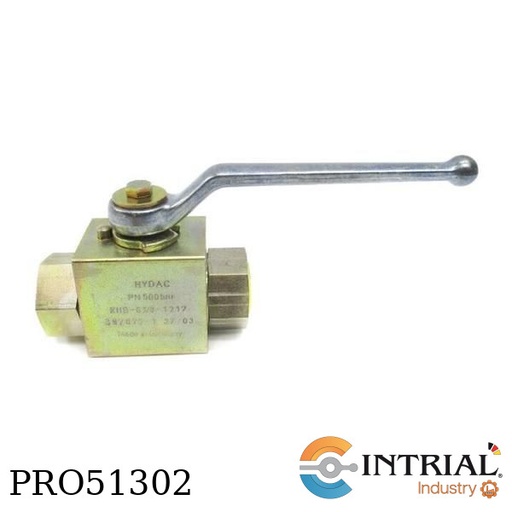

Ball Valves<br />
Brand: HYDAC<br />
block type ball valve DN 04-25<br />
Type of connection: G 3/8<br />

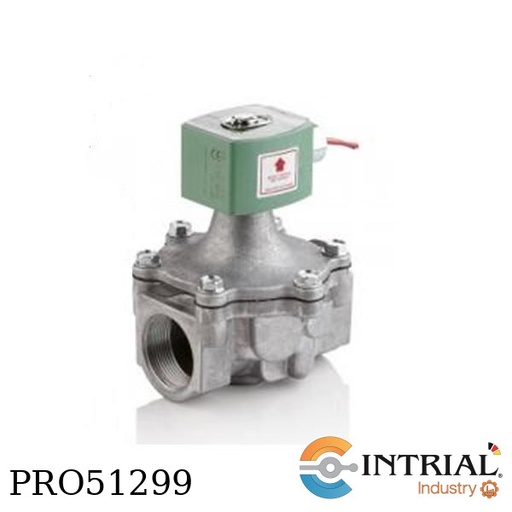

VALVULA SOLENOIDE<br />
Marca: ASCO<br />
2" NPT 2 VIAS<br />
N.C 120/60

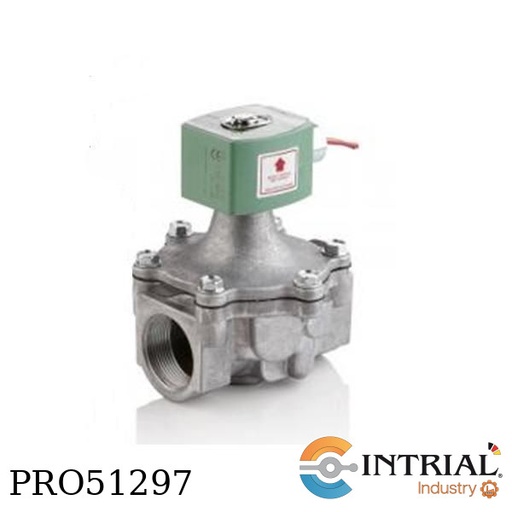

VALVULA SOLENOIDE<br />
Marca: ASCO<br />
1" NPT 2 VIAS<br />
N.C 120/60<br />

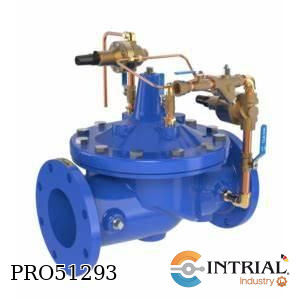

VALVULAS REDUCTORA PILOTEADA <br />
Marca: ZURN USA<br />
Modelo: ZW209BPG<br /><br />
Con By-Pass para caudales minimos con Reductora LF25AUB (Rango Alto)<br />
* Cuerpo tipo Globo - Fe. Dúctil ASTM A536 (paso Total) (Rojo)<br />
* Extremos ranurados (Pmax 250 psi) (Tmax 71 °C)<br />
* Cuerpo con recubrimiento epoxico fundido interior y exterior.<br />
* Diafragma y sello de Buna-N reforzado con nylon.<br />
* Asiento y Vástago de acero Inox. 316<br />
* Sistema de control con pilotos y conexiones de bronce - Tubbing de Cobre<br />
* PRESION MINIMA DE PARA FUNCIONAMIENTO 5 A 7.5 PSI<br />
* Piloto principal PV-PRD Rango de regulacion de 20 a 200 psi<br />
* By-pass valvula reductora 1” Modelo LF25AUB rango regulacion de 75 a 125 psi<br />
* Incluye valvula de aguja/Check de velocidad de apertura.<br />
* Incluye valvulas de bola de aislamiento.<br />
* No incluye Manometros

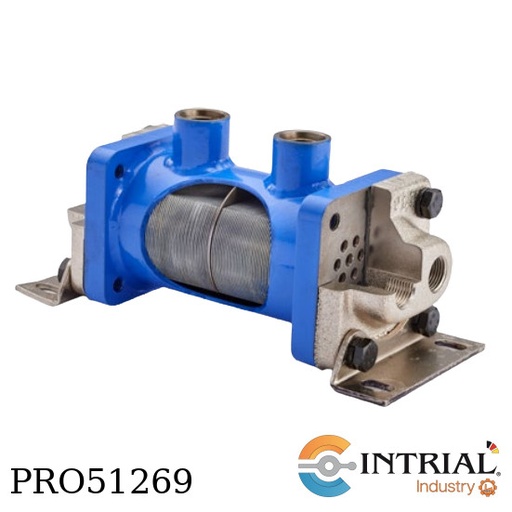

HEAT EXCHANGER<br />
Brand: Universal Hydraulik<br />
Model: SS-EKM-508-T (S:G34-T:G38)<br />
Maximum operating pressure: Shell = up to 20 bar, Tubes = up to 16 bar<br />
Operating temperatura, [5...95]°C<br />
[SS]: Complete cooler Stainless Steel<br />
[508]: Unit size<br />
[T]: Cooling water connection system, 2-pass<br />
[S]: BSPP thread: G3/4"<br />
[T]: BSPP thread: G3/8"

PRESSURE FILTER ELEMENT<br />
Brand: HYDAC<br />
Filtration rating 10.0<br />
Sealing material NBR=NBR (Perbunan)<br />
Bypass KB=no bypass<br />
Filter material, element BN/HC=Betamicron low pressure<br />
Size 0400<br />
Other features, element 0=no other features<br />
Element type DN – pressure elements DIN<br />
Filtration rating 10.00<br />
Filter material Betamicron®4<br />
Bypass No bypass<br />
Sealing material NBR (Perbunan)<br />
Other features, element No other features

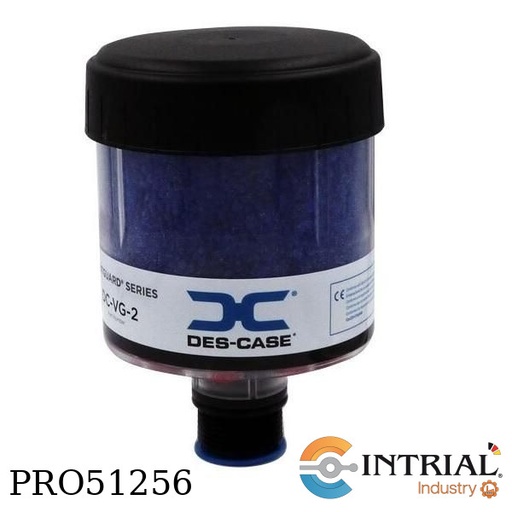

<div>DESICCANT BREATHER <br />
BRAND: DES-CASE<br />
MODEL: DC-VG-2<br />
UNIT HEIGHT (IN / MM): 6.00 / 152<br />
UNIT DIAMETER (IN / MM): 4.10 / 104<br />
CONNECTION SIZE: 1″ MULTI-FIT (NPT, BSPT, NPSM)”<br />
AMOUNT OF SILICA GEL (LBS / G): 0.8 / 365<br />
ADSORPTION CAPACITY (FL OZ / ML): 5 / 142<br />
MAX. FLOW RATE (CFM): 12 @ 1 PSID<br />
MAX. FLOW RATE (LPM): 340<br />
FILTER EFFICIENCY: 3Μ ABSOLUTE (Β₃≥200)<br />
OPERATING TEMP. RANGE (°F): -20° TO 200°<br />
OPERATING TEMP. RANGE (°C): -29° TO 93°</div>

Kit, valve<br />
Brand: CAT PUMPS<br />
Model: 33235

Kit, seal<br />
Brand: CAT PUMPS<br />
Model: 33834

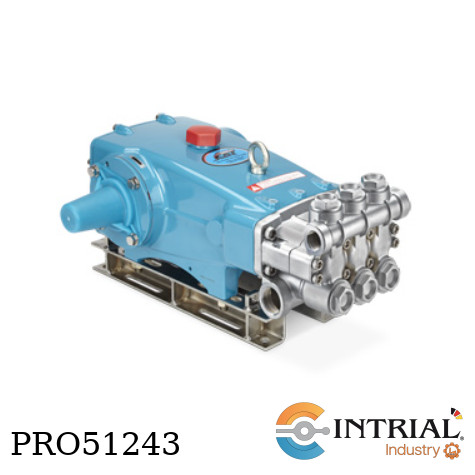

35 FRAME PLUNGER PUMPS<br />
Brand: CAT PUMPS<br />
Model: 3545HS<br />
Max Flow: 50 gpm / 189.3 lpm<br />
Max Pressure: 100–1500 psi<br />
Inlet Port Size: 1 1/2" NPT(F)<br />
Flush Ports: 1/4" NPT(F)<br />
Discharge Port Size: 1" NPT(F)<br />
RPM: 850 rpm<br />
Material: Brass<br />
Shaft Diameter 1.378"<br />
Pulley Mounting: Either Side<br />
***La bomba 3545 esta obsoleta y fuera de produccion ahora se produce<br />
con rodamientos de alta velocidad y se llama 3545HS***

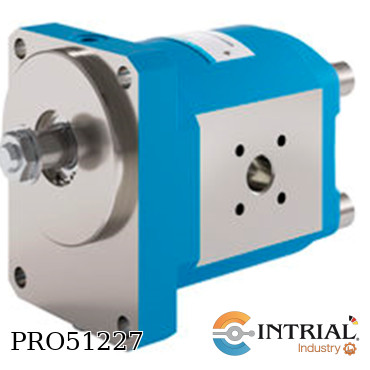

Gear Pump<br />
Brand: KRACHT<br />
Model: KF-32-RF-2-D15<br />
HS-No.: 84136031<br />
Materials:<br />
Material Housing Grey cast iron EN-GJL 250<br />
Material integrated valve Grey cast iron EN-GJL 250<br />
Material Gears Steel, case hardened<br />
Seal material FKM<br />
Shaft sealing Single radial lip-type seal<br />
Bearing Multi component sleeve bearings P10<br />
Product data:<br />
Geometrical Displacement 32,12 cm³/r<br />
Direction of rotation clockwise (seen on shaft end)<br />
Type of fixation DIN flange<br />
Outboard bearing no<br />
Type of pipe connection Flange connection SAE 1 1/2"<br />
Shaft end cylindrical ø 24mm<br />
integrated valve D-valve 0...15 bar<br />
Mounting position optional<br />
Specific data:<br />
Operating pressure (suction side) -0.4...+6 bar (max 750 rpm), -0.4...+5 bar (max 1000 rpm)<br />
-0.4...+4 bar (max 1500 rpm),-0.4...+3 bar (max 2000 rpm)<br />
-0.4...+2 bar (max 3000 rpm), -0.4...+1.5 bar (max 3600 rpm)<br />
max. operating pressure (pressure side) 25 bar<br />
(depending on viscosity, speed and power)<br />
Fluid temperature -20°C...+150°C<br />
Ambient temperature -20°C...+60°C<br />
Minimum viscosity 1.4 mm²/s (max. 3 bar)<br />
6 mm²/s (max. 12 bar)<br />
12 mm²/s (max. operating pressure)<br />
Maximum viscosity depending on suction conditions, speed and power<br />
Speed range 200...3600 rpm<br />
(depending on pressure, viscosity and power)
