GRINDING STONE
Brand: HERZMASC - HERZOG MASCHINENFA
P/N: 7-4271-117677-5

LID FOR GRINDING VESSEL
•    Brand: HERZMASC - HERZOG MASCHINENFA
•    P/N: 7-4263-119644-3

O-RING GRINDING VESSEL
Brand: HERZMASC - HERZOG MASCHINENFA

GRINDING VESSEL

• Brand: HERZMASC - HERZOG MASCHINENFA

• P/N: 7-4253-103345-5

Acople tipo Victaulic estilo 77 - 16"
Bruno®

Acople tipo Victaulic estilo 77 - 10", Bruno®

Acople tipo Victaulic
estilo 77 - 8"
Bruno®

Modelo: JEBS--LD• Junta de expansión axial JEBS-LD con Bridas con Anillo de• Respaldo de 24'' Ø, marca DINATÉCNICA,• importado de Brasil.• CARACTERISTICAS CONSTRUCTIVAS• ================ ===============• Longitud cara a cara : 250 mm• Movimiento Axial : - 30 mm + 20 mm• Movimiento Lateral : ± 30 mm• Movimiento Angular : ± 4 º• Presión Nominal : 86 PSI• Cuerpo : EPDM• Terminales : Bridas Norma ANSI 150 en caucho con anillos• de respaldo en Acero al Carbono

Modelo: 3730 Electropneumatic Positioner



• Type 3730  Electropneumatic Positioner

• Type 3730-3  with LCD and  AUTOTUNE, 4 to 20 mA reference

•                        variable, HART communication, 2 software limit switches/1 fault

•                        alarm contact; II 2 G Ex ia IIC T6; II 2 D Ex tb IIIC T 80 °C IP 66,

•                        ATEX; With analog position transmitter, 2-wire, 4 to 20 mA;

•                        EXPERTplus diagnostics; Packed; Hardware version device index

•                        01; Software version 1.54

•                        VarID:   2980739

http://www.samson.de/pdf_in/t83842es.pdf

Modelo 2 : 3241-7  Control Valve(300RF)

1.01:

Type 3241  Valve

NPS 3; Body: Cast steel 1.0619/A  216 WCC; ANSI Class 300;

Flanges RF - raised face, roughness Ra 3.2 to 6.3 µm; Equal

percentage characteristic; 15 mm rated  travel; Plug with metal

sealing (leakage class IV); Plug material 1.4006; Seat material

1.4006; Seat with metal sealing; Kvs 80/Cv 95; Packing

PTFE-carbon, spring-loaded; Body gasket: Graphite seal on

CrNiMo steel core; Connecting diameter 30 mm; Bonnet  for body

made of C steel

VarID:   1029293

1.02:

Type 3277  Pneumatic Actuator

15 mm operating travel; Type 3277,  diaphragm area 350 cm²;

Diaphragm material NBR; Loading pressure connection: ISO 228-1

G thread; Bench  range 1.4 to 2.3 bar; Fail-safe action "Stem

extends"

VarID:   1010624

1.03:

Type 3730  Electropneumatic Positioner

Type 3730-3  with LCD and  AUTOTUNE, 4 to 20 mA reference

variable, HART communication, 2 software limit switches/1 fault

alarm contact; II 2 G Ex ia IIC T6; II 2 D Ex tb IIIC T 80 °C IP 66,

ATEX; EXPERTplus diagnostics; Packed; Hardware version device

index 01; Software version 1.54

VarID:   2933680

1.04:

Mounting unit for Type 3730

Consisting of:; Mounting parts for direct attachment to Type 3277,

240 to 700 cm² (1400-7453); Connection block 1/4 NPT

(1400-8820); Two pressure gauges (1400-6950)

VarID:   1072169

1.05:

Pressure Regulator

Pressure Regulator; Connection thread

1/4-18 NPT; Set point range 0.5...6.0 bar, with pressure gauge

(connection nickel-plated brass); With 1 pressure gauge; Aluminum

connecting part; Filter in transparent plastic receptacle

1.06:

Mounting unit for Pressure Regulator

http://www.samson.de/pdf_in/t80150es.pdf

http://www.samson.de/pdf_in/t83842es.pd

http://www.samson.de/pdf_in/t85460es.pdf

Modelo 1: 3241-7  Control Valve(150RF)

• 1.01: Type 3241  Valve,NPS 3; Body: Cast steel 1.0619/A  216 WCC; ANSI Class 150;Flanges RF - raised face, roughness Ra 3.2 to 6.3 µm; Equal,percentage characteristic; 15 mm rated  travel; Plug with metal,sealing (leakage class IV); Plug material 1.4006; Seat material,1.4006; Seat with metal sealing; Kvs 80/Cv 95; Packing,PTFE-carbon, spring-loaded; Body gasket: Graphite seal on,CrNiMo steel core; Connecting diameter 30 mm; Bonnet  for body,made of C steel, VarID:   1029121,1.02:Type 3277  Pneumatic Actuator,15 mm operating travel; Type 3277,  diaphragm area 350 cm², Diaphragm material NBR; Loading pressure connection: ISO 228-1,G thread; Bench  range 1.4 to 2.3 bar; Fail-safe action "Stem,extends",VarID:   1010624,1.03:,Type 3730,Electropneumatic Positioner,Type 3730-3  with LCD and  AUTOTUNE, 4 to 20 mA reference,variable, HART communication, 2 software limit switches/1 fault,alarm contact; II 2 G Ex ia IIC T6; II 2 D Ex tb IIIC T 80 °C IP 66,,ATEX; EXPERTplus diagnostics; Packed; Hardware version device,index 01; Software version 1.54,VarID:2933680

• 1.04: Mounting unit for Type 3730,Consisting of:; Mounting parts for direct attachment to Type 3277,240 to 700 cm² (1400-7453); Connection block 1/4 NPT,(1400-8820); Two pressure gauges (1400-6950),VarID:   1072169,1.05:,Pressure Regulator,Pressure Regulator; Connection thread,1/4-18 NPT; Set point range 0.5...6.0 bar, with pressure gauge, (connection nickel-plated brass); With 1 pressure gauge; Aluminum,connecting part; Filter in transparent plastic receptacle,1.06:,Mounting unit for Pressure Regulator

http://www.samson.de/pdf_in/t80150es.pdf

http://www.samson.de/pdf_in/t83842es.pd

http://www.samson.de/pdf_in/t85460es.pdf

VGU/F-25/2507-TS2-3
Cargador de Nitrógeno para Acumulador
Marca: OLAER
Presión: 400 bar
CARACTERÍSTICAS TÉCNICAS/ TECHNICAL CHARACTERISTICS
Presión máxima de servicio / Maximum working pressure
Según flexible / according to flexible hose
TS2 hasta / up to 340 bar
TS6 hasta / up to 600 bar
Rosca de conexión acumuladores/ Accumulator connection
7/8" 14 UNF - 5/8"18 UNF - 8V1 - M28 x 1,50 (Allen 6)- FG ¼” CYL (opcional/optional)
Flexible/ Flexible hose
Longitud 2,5 m, racores de G1/4" cil. Tuerca giratoria en los dos extremos para unir el verificador y el racor de conexión a la botella de Nitrógeno
Approximately 2,5 m long fitted with a G1/4" Cyl. female adapter at each end for connection to the pressure source and fitted to hose.
Conexión botella de nitrógeno/Connection to nitrogen cylinder
Rosca Ø 21,7 x 1,814 SI, con botella de nitrógeno. Junta de unión - G 1/4" cil.Nut Ø 21,7 x 1,814 SI, with a nitrogen source. Join-seal - G 1/4" cyl.
Manómetros/ Manometers
Ø 63 mm en baño de glicerina, salida posterior G1/4". con racor para conexión minimex.
Dos unidades escalas 0 ÷ 25 y 0 ÷ 250 bar. Precisión 1,6%. Otras graduaciones bajo demanda.
Ø 63 mm (glycerin-bath type) with G1/4" Cyl. rear outlet, fitted with a direct connection adapter for connection to a minimess connector.
Two units scales 0 ÷ 25 and 0 ÷ 250 bar, with 1,6% accuracy. Other graduations on request

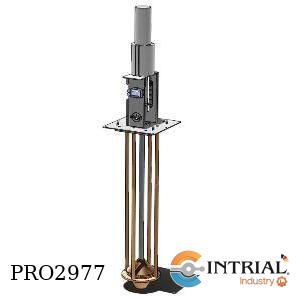

Model: TD300A-M Manual

TriDart 300A-M – 300NB Manual TriDart

VALVE FRAME

• Type: TriDart

• Size: 300mm A

• Bellows  Seal: No

• Guide Bar Material: Mild Steel + Polyurethane

• Length ( Note 2 ): 1010 mm

• Flange Type / Drilling Clamp Down / N/A

• PU Shaft Guard: Yes

• Shaft Material: 304 StSt

• Valve shaft guide: HDPE

Pedestal

• Type: Standard

• Material: Mild Steel

• Anti-rotation arm: Yes.

• Painting: Jotun Phenolic - Yellow

TRIM

• Characteristic: Linear

• Flow Direction :Over the plug

• Plug - Type / Size: Head Guided / 300mm

• Plug – Material: Mild Steel + Polyurethane

• Backing Cone Yes

• Seat - Type / Size: Full bore - A         300mm

• Seat – Material: Mild Steel + Polyurethane

ACTUATOR

• type: Handwheel

• Material Air:Standard

• failure Fail: None

• Method: None

• Act Model No: EDA250-280-DA

• Fitting and Piping: Plastic

• Stroke: 210 mm

NOTES:

• Dart valve designed for  unpressurized vessels  only

• Length is from under bonnet to under seat & includes compression

MODEL: 0600020
Reduction Bushing Carbon Steel A-105 C-3000
BRAND: FR
1 1/2" ET to 1" IT
Local Supply

Reduction Bushing Carbon Steel A-105 C-3000
2" ET to 1" IT
Local Supply

061110-1.5
Carbon Steel Reduction Nipple SCH 80
1 1/2" Male to 1" Female and 1 1/2"Lenght
Assembled Locally

Access ASSEMBLY accesories Low Pressure System
* Carbon Steel Nipple 1" x 5" with
* 1/4 " NPT Swagelok Bleed Valve in SS.SS.
* All in one pieceAccess Assembly Carbon Steel Nipple 1"x5" with 1/4" NPT Bleed Valve SS.SS

FISURÓMETRO MEDICIÓN HORIZONTAL
•    Marca: Gis Ibérica
•    vertical y rotación.
•    Resolución 0,1 mm (con dos nonius incorporados).
•    Resistente a la interperie.
•    Rangos 10-55 mm en la escala vertical
•    0-90 mm en la escala horizontal.
•    Logo personalizable para pedidos
superiores a 100 unidades,
•    sin coste adicional.
•    Tamaño: regla (173x34 mm)
•    Placa (121x58mm)

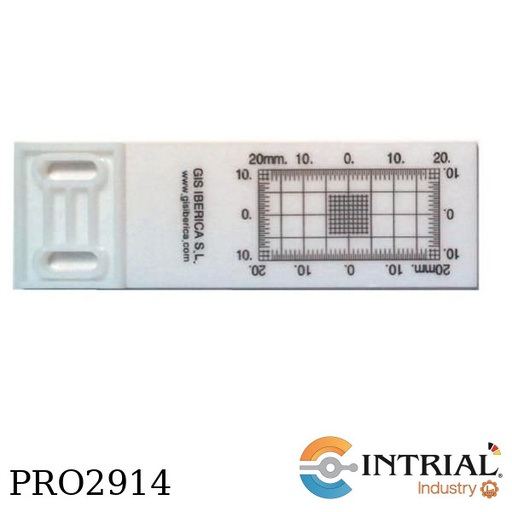

FISURÓMETRO RECTO
•    Marca: Gis Ibérica
•    (medidor milimétrico)
•    para fisuras o grietas, rango horizontal -20+20 mm
•    vertical -10+10 mm
•    división mínima 0,5 mm
•    tamaño 100 x30mm
•    (se pueden obtener lecturas de 0,1 mm mejores con las
•    lupas y microscópios con retículo opcionales).
•    Uso interior/exterior

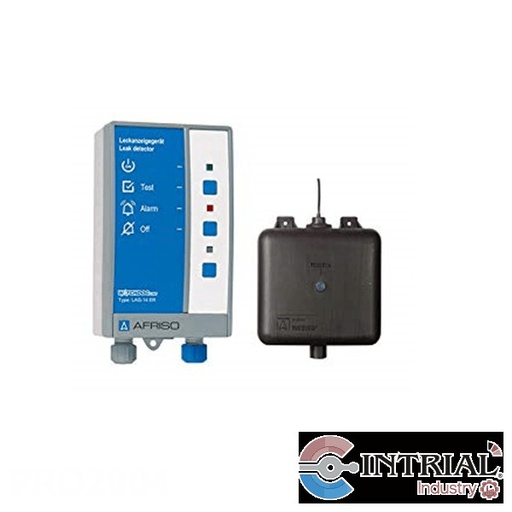

LAG-14 ER WITH RELAY, INCLUDING CONTAINER AND PROBE
LEAK DETECTOR LAG-14 ER
Brand: AFRISO (Alemania)
Operating temperature range
Ambient: -5/+50 °C
Storage: -10/+60 °C
Supply voltage
AC 230 V
Control unit
W x H x D: 100 x 188 x 65 mm
Degree of protection: IP 30 (EN 60529)
Switching outputs
Relay outputs: 1 voltage-free normally open contact
Contact rating: AC 250 V, 2A
Tanks
Antistatic plastic, black
W x H x D: 300 x 325 x 145 mm
Usable contents / total contents: 4.5 l / 9.7 l
Outlet: G¾
Degree of protection: IP 20 (EN 60529)
Technical Approval of the German Institute
for Building Technology
Z-65.24-1
ATEX approval
TPS 03 ATEX 15639 6
Ex II (1) G [Ex ia] IIC / [Ex ia] IIB
