INTERRUPTOR SEGURIDAD

• IEC 60947-5-1

• IP67

• UI 500V

• UIMP 6KV

• Fabricante: SCHMERSAL

•Motorreductor electromecánico lateral para puertas enrollables de uso industrial en la
•Marca Nice
•Motor de procedencia Alemana y la electrónica de procedencia Italiana.
•Motor entrada trifásico 230/380VAC.
•Incluye Central de Mando con botonera incorporada y mecanismo de destrabe.
•Mecanismo de cadena para el accionamiento manual.
·Potencia de motor 1.1 Kw.
·Con par máximo de 230 Nm.
·Dispositivo de anti-caídas integrado
Finales de carrera electrónica.

5114000303

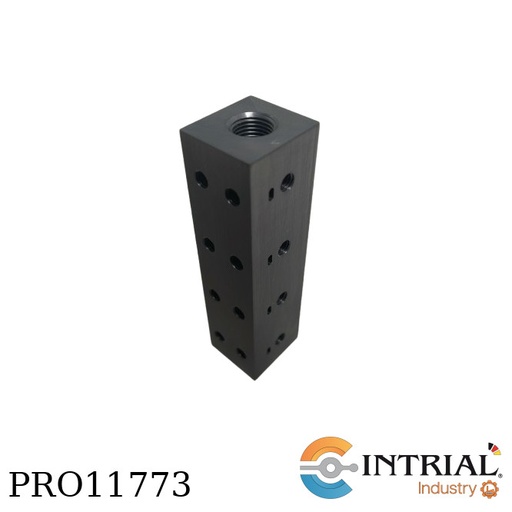

04 Stations Manifolds (451 Series ASCO)
Anodized Aluminum
Descrete Manifold Ports: #10-32 UNF Female
Common Manifold Ports: 1/8” NPTF Female

• RF MAGNET ANTENNA EN868 2.5 M

• BRAND: .STEUTE

• RF Magnet antenna EN868 2.5 m

• Material number: 1186143 (Material number old: 01.08.0386)

• Features/Options

• RF magnet antenna with straight SMA plug-in connector withoutferrite core

• Cable length 2.5 m Frequency 900 / 1800 / 1900 MHz

• Type Magnet foot antennaImpedance 50 Ohm

• Gain 0 dBColour black

• Dimensions Ø foot 34 mm

• high approx. 105 mm

• Cable 2.5 m RG174Connector SMA (male)

• Weight 90 g

• WIRELESS RECEIVER RF RX EN868-1W 24 VDC

• BRAND: STEUTE

• Wireless receiver RF Rx EN868-1W 24 VDC

• Material number: 1186059 (Material number old: 90590007)

• Features/OptionsEnOcean®

• wireless technology

• 1 potential-free relay output1 change-over contact

• Transmitter/receiver assignment by teaching mode

• LEDs for indication of switching state

• SMA plug-in connector for external antenna Standards EN 60947-5-1; EN 61000-6-2, -6-3, EN 61000-4-2, -4-20, -4-4, -4-5,-4-6; EN 60068-2-6, EN 60068-2-27; EN 301 489-1; EN 301 489-3; EN 300 220-1; EN 300 220-2Number of channels 1

• Mounting DIN rail mounting

• Connection terminals with CAGE CLAMP

• WAGO Series 236: 0.08 … 2.5 mm²/ AWG 28-12, AWG 12: THHN

• THWN, stripping length 5 … 6 mm / 0.22 in

• Degree of protection IP 20 to IEC/EN 60529

• Inputs 1 wireless channel, max. 10transmitters per channel

• Output 1 change-over contact (relay)

• Rated operating current Ie max. 0.08 A

• Rated operating voltage Ue 24 VDC -15 % … +10 %Ie/Ue of output contacts 6 A/250 VAC; 2 A/24 VDC

• Utilisation category AC-15Ui 250 VAC

• Uimp 2.5 kVFrequency 868.3 MHz

• Display green LED: operating state,orange LED: switching conditions

• Operation cycles approx. 9000 telegrams atrepetitions/h

• Degree of pollution 2 to IEC/EN 60664-1

• Ambient temperature 0 °C … +55 °C

• Storage and shipping

• temperature–25 °C … +85 °C

• Vibration resistance NO contact 20 g

• NC contact 5 gExternal antenna always required for optimumsensing range

• Note Inductive loads (contactors, relaysetc.) are to be suppressed bysuitable circuitry

• WIRELESS POSITION SWITCH RF 98 DS EN868

• BRAND: STEUTE

• Wireless position switch

• RF 98 DS EN868

• Material number: 1189912 (Material number old: 9109291101)

• Features/Options

• Metal enclosureDesign to EN 50041EnOcean®

• wireless technology

• No power supply

• no wiring and pipe laying required

• Easy programming of receiver

• Multi-network capable Standards EN 60947-5-1; EN 61000-6-2, -6-3,EN 61000-4-2, -4-20;EN 301 489-1; EN 301 489-3;EN 300 220-1; EN 300 220-2

• Enclosure aluminium die-cast,powder-coated

• Cover aluminium die-cast,powder-coated

• Degree of protection IP 67 to IEC/EN 60529

• Protocol EnOcean®Ambient temperature –20 °C … +65 °C

• Operation cycles approx. 9000 telegrams atrepetitions/h

• Voltage supply Electrodynamic energy generator

• Frequency 868.3 MHz

• Transmission power max. 10 mW

• Data rate 120 kbps

• Channel bandwidth 280 kHzSensing range max. 200 m outside

• max. 20 m inside

• Mechanical life > 1 million operations

• Actuating time min. 80 ms

​BLOWER
•MARCA: GAST
•42.4 CFM / OPEN FLOW / 47" WC MAX
•PRESS. 0.5 HP/460V-3 FASE/CLASE B/TEFC MOTOR

MVB-S1-M11X

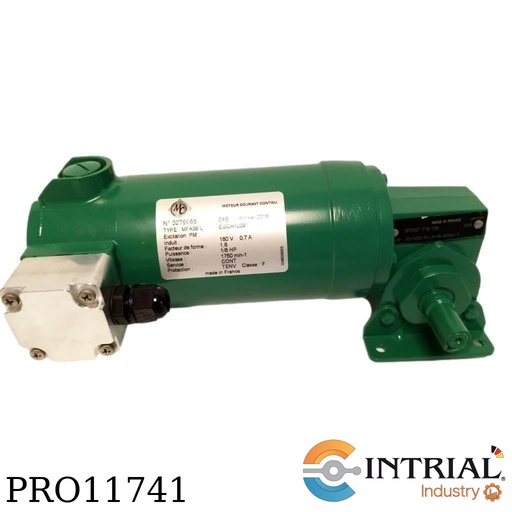

MOTOR ELECTRICO
Marca: LEROY SOMER
0.125 HP
1750 RPM
FRAME MFA56L
180 VOLTS
CORRIENTE CONTINUA
0.7 AMPERES
FACTOR DE SERVICIO 1.6
IP56

CONVERTER
•TRIO-PS/1AC/24DC/ 5 - 2866310
•Manufacturer: PHOENIX CONTACT

RELAY
Brand: MATSUSHITA ELECTRIC

31287
Wall mounting housing WAG 01
Brand: AFRISO

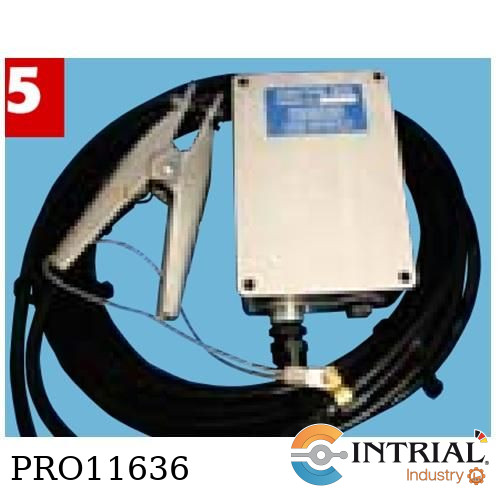

KIT, GROUND VERIFICATION CLAMP
Brand: CIVACON
Cord Set
Juntion box 40 Ft

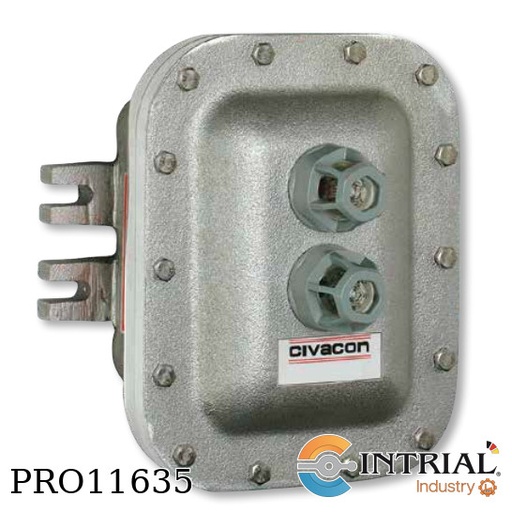

GROUND MONITOR, 240V W/ RED AND GREEN STATUS LIGHTS
Brand: CIVACON
Model: 8030-240

F-5
Manga Termocontraible 5 mm

AP7380-MD08
Signal Conditioner
•    Input Ranges:  2Hz to 10,000 Hz
•    Output Ranges:  0-5v ; 0-10v; 0-1mA; 4-20mA
•    240 VAC Input Power
•    Plug In Installation
•    Eliminates Ground Loops
Accesorios:
•    Incluye Socket DIN 8 Pines

Nova-Strobe DBL LED Portable Stroboscope Kit,
Marca: Monarch InstrumentModelo: DBL
Especificaciones Tecnicas:
- Range (FPM): 30 to 500,000
- Flash Duration: Adjustable to 18 degrees / 3000 µsecs max
- Display: 6 digit numeric and 5 digit alphanumeric LCD
- Flash Rate Resolution: 0.01 FPM
- Flash Rate Accuracy: 0.002% of setting
- Tachometer Model: 0 to 500,000 RPM
- External Input: TTL (24Vdc Max) Input. Provides 3.3 Vdc TTL output
- Run Time: 8 - 10 hours typical @ 1800 FPM
- Memory: programmable
- Weight: 1.9 lbs (860g)
- Dimensions:
***Body: 9" x 3.66" x 3.56" (229 x 93 x 90 mm)
***Reflector Housing: 4.8" (122 mm) dia.
***Handle: 4.254" (108 mm long)
- Light Source: 12 LED ArrayIncluye:
- Cargador Universal 115/230 con enchufes intercambiables
- Estuche de plástico para transporte
- Manual
- NIST Cal

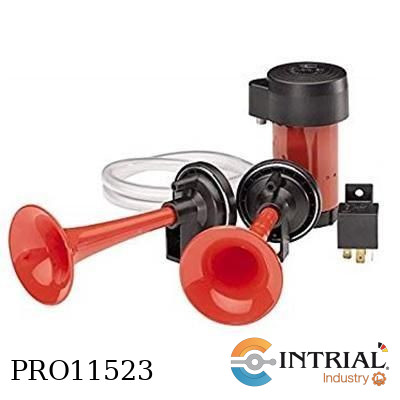

BOCINA E9-6045; 240W-24VDC
Marca HELLA
Compresor aire para bocinapotencia 240W
Voltaje 24VDC
Rango frecuencia trabajo 780-840Hz
Servicio electroneumatico
Volumen [Db(a)]: 118Db
Dos tonos

TOMA MULTICONTACTO

• 500V 6P + T

• CONECTOR AEREO MULTICONTACTO

• TOMA MOVIL (HEMBRA)

• CABLEADO FLEXIBLE DE 1 a 4MM2

• CABLEADO RIGIDO 1.5/6MM2

• 500V;16A

• CON CONTACTO DE TIERRA

• MARCA: MARECHAL

CONECTOR MULTICONTACTO

• 500V 6P + T

• CLAVIJA AEREO MULTICONTACTO

• ENCHUFE MOVIL (MACHO)

• CABLEADO FLEXIBLE DE 1/4MM2

• CABLEADO RIGIDO 1.5/6MM2

• 500V;16A

• CON CONTACTO DE TIERRA

• MARCA: MARECHAL
