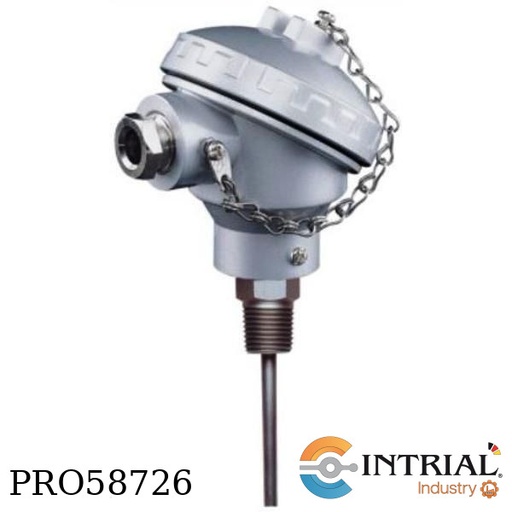

Industrial Resistance Thermometers acc. DIN<br />
Brand: KOBOLD (Alemania)<br />
Model: MWD-L-8-N15-B-2-G-0-0<br />
[MWD-L]:<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neckpipe, without<br />
[8]: Diameter/length thermowell, 8 mm, EL= 250 mm<br />
[N15]: Process connection, 1/2" NPT male<br />
[B]: Sensor, 2x Pt100, cat. B, (-70..+250 °C)<br />
[2]: Wiring, 2 wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without<br />
EL= 250 mm

Resistance Thermometers Exd<br />
Brand: KOBOLD (Alemania)<br />
Model: TWL-1-5-3-B-N-GA95-A-1<br />
[TWL-1]:<br />
Version, standard<br />
Thermowell, cylindrical drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[5]: Sensor, 1x Pt100, cat. A, (-30..+550 °C)<br />
[3]: Wiring, 3 wires<br />
[B]: Head-mounted transmitter, ATEX Exd / programmable 2-wire transmitter wit<br />
HART®-protocoll (model:5337D or equivalent)<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[GA95]: Connection thermowell, ANSI-flange 2" 150 lbs<br />
[A]: Neckpipe/lagging extension (HL/T), Standard neckpipe (130 mm)w/o lagging extension<br />
[1]: Options, with LCD-display

Resistance thermometer<br />
1 x Pt 100 Ohm, 3 wire, class B, protective<br />
tube ø 6 mm lenght 310 mm, material 1.4571,<br />
connection head form KNE, electrical connection<br />
NPT 1/2", temperature range: -40 to +400°C<br />
<br />
<span style="font-size:12pt;line-height:107%;font-family:'Times New Roman', serif;">/////Nota.- Bulbo Ajustable "EL" entre  180mm hasta 280mm, incluido la rosca (254 mm = 10 pulgadas por ejemplo, incluido la rosca)/////</span>

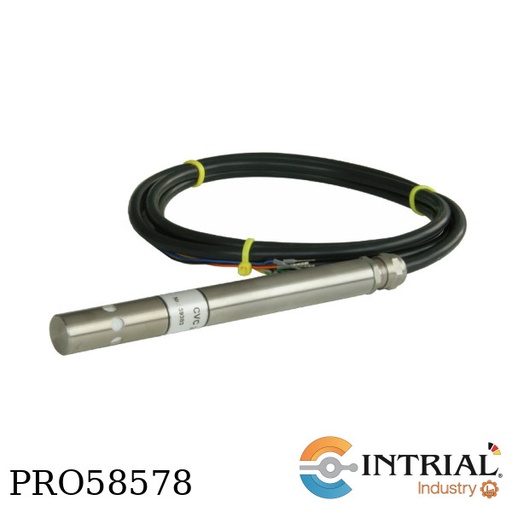

HUMIDITY/TEMPERATURE SENSOR<br />
Brand: GALLTEC<br />
Model: KVC3/11 <br />
Special For Use In Gases Containing Ammonia<br />
Stick Version With Cable Connection<br />
Sensor Tube High-Grade Steel 1.4301, Length: 130Mm<br />
Output 1: Relative Humidity<br />
Output Range 1: 0...100 % Rh<br />
Output Signal 1: 4...20 Ma<br />
Output 2: Temperature<br />
Output Range 2: -30...70°C<br />
Output Signal 2: 4...20 Ma<br />
Supply Voltage: 12...30 Vdc<br />
Operation Temperature Range: -40...80°C<br />
Filter: High-Grade Steel Filter With Gauze And Membrane, Ze26<br />
Cable Length: 1.5M

Accessorie for TIN-SS/-SH<br />
Brand: KOBOLD (Alemania)<br />
Model: TIN-ZTLS<br />
Laser-Sightingtool for TIN-SS incl. batteries

Accessorie for TIN-SS/-SH<br />
Brand: KOBOLD (Alemania)<br />
Model: TIN-ZTFB<br />
Mounting bracket

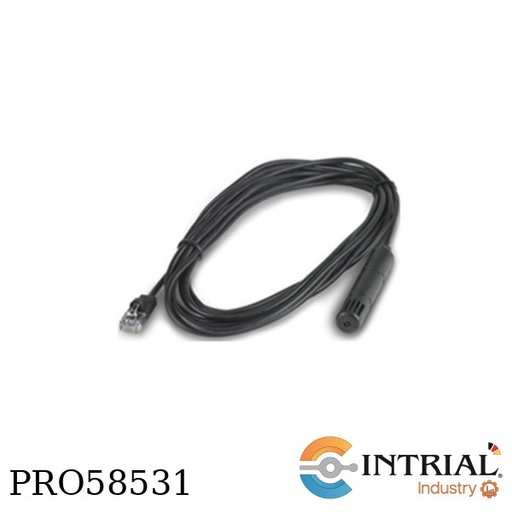

TEMPERATURE & HUMIDITY SENSOR<br />
Brand: APC  <br />
Model: AP9335TH<br />
Ambient Air Temperature For Operation: 32…131 °F (0…55 °C)<br />
Operating Altitude: 0...10000 ft<br />
Relative Humidity: 0…95 %<br />
Ambient Air Temperature For Storage: 5…149 °F (-15…65 °C)<br />
Storage Altitude: 0…50000 ft (0.00…15240.00 m)<br />
Storage Relative Humidity: 0…95 %

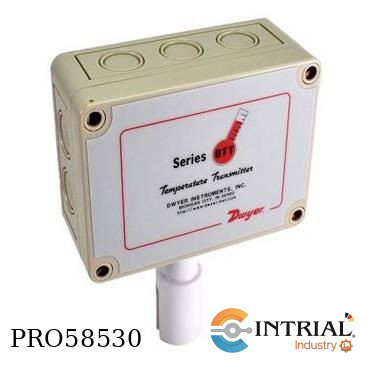

TEMPERATURE TRANSMITTER<br />
Brand: DWYER  <br />
Model: BTT-O25-1<br />
[BTT] Series: BTT<br />
[O] Mounting Configuration: Outside air<br />
[25] Probe Length: 2.5˝ (required for “O” and “R” models)<br />
[1] Output: 4 to 20 mA

Industrial Resistance Thermometers acc. DIN<br />
Brand: KOBOLD (Alemania)<br />
Model: MWD-E-6-C15-C-3-G-0-0<br />
[MWD-E]:<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, Compression fitting<br />
Neckpipe, without<br />
[6]: Diameter/length thermowell, 6 mm/140 mm<br />
[C15]: Process connection, Compression fitting 1/2 NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without<br />
EL= 140 mm<br />
<br />
INCLUYE<br />
ADAPTADOR                                              <br />
CONEXION ELECTRICA, M20x1.5 Male  a 1/2 NPT Female

Industrial Resistance Thermometers acc. DIN<br />
Brand: KOBOLD (Alemania)<br />
Model: MWD-E-6-K15-C-3-G-0-0<br />
[MWD-E]:<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, Compression fitting<br />
Neckpipe, without<br />
[6]: Diameter/length thermowell, 6 mm/540 mm<br />
[K15]: Process connection, Compression fitting G 1/2 male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without<br />
EL= 540 mm<br />
<br />
INCLUYE<br />
ADAPTADOR                                              <br />
CONEXION ELECTRICA, M20x1.5 Male  a 1/2 NPT Female

Industrial Resistance Thermometers acc. DIN<br />
Brand: KOBOLD (Alemania)<br />
Model: MWD-E-6-C15-C-3-M-0-0<br />
[MWD-E]:<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, Compression fitting<br />
Neckpipe, without<br />
[6]: Diameter/length thermowell, 6 mm/195 mm<br />
[C15]: Process connection, Compression fitting 1/2 NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 wires<br />
[M]: Terminal head, Mini screw cap with chain, aluminium<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without<br />
EL= 195 mm<br />
<br />
INCLUYE<br />
ADAPTADOR                                              <br />
CONEXION ELECTRICA, M20x1.5 Male  a 1/2 NPT Female

SENSOR DE TEMPERATURA (RTD) PT-100Ω DE 3 HILOS CON ROSCA FIJA DE 1/4"NPT Y CABLE INTEGRADO<br />
Marca: INTRIAL<br />
Modelo: <span class="product_no value" title="Número Producto : PRO58444">PRO58444</span><br />
Sensor, De Tres Hilos - Platino 100 Ω Adecuado para movimiento y/o Vibración<br />
Coeficiente de Temperatura del Sensor, 0.00385 (Ohms/ Ohms/ °C)<br />
Grado de Precisión, Clase B - Norma IEC 751<br />
Tolerancia, DIN EN 60751 - F 0,3 (Clase B)<br />
Temperatura de Servicio, -70° C @ 200° C<br />
Bulbo, En Acero Inoxidable C-316, de Ø 8mm x 10cm. de longitud<br />
Conexión a Proceso, De Acero Inoxidable con rosca de 1/4" NPT<br />
Protección, Resorte anti doblaje entre cable y base<br />
Cable (Lg), 2m de cable conductor en teflón de tres hilos<br />
Trabaja -200…200°C

SENSOR DE TEMPERATURA (RTD) PT-100Ω DE 03 HILOS MAGNETICO<br />
Marca: INTRIAL<br />
Modelo: <span class="product_no value" title="Número Producto : PRO58318">PRO58318</span><br />
Sensor, De Tres Hilos - Platino 100 Ω. Adecuado para movimiento y/o vibración,<br />
Coeficiente de Temperatura del Sensor, 0.00385 (Ohms/ Ohms/ °C)<br />
Configuración del Elemento Sensor, 3 hilos<br />
Resistencia de Aislamiento, 100 MΩ a 100 Vcc<br />
Grado de Precisión, Clase B - Norma IEC 751<br />
Tolerancia, DIN EN 60751 - F 0,3 (Clase B)<br />
Temperatura del Servicio, -70° C @ 200° C<br />
Sonda, En Acero Inoxidable tipo superficie imantada cilíndrica Ø 26mm x espesor 15mm cuello de largo 40mm.<br />
Cable, 20m de cable conductor con forro de teflón,<br />
reforzado con malla metálica de Acero Inoxidable de tres hilos<br />
Temperatura de trabajo, -200°C…200°C<br />
Grado de Protección, IP67

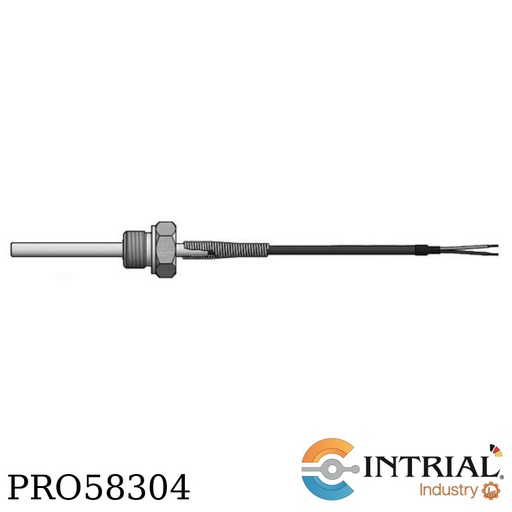

SENSOR DE TEMPERATURA (RTD) PT-100Ω DE 3 HILOS CON ROSCA FIJA DE 1/4"NPT Y CABLE INTEGRADO<br />
Marca: INTRIAL<br />
Modelo: PT-100-3HILOS-1/4-CABLE<br />
Sensor, De Tres Hilos - Platino 100 Ω Adecuado para movimiento y/o Vibración<br />
Coeficiente de Temperatura del Sensor, 0.00385 (Ohms/ Ohms/ °C).<br />
Grado de Precisión, Clase B - Norma IEC 751<br />
Tolerancia, DIN EN 60751 - F 0,3 (Clase B).<br />
Temperatura de Servicio, -70° C @ 200° C.<br />
Bulbo, En Acero Inoxidable C-316, de Ø 3mm x 25mm. de longitud.<br />
Conexión a Proceso, De Acero Inoxidable con rosca de 1/4" NPT<br />
Protección, Resorte anti doblaje entre cable y base<br />
Cable (Lg), 6m de cable conductor en teflón de tres hilos. Trabaja -200…200°C.

Rod Thermostats general application<br />
Brand: KOBOLD (Alemania)<br />
Model: TEA-S31-29-M-A<br />
[TEA-S31]:<br />
Probe, copper<br />
Housing, plastic<br />
Switching difference, 1 K<br />
Thermostat version, single-level<br />
Contact, change over switch<br />
[29]: Range, 20...90 °C<br />
[M]: Thermowell, brass<br />
[A]: Option, internal adjustment<br />
<br />

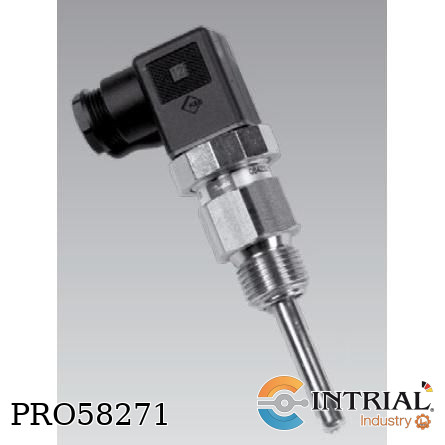

MBT5310 -50 A 200ºC, 180mm, G1/2, PT100,<br />
SENSOR DE TEMPERATURA,<br />
Marca: DANFOSS,<br />
Modelo : MBT5310<br />
Resistencia del sensor: PT100,<br />
Rango de temperatura: -50 a 200ºC,<br />
Longitud de inserción: 180 mm,<br />
Conexión a proceso: G ½”<br />
Diámetro del tubo protector: 8 mm<br />
Conexión Eléctrica : 2 hilos / 3 terminales

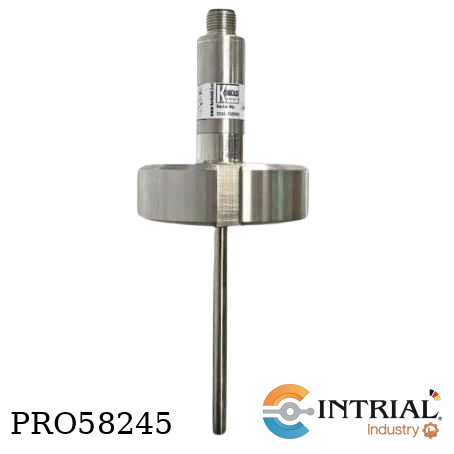

Insertion Resistance Thermometers compact<br />
Brand: KOBOLD (Alemania)<br />
Model: MMA-0-XX-U25-C-3-M-B-0<br />
[MMA-0]:<br />
Probe material, st.st. 1.4404<br />
Connection, fixed<br />
Design, w/o stand-off<br />
Max. temperature, - 70...+150°C<br />
[XX]: Immersion length/diameter, 800 mm/Ø6<br />
[U25]: Connection, Union Nut DN25<br />
[C]: Sensor Type/Category, 1x Pt100, class A (-70..+250°C)<br />
[3]: Wiring, 3-wire<br />
[M]: Electr. Connection, Plug M12x1<br />
[B]: Head Transmitter, 4..20 mA,range acc. customers specification<br />
[0]: Options, without<br />
L=800 mm<br />
<br />

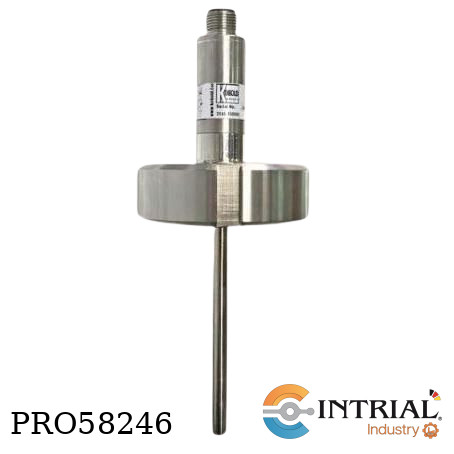

Insertion Resistance Thermometers compact<br />
Brand: KOBOLD (Alemania)<br />
Model: MMA-0-XX-D50-C-3-M-B-0<br />
[MMA-0]:<br />
Probe material, st.st. 1.4404<br />
Connection, fixed<br />
Design, w/o stand-off<br />
Max. temperature, - 70...+150°C<br />
[XX]: Immersion length/diameter, 800 mm/Ø6<br />
[D50]: Connection, Clamp 2"<br />
[C]: Sensor Type/Category, 1x Pt100, class A (-70..+250°C)<br />
[3]: Wiring, 3-wire<br />
[M]: Electr. Connection, Plug M12x1<br />
[B]: Head Transmitter, 4..20 mA,range acc. customers specification<br />
[0]: Options, without<br />
L= 800 mm

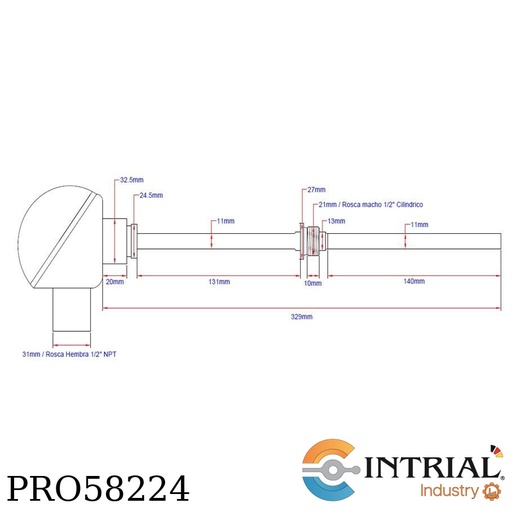

SCREW-IN RESISTANCE THERMOMETER<br />
Brand: INTRIAL(Made in Germany)<br />
Model: PRO58224<br />
1x Pt100 DIN EN 60751, cl. B<br />
3-wire <br />
Protection tube ø11 mm<br />
Length to welding <br />
Collar ~140 mm<br />
Insertion length ~157 mm <br />
Neck tube length 131 mm<br />
Material 1.4571 <br />
Length to lower edge of head ~329 mm<br />
Screw connection G1/2<br />
Thread length 15 mm<br />
Thread undercut form B <br />
SW27<br />
Material 1.4571 <br />
With connection head KNE<br />
Cable outlet 1/2NPT

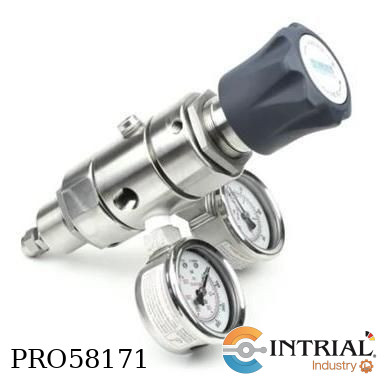

Dual Stage Regulator<br />
Brand: INTRIAL<br />
Model: INT-I-NR31-S-4-F-4-1-5-W-R<br />
[I-NR31]: Duan Stage Regulator, INTRIAL<br />
[S]: Body Material, 316 stainless steel<br />
[4]: Outlet Pressure:0-250 psi<br />
[F]: Inlet/Outlet Port Type, F-NPTF<br />
[4]: Inlet/Outlet Port size, 1/4"<br />
[1]: Inlet Pressure, 3500 psig<br />
[5]: Port Type, 5 ports<br />
[W]: Gauge, with<br />
[R]: Relief Valve<br />
/////// regulador de presión  de doble etapa para uso en cromatógrafos //////////
