INDUSTRIAL RESISTANCE THERMOMETERS ACC. DIN<br />
Brand: KOBOLD (Alemania)<br />
Model: MWD-E-6-C15-C-3-I-0-0<br />
[MWD-E]:<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, Compression fitting<br />
Neckpipe, without<br />
[6]: Diameter / length thermowell, 6 mm<br />
[C15]: Process connection, Compression fitting 1/2 NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 wires<br />
[I]: Terminal head, screw cap with chain, st. steel 1.4401<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without<br />
L= 140 mm<br />
<br />
INCLUYE<br />
[PRO56321]: ADAPTADOR CONEXION ELECTRICA, M20x1.5 Male  a 1/2 NPT Female<br />
<br />

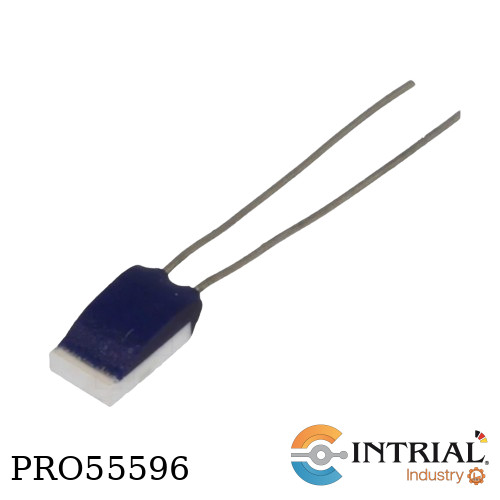

SENSOR DE TEMPERATURA <br />
MARCA: ELECTRONIC COMPONENTS<br />
MODELO: PT106052<br />
<br />
COEFICIENTE DE PEMPERATURA: 3850 PPM/°C<br />
DIMENCIONES DE TERMMINALES: L 10MM<br />
TEMPERATURA DE TRABAJO: -50....500°C<br />
RECISTENCIA: 1K<br />
TOLERANCIA: KL.B 0.12 % <br />
MEDIDAS INTERIORES[MM]: 2 X 3 X 1<br />
CLASE DE SENSOR DE TEMPERATURA: PT1000

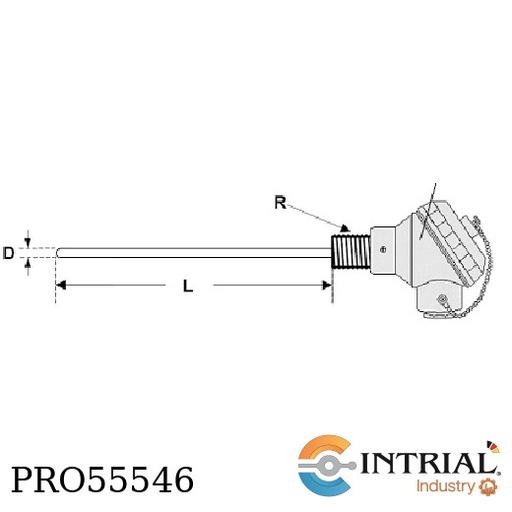

SENSOR DE TEMPERATURA (RTD) PT-100Ω DE 3 HILOS CON CABEZAL<br />
Marca: INTRIAL<br />
Modelo: 4N-1XPT1003W-D6.35-L120-SS316-R1/2”NPT<br />
Sensor, De Tres Hilos – Platino 100 Ohmios – con aislamiento interno MgO Oxido de magnesio > 20Mohm @ 25°C (500Vdc)<br />
Coeficiente de Temperatura del Sensor, 0.00385 (Ohms/ Ohms/ °C)<br />
Grado de Precisión, Clase B - Norma IEC 751<br />
Tolerancia, DIN EN 60751 - F 0,3 (Clase B).<br />
Temperatura del Servicio, -70° C @ 300° C.<br />
Temperatura de Uso, No Indicado<br />
Bulbo, De Acero Inoxidable C-316, de Ø (D)6.35mm x (L)120mm. de longitud<br />
Conexión al Proceso (R), De Acero Inoxidable con rosca de 1/2" NPT<br />
Cabezal, De Aluminio tamaño standard, con tapa roscada y cadena de sujeción,<br />
Incluye block cerámica y prensaestopa con conexión eléctrica de1/2” NPT. Grado de Protección. IP67<br />
Marca del Elemento, Heraeus – Made In Germany

TRANSMISOR DE TEMPERATURA<br />
Marca: WIKA<br />
Modelo: TR36(3-Wire)<br />
Rango Programado, -50ºC...+150ºC<br />
Conexiòn, 1/2 – Inferior<br />
Salida, Pt-100 Class B 3 hilos<br />
Conector angular DIN 175301-803A<br />
Longitud de insercción, 400x3mm<br />
Electrical connection: Angled plug - DIN EN 175301- 803 Form A<br />
Output Singnal, Pt100 Class B (IEC 60751), 3-wire<br />
Process temperature, -50...150°C<br />
Process connection, Fixed threaded hex bushing 1/2 NPT<br />
Sensor diameter, 6 mm<br />
Insertion length A, 400 mm<br />
Permissible ambient temperature, -40 ... +85 °C (-40 ... +185 °F)<br />
Accessories electr. connection, Mating plug with blue sealing - DIN EN 175301- 803 Form A<br />
pin assignment, Standard pin connection Pt-Sensors

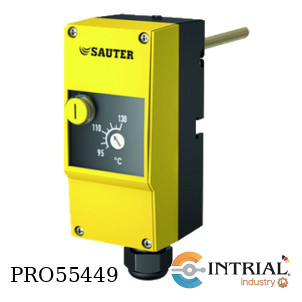

TERMOSTATO DE MONTAJE UNIVERSAL<br />
Marca: SAUTER<br />
Modelo: TUC105F001<br />
Capilar, 700 mm<br />
Funfa de latón, L=100 mm<br />
R 1/2"<br />
Rango medición, 15 a 95 °C<br />
Diferencial fijo 5,6 K<br />
Ta max., 200 °C<br />
Contacto conmutado 10(2.5)/2(0.4) A 250 VAC, según bombas utilizadas<br />
<br />

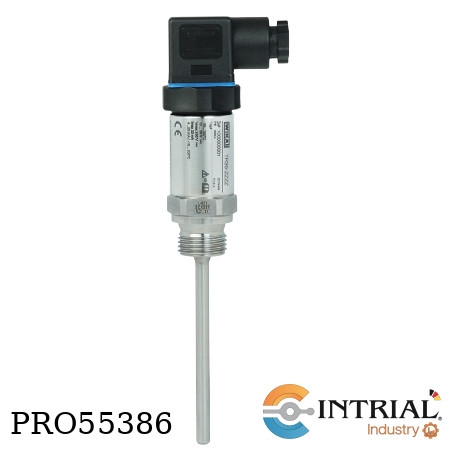

TRANSMISOR DE TEMPERATURA<br />
Marca: WIKA<br />
Modelo: TR36<br />
Rango Programado, -50ºC...+150ºC<br />
Conexiòn, 1/42 – Inferior<br />
Salida, 4-20mA / 2 hilos<br />
Conector Angular DIN 175301-803A<br />
Longitud de Inserccion, 400x6mm<br />
Electrical connection, Angled plug - DIN EN 175301- 803 Form A<br />
Output Singnal, 4…20mA, 2-wire<br />
Transmitter Unit, °C<br />
Process temperature, -30 ... +150°C<br />
Process connection, Fixed threaded hex bushing 1/2 NPT<br />
Sensor diameter, 6 mm<br />
Insertion length A, 400 mm<br />
Permissible ambient temperature, -40 ... +85 °C (-40 ... +185 °F)<br />
Accessories electr. connection, Mating plug with blue sealing - DIN EN<br />
175301- 803 Form A<br />
Transmitter Signalling of error, down scale < 3,6 mA (typical 3,0 mA)<br />
pin assignment: Standard pin connection 1+ (10..30VDC) and 2- (0V)

In-Line Resistance Thermometers<br />
Model: TWP-MA4-D25-1-2-T-0<br />
Brand: Kobold (Alemania)<br />
[TWP-MA4]:<br />
Material: st.st., 1.4571<br />
Sensor, Pt 100, Class B<br />
Temperature range, -20...200 °C<br />
Connection, A DIN 11 887<br />
[D25]: Connection, DN 25<br />
[1]: Type of sensor, 1 x Pt 100<br />
[2]: Wiring, 2 wires<br />
[T]: Head, Form B with head-mount. transm. 5333D<br />
[0]: Option, w/o<br />
Transmitter configuration,[0...80]°C

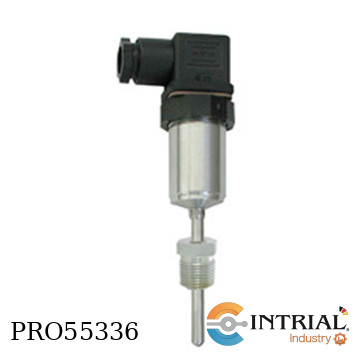

INSERTION RESISTANCE THERMOMETERS COMPACT<br />
Brand: KOBOLD (Alemania)<br />
Model: MMA-0-40-N15-C-3-D-0-0<br />
[MMA-0]:<br />
Probe material, st.st. 1.4404<br />
Connection, fixed<br />
Design, w/o stand-off<br />
Max. temperature, - 70...+150°C<br />
[40]: Immersion length/diameter, 400 mm / Ø6<br />
[N15]: Connection, 1/2 NPT<br />
[C]: Sensor Type/Category, 1x Pt100, class A (-70..+250°C)<br />
[3]: Wiring, 3-wire<br />
[D]: Electr. Connection, plug acc. to DIN 43650<br />
[0]: Head Transmitter, without<br />
[0]: Options, without

RESISTANCE THERMOMETER PROBE TYPE, TIPE SENSITIVE<br />
BRAND: MINCO<br />
MODEL: S19129PD45Z200<br />
<br />
ELEMENT: PLATINUM.<br />
RESISTANCE: 100.00 OHMS ±.12% (100.12/99.88) AT 0°C (32°F), EXCLUDING LEADWIRE RESISTANCE; R/T TABLES #5-100 (°C) AND #6-100 (°F).<br />
RESISTANCE-TEMPERATURE COEFFICIENT: .00385 OHM/OHM/°C NOMINAL FROM 0°C TO 100°C.<br />
TEMPERATURE RANGE: -50°C TO 260°C (-58°F TO 500°F).<br />
INSULATION RESISTANCE: 1000 MEGOHMS MINIMUM AT 500 VOLTS DC,LEADS TO PROBE CASE.<br />
LEADS: AWG #22, STRANDED, TFE INSULATED.<br />
TOLERANCE ON LEAD LENGTH: 71" AND UNDER: +2/-0"; 72" TO 119": +4/-0"; 120" AND OVER: +6/-0".<br />
CASE: STAINLESS STEEL, COPPER ALLOY TIP.<br />
THE RESISTANCE THERMOMETER WILL MEET THE RESISTANCETEMPERATURE RELATIONSHIP AND TOLERANCES SPECIFIED IN EN 60751<br />
(IEC 751), CLASS B.

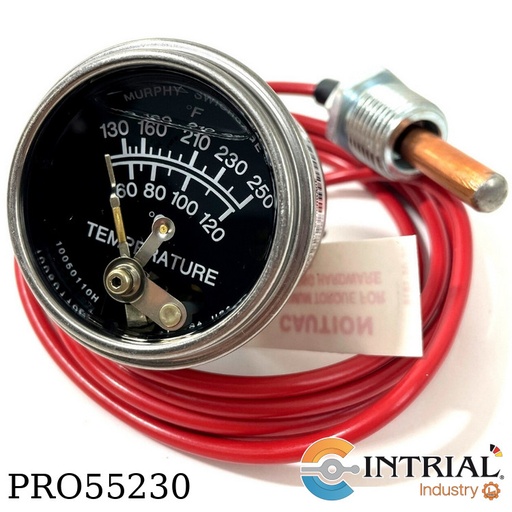

TEMPERATURE SWICHGAGE<br />
Brand: MURPHY<br />
Model: 20T-OS-250-6-1/2<br />
[20T]: Based model, 20T<br />
[OS]: Option, Oil sealed (silicone oil)<br />
[250]: Range, Dual scale, 130-250 °F//60-121 °C<br />
[6]: Capillaty length, 6 ft<br />
[1/2]: Adapter nuts, 1/2<br />
<br />
<br />


CAPILLARY THERMOMETER DIAM. 160 ACC. TO DIN EN 13190<br />
Brand: KOBOLD (Alemania)<br />
Model: TNF-1G-2-08-F-82-Y-S21<br />
[TNF-1G]:<br />
Diameter, 160 mm<br />
Probe material, st.st.<br />
Class, 1,0<br />
[2]: Housing material, st.st.<br />
[08]: Range, 0...80 °C<br />
[F]: Capillary tube, flexible st.st. coiled hose<br />
[82]: Probe, G 3/4<br />
[Y]: Probe diameter 8 // 50 mm<br />
[S21]: Slow-action contact, 1st N/C, 2nd N/O<br />
Capilar=  2000 mm

DEHYDRATING BREATHER<br />
Brand: COMEM<br />
Category C4<br />
Hydraulic closing<br />
Polycarbonate tube<br />
Female thread G1/2"<br />
Plastic pocket<br />
Color, RAL7032

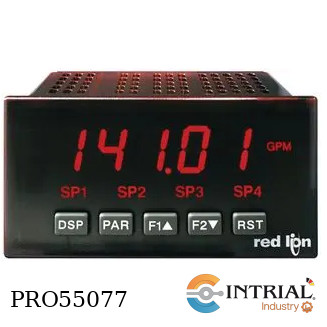

ANALOG INPUT PANEL METERS<br />
Brand: REDLION<br />
Model: PAXD0010<br />
[PAX]: Model, PAX<br />
[D]: DF Volt/Curren input<br />
[0]: Red, sunlight readable display<br />
[1]: 11 to 36 VDC, 24 VAC<br />
<br />

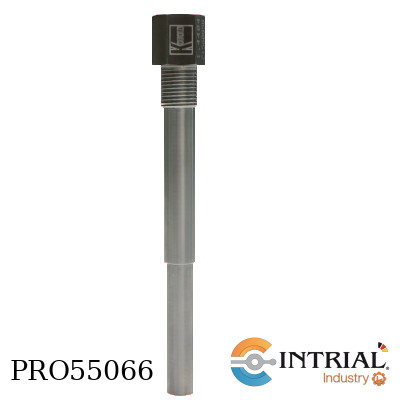

THERMOWELLS FOR TEMPERATURE SENSORS<br />
Brand: Kobold (Alemania)<br />
Model: TWL-0000-N-GN4B-0-141mm<br />
[TWL-0000]<br />
Thermowell, cylindrical drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[GN4B]: Connection thermowell, 1/2" NPT male, PN 100<br />
[0]: Lagging extension (T), w/o lagging extension<br />
U= 141 mm<br />

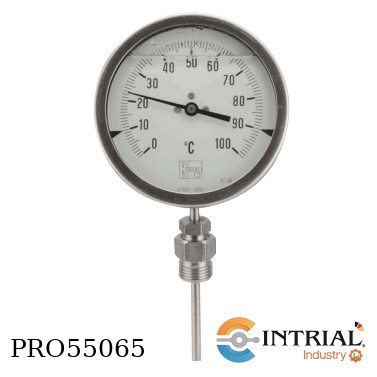

BIMETALLIC THERMOMETERS<br />
Brand: KOBOLD (Alemania)<br />
Model: TBE-2-1-C16-9A-7-000<br />
[TBE-2]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection/Orientation to, bottom<br />
Probe, st.st.<br />
[1]: Diameter, 100 mm<br />
[C16]: Measuring Range, 0 ... +160 °C<br />
[9A]: Connection type/Process connection, sliding male and swivel nut 1/2 NPT<br />
[7]: Bulb diameter/-length, 6,4 mm<br />
[000]: Options, without<br />
S= 7" ( 180 mm )

ADVANCED INFRARED THERMOMETER<br />
Brand: SKF<br />
Model: TKTL-21<br />
Temperature range using infrared, –60 to +760 °C<br />
Temperature range using probe, –64 to +1 400 °C<br />
Probe supplied, TMDT 2-30 included<br />
Distance-to-spot ratio, 30:1<br />
Operating temperatur, 0 to 50 °C<br />
Response time msec, 1000<br />
Displayed resolution, 0.1 °C/F (below 999.9),1° C/F (above 1 000)<br />
Spectral response, 8-14 μm<br />
Contents,<br />
 1x IR thermometer (TKTL 21);<br />
 1x Temperature probe (TMDT2-30); 2x AAA Alkaline batteries;<br />
 1x Instructions for use;<br />
 1x Carrying case

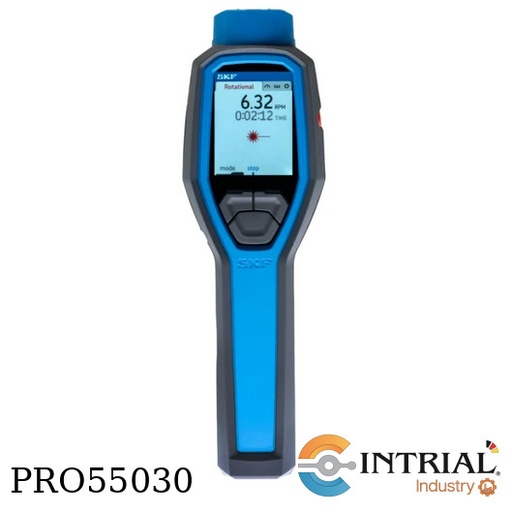

ADVANCED DIGITAL TACHOMETER<br />
Brand: SKF<br />
Model: TKRT-31<br />
Memory, Yes, 5 slots<br />
Display, Multi-line backlight TFT<br />
Housing material, ABS (plastics)<br />
Optical modes, r/min and Hz<br />
Contact modes, r/min and Hz, meters, feet, inch, per min and per sec<br />
Count modes, Distance mode<br />
Rotational speed range, 1 to 99 999 r/min<br />
Accuracy, ±0.01% of reading ±1 digit<br />
Measuring distance, 25 to 1 200 mm<br />
Power source, 2 x AA batteries, rechargeable can be used<br />
Operating temperature, 0 to 40 °C<br />
Case contents,<br />
 1 × Tachometer TKRT 31<br />
 1 × Extension shaft<br />
 2 × Conical tips<br />
 2 × Wheels<br />
 2 × AA batteries<br />
 1 × Set of reflective tape<br />
 1 × Instructions for use

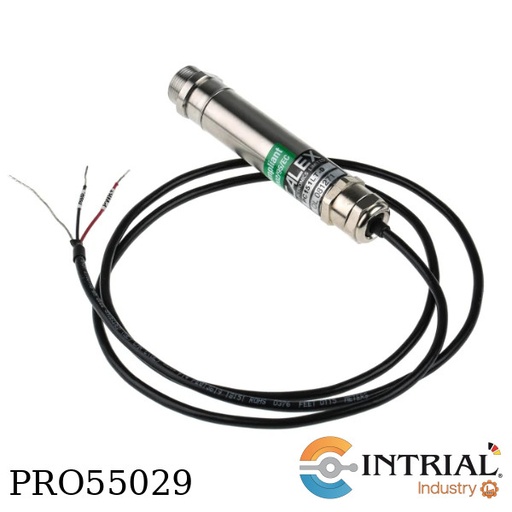

TEMPERATURE SENSOR<br />
BRAND: CALEX<br />
MODEL: PC151LT-0<br />
<br />
[151] FIELD OF VIEW: 15:1 DIVERGENT OPTICS<br />
[LT]: TEMPERATURE RANGE: -20 TO + 100 °C<br />
[0]: OUTPUT OPTION: 2 WIRE, 4-20MA

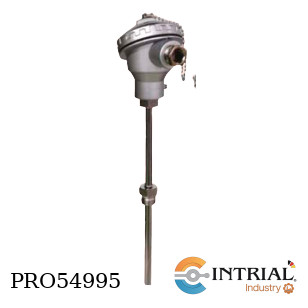

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold(Alemania)<br />
Model: MWD-A-A-C15-D-3-G-0-0(370mm)<br />
[MWD-A]:<br />
Version: Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material: st.st. 1.4404<br />
Max. pressure (@ 20°C): 30 bar<br />
Connection: Compression fitting<br />
Neckpipe: without<br />
[A]: Diameter/length thermowell, 10 mm/L= 370 mm<br />
[C15]: Process connection, Compression fitting 1/2 NPT male<br />
[D]: Sensor, 2x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 wires<br />
[G]: Terminal head, screw-cap with chain, aluminium<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without<br />
<br />
Include<br />
ADAPTER<br />
Brand: INTRIAL<br />
Model: ADAPT-M20x1.5//3/8FNPT<br />
M20x1.5 male to 3/8 NPT female adapter

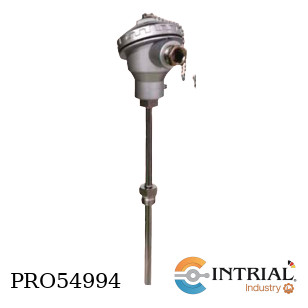

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold(Alemania)<br />
Model: MWD-A-A-C15-D-3-G-0-0(240mm)<br />
[MWD-A]:<br />
Version: Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material: st.st. 1.4404<br />
Max. pressure (@ 20°C): 30 bar<br />
Connection: Compression fitting<br />
Neckpipe: without<br />
[A]: Diameter/length thermowell, 10 mm/L= 240 mm<br />
[C15]: Process connection, Compression fitting 1/2 NPT male<br />
[D]: Sensor, 2x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 wires<br />
[G]: Terminal head, screw-cap with chain, aluminium<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without<br />
<br />
Include<br />
ADAPTER<br />
Brand: INTRIAL<br />
Model: ADAPT-M20x1.5//3/8FNPT<br />
M20x1.5 male to 3/8 NPT female adapter
