PILOTO DE TEMPERATURA<br />
MARCA: SPIRAX SARCO<br />
MODELO: T-2(50-85°C)<br />
- PARA MONTAJE EN CUERPO MODELO 25.<br />
- RANGO DE TEMPERATURA: 50ºC A 85ºC (120 A 185ºF).<br />
- CAPILAR DE COBRE DE 8 PIES DE LARGO (2.40MTS) CON PROTECTOR DE BRONCE.<br />
- BULBO DE COBRE FOSFOROSO DE 6” DE LARGO CON ROSCA DE 3/4” NPT MACHO.

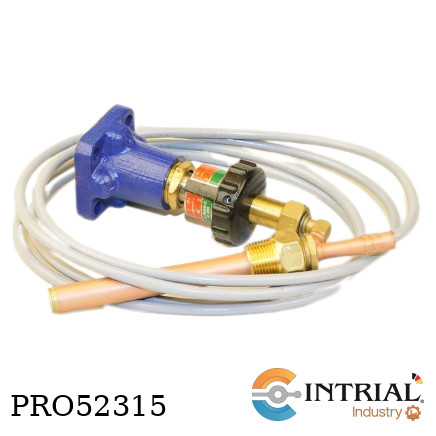

PILOTO DE TEMPERATURA<br />
MARCA: SPIRAX SARCO<br />
MODELO: T-2(35-70°C)<br />
- PARA MONTAJE EN CUERPO MODELO 25.<br />
- RANGO DE TEMPERATURA: 35ºC A 70ºC (100 A 160ºF).<br />
- CAPILAR DE COBRE DE 8 PIES DE LARGO (2.40MTS) CON PROTECTOR DE BRONCE.<br />
- BULBO DE COBRE FOSFOROSO DE 6” DE LARGO CON ROSCA DE 3/4” NPT MACHO.

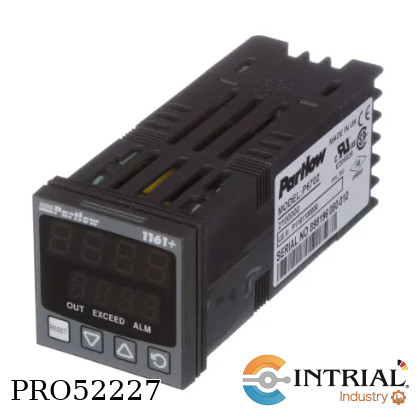

TEMPERATURE CONTROLLER<br />
Brand: PARTLOW<br />
Model: P6702<br />
P/N: P1161110800<br />
[1161]: Model, 1/16 DIN Limit Controller<br />
[1]: Option Slot 1, Relay<br />
[1]: Option Slot 2, Relay<br />
[0]: Option Slot 3, No output<br />
[8]: Option Slot A/Display color, Digital input/ Red Upper & Lower Display<br />
[00]: Voltage, 120-240 VAC

TEMPERATURE CONTROLLER<br />
Brand: PARTLOW<br />
Model: P6702<br />
P/N: P1161100000<br />
[1161]: Model, 1/16 DIN Limit Controller<br />
[1]: Option Slot 1, Relay<br />
[0]: Option Slot 2, No output<br />
[0]: Option Slot 3, No output<br />
[0]: Option Slot A/Display color, No output A/ Red Upper & Lower Display<br />
[00]: Voltage, 120-240 VAC

Humidity/Temperature Sensor<br />
Brand: Kobold(Alemania)<br />
Model: AFK-F-KK-4-F-D-S-ED-3-0<br />
Version, Industry<br />
Digital display (2-lines), Option<br />
Humidity measuring method, capacitive<br />
Temperature measuring, Pt 1000 Cl. B<br />
Output, mA / V<br />
Sensor part, firmly connected<br />
Measuring range [r.h.], 0...100 %<br />
Measuring range temperature, -40...+180 °C<br />
[KK]: Design/physical output transmitter, duct version/two active outputs.<br />
[4]: Output signal transmitter/(power supply), 4…20 mA / (10...30 VDC)<br />
[F]: Output range 1/output range 2, humidity (0...100 % r.h.)/temperature.<br />
[D]: Display, with display.<br />
[S]: Design sensor, 2 m cable length.<br />
[ED]: Sensor version, pressure-proof 0.2...10 bar at -50...150 °C<br />
[3]: Sensor filter, sintered metal filter of stainless steel AFZ-GE13 (standard), IP 65.<br />
[0]: Option, without.

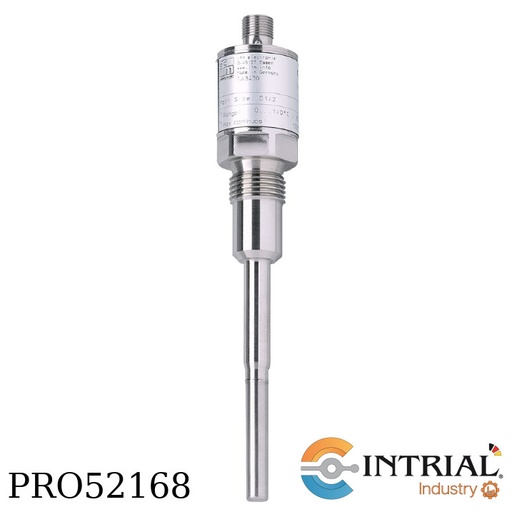

TRANSMISOR DE TEMPERATURA<br />
Marca: IFM<br />
Model: TA3431<br />
N/P: TA-123.LDR12-A-ZVG/US/<br />
Número de salidas analógicas: 1<br />
Rango de medición, -10...150 °C<br />
Conexión de proceso, rosca G 1/2 rosca exterior<br />
Longitud de instalación EL [mm], 87,5<br />
Elemento de medición, 1 x Pt 1000<br />
Resistencia a la presión [bar], 300<br />
Salida analógica de corriente [mA], 4...20<br />
Carga máx. [Ω], 500

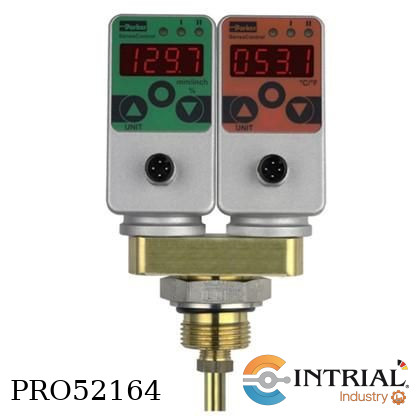

LEVEL TEMPERATURE CONTROLLER<br />
BRAND: PARKER<br />
MODEL: SCLTSD-250-10-07<br />
MATERIAL: SENSOCONTROL,<br />
OUTPUT TYPE: 1 SWITCHING OUTPUT / WITH ANALOGUE OUTPUT,<br />
CONNECTION: M12X1 CONNECTING PLUG: 4-POLE,<br />
MIN / MAX FLUID TEMPERATURE: -20°C / +85°C, PORT SIZE: G3/4 BSPP.

Bimetallic Thermometers<br />
Brand: Kobold(Alemania)<br />
Model: TBE-1-2-F14-3A-7-C40<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection / Orientation to, rear<br />
Probe, st.st.<br />
[2]: Diameter, 125 mm<br />
[F14]: Measuring Range, 0°C to 250°C<br />
[3A]: Connection type/Process connection, Protect. tube/ immers. tube - 1/2 NPT<br />
[7]: Bulb diameter/-length, 6,4 mm<br />
[C40]: Options, Case and ring stainless steel AISI 316<br />
S=100 mm

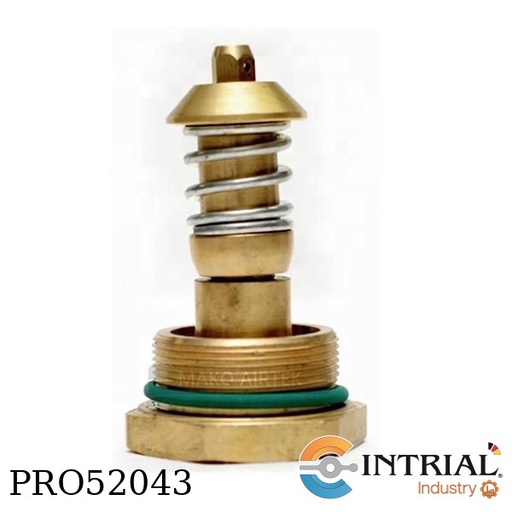

THERMOSTATIC ELEMENT<br />
BRAND: INGERSOLL RAND<br />
185 DEG F<br />
DESIGNED FOR USE WITH IR- AIR COMPRESSORS

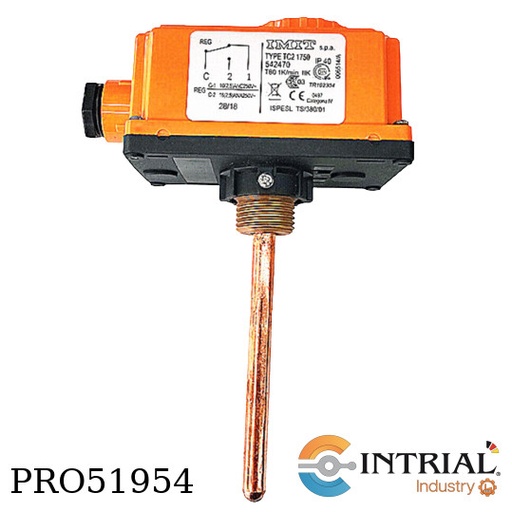

THERMOSTAT<br />
Brand: IMIT<br />
Model: 542470<br />
Scale: 0 a 90°C<br />
Maximum load capacity = 10 (2.5) A / 250 VAC<br />
Length: 100mm<br />
Max. Ambient temperature = 125 ° C.<br />
Thermal gradient = 1 ° K / min<br />
Protection class = IP40

INDICADOR DE TEMPERATURA DE ACEITE PARA TRANSFORMADOR
MARCA: ORTO

PTCH-635-0150<br />
CARTUCHO 3 HILOS,<br />
Marca: INTRIAL,<br />
Diámetro bulbo 1/4".<br />
Rosca de conexión 1/2" Npt He<br />
Marca: INTRIAL<br /><br />


Crank Arm Assembly for Mod Motors<br />
Brand: HONEYWELL<br />
Model: 7616BR

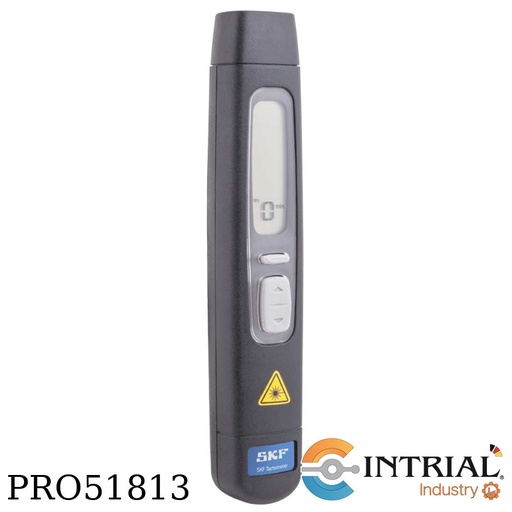

Tacómetro láser y de contacto multifuncional <br />
Marca: SKF<br />
Modelo: TKRT-20<br />
Pantalla: LCD, invertible verticalmente, de 5 dígitos<br />
Memoria: Última lectura fijada en pantalla durante 1 minuto.<br />
Modo de conteo: Cuenta total de revoluciones, metros, pies, yardas<br />
Tiempo para toma de lectura: 0,8 segundos o intervalos entre impulsos.<br />
En modo de captura máxima o mínima, selección automática de 0,1 segundos<br />
Velocidad lineal: De 0,3 a 1.500 metros/min. (4 500 ft/min)o su equivalente en segundos<br />
Rango de velocidad de giro: De 3 a 99 999 rpm<br />
Precisión: ±0,01% de la lectura ±1 dígito<br />
Distancia de medición: 50 a 2 000 mm (1.9 a 78.7 pulg.)<br />
Ángulo de funcionamiento: ±80°<br />
Sensor láser: 1™ láser de clase 2 integrado<br />
Sensor láser remoto: TMRT 1-56 opciona

DIAPHRAGM OPERATED PRESSURE SWITCH<br />
Visible Setpoint Adjustment, Compact<br />
Brand: DWYER<br />
Model: AP-7021-153-37<br />
Switch Type, SPDT Snap<br />
Ranges, 1 to 30 psig (.07 to 2.1 bar)<br />
Switch Deadband:<br />
Low, 0.75 psig (0.05 bar)<br />
High, 1.5 psig (0.10 bar)<br />
Max. Press. psig(bar), 60 (4.14)<br />
Process Connection: 1/4˝ female NPT.<br />
Mounting Orientation: Any position for snap switch models<br />
Temperature Limits: -30 to 150°F(-35 to 66°C).

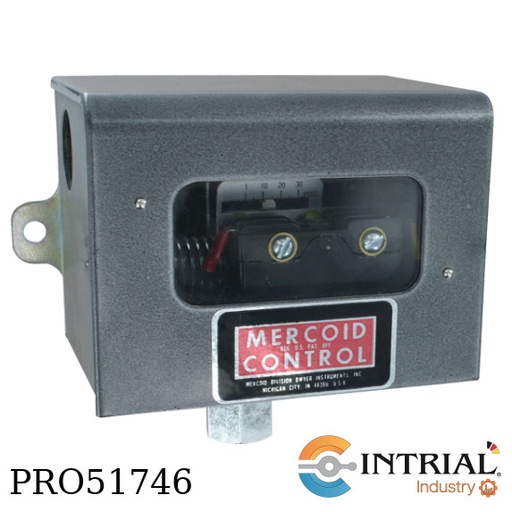

DIAPHRAGM OPERATED PRESSURE SWITCH<br />
Visible Setpoint Adjustment, Compact<br />
Brand: DWYER<br />
Model: AP-153-37<br />
Switch* Type SPDT, Mercury<br />
Ranges, 1 to 30 psig (.07 to 2.1 bar)<br />
Switch Deadband: <br />
Low, 0.4 psig (0.03 bar)<br />
High, 0.75 psig (0.05 bar)<br />
Max. Press. psig(bar), 60 (4.14)<br />
Process Connection: 1/4˝ female NPT.<br />
Mounting Orientation: Vertical<br />
Temperature Limits: -30 to 150°F(-35 to 66°C).

Capillary Thermometers diam. 100 acc. DIN EN 13190<br />
Brand: Kobold (Alemania)<br />
Model: TNF-0F-A-60-F-1A-Y<br />
[TNF-0F]:<br />
Diameter 100 mm<br />
Probe material st.st.<br />
Class 1,0<br />
[A]: Housing material, Aluminum / st.st.<br />
[60]: Range, 0...600 °C<br />
[F]: Capillary tube, flexible st.st. coiled hose<br />
[1A]: Probe, 1/2 NPT sl. nut + 2 nipple<br />
[Y]: Bulb 8 mm diameter/100 mm<br />
L= 100 mm

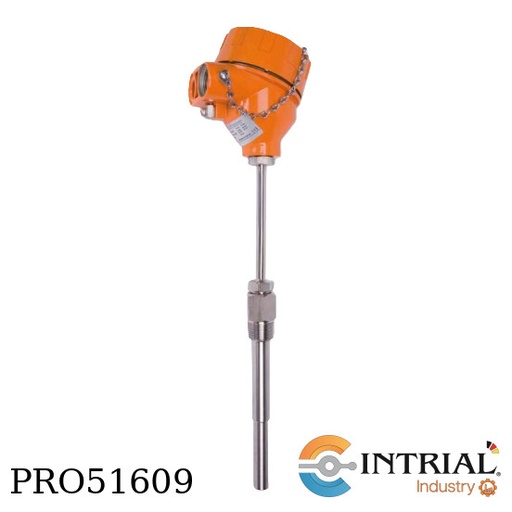

Thermowells for Temperature Sensors<br />
Brand: Kobold(Alemania)<br />
Model: TWL-0000-N-GN5B-0<br />
[TWL-0000]:<br />
Thermowell, cylindrical drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[GN5B]: Connection thermowell, 3/4" NPT male, PN 100<br />
Immersion length (U), 300 mm (12”)<br />
[0]: Lagging extension (T), w/o lagging extension<br />
Thermowell Inmersion length (U): 127 mm

Bimetallic Thermometers<br />
Brand: Kobold(Alemania)<br />
Model: TBE-1-3-F14-3A-7-C01<br />
[TBE-1]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection/Orientation to, rear<br />
Probe, st.st.<br />
[3]: Diameter, 150 mm<br />
[F14]: Measuring Range, Scale °C, [0...250]°C<br />
[3A]: Connection/Orientation to, Protect. tube/ immers. tube 1/2 NPT<br />
[7]: Bulb diameter/-length, 6,4 mm/173 mm<br />
[C01]: Options, Calibration report<br />
S= U+46= 173 mm

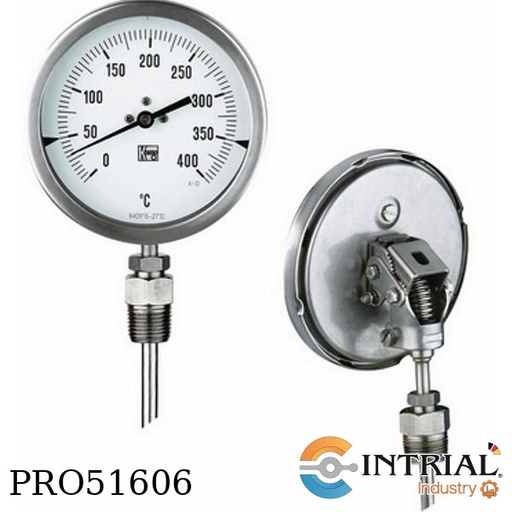

Bimetallic Thermometers<br />
Brand: Kobold(Alemania)<br />
Model: TBE-1-3-F12-3A-7-C01<br />
[TBE-1]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection/Orientation to, rear<br />
Probe, st.st.<br />
[3]: Diameter, 150 mm<br />
[F12]: Measuring Range, Scale °C, [0...200]°C<br />
[3A]: Connection/Orientation to, Protect. tube/ immers. tube 1/2 NPT<br />
[7]: Bulb diameter/-length, 6,4 mm/173 mm<br />
[C01]: Options, Calibration report<br />
S= U+46= 173 mm
