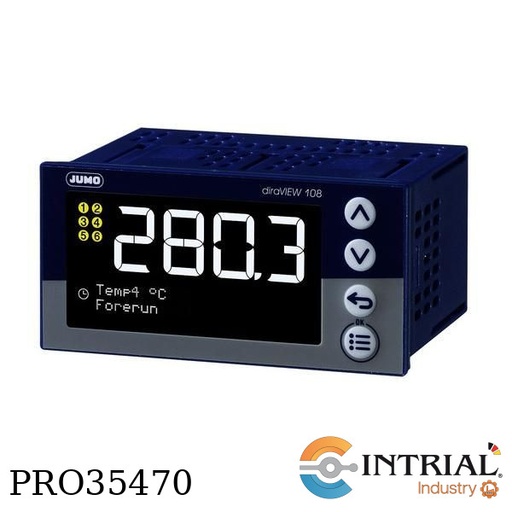

TEMPERATURE CONTROLLER
Brand: JUMO
diraVIEW 108 (size 96x48 mm, 1x analog input, 2x relay, 1x DI, 1x DI/DO)
Version Standard with default settings
Option 1 Not to be used
Option 2 1 analog output (configurable)
Option 3 Not to be used
Option 4 Not to be used
Voltage supply AC 110..240V +10/-15%,48..63Hz

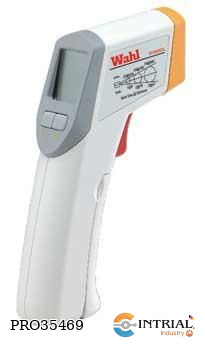

TERMOMETRO INFRARROJO
MARCA: WAHL INSTRUMENT MODELO: DHS85XL
• Rango de temperatura: -20 a 326°C
• Exactitud: ±2°C de -20°C a 100°C
• Relación Distancia/Spot: 8: 1
• Distancia maxima de trabajo recomendada: 1m
• Emisividad fija

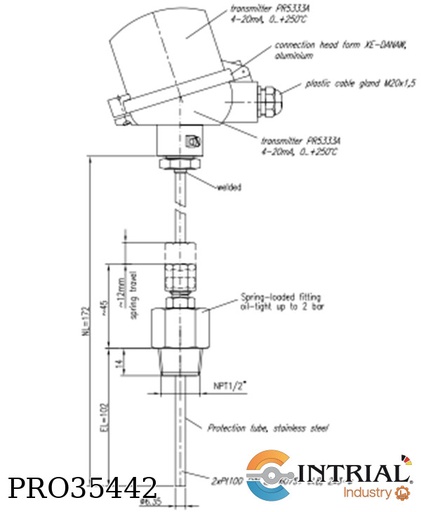

SCREW-IN RESISTANCE THERMOMETERS
Brand: INTRIAL(German manufacturing)
2 x Pt 100 Ohm DIN EN 60751, Class B, 2 x
3-wire, protection tube ø 6.35 mm, installation
length 102 mm, material 1. 4435, with
spring-loaded compression fitting NPT 1/2",
oil-tight up to 2 bar, nominal length 172 mm,
connection head XE-DANAW, with 2 x
transmitter PR5333A, output 4-20 mA,
measuring range: 0 to +250°C, cable gland
M20 x 1.5, with ATEX approval Ex II 1G Exia
IIC T6 Ga, PTB ATEX 2031X, with ATEX
declaration of conformity and operating
instructions, according to our drawing

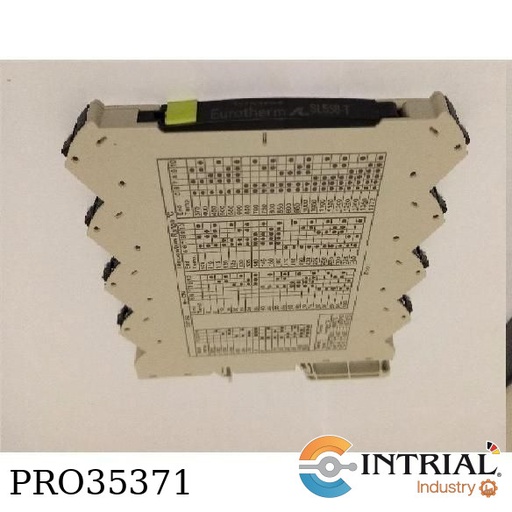

TEMPERATURE CONVERTER LOOP
Brand: NVENSYS EUROTHERM CONTROLS
Specifications range: –25°C to +70°C
Storage temperature: –40°C to +85°C
Calibration temperature: 20...28°C
Relative humidity: < 95% RH (non-cond.)
Protection degree: IP20 / EN60529
Installation: pollution degree 2 and overvoltage
category II.  Supply voltage, DC: 8...35 VDC
Voltage drop 8 VDC
Power consumption, max: 1 W
Internal consumption, max: 0.65 W
Isolation voltage, test: 2.5 kVAC (reinforced)

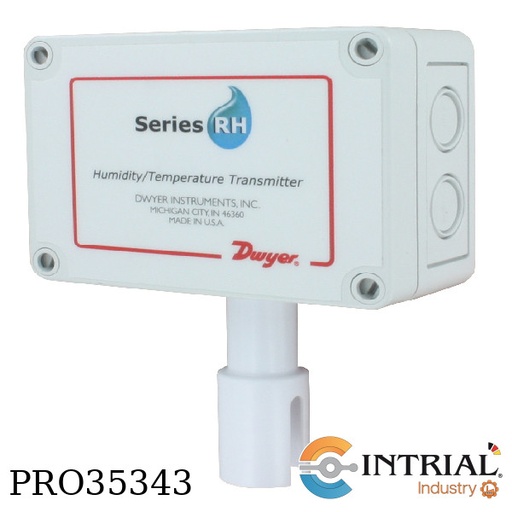

SERIES RHP HUMIDITY/TEMPERATURE TRANSMITTER
Brand: Dwyer
[2]: Accuracy: 2%
[O]: Mounting Type: Outside Air w/ 40 Micron HDPE Filter w/ Shield
[1]: RH Output: 4-20 mA
[1]: Temperature Sensor / Output Type: 4-20 mA
[NIST] : Options; ​NIST Traceable Calibration Certificate

SERIES RHP HUMIDITY/TEMPERATURE TRANSMITTER
Brand: Dwyer
[2]: Accuracy: 2%
[O]: Mounting Type: Outside Air w/ 40 Micron HDPE Filter w/ Shield
[1]: RH Output: 4-20 mA
[1]: Temperature Sensor / Output Type: 4-20 mA

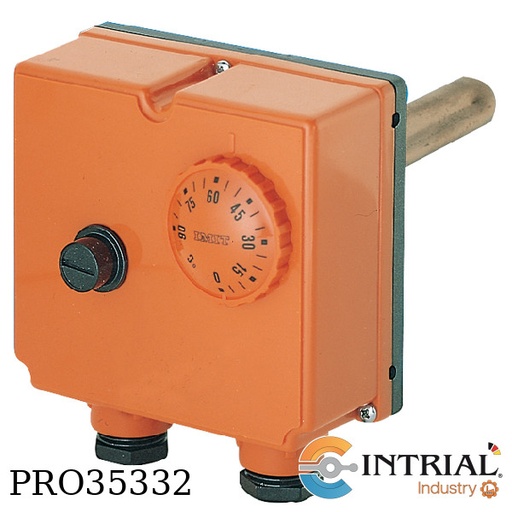

TERMOSTATO TLSC
Marca: IMIT
Rango de temperatura: 0 a 90 °C
Contactos NA/NC: 10 Amp 250 Vca.
Contactos/acometida: M20 x 1,5 mm.
Contra vaina: Rosca ½" longitud 100 mm diámetro Ø16 mm.
Caja plástica alta visibilidad IP40.

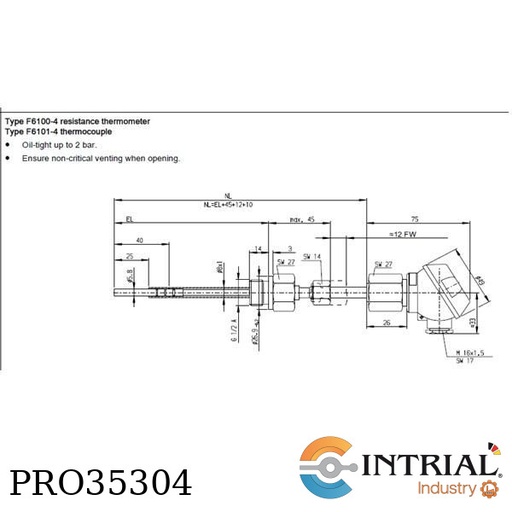

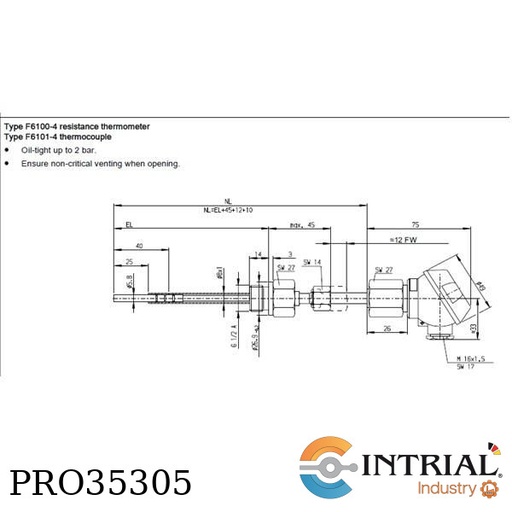

Screw-in resistance thermometer, 2 x Pt 100
Brand: INTRIAL(German manufacturing)
Ohm DIN EN 60751, class B, 2 x 2-wire,
sensor tube ø 5.8 mm, insertion length 100
mm, material stainless steel, thread G1/2",
spring-loaded compression fitting, SW 27,
neck tube approx. 20 mm, connection head
form J, with 2 integrated transmitters 4 - 20
mA, measuring range 0 to +100°C, with
protection tube ø 8 mm, similar to the
standard version. Your drawing Temperature
range: -50 to +200°C

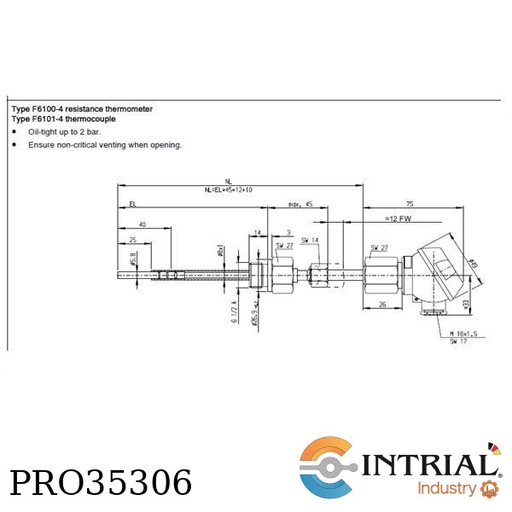

Screw-in resistance thermometer, 2 x Pt 100
Brand: INTRIAL(German manufacturing)
Ohm DIN EN 60751, class B, 2 x 2-wire,
sensor tube ø 5.8 mm, insertion length 70
mm, material stainless steel, thread G1/2",
spring-loaded compression fitting, SW 27,
neck tube approx. 20 mm, connection head
form J, with 2 integrated transmitters 4 - 20
mA, measuring range 0 to +100°C, with
protection tube ø 8 mm, similar to the
standard version. Your drawing Temperature
range: -50 to +200°C

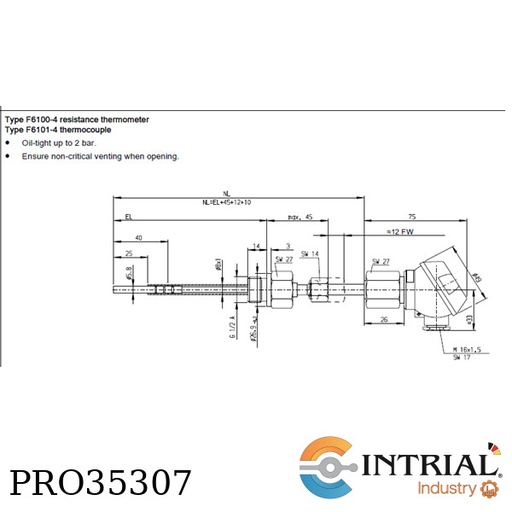

Screw-in resistance thermometer, 2 x Pt 100
Brand: INTRIAL(German manufacturing)
Ohm DIN EN 60751, class B, 2 x 2-wire,
sensor tube ø 5.8 mm, insertion length 95
mm, material stainless steel, thread G1/2",
spring-loaded compression fitting, SW 27,
neck tube approx. 20 mm, connection head
form J, with 2 integrated transmitters 4 - 20
mA, measuring range 0 to +100°C, with
protection tube ø 8 mm, similar to the
standard version. Your drawing Temperature
range: -50 to +200°C

Screw-in resistance thermometer, 2 x Pt 100
Brand: INTRIAL(German manufacturing)
Ohm DIN EN 60751, class B, 2 x 2-wire,
sensor tube ø 5.8 mm, insertion length 87
mm, material stainless steel, thread G1/2",
spring-loaded compression fitting, SW 27,
neck tube approx. 20 mm, connection head
form J, with 2 integrated transmitters 4 - 20
mA, measuring range 0 to +100°C, with
protection tube ø 8 mm, similar to the
standard version. Your drawing Temperature
range: -50 to +200°

Screw-in resistance thermometer
Brand: INTRIAL(German manufacturing)
2 x Pt 100 Ohm DIN EN 60751, Kl. B
(0,00385 Ohm), 2 x 3-wire, protection tube ø
6 mm, insertion length 55 mm, thread 1/2
"NPT, with connection head form J, with
transmitter 4-20 mA, measuring range: 0 to
+100°C, electrical connection 1/2 "NPT,
temperature range: +70 to +500°C, similar to
Pt 100 Ohm

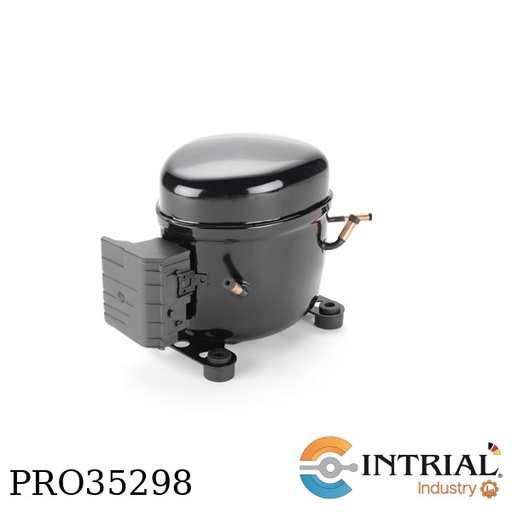

COMPRESOR RECÍPROCO
Fabricante: TECUMSEH
R134A
115V
60HZ

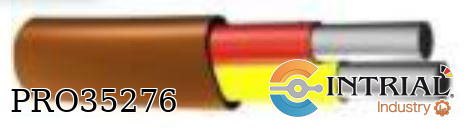

CABLE PARA TERMOCUPLA TIPO "K"
CALIBRE DE 2 X 20 AWG
FORRO DE FIBRA DE VIDRIO + MALLA ACERO
INOX.C/FILAMENTO SOLIDO

SURFACE MOUNT THERMOMETER
Brand: DWYER
Housing Material: Aluminum.
Accuracy: ±2% full-scale.
Sensing Element: Bimetal coil.
Dial Size: 2˝ (5.08 cm).
Response Time: Approximately one minute.
Mounting: Two Alnico magnets on back.
Height: 1/2˝ (1.27 cm).
Range: 50 to 750°F (10 to 400°C)

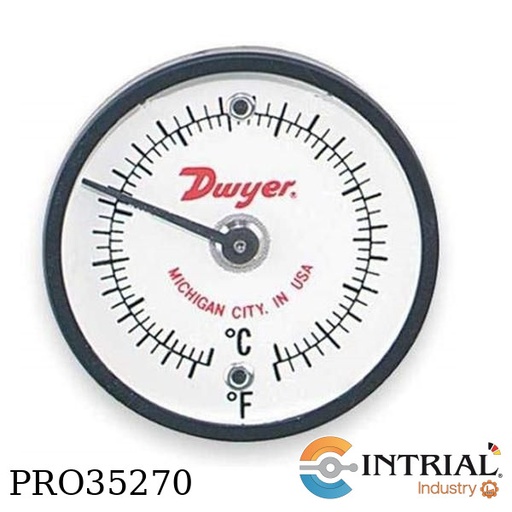

SURFACE MOUNT THERMOMETER
Brand: DWYER
Housing Material: Aluminum.
Accuracy: ±2% full-scale.
Sensing Element: Bimetal coil.
Dial Size: 2˝ (5.08 cm).
Response Time: Approximately one minute.
Mounting: Two Alnico magnets on back.
Height: 1/2˝ (1.27 cm).
Range: 0 to 500°F (-20 to 260°C)

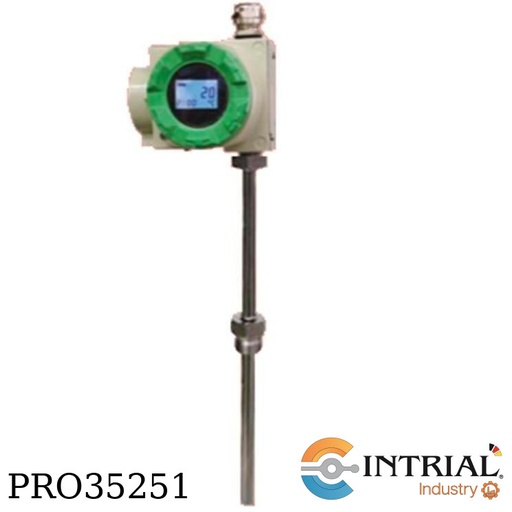

INDUSTRIAL RESISTANCE THERMOMETERS ACC. DIN
Brand: Kobold (Alemania)
Model: MWD-A-6-C15-A-3-E-0-0(EL=110)
[MWD-A]
Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable
Protective tube material, st.st. 1.4404
Max. pressure (@ 20°C), 30 bar
Connection, Compression fitting
Neckpipe, without
[6] Diameter / length thermowell, 6 mm / 110 mm
[C15] Process Connection, Compression fitting 1/2 NPT male
[A] Sensor, 1x Pt100, cat. B, (-70..+250 °C)
[3] Wiring, 3 wires
[E] Terminal Head,  aluminium head with LCD dis-play and HART®
transmitter included
[0] Head-mounted transmitter, without transmitter
[0] Options, without

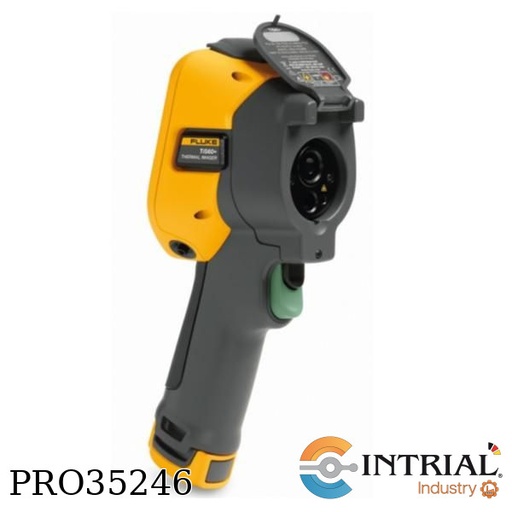

CAMARA TERMOGRAFICA
MARCA FLUKE MODELO: TIS60+ 9HZ
Tamaño del detector: 320 x 240
Frecuencia de actualización: 9Hz
Rango: -20 a 400ºC
Precisión: +/- 2ºC o 2% (a 25 °C nominales, la mayor de ambas)
ENFOQUE FIJO.
Campo de visión estándar: 34.1º horizontal + 25.6º vertical
Tecnología IR FUSION, AutoBlend, imagen en imagen (PIP)
Cámara de luz visible de 5 MP
Puntero láser
Compatible con Fluke Connect
Almacenamiento: 4GB (memoria interna) + 4GB (micro SD)
Grabador de voz (vía Bluetooth Headset, no incluido)
Test caída 2 metros / Grado de Protección: IP54
Garantía: 02 años
INCLUYE:
*Software Fluke Connect Desktop
(ahora disponible gratuitamente en www.fluke.com/smartviewdownload)
*Tarjeta de Memoria microSD de 4GB
*Estuche de transporte de tela
*Maletín de transporte rígido
*Cargador de batería / 2 baterías.

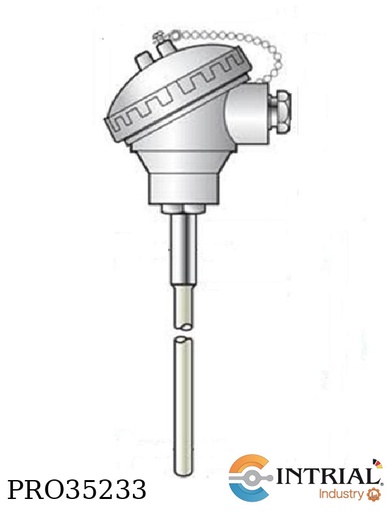

PLUG-IN THERMOCOUPLE
Brand: INTRIAL(German manufacturing)
1 x Type K
protection tube ø 15 mm
length L1=625 mm
material ceramic
with neck tube ø 21 x 74 mm
material stainless Steel 1.4749
with connection head form A
temperature range: -40 to +1000°C

PLUG-IN THERMOCOUPLE
Brand: INTRIAL(German manufacturing)
1 x Type S
protection tube ø 15 mm
length
L1=625 mm
material ceramic
with neck tube
ø 21 x 74 mm
material stainless Steel 1.4749
with connection head form A
temperature range: -40 to +1200°C
