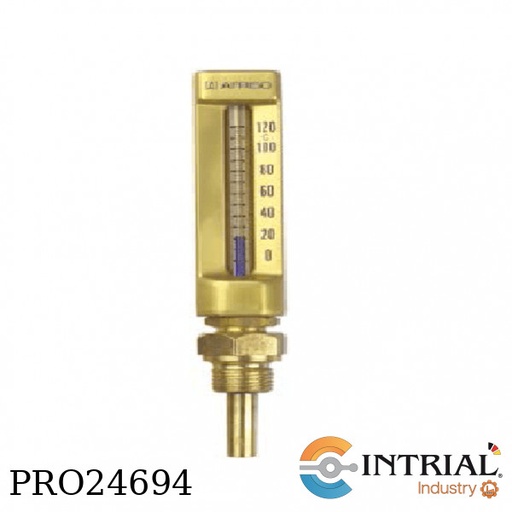

INDUSTRIAL THERMOMETERS
Brand: Afriso
Nominal size: 150 x 36
DIN: 16185
Mounting position: Straight
Housing: Aluminium, anodised brass-coloured
Stem: Brass, Ø 10 mm
Connection: Version B with screw-in socket G½B, brass
Accuracy: As per DIN 16195
Range: 0/100 °C
Stem length: 63mm

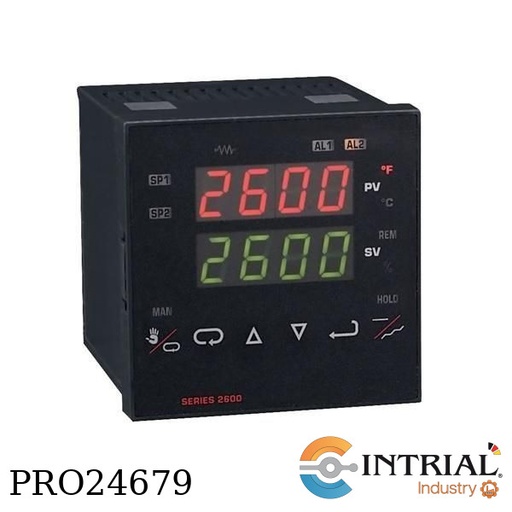

TEMPERATURE/PROCESS CONTROLLER
Brand: DWYER
Model: 26150
Alarm: Yes
Output A: Current
Output B: None
MORE STANDARD FEATURES
NEMA 4X (IP65) front panel resists dust and moisture
Four password-protected security levels
Front panel programmability
16 segments of ramp/soak with program end control
Operates on 100-240 VAC, 132-240 VDC
SPECIFICATIONS
Selectable Inputs: Thermocouple, RTD, DC voltage, or DC current.
Input Impedance:
Thermocouple: 3 Megohms minimum;
Voltage: 5000 ohms;
Current: 10 ohms;
RTD current: 200 μA maximum.
Display: Two 4 digit, 7 segments, 0.56" (14.2 mm) high LED.
Accuracy: ±0.25% of span, ±1 least significant digit.
Supply Voltage: 100 to 240 VAC nominal, +10%-15%, 50 to 400 Hz,
single-phase; 132 to 240 VDC +10% -20%.
Operating Temperature: 14 to 131°F (-10 to 55°C).
Control Output Ratings: Relay: SPDT,10A @ 240 VAC resistive
1/2hp @ 120 VAC, 1/3 hp @ 240 VAC
Alarm relay: SPST
3A @ 240 VAC resistive
Proportional current: 0-20 mA DC
scalable into 600 ohms maximum.
Weight: 13 oz (369 g).
Front Panel Rating: NEMA 4X (IP66)

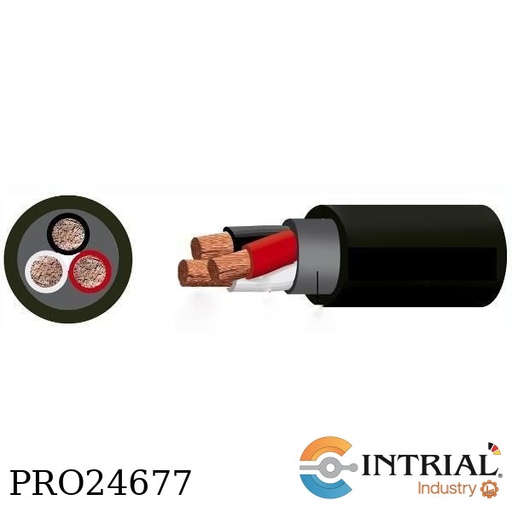

CABLE NLT 3 X 16 AWG
MARCA : BRANDER
ROLLO DE 100 METROS
TIPO CABLE NLT

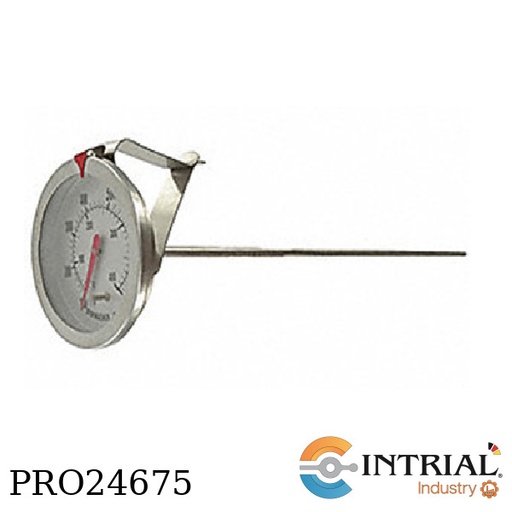

CLIP-ON BIMETAL THERMOMETER
Brand: DWYER
Dial Size: 1-3/4"
Stem Length: 8"
Range: 50 to 300°F

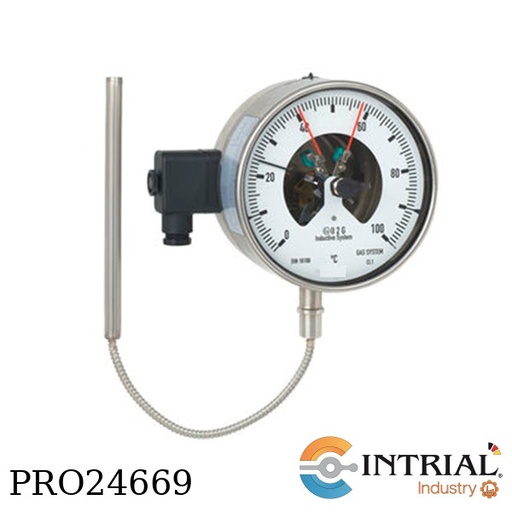

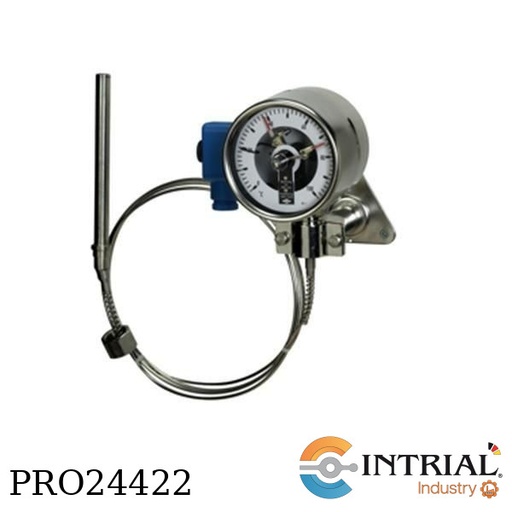

TERMÓMETROS CON GAS PARA APLICACIONES QUÍMICAS
CON CONTACTOS ELECTRICOS Y TUBO CAPILAR
Marca: AFRISO (Alemania)
Vivienda Ø: 4''(100 mm)
Carcasa: acero inoxidable 304 con bisel de ventana de cristal instrumento de calidad de tipo bayoneta,
Vástago: Acero inoxidable 321,
Longitud del vástago y diámetro:100 x 10 mm
Relleno: relleno de gas a presión
Rango: 0 a 120 º C
Grado de protección: IP65
64460
Tipo de Conexión: ½ NPT
64464
Tubo capilar: 2 metros
MK2.12
Contactos Magnéticos
1er Contacto eléctrico (NA)
2do Contacto eléctrico (NC)

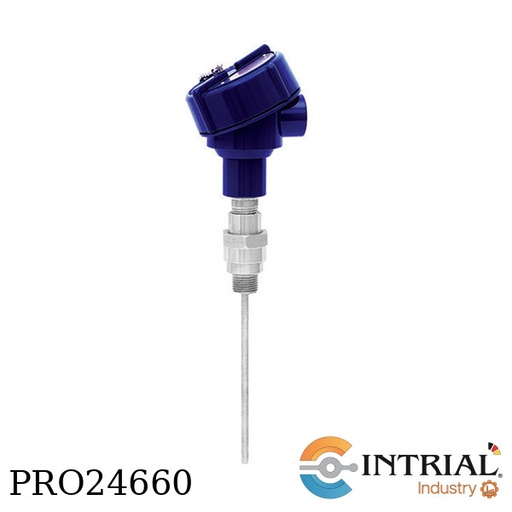

THERMOMETER RESISTANCE PROBE(TR1)
Brand: WIKA
Sensor ranges from -196 ... +600 °C

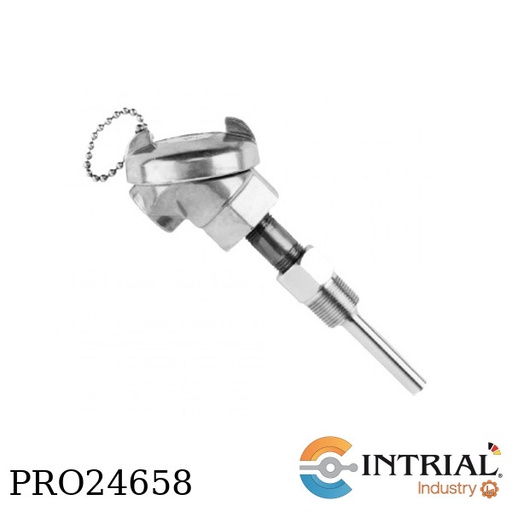

TRAMITTER ASSEMBLY
Brand: FW MURPHY
1/" NPT
2-1/2in.(63mm)
100 ohm Pt 4-20 mA RTD transmitter
0-400°F (-17.8 to 204°C)

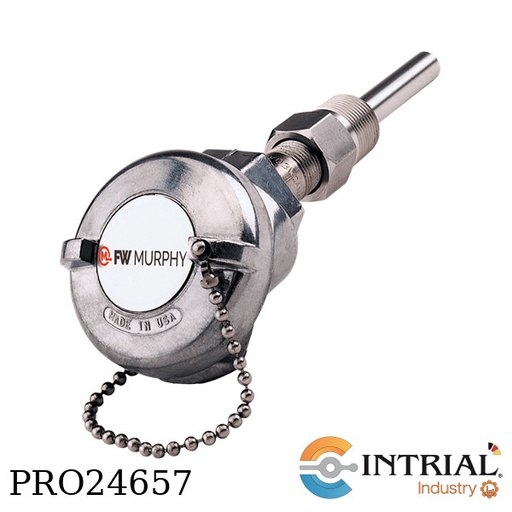

THERMOCOUPLE ASSEMBLY
Brand: FW MURPHY
1/2 NPT
2-1/2 in. (63mm)
K TYPE

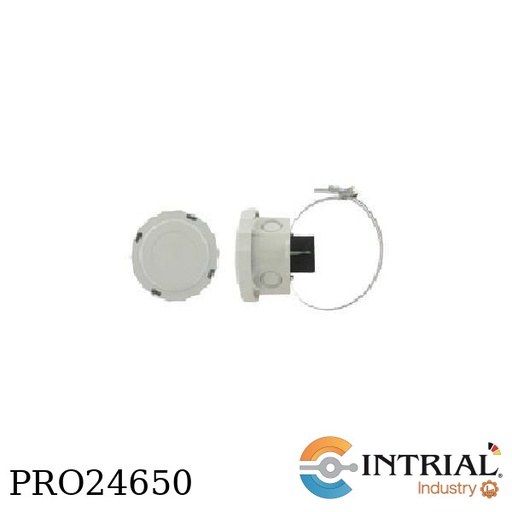

Resistente a la intemperie Montaje de temperatura
Marca: DWYER
Sensor de temperatura de montaje superficial
Sensor de tipo Pt 100 en caja de plástico NEMA 4X.

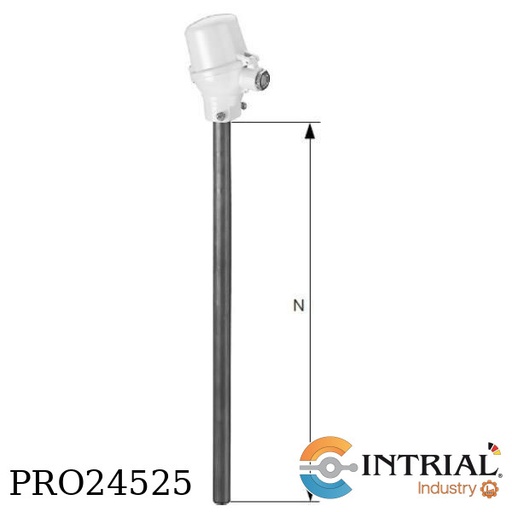

Thermocouple, 2 x type K,
Protective tube ø 22 x 2 mm,
Material satinless steel 1.4571,
Built-in length 500 mm, with adjustable
compression fitting 1"NPT,
Inner with ceramic and mineral insulated
Thermocouple ø 8 mm,connection head form AUZ, with ceramic
socket,
Temperature range: -40 to +800°C
Nota.- El Equipo es fabricado en alemania y es  igual al modelo "TSH210-YOA2S21M2N2A
18M2T2A1Y1M5".

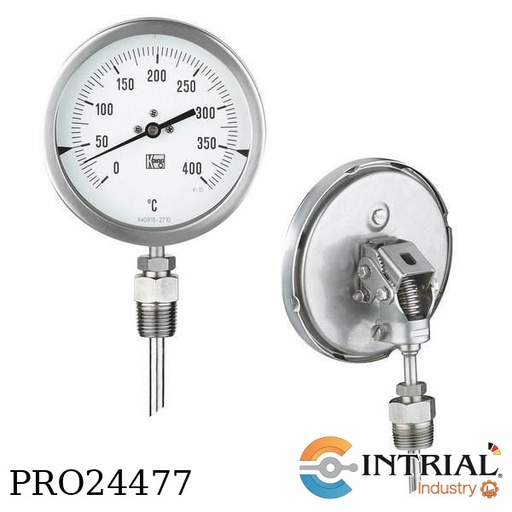

Bimetallic Thermometers
Brand: Kobold (Alemania)
Model: TBE-2-3-C20-9A-8-R11-C01
[TBE-2]:
Housing material st.st.
Accuracy (DIN 16203) class 1
Connection to bottom
Probe st.st.
Process connection, AISI 316 St. St.
Welding, AISI 304 St. St. TIG
Case, AISI 304 St. St.
Ring, AISI 304 St. St. bayonet lock
Min. order quantity 5 pieces per order
[3]: Diameter, 150mm
[C20]: Measuring Range, Scale °C, ranges 0-200°C
[9A]: Probe type/Process connection, sliding male and swivel nut 1/2 NPT
[8]: Bulb diameter/-length, 8 mm / 150 mm aprox.
[R11]: Options, Silicone filling (max. 250 °C) IP 67
[C01]: Options, Calibration report

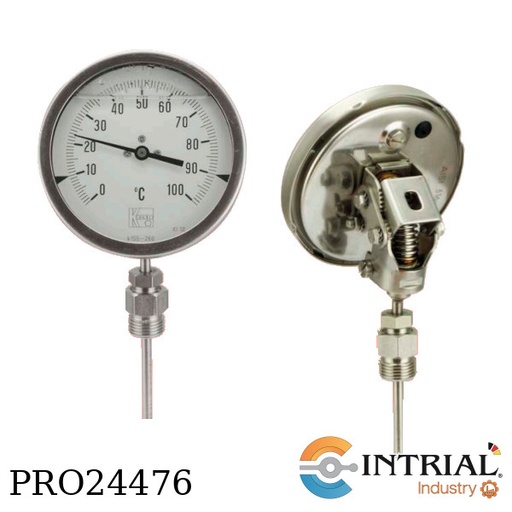

Bimetallic Thermometers
Model: TBE-2-3-C20-9A-6-R11-C01 + TWL-0000N-GN4B-0
Housing material st.st.
Diameter, 150mm
Measuring Range, 0-200°C
Bulb diameter/-length, 6 mm / 273 mm aprox.
Connection thermowell, 1/2" NPT male, PN 100
Immersion length (U), 230 mm

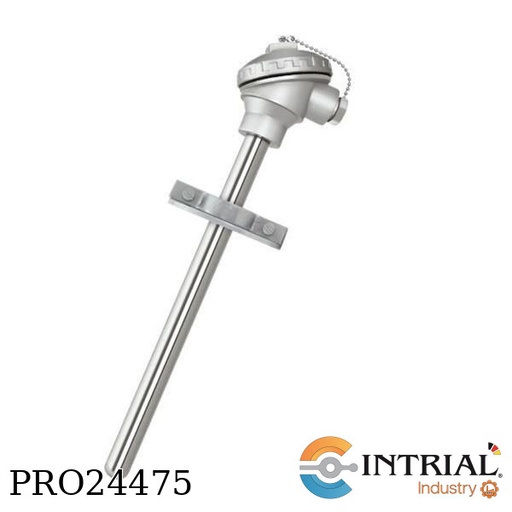

PLUG-IN THERMOCOUPLE
Brand: Intrial(Germany)
1 x Type K
Protection tube ø 22 mm
Insertion length 750 mm
Material 1.4841
With welding flange DIN2527
DN25 PN16 1.4841
Neck tube ø 22 Length 150 mm
Material:1.4841
With inner tube made of ceramic
Connection head form AUZH
with ceramic Base
Temp Range Max: 0 to + 1200 ° C
****like your drawing****

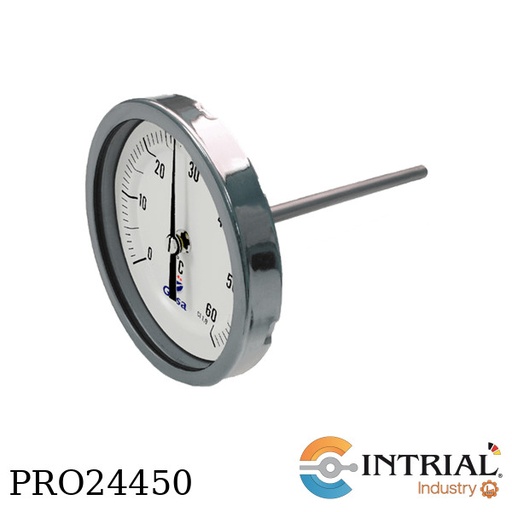

GAS FILLED THERMOMETERS FOR CHEMICAL APPLICATIONS
Centre back connection
Brand: AFRISO(Germany)
Range: -20/+60 °C
Housing Stainless steel 304 with bayonet bezel, instrument glass window
Stem Stainless steel 321, 100 x 10 mm
Connection Plain stem (without thermowell)
Filling Pressurised gas filling
Accuracy class Class 1 as per EN 13190
Fixed male connection ½ NPT

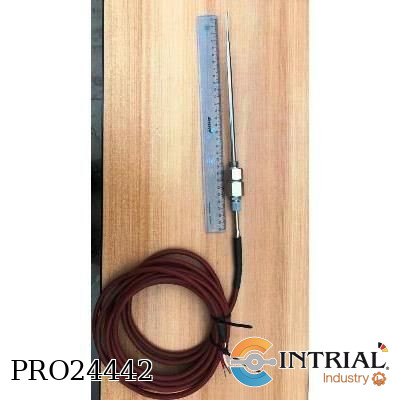

Screw-in resistance thermometer(made in germany)1 x Pt 100 Ohm DIN EN 60751, class B,protective tube ø 6 mm, reducec to ø 3 x 40mm,shank length 310 mm, with over sleevelength 80 mm, spring clamping union withscrew reducing union thread G1/4A, material1.4571, SW14/SW22, with 25.000 mmconnection cable FEP/Silicone, 4-wire, withfree ends, Temperature range: -50°C to+260°C, like your drawing no. PRO24442Brand:  Intrial(Made in Germany)

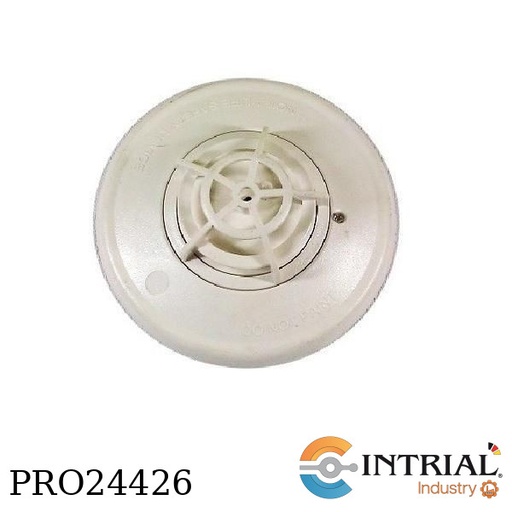

SENSOR DE TEMPERATURA
Brand: SIMPLEX

GAS FILLED THERMOMETER WITH BACK CAPILLARY ENTRY
Brand: JAKO
Case :96 x 96mm, square
Mounting: Front flange, flush panel mount with U-clamp
Case Material: Glassfibre reinforced black plastic (Noryl)
Window : Plexiglass
Case filling: None
Range: 0-100 °C
Accuracy: Class 1,0%
Capillary length: 15.000 mm
Armour material: None
Stem diameter: ø 6,35 mm
Stem Length: 96 mm
Connection size: 1/2"BSP
Connection type: CS2, Sliding compression, on capillary, PN25
Contact: M-33 Hz, double magnetic, DPDT
Specifications: circuits sepatrated
Cable :2.000 mm
NOTA: La información brindada "CAP TH Q96 0-100 00/96 / 6,4 M33 15M" no es un código para identificación del equipo exacto.
La única descripción de los artículos es por ejemplo el caso del producto ofrecido: 377637712722242.
Por ello le pedimos que verifique las especificaciones técnicas mencionadas en la oferta y si esta conforme

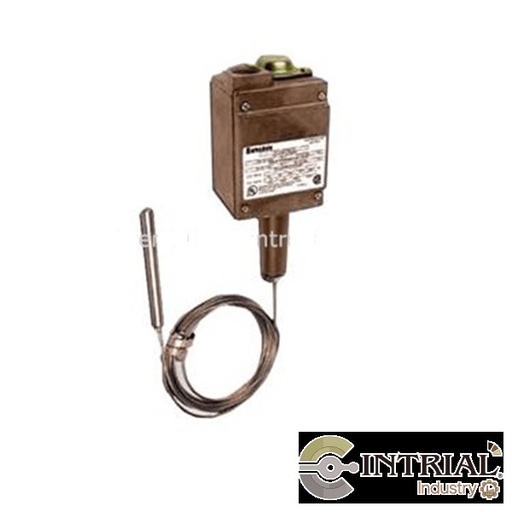

REMOTE MOUNT TEMPERATURE SWITCHES
Brand: BARKSDALE
[T2] Switch; Dual switch 2 independent SPDT
[H] Enclosure; NEMA 4 enclosure
[M] Limit Switch; 10 amps @ 125/250 VAC; 3 amp @ 480 VAC; 0.5 amps @ 125 VDC; 0.25 amps @ 250 VDC
[251] Temperature Range; Adjustable Range(Low+10, High+121 C°), Media Temperature Limit (Proof) (Low-73, High+149 C°), Differential (Approx.) Liquid (.5 to 1.1 C°)
[S] Wetted Material; 304 stainless steel
[A]; Options; 302 stainless steel armor

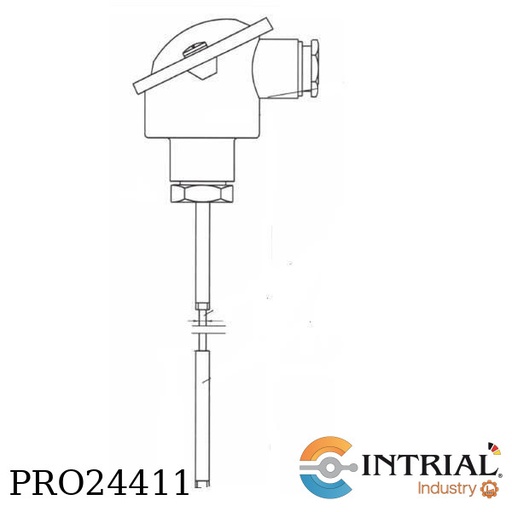

MANTEL-WIDERSTANDSTHERMOMETER
Brand: SCHENK
2 x Pt100, 4-wire, aee. DIN lEC 751/B
Length: 1200 mm
Case: D=3 mm, stainless steel
Sensing element: D=6mm x 60mm Ig
stainless steel
Conneetion Head Form B

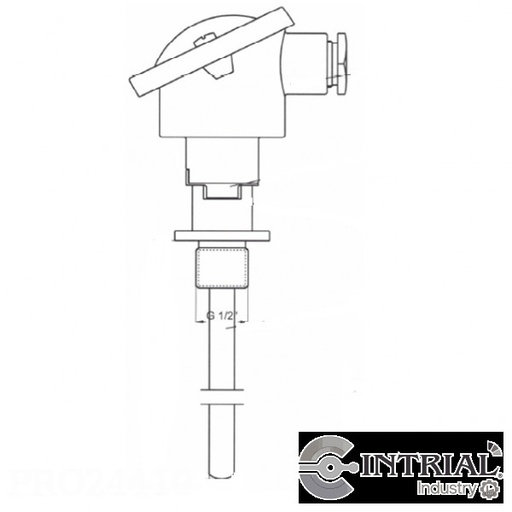

SCREW-IN THERMOMETER
Brand: SCHENK
2 x Pt100, 4-wire, aee. DIN lEC 751/B
Head Form B
Proteetion tube: D=10x1 mm, stainless steel
Fitting length: 160 mm
Thread: G 1/2-1/2, Material MS-58
with Locking Deviee
