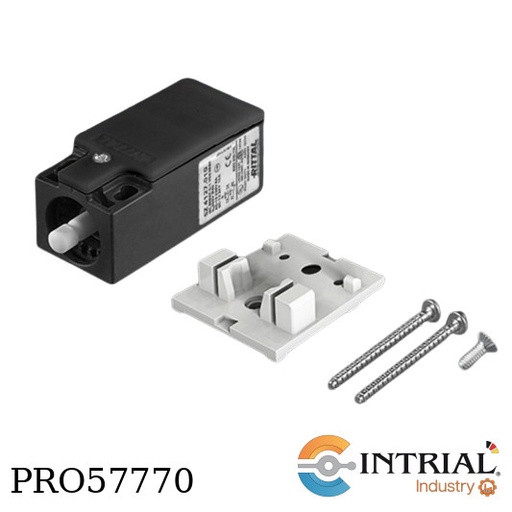

INTERRUPTOR DE PUERTA <br />
Marca: RITTAL<br />
Modelo: SZ-4127.010<br />
Ejecución: sin cable de conexión<br />
Tensión de impulso fase a fase: 6000 V c.a.<br />
Tensión de aislamiento: 400 V c.a.<br />
Conexión eléctrica:<br />
240 V c.a./6 A<br />
125 V c.a./8 A<br />
24 V c.a./6 A<br />
24 V c.c./6 A<br />
Tensión de servicio: 400 V<br />
Grado de protección IP según IEC 60 529: IP 40

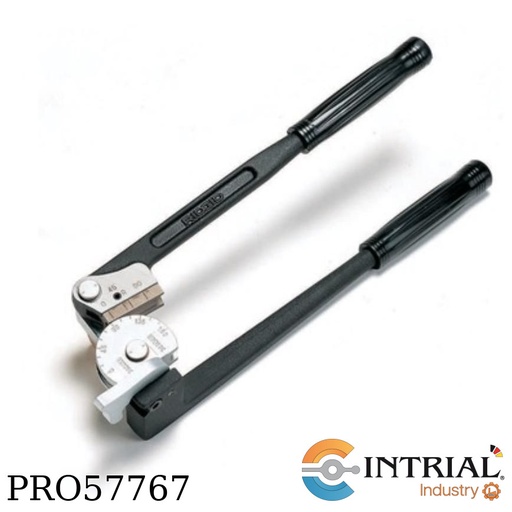

DOBLA TUBO DE 1/2"(12,7 MM) PARA TUBING<br />
Marca: RIDGID<br />
Modelo: TY-408

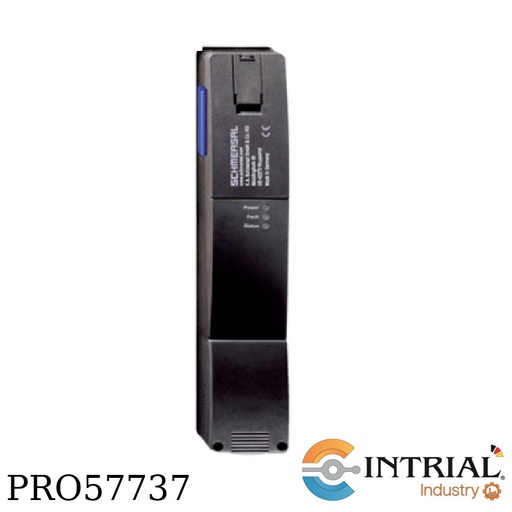

DISPOSITIVO DE BLOQUEO DE SEGURIDAD POR SOLENOIDE<br />
Marca: SCHMERSAL<br />
Modelo: AZM-200SK-T-1P2P<br />
Principio activo: inductivo<br />
Material de la caja: Plástico reforzado con fibra de vidrio<br />
Tiempo de reacción, máximo: 60 ms<br />
Tiempo de riesgo, máxima: 120 ms<br />
Vida mecánica, mínima: 1.000.000 Maniobras<br />
Fuerza de bloqueo según EN ISO 14119: 2.000 N<br />
Velocidad de accionamiento, máxima: 0,2 m/s<br />
Conexión conector: Terminales con tornillo M20 x 1.5<br />
Sección del cable, mínima: 0,25 mm²<br />
Sección del cable, máxima: 1,5 mm²<br />
Resistencia a las vibraciones según EN 60068-2-6: 10…55 Hz, amplitud 1 mm<br />
Tensión de aislamiento nominal: 32 VDC<br />
Resistencia al impulso de sobretensión: 0,8 kV<br />
Operating voltage: 24 VDC -15 % / +10 %<br />
Niveles de conmutación para entradas de solenoide: -3 V … 5 V (Low) // 15 V … 30 V (High)<br />
Corriente nominal operativa (salidas de seguridad): 250 mA<br />
Caída de tensión Ud, máxima: 4 V

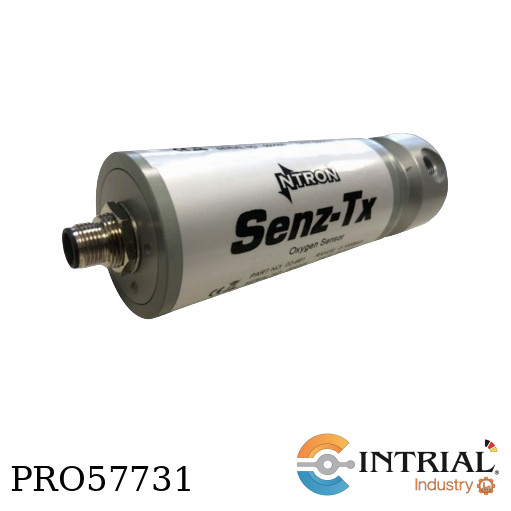

OXYGEN SENSOR TRANSMITTER<br />
Brand: SENZ TX<br />
Model: ZIRCONIA(ZR)<br />
Measurement range: 0 to 1000ppm / 0 to 1% / 0 to 25% / 0 to 96%<br />
Output resolution ( for %): 0.01%<br />
Output resolution (for ppm): 1ppm<br />
Accuracy: +/-2% of reading (or 2ppm O2) @ calibrated temperature and pressure<br />
Response time (T90): <10 seconds @ 25˚C (within selected range)<br />
LDL (Sensitivity): 0.01% (when measuring %) / 1ppm (when measuring ppm)<br />
Temperature range: -20˚C to +50˚C<br />
Pressure range: 900 to 1100 mBar<br />
Linearity: +/- 2% of reading

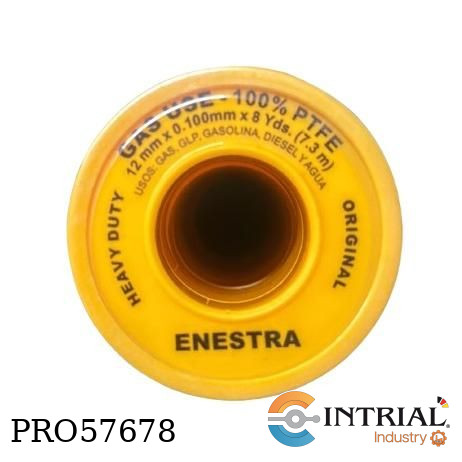

CINTA TEFLÓN AMARILLO PARA GASES<br />
Model: PRO57678<br />
Tamaño: 1/2" <br />

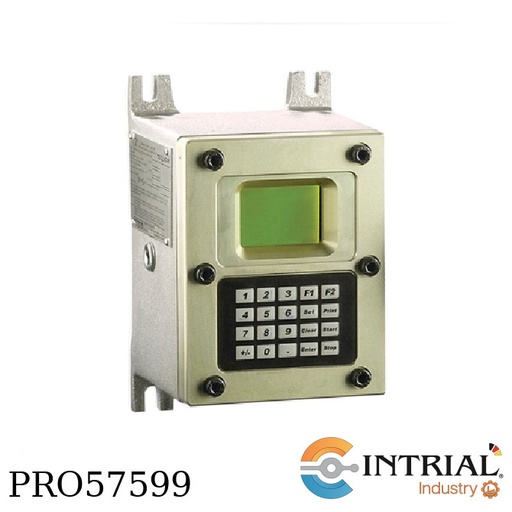

MICROFLOW.NET LIQUID<br />
Brand: FMC TECHNOLOGIES<br />
Model: ML-XP-MFL-1<br />
[ML] Model Designation <br />
[XP] Housing: XP - Explosion Proof / Flame Proof<br />
[MFL] Firmware: microflow.net liquid<br />
[1] Hardware Option: STD<br />
Dual voltage input: 115 Oor 230 volts alternating current power (VAC) via switch 50/60 herz (HZ)<br />
Power consumption: Aproximately 9W<br />
Ambient operating temperature: -13 °f to 140 °f (-25°c to +60 °c)<br />
Humidity: 5 to 95 with condensation <br />
Enclosure: Explosion- proof (nema 7, class I, groups C and D) and watertight (nema 4x) IP65

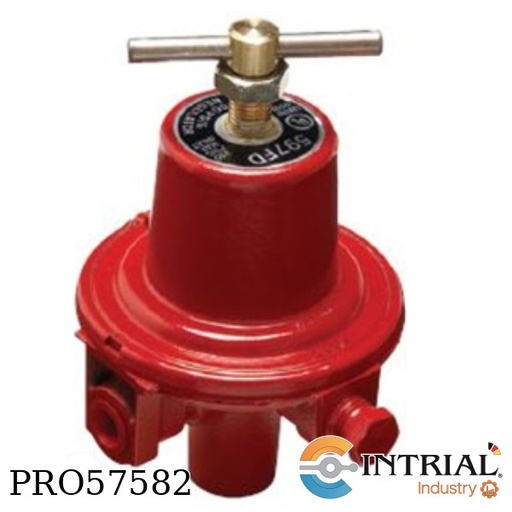

REGULADOR<br />
Marca: REGO<br />
Modelo: 597 FC<br />
Conexión : 1/4″ NPT<br />
Capacidad: 3,500,000 BTU/HR<br />
Presión máxima de entrada: 17.5 Kg/cm2 o 250 psi<br />
Presión de salida de fabrica: 2.06 kg/cm2 o 30 psi<br />
Presión de Salida Ajustable: 20 A 45 PSI<br />
Conexión de manómetro al cuerpo del regulador: SI

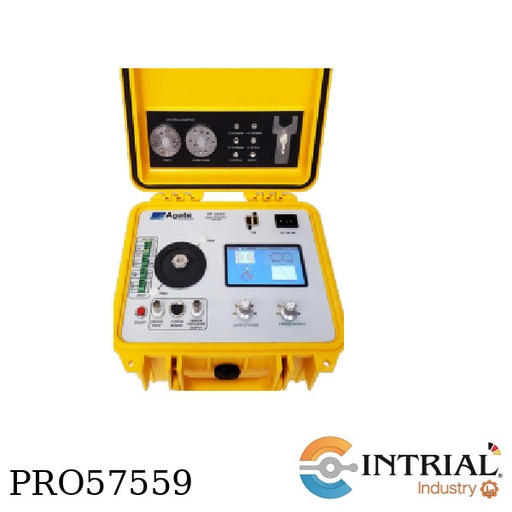

PORTABLE CALIBRATOR WITH SIGNAL SIMULATOR<br />
Brand: AGATE<br />
Model: AT2040<br />
Includes A2LA ISO:17025:2017 compliant calibration certificate.<br />
LiFeP04 Battery.<br />
Shear Quartz reference accelerometer: calibrated with laser calibrated primary.<br />
Automatic payload detection and mass load correction for payload weight over 100 grams.<br />
Vibration source:<br />
Adjustable Frequency and Amplitude 5Hz - 10kHz.<br />
Maximum 20g.<br />
Vibration Signal Type: Sine or Pulse<br />
Transducer simulation range 1hz - 11khz.<br />
Maximum 150g at 10mV/g<br />
Sensor Inputs: Charge, IEPE, Voltage, 4-20ma, proximity probe.<br />
Transducer simulation sensor types: Charge, IEPE, Voltage, 4-20ma, Proximity Probe.<br />
Sensor Connectors: BNC + DIN + Terminal strip.<br />
Test Methods: Automatic Sweep or Manual Operation<br />
Calibration Certificate creation method: Automatic Creation to PDF or export to CSV <br />
Format. Excel Calibration Workbook included.<br />
Programmable Voltage Source for sensors requiring power: 5-24 Volts adjustable output <br />
and +24 Volt fixed output for 4-20ma sensor.<br />
Includes 7 adapters and power plug.

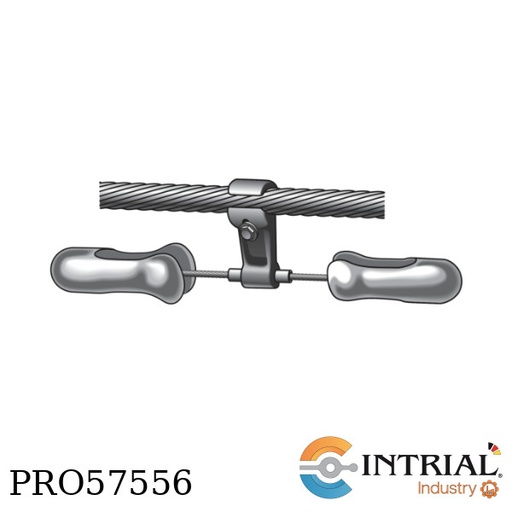

AMORTIGUADOR VIBRACION<br />
Marca: HUBBELL<br />
Modelo: 607051011 <br />
Conductor: 120MM2 <br />
Dimenciones: 16.1X2.69X1.75 IN<br />

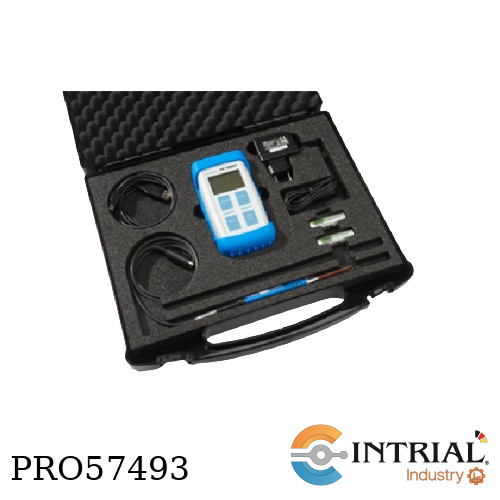

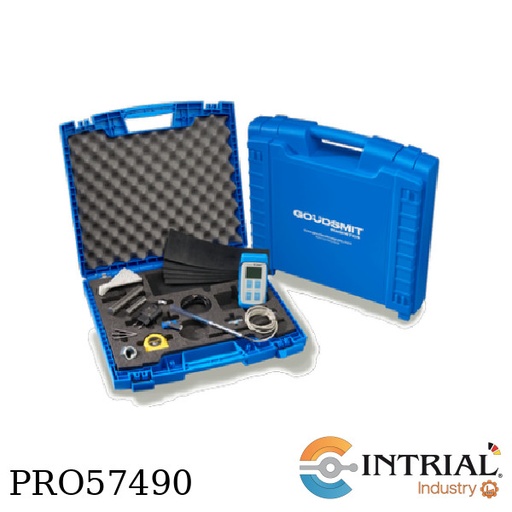

MAGNET MEASURING EQUIPMENT AND SAFETY TOOLS <br />
BRAND: GOUDSMIT MAGNETICS<br />
MODEL: 65.0000047<br />
65.0000047<br />
POWER SUPPLY UNIT 100-240 V AC; 50/60 HZ; 0.3 AMAX<br />
USB INTERFACE<br />
BATTERY 2XAA 1.2 V NIMH (RECHARGEABLE)<br />
POWER CONSUMPTION: ± 2.5 W<br />
ENVIRONMENTAL CONDITIONS: -10 TO +40°C<br />
STORAGE: -40 TO +70°C<br />
MATHEMATICAL FUNCTIONS:<br />
CONVERSION OF UNITS AND DERIVED PARAMETERS<br />
LINEARIZATION OF THE PROBE MEASUREMENT<br />
INTERFACE: USB 2.0<br />
DISPLAY: GRAPHICAL, HIGH-CONTRAST LCD CONTRAST ADJUSTABLE VIA MENU<br />
PARAMETER MEMORY IN PROBES: STORAGE OF THE CALIBRATION VALUES<br />
MEASURING METHOD: CONTINUOUS ACQUISITION OF THE MAGNETIC FIELD; CONVERSION VIA 16 BIT A/D-CONVERTER; ANALYSIS VIA 16 BIT MICROPROCESSOR SYSTEM<br />
DISPLAY UPDATING TIME: MEASURING VALUES: APPROX. 100MS<br />
DISPLAY RESOLUTION: 3- TO 4-DIGIT, RANGE-DEPENDING<br />
FREQUENCY RANGE: DC/AC 0 HZ..5 KHZ (EFFECTIVE VALUE)<br />
ACCURACY: DC ± 0,5% (UP TO 15000 GAUSS AND ± 1% FROM 15000 GAUSS; PEAK ± 2%; AC ± 2%)<br />
PEAK HOLD: TSIGNAL > 250 ΜS<br />
TRANSVERSAL PROBE DIMENSIONS: ± 3.5 X 1.35 X 46 MM<br />
CABLE LENGTH: 1.5 M<br />
RELATIVE OPERATING HUMIDITY: UP TO 80% RELATIVE HUMIDITY FOR TEMPERATURES UP TO 30°C, LINEARLY DECREASING TO 50% RELATIVE HUMIDITY AT 40°C

MAGNET MEASURING EQUIPMENT AND SAFETY TOOLS<br />
BRAND: GOUDSMIT MAGNETICS<br />
MODEL: E0136559<br />
E0136559<br />
POWER SUPPLY UNIT 100-240 V AC; 50/60 HZ; 0.3 AMAX<br />
USB INTERFACE<br />
BATTERY 2XAA 1.2 V NIMH (RECHARGEABLE)<br />
POWER CONSUMPTION: ± 2.5 W<br />
ENVIRONMENTAL CONDITIONS: -10 TO +40°C<br />
STORAGE: -40 TO +70°C<br />
MATHEMATICAL FUNCTIONS:<br />
CONVERSION OF UNITS AND DERIVED PARAMETERS<br />
LINEARIZATION OF THE PROBE MEASUREMENT<br />
INTERFACE: USB 2.0<br />
DISPLAY: GRAPHICAL, HIGH-CONTRAST LCD CONTRAST ADJUSTABLE VIA MENU<br />
PARAMETER MEMORY IN PROBES: STORAGE OF THE CALIBRATION VALUES<br />
MEASURING METHOD: CONTINUOUS ACQUISITION OF THE MAGNETIC FIELD; CONVERSION VIA 16 BIT A/D-CONVERTER; ANALYSIS VIA 16 BIT MICROPROCESSOR SYSTEM<br />
DISPLAY UPDATING TIME: MEASURING VALUES: APPROX. 100MS<br />
DISPLAY RESOLUTION: 3- TO 4-DIGIT, RANGE-DEPENDING<br />
FREQUENCY RANGE: DC/AC 0 HZ..5 KHZ (EFFECTIVE VALUE)<br />
ACCURACY: DC ± 0,5% (UP TO 15000 GAUSS AND ± 1% FROM 15000 GAUSS; PEAK ± 2%; AC ± 2%)<br />
PEAK HOLD: TSIGNAL > 250 ΜS<br />
TRANSVERSAL PROBE DIMENSIONS: ± 3.5 X 1.35 X 46 MM<br />
CABLE LENGTH: 1.5 M<br />
RELATIVE OPERATING HUMIDITY: UP TO 80% RELATIVE HUMIDITY FOR TEMPERATURES UP TO 30°C, LINEARLY DECREASING TO 50% RELATIVE HUMIDITY AT 40°C

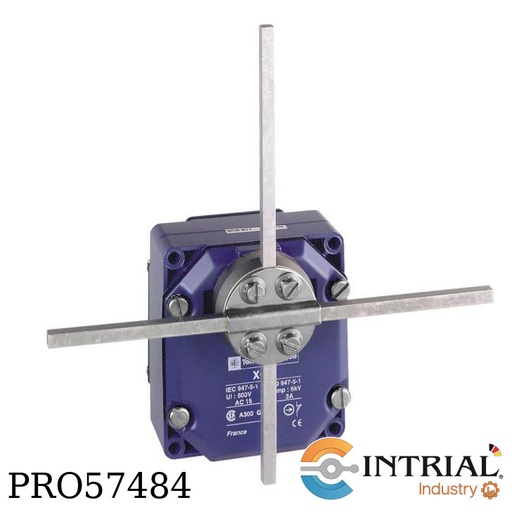

Limit switch<br />
Brand: TELEMECANIQUE<br />
Model: XCRF17<br />
Number of poles, 4<br />
Contacts type and composition, 2 x (1 NC + 1 NO)<br />
Range of Product, OsiSense XC<br />
Material, Metal

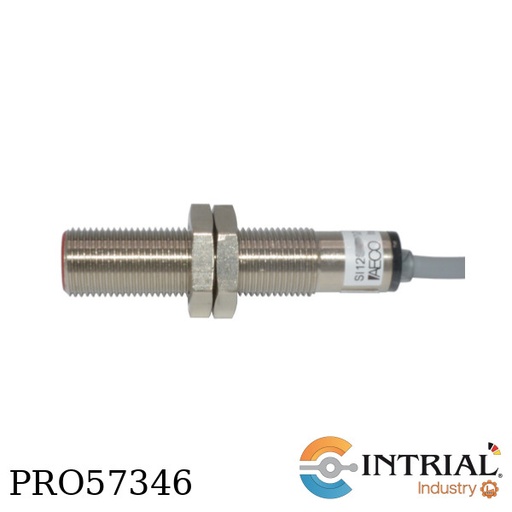

​SENSORES INDUCTIVOS<br />
MARCA: AECO<br />
MODELO: SI12SM-B2-NO/NC<br />
I12000755<br />
TIPO DE FUENTE DE ALIMENTACIÓN: CORRIENTE DIRECTA<br />
TENSIÓN DE FUNCIONAMIENTO: [V] 10 ÷ 55<br />
CLASE DE PROTECCIÓN: III<br />
PROTECCIÓN CONTRA INVERSIONES DE POLARIDAD: PRESENTE<br />
CAÍDA DE TENSIÓN MÁXIMA: [V] < 6.5<br />
CORRIENTE DE SALIDA MÁXIMA: [MA] 100<br />
CORRIENTE DE SALIDA MÍNIMA: [MA] 1.5<br />
CORRIENTE RESIDUAL: [MA] < 0.6<br />
FRECUENCIA DE CONMUTACIÓN: [HZ] 1000<br />
DISTANCIA DE CONMUTACIÓN-SN: [MM] 2<br />
DISTANCIA DE CONMUTACIÓN REAL-SR: [MM] 2 ±10%<br />
DISTANCIA DE OPERACIÓN -SO: [MM] 0 ÷ 1.62

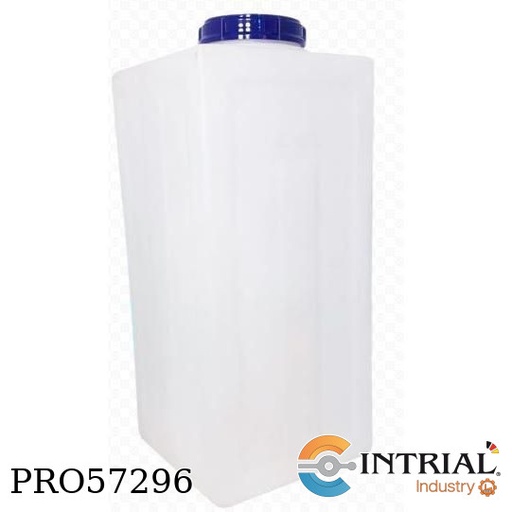

TANQUE PARA DOSIFICAR QUIMICO<br />
Marca: HIDROTEK<br />
Modelo: DK-01<br />
Cantidad, 80 L<br />
Dimensiones, 330 X 330 X 700 mm<br />
Color, Blanco<br />
Material, plastico<br />
<br />

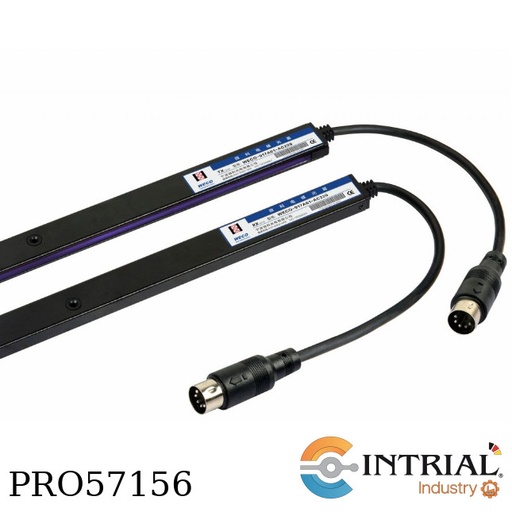

​DETECT ELEVATOR DOOR<br />
BRAND: WECO ELECTRICAL<br />
MODEL: 917A61-AC220<br />
OPERATING ENVIRONMENT: -20°C... +65°C<br />
LIGHT IMMUNITY: LESS THAN OR EQUAL TO 100000LUX<br />
VERTICAL TOLERANCE: +/- 10MM, 7°<br />
HORIZONTAL TOLERANCE: +/- 3MM<br />
DETECTING HEIGHT: 20MM-1841MM<br />
DETECTING RANGE: 0-3M<br />
RESPONSE TIME: 36.5MSPOWER CONSUMPTION: LESS THAN OR EQUAL TO 4W OR 100 MA @ DC 24V

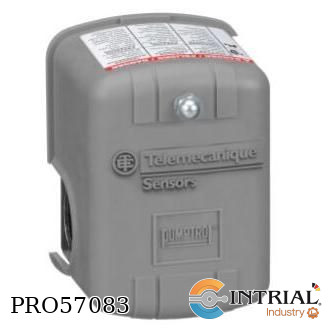

PUMPTROL Air compressor switch<br />
Brand: TELEMECANIQUE<br />
Model: 9013FHG9J27<br />
Capacidad de presión, 689,48 kPa<br />
Fluido controlado, Aire (-0…70 °C)<br />
Adjustable range on rising pressure, 275,79…689,48 kPa<br />
Approximate fixed differential, 137,90 kPa<br />
Tipo de conexión de fluido, 0.25 inch NPT external

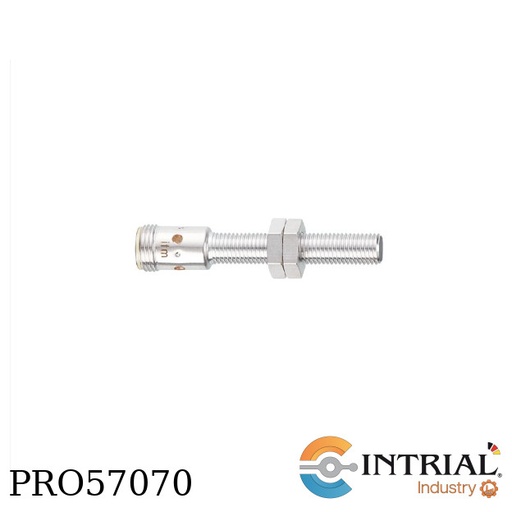

DETECTOR INDUCTIVO<br />
MARCA: IFM<br />
MODELO: IE5312<br />
ALIMENTACIÓN: PNP<br />
FUNCIÓN DE SALIDA: NORMALMENTE ABIERTO<br />
ALCANCE [MM]: 2<br />
CARCASA: TIPO CON ROSCA<br />
DIMENSIONES [MM]: M8 X 1 / L = 60<br />
TENSIÓN DE ALIMENTACIÓN [V]: 10...30 DC<br />
CONSUMO DE CORRIENTE [MA]: < 10<br />
CLASE DE PROTECCIÓN: III<br />
PROTECCIÓN CONTRA INVERSIONES DE POLARIDAD: SÍ<br />
CAÍDA DE TENSIÓN MÁX. DE LA SALIDA DE CONMUTACIÓN DC [V] : 2,5<br />
CORRIENTE MÁXIMA PERMANENTE DE LA SALIDA DE CONMUTACIÓN DC [MA]: 100<br />
FRECUENCIA DE CONMUTACIÓN DC [HZ]: 1000

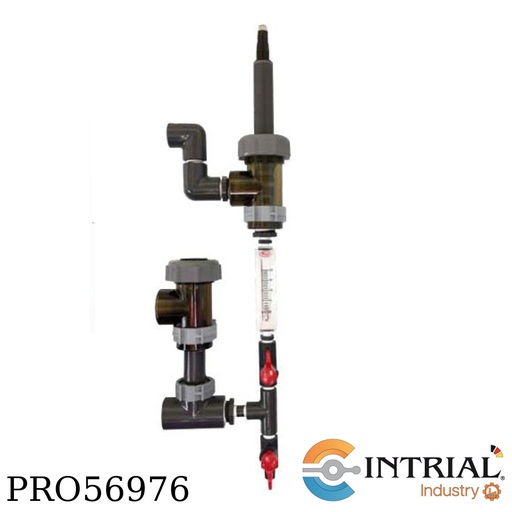

SENSOR DE CLORO LIBRE/BROMO <br />
MARCA: WALCHEM<br />
MODELO: 191300<br />
20 PPM<br />
SIN CABLE<br />
Cl2/Br2

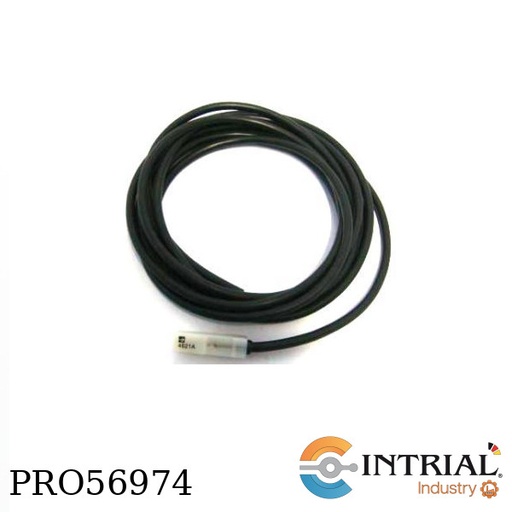

REED SWITCH SENSOR<br />
BRAND: PARKER<br />
MODEL: 4621A<br />
FOR CYL MM: 32-200<br />
CONTACT FUNCTION: NO<br />
CABLE LENGTH: 3<br />
VOLTAGE RANGE: 10-240-AC/300 DC<br />
CURRENT MAX A: 0.38<br />
CAPACITY MAX W: 50<br />

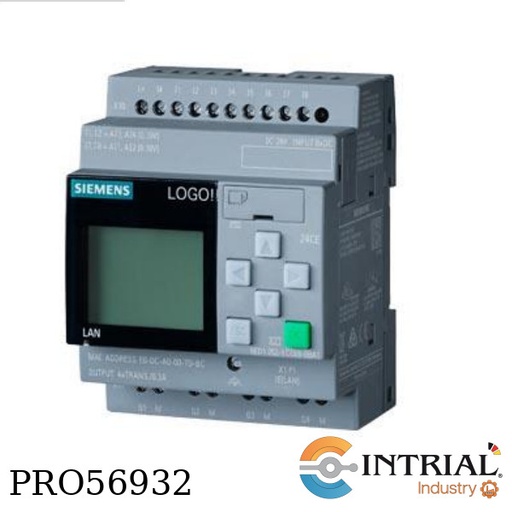

LOGIC CONTROLLER<br />
BRAND: SIEMENS<br />
MODEL: 6ED1052-1CC08-0BA1<br />
ALLOWED RANGE, LOWER LIMIT (DC): 20.4 V<br />
ALLOWED RANGE, UPPER LIMIT (DC): 28.8 V<br />
REVERSE POLARITY PROTECTION: YES<br />
TIME CHANGE CLOCKS:<br />
NUMBER: 400; MAX. 400, SPECIFIC FUNCTION<br />
POWER RESERVE: 480 H<br />
NUMBER OF DIGITAL INPUTS: 8; OF WHICH 4 CAN BE USED IN ANALOG MODE (0 TO 10 V)<br />
DIGITAL OUTPUTS:<br />
NUMBER OF DIGITAL OUTPUTS: 4; TRANSISTOR<br />
SHORT CIRCUIT PROTECTION: YES; ELECTRIC (1A)<br />
FOR SIGNAL "1" PERMISSIBLE RANGE 0 TO 55 °C, MAX.: 0.3 A
