3504-T20-K03005-18-1<br />
Electrica Resistance probe (ER)<br />
Model 3504 (Small Diameter)<br />
•    Cylindrical Element<br />
•    Mounting 3/4” NPT Full Port Valve with ½” ID Minimun<br />
•    Temperature Rating: 260C / Pressure Rating: 1000 Psi<br />
•    Element Seal Material: All welded<br />
•    Probe Body Material: AS ELEMENT<br />
•    Complete Probe Assembly with Stuffing Box<br />
•    Element Form T20: 20 mil thickness (10 mil useful probe life)<br />
•    Element Alloy: K03005 (Pipe Grade Carbon Steel)<br />
•    Order length: 18”<br />
•    Safety Clamp INCLUDED

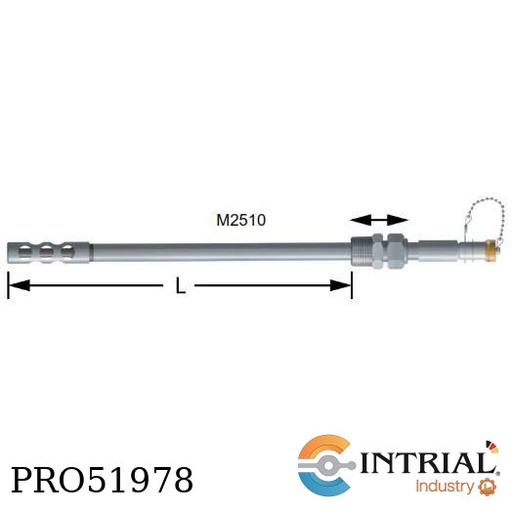

M2510-T10-K03005-5<br />
Microcor CYLINDRICAL Element FIXED<br />
* Mounting: : 0.75" Swagelok Adjustable Mounting<br />
* Maximun Pressure 500 Psi<br />
* Element Type: T10 (5 mils probe span)<br />
* Element Alloy: K03005 (Carbon Steel)<br />
* Length: 5" Standard Lenght

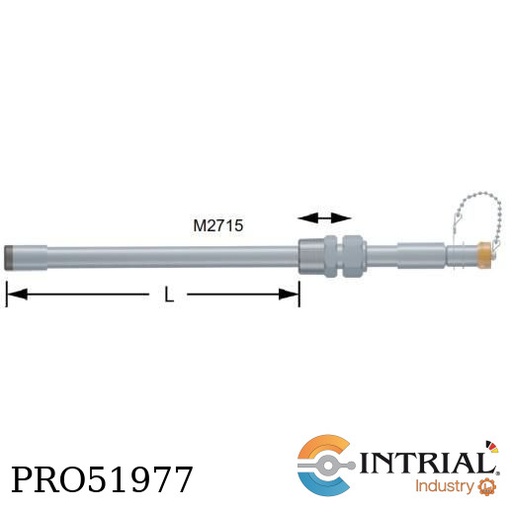

M2715-F10-K03005-5-0<br />
Microcor FLUSH Element FIXED<br />
* Mounting: : 0.75" Swagelok Adjustable Mounting<br />
* Maximun Pressure 500 Psi<br />
* Element Type: F10 (5 mils probe span)<br />
* Element Alloy: K03005 (Carbon Steel)<br />
* Length: 5" Standard Lenght

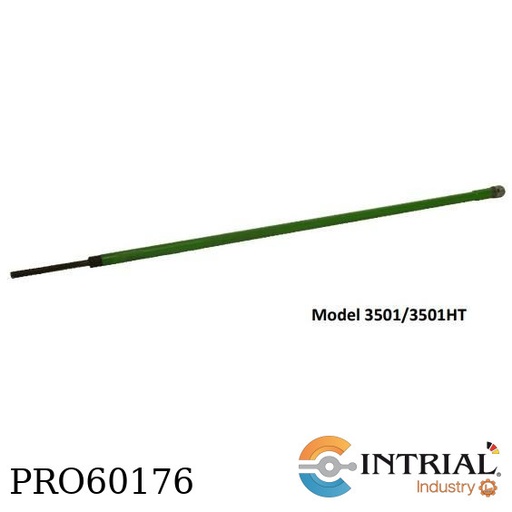

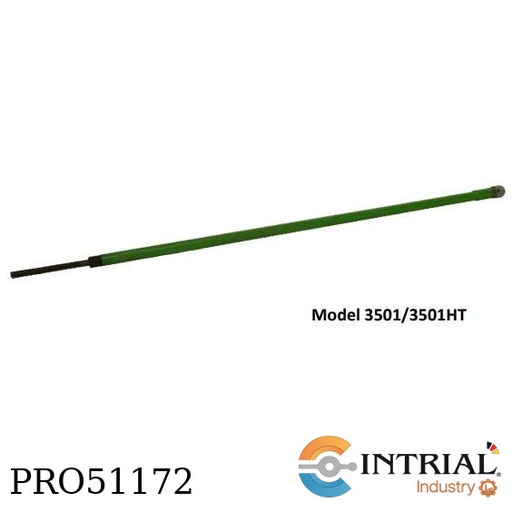

Replacement Probe Insert for CYLINDRICAL Probe<br />
•    For Cylindrical Probe Model 3500<br />
•    Probe Body Carbon Steel<br />
•    Element Probe: K03005<br />
•    Element T20 (10 mils Probe Span)<br />
•    Length: 24"

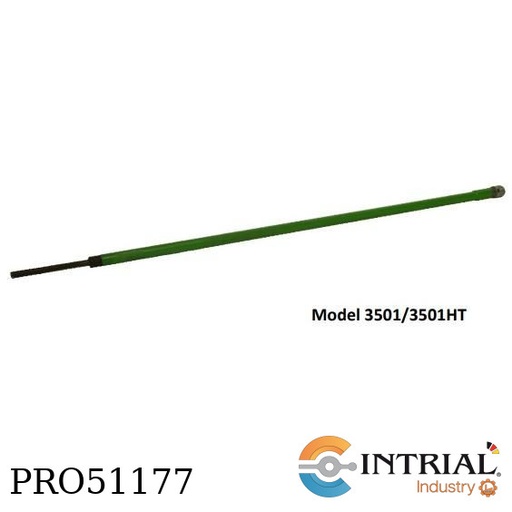

Replacement Probe Insert for CYLINDRICAL Probe<br />
•    For Cylindrical Probe Model 3500<br />
•    Probe Body Stainless Steel<br />
•    Element Probe: K03005<br />
•    Element T10 (5 mils Probe Span)<br />
•    Length: 24"

Corrosometer Probe Cylindrical Element 3500<br />
3500-T20-K03005-42-1-1-0<br />
* Model 3500 complete probe Assembly with Stuffing Box<br />
* Mounting 1” Full Port Valve Minimum<br />
* Temp Rating + 218C; Pressure Rating 1500 Psi<br />
* Element Seal Material ALL WELDED<br />
* Element Type: 20 mil thickness (10 mil useful probe life)<br />
* Element Alloy: K03005 (Pipe Grade Carbon Steel)<br />
* Length: 42 Inches<br />
* Safety Clamp INCLUDED<br />
* Standard Shield included (liquids up to 25ft/2, Gases 75 ft/2)

Corrosometer Probe Cylindrical Element 3500<br />
3500-T20-K03005-42-1-3-0<br />
* Model 3500 complete probe Assembly with Stuffing Box<br />
* Mounting 1” Full Port Valve Minimum<br />
* Temp Rating + 218C; Pressure Rating 1500 Psi<br />
* Element Seal Material ALL WELDED<br />
* Element Type: 20 mil thickness (10 mil useful probe life)<br />
* Element Alloy: K03005 (Pipe Grade Carbon Steel)<br />
* Length: 42 Inches<br />
* Safety Clamp INCLUDED<br />
* Special Coupon Holder Shield included (liquids up to 25ft/2, Gases 75 ft/2)

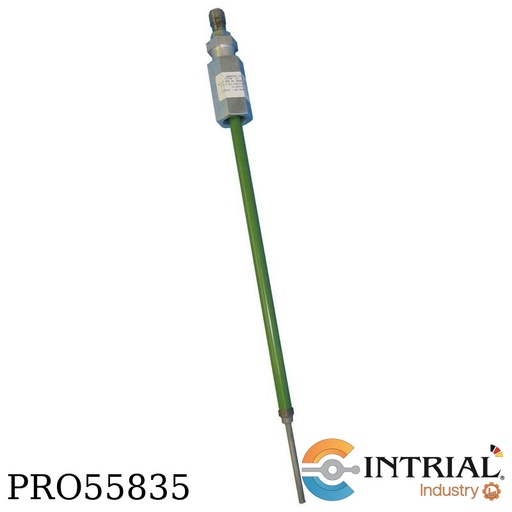

<p class="MsoNormal"><span lang="en-us" xml:lang="en-us">Corrosometer Probe Cylindrical Element<br />
3500-T20-K03005-30-1-1-0<br />
* Model 3500 complete probe Assembly with Stuffing Box<br />
* Mounting 1” Full Port Valve Minimum<br />
* Temp Rating + 218C; Pressure Rating 1500 Psi<br />
* Element Seal Material ALL WELDED<br />
* Element Form T20: 20 mil thickness (10 mil useful probe life)<br />
* Element Alloy: K03005 (Pipe Grade Carbon Steel)<br />
* Order Length: 30 Inches<br />
* Safety Clamp INCLUDED</span><br />
* Standard Shield included (liquids up to 25ft/2, Gases 75 ft/2)<br />
<span lang="en-us" xml:lang="en-us">* Shield Protector: INCLUDED (Liquids 25ft/sec)</span></p>

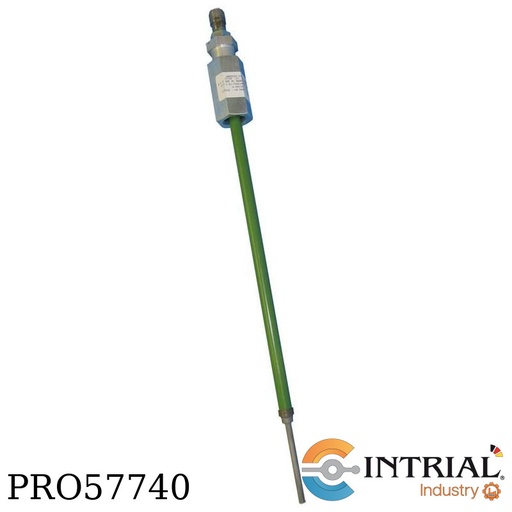

Corrosometer Probe Cylindrical Element<br />
3500-T20-K03005-24-1-1-1<br />
• Model 3500 complete probe Assembly with Stuffing Box<br />
• Mounting 1” Full Port Valve Minimum<br />
• Element Seal Material ALL WELDED<br />
• Element Form T20: 20 mil thickness (10 mil useful probe life)<br />
• Element Alloy: K03005 (Pipe Grade Carbon Steel)<br />
• Stuffing Box Material: HASTELLO C-276<br />
• Order Length: 24 Inches<br />
• Safety Clamp INCLUDED<br />
• Shield Protector: INCLUDED Standard Shield Protector (Liquids 25ft/sec)

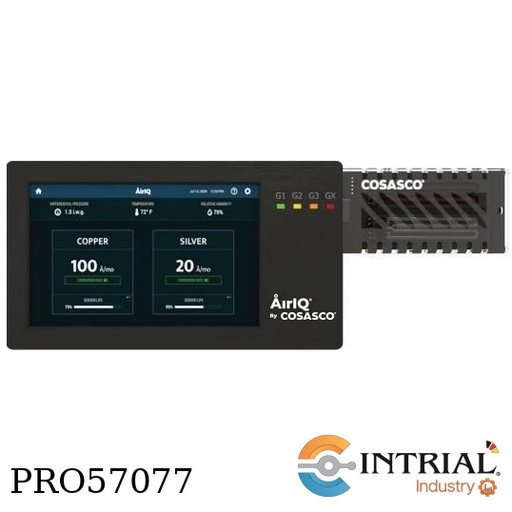

AQ-SYSTEM-1<br />
Model AirIQ Environmental Condition Monitoring System<br />
* With Differential Pressure<br />
* AQ-MINI (USB Sensor - Cu / AG Corrosion Sensors<br />
* Temperature & Relative Humidity Sensors)<br />
* With AQ-420 (4-20 mA analog communication junction box)<br />
* Power Module Transformer, USB 6ft. cable, and<br />
* Main Mounting and USB Mounting Brackets included.<br />
COSASCO

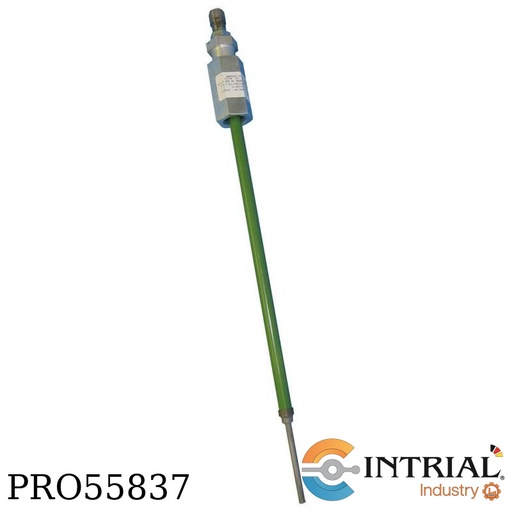

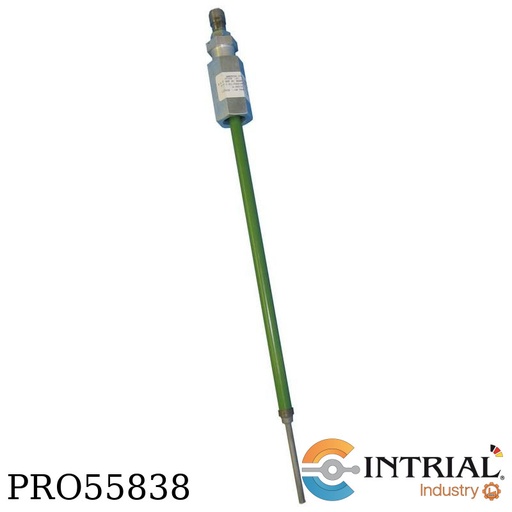

Corrosometer Probe Cylindrical Element 3500<br />
3500-T20-K03005-24-1-0-0<br />
* Model 3500 complete probe Assembly with Stuffing Box<br />
* Mounting 1” Full Port Valve Minimum<br />
* Temp Rating + 218C; Pressure Rating 1500 Psi<br />
* Element Seal Material ALL WELDED<br />
* Element Type: 20 mil thickness (10 mil useful probe life)<br />
* Element Alloy: K03005 (Pipe Grade Carbon Steel)<br />
* Length: 24 Inches<br />
* Safety Clamp INCLUDED<br />
* Standard Shield NO included

Corrosometer Probe Cylindrical Element<br />
•    Model 3500 complete probe Assembly with Stuffing Box<br />
•    Mounting 1” Full Port Valve Minimum<br />
•    Element Seal Material ALL WELDED<br />
•    Element Form T10: 10 mil thickness (05 mil useful probe life)<br />
•    Element Alloy: K03005 (Pipe Grade Carbon Steel)<br />
•    Order Length: 18 Inches<br />
•    Safety Clamp INCLUDED<br />
•    Shield Protector: NOT Included

Corrosometer Probe Cylindrical Element<br />
•    Model 3500 complete probe Assembly with Stuffing Box<br />
•    Mounting 1” Full Port Valve Minimum<br />
•    Element Seal Material ALL WELDED<br />
•    Element Form T20: 20 mil thickness (10 mil useful probe life)<br />
•    Element Alloy: K03005 (Pipe Grade Carbon Steel)<br />
•    Order Length: 18 Inches<br />
•    Safety Clamp INCLUDED<br />
•    Shield Protector: NOT Included

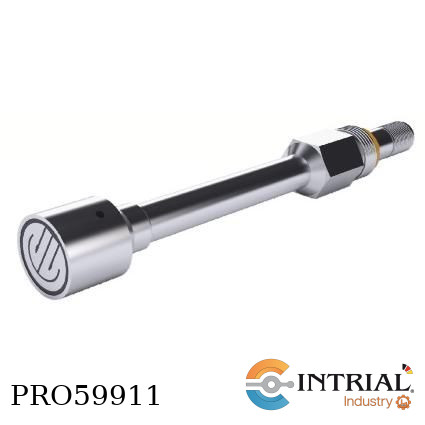

CORROSOMETER PROBE Flush Element<br />
* Complete Probe Assembly-Fixed<br />
* Mounting: COSASCO 2" system<br />
* Probe Body Material: 316L SS<br />
* Element Form: Flush Element, 10 mil Thickness (5 mil span)<br />
* Alloy: K03005 (Carbon Steel)<br />
* Probe Length: 1.5"<br />
* Connector Type: “S” Type with shrouded pins

Replacement Probe Insert for CYLINDRICAL Probe<br />
•    For Cylindrical Probe Model 3500<br />
•    Probe Body Stainless Steel<br />
•    Element Probe: K03005<br />
•    Element T10 (5 mils Probe Span)<br />
•    Length: 18"

CORROSOMETER PROBE Flush Element<br />
* Complete Probe Assembly-Fixed<br />
* Mounting: COSASCO 2" system<br />
* Probe Body Material: 316L SS<br />
* Element Form S20: Flush Element, 20 mil Thickness (10 mil span)<br />
* Alloy: K03005 (Carbon Steel)<br />
* Probe Length: 1.5"<br />
* Connector Type: “S” Type with shrouded pins

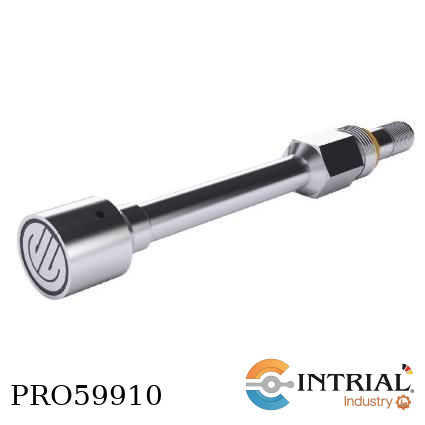

CORROSOMETER PROBE Flush Element<br />
* Complete Probe Assembly-Fixed<br />
* Mounting: COSASCO 2" system<br />
* Probe Body Material: 316L SS<br />
* Element Form S20: Flush Element, 20 mil Thickness (10 mil span)<br />
* Alloy: K03005 (Carbon Steel)<br />
* Probe Length: 1.62"<br />
* Connector Type: “S” Type with shrouded pins

CORROSOMETER PROBE Flush Element<br />
* Complete Probe Assembly-Fixed<br />
* Mounting: COSASCO 2" system<br />
* Probe Body Material: 316L SS<br />
* Element Form S20: Flush Element, 20 mil Thickness (10 mil span)<br />
* Alloy: K03005 (Carbon Steel)<br />
* Probe Length: 1.37"<br />
* Connector Type: “S” Type with shrouded pins

SONDA TIPO FLUSH. MODELO 2705; FORMA DE ELEMENTO S8; MONTAJE 3/4"
MARCA: COSASCO
NPT;PARA TUBERIA 6" & 4"; 4000 PSI///
PROBE FLUSH TYPE. MODEL 2705; ELEMENT FORM S8; MOUNTING 3/4" NPT; FOR
6" & 4" PIPE; 4000 PSI//

Corrosometer Probe Replacement Insert Model 3001
*Temp. rating + 500 F/ 260C
*Pressure Rating 1000PSI/6.9 Mpa
*Element Type W80 (20 mil useful life)
*Element Alloy: K03005 (Carbon Steel)
*Lenght of Probe: 24"
*Brand: COSASCO
