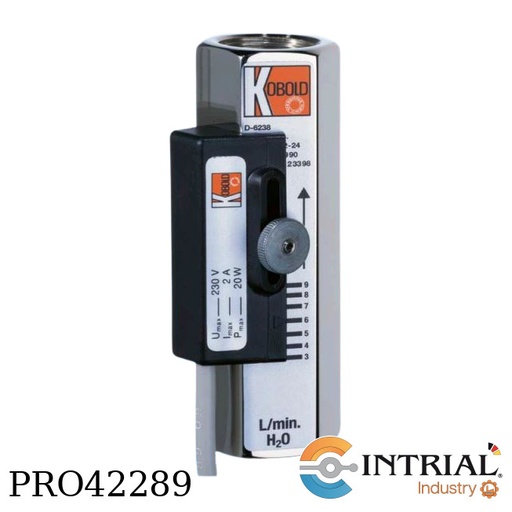

<strong>Variable Area Flowmeter/-switch<br />
Brand: Kobold (Alemania)<br />
Model: SWK-22-16</strong><br />
Operating principle, variable area<br />
Mounting position, all directions<br />
Flow direction, in the direction of the arrow<br />
Function, Meter/switch<br />
Material housing, st.st.<br />
Repeatability contact display, <= 2.5%, +-4% FS<br />
Max. Temperature, 100 °C<br />
Max. Pressure, 250 bar<br />
Connection, G 1/2 female<br />
[16]: Measuring range, 8-16 L/min water

<strong>Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-1-25H-N6-1-Z3-N-0-Y</strong><br />
[DON-1]:<br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
max. temperature, 120°C (80°C for electronic Z,L,M)<br />
max. pressure, 16...64 bar<br />
Accuracy, ±0,2 % …1 % of reading<br />
Housing material, Aluminium<br />
Rotor material, PPS<br />
[25H]: Measuring range, 10-150 L/min<br />
[N6]: Mech. connection, NPT 1"<br />
[1]: Seal, FKM up to DON-x25<br />
[Z3]: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue.<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Accessory, without<br />
[Y]: Not include battery

<strong>Multivariable VORTEX Flowmeter<br />
Brand: Heinrichs (Kobold Group)<br />
Model: DVH-P-2H-3-S-L-L-2-H-5-H</strong><br />
[DVH-P]: Electronic-Options, Flow Velocity including temperature and pressure sensor<br />
[2H]: Flow Body-Flange, DN 200 DIN EN 8 inch<br />
[3]: Process Connection, ANSI 600 lbs ASME B16.5.2003<br />
[S]: Material Flow Body, Edelstahl 1.4404 / 316 L (standard)<br />
[L]: Sensor Configuration / Mounting Option, Compact incl. LCD Anzeige IP 66 / Nema 4<br />
[L]: Input Power, 12-36 VDC loop powered<br />
[2]: Output Signal, Loop powered 1x 4-20mA, HART 1x Impuls<br />
[H]: Process Temperature, High Temperature -200….+400 °C<br />
[5]: Option Pressure Sensor (Electronic versions T/P/E/M) (min. temp -40°C), <br />
[H]: Version, Heinrichs

<strong>Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-05H-N1-3-GE-N-0</strong><br />
[DON-2]<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 120 °C<br />
max. pressure 16…100 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material, st. steel<br />
Rotor material, st. steel<br />
[05H] Measuring range, 0,5-36 L/h<br />
[N1] Mech. Connection, for meas. range 05H 1/8 NPT<br />
[3] Seal, FEP O-seal / EPDM-core up to DON-x15<br />
[GE] Electronic, High resolution Hall sensor, <br />
4-times pulse Exd (up to DON-x10)<br />
[N] Cable entry, 1/2 NPT<br />
[0] Options, without<br /><br /><strong>Flow Counter and Batch controller<br />
Brand: Kobold (Alemania)<br />
Model: ZOK-Z3-P-KF-6-R-0</strong><br />
[ZOK-Z3]<br />
Function: Totaliser/ rate<br />
LCD Digital display: grafic, 128 x 64 , backlight<br />
Measuring inputs: 2 x pulse (0,1…1000 Hz), type NPN, PNP, NAMUR, Reed, Hall, active<br />
Counter function: Partial /total value<br />
Actual flow: yes<br />
Pulse output (actual flow): PushPull<br />
Analogue output*: 4-20 mA<br />
*with panel mounting housing (..P): 3-wire<br />
Ambient temperature: -20…+80 °C<br />
[P]: Housing version, Panel mounting housing (IP 20/front IP65)<br />
[KF]: Electrical connection/Cable gland, only screw terminal (for ZOK-xxP)<br />
[6]: Supply voltage, 12-28 VDC<br />
[R]: Contacts, 2 x Relay SPDT as limit switch(for ZOK-Z3P..)<br />
[0]: Options, w/o

<strong>Calibration Certificate for URM</strong><br />
Brand: Kobold (Alemania)

<strong>Paddle Type Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PSR-12-206-N-20-R-G</strong><br />
[PSR-12]:<br />
Operating principle: paddle<br />
Mounting position: all directions<br />
Incl. fitting: st.st.<br />
Body material: st.st.<br />
Max. pressure*: 250 bar<br />
*only 25 bar at PSR-..32 and PSR-..40<br />
[206]: Measuring range/paddle, 7.7-13.4 L/min paddle: 6 <br />
[N]: Connection, NPT-thread<br />
[20]: Connection, 3/4" (for PSR-xx20...) <br />
[R]: Contact version, N/O<br />
[G]: Connecting cable, PUR-cable (Ölflex), cable length: 1.5 m

<div>
<div><strong>Viscosity Compensated Flowmeter /-switch</strong></div>

<div><strong>Brand: Kobold (Alemania)</strong></div>

<div><strong>Model: VKM-31-06-U0-R08-0-B</strong></div>

<div>[VKM-31]:</div>

<div>Operating principle variable area</div>

<div>Mounting position all directions</div>

<div>Flow direction in direction of the arrow</div>

<div>Body material Brass </div>

<div>Seal: NBR</div>

<div>Switch point: adjustable</div>

<div>Accuracy: ±4 % FS (at 105 mm²/s)</div>

<div>Max. temperature: 100 °C  <span> </span></div>

<div>Max. pressure: 250 bar </div>

<div>Viscosity range: 1...540 mm²/s</div>

<div>[06]: Measuring range 3...9 L/min oil </div>

<div>[U0]: Contact, 1 SPDT </div>

<div>[R08]: Connection: G 1/4 female</div>

<div>[0]: Option special connection, w/o</div>

<div>[B]: Flow direction: from bottom</div>
</div>

<strong>Compact Magnetic Inductive Flow Meter<br />
Model: MIK-5NA-55-K-G34R<br />
Brand: Kobold - Alemania</strong><br />
[MIK-5NA]<br />
Operating principle Magnetic Inductive<br />
Mounting position all directions<br />
Max. temperature/pressure 80 °C / 10 bar<br />
Protection IP 65<br />
Housing PPS<br />
Electrodes St. st.<br />
Seal NBR<br />
[55] Measuring range (liquid >30 uS/cm), 5...100 L/min (G 1½ male)<br />
[K] Connection set, PVC-glue connection G 1½ - Ø26/32 mm<br />
[G34R] Evaluation electronic for MIK,<br />
Dosing electronic, 4-20 mA, 24 VDC, plug connection<br /><br />
Include:<br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K502<br />
[ZUB-KAB-12]<br />
[K502]: Version: M12x1 box 2 m cable, 5-pin<br /><br /><br />
Include:<br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-802<br />
[ZUB-KAB-12] <br />
[K802]: Version: M12x1 box with 2 m cable, 8-pin

Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold - Alemania<br />
Model: MIK-5NA-55-K-G34R<br />
[MIK-5NA]<br />
Operating principle Magnetic Inductive<br />
Mounting position all directions<br />
Max. temperature/pressure 80 °C / 10 bar<br />
Protection IP 65<br />
Housing PPS<br />
Electrodes St. st.<br />
Seal NBR<br />
[55] Measuring range (liquid >30 uS/cm), 5...100 L/min (G 1½ male)<br />
[K] Connection set, PVC-glue connection G 1½ - Ø26/32 mm<br />
[G34R] Evaluation electronic for MIK,<br />
Dosing electronic, 4-20 mA, 24 VDC, plug connection

<strong>Variable Area Flowmeter/-switch Glass Cone with Thread Connection<br />
Brand: Kobold (Alemania)<br />
Model: URM-33-53H-I6-0</strong><br />
[URM-33]:<br />
Mounting position: Vertical, flow direction from bottom<br />
Accuracy: Class 4<br />
Max. Temperature: 65 °C<br />
Max. Pressure: 6 bar...16 bar depend see data sheet<br />
Material: Connection, float / seal/ ring 1.4301 / NBR / PVC<br />
[53H]: Range Full Scale: water: 4000 L/h, range factor 1:10<br />
[I6]: Connection: G 1, female<br />
[0]: Contacts: w/o

<strong>Variable Area Flowmeter/-switch Glass Cone with Thread Connection<br />
Brand: Kobold (Alemania)<br />
Model: URM-33-47H-I6-0</strong><br />
[URM-33]:<br />
Mounting position: Vertical, flow direction from bottom<br />
Accuracy: Class 4<br />
Max. Temperature: 65 °C<br />
Max. Pressure: 6 bar...16 bar depend see data sheet<br />
Material: Connection, float / seal/ ring 1.4301 / NBR / PVC<br />
[47H]: Range Full Scale: water: 2500 L/h, range factor 1:10<br />
[I6]: Connection: G 1, female<br />
[0]: Contacts: w/o

<strong>Variable Area Flowmeter/-switch Glass Cone with Thread Connection<br />
Brand: Kobold (Alemania)<br />
Model: URM-33-45H-I6-0</strong><br />
[URM-33]:<br />
Mounting position: Vertical, flow direction from bottom<br />
Accuracy: Class 4<br />
Max. Temperature: 65 °C<br />
Max. Pressure: 6 bar...16 bar depend see data sheet<br />
Material: Connection, float / seal/ ring 1.4301 / NBR / PVC<br />
[45H]: Range Full Scale: water: 1600 L/h, range factor 1:10<br />
[I6]: Connection: G 1, female<br />
[0]: Contacts: w/o

<strong>Variable Area Flowmeter/-switch Glass Cone with Thread Connection<br />
Brand: Kobold (Alemania)<br />
Model: URM-33-33H-I5-0</strong><br />
[URM-33]:<br />
Mounting position: Vertical, flow direction from bottom<br />
Accuracy: Class 4<br />
Max. Temperature: 65 °C<br />
Max. Pressure: 6 bar...16 bar depend see data sheet<br />
Material: Connection, float / seal/ ring 1.4301 / NBR / PVC<br />
[33H]: Range Full Scale: water: 400 L/h, range factor 1:10<br />
[I5]: Connection: G 3/4, female<br />
[0]: Contacts: w/o

<strong>Variable Area Flowmeter/-switch Glass Cone with Thread Connection<br />
Brand: Kobold (Alemania)<br />
Model: URM-33-17H-I3-0</strong><br />
[URM-33]:<br />
Mounting position: Vertical, flow direction from bottom<br />
Accuracy: Class 4<br />
Max. Temperature: 65 °C<br />
Max. Pressure: 6 bar...16 bar depend see data sheet<br />
Material: Connection, float / seal/ ring 1.4301 / NBR / PVC<br />
[17H]: Range Full Scale: water: 25 L/h, range factor 1:10<br />
[I3]: Connection: G 3/8, female<br />
[0]: Contacts: w/o

<strong>Variable Area Flowmeter/-switch Glass Cone with Thread Connection<br />
Brand: Kobold (Alemania)<br />
Model: URM-33-28H-I4-0</strong><br />
[URM-33]:<br />
Mounting position: Vertical, flow direction from bottom<br />
Accuracy: Class 4<br />
Max. Temperature: 65 °C<br />
Max. Pressure: 6 bar...16 bar depend see data sheet<br />
Material: Connection, float / seal/ ring 1.4301 / NBR / PVC<br />
[28H]: Range Full Scale: water: 250 L/h, range factor 1:10<br />
[I4]: Connection: G 1/2, female<br />
[0]: Contacts: w/o

<strong>Variable Area Flowmeter/-switch Glass Cone with Thread Connection<br />
Brand: Kobold (Alemania)<br />
Model: URM-33-22H-I4-0</strong><br />
[URM-33]:<br />
Mounting position: Vertical, flow direction from bottom<br />
Accuracy: Class 4<br />
Max. Temperature: 65 °C<br />
Max. Pressure: 6 bar...16 bar depend see data sheet<br />
Material: Connection, float / seal/ ring 1.4301 / NBR / PVC<br />
[22H]: Range Full Scale: water: 63 L/h, range factor 1:10<br />
[I4]: Connection: G 1/2, female<br />
[0]: Contacts: w/o

<strong>Variable Area Flowmeter/-switch Glass Cone with Thread Connection<br />
Brand: Kobold (Alemania)<br />
Model: URM-33-05H-I3-0</strong><br />
[URM-33]:<br />
Mounting position: Vertical, flow direction from bottom<br />
Accuracy: Class 4<br />
Max. Temperature: 65 °C<br />
Max. Pressure: 6 bar...16 bar depend see data sheet<br />
Material: Connection, float / seal/ ring 1.4301 / NBR / PVC<br />
[05H]: Range Full Scale: water: 6.3 L/h, range factor 1:10<br />
[I3]: Connection: G 3/8, female<br />
[0]: Contacts: w/o

Micro Variable Area Flowmeter KDS<br />
Brand: Heinrichs - Kobold<br />
Model: KDS-C-F-P-O-0-E-E-0<br />
[KDS]<br />
All-metal design<br />
Range (0,1-1 l/h - 20-200 l/h H2O)<br />
Connection ¼" NPT (f)<br />
Temp. min. -40 °C, max. 130 °C<br />
[C] Variable Area Flowmeter, for panel mounting,<br />
rear connection, overall length 90 mm, max. 40 bar,<br />
[F] Range: 0.1 a 0.6 m3/h<br />
[P] Sealing: PTFE<br />
[O] Valve: Top (standard) (not for KDS-S)<br />
[0] Certificates: without<br />
[E] Scale: Measuring Range-Scale (Media)<br />
Approval, IIC 2GD c IIC (BVS 03 ATEX H-B 113)<br />
[E] Switches: Transmitter 4-20mA w/o HART<br />
connection, M12 plug, Processtemperature -25C - +100°C<br />
[0] Accessories: without

<strong>Thermal Mass Flow Meter for Gas<br />
Brand: Kobold (Alemania)<br />
Model: KEC-2-S-R15-1-A-S-0-0</strong><br />
[KEC-2]:<br />
function principle Direct thermal flow<br />
Mounting position all directions<br />
version inline version<br />
Output Modbus RTU, 2x4-20 mA (°C/Nm³/h), Modbus TCP, puls, alarm<br />
Counter 2 total counters (1x non resettable, 1x resettable)<br />
max. temperature -40…+180 °C<br />
max. pressure 10 (40) bar<br />
Accuracy ±1,5% of meas. value, ±0,3% of F.S. Option: ±1,0% of meas. value, ±0,3% of F.S.<br />
sensor material st. st. 1.4571 /glass<br />
[S]: Measuring range, Standard<br />
[R15]: Connection / sensor-length, <br />
[1]: Display, 2" TFT-display, backlight<br />
[A]: Gas type, Propane<br />
[S]: max. pressure, 16 bar (standard)<br />
[0]: Calibration, Standard<br />
[0]: Option, W/O

<strong>Micro Variable Area Flowmeter KDS<br />
Brand: Heinrichs - Kobold<br />
Model: KDS-C-F-P-O-0-E-0-0</strong><br />
[KDS]<br />
All-metal design<br />
Range (0,1-1 l/h - 20-200 l/h H2O)<br />
Connection ¼" NPT (f)<br />
Temp. min. -40 °C, max. 130 °C<br />
[C] Variable Area Flowmeter, for panel mounting,<br />
rear connection, overall length 90 mm, max. 40 bar,<br />
[F] Range: 0.1 a 0.6 m3/h<br />
[P] Sealing: PTFE<br />
[O] Valve: Top (standard) (not for KDS-S)<br />
[0] Certificates: without<br />
[E] Scale: Measuring Range-Scale (Media)<br />
Approval, IIC 2GD c IIC (BVS 03 ATEX H-B 113)<br />
[0] Switches: without<br />
[0] Accessories: without
