<strong>Bypass-Level Indicators with glass tube<br />
Model: SZM-S-5-1-N4-G1-0 (1873 mm)<br />
Brand: Kobold (Alemania)</strong><br />
[SZM-S]: Model<br />
Bypass- tube: Borosilicate glass<br />
O-ring: FPM<br />
Protecting tube: st. steel 1.4404<br />
Connection: st. steel 1.4404<br />
Max. temperature: 100 °C<br />
Max. pressure 10 bar<br />
Installation length, 1873 mm<br />
[5]: Version (top/bottom), top: cleaning hole, bottom: drain valve<br />
[1]: Valves, 2 shut off valves in connection<br />
[N4]: Connection, union nut  1/2" NPT male<br />
[G1]: Scale, Plastic foil on meas. tube (2 mm-division)<br />
Length of scale, scale length = install. length - 120 mm, 1753 mm<br />
[0]: Limit switch, without

<strong>Turbine Wheel Flowmeter<br />
Model: TUR-20-10-M040<br />
Brand: Kobold (Alemania)</strong><br />
[TUR-20]<br />
Operating principle, Turbine Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
Material, PVC<br />
Max. temperature, 60 °C<br />
Max. pressure, PN 10<br />
Accuracy, +-1% FS<br />
Protection, IP 65<br />
[10]: Connection / Measuring range, NW 100 / 2,5...100 m³/h water<br />
[M040]: Electronic, 230 VAC; Analogue output 4...20 mA (4 wires)

<strong>Flow Indicator with Rotor<br />
Model: DAH-1-1-04H-R-20<br />
Brand: Kobold (Alemania)</strong><br />
[DAH-1]:<br />
Operating principle, rotor<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
Max. temperature, 100 °C<br />
Max. pressure, 16 bar<br />
[1]: Material (housing/connection), brass, nickle-plated<br />
[04H]: Nom. diameter, 3/4" (Qn: 1...25 L/min water)<br />
[R]: Thread, G-thread female<br />
[20]: Connection, 3/4"

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Heinrich (Alemania)<br />
Model:  EPS-E-201R-1-H-H-1-0+UMF2-A-1-1-F-0BK-0</strong><br />
[EPS-E]: Sensor<br />
Material Lining, EPDM<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes,<br />
Process-Temperature, -10...+70°C<br />
[201R]: Process connection, ½ "Class 150 RF ASME B16.5-2003<br />
Max. measuring range, 6,6 m³/h, Installation length, 200 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[H]: Material electrodes, Hastelloy C276<br />
[H]: Earthing electrode, Hastelloy<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]: Certificates, w/o<br /><br /><strong>[UMF2]:Transmitter</strong><br />
[A]: Mounting, <br />
Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[F]: Output Signal:<br />
current output: 1x 0/4-20 mA <br />
pulse output: passive Um=24 VDC <br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold<br />
[0]: Longer cable, 2,5 m standard on remote version; breakout cable

<strong>Variable Area Flowmeter<br />
Model: K12-N-0-2-13-2-V-0-M-1-A-00-0-H-0-0-0-0-0<br />
Brand: Heinrichs (Alemania)</strong><br />
[K12]: Base Price, Mounting length 125 mm<br />
[N]: Connection, ¼"-NPT female<br />
[0]: Connection-accessories, w/o<br />
[2]: Valve position, Inlet (standard)<br />
[13]: Ranges, 0.00 – 0.04 Nlm3/h<br />
[2]: Skaling, Product scale (Oxygen)<br />
[V]: Sealing glass tube, Viton standard<br />
[0]: Wall / Panel Mount (not with terminal conn. Box), w/o<br />
[M]: Contacts, Inductive contact, ring type mono-stable<br />
[1]: N° of contacts, 1x (limited adjusting position)<br />
[A]: Terminal box, c/w<br />
[00]: Flow - differential pressure regulator (not with panel mount/ only with NPT conn.), w/o<br />
[0]: Approvals, w/o<br />
[H]: Labeling, Heinrichs<br />
[0]: Marking, w/o<br />
[0]: Certificates, w/o<br />
[0]: Pressure and leak testing, w/o<br />
[0]: Calibration report, w/o<br />
[0]: Cleaning, w/o

<strong>Variable Area Flowmeter<br />
Model: K12-N-0-0-13-2-V-0-M-1-A-00-0-H-0-0-0-0-0</strong><br /><strong>Brand: Heinrichs (Alemania)</strong><br />
[K12]: Base Price, Mounting length 125 mm<br />
[N]: Connection, ¼"-NPT female<br />
[0]: Connection-accessories, w/o<br />
[0]: Valve position, w/o<br />
[13]: Ranges, 0.00 – 0.04 Nlm3/h<br />
[2]: Skaling, Product scale (Oxygen)<br />
[V]: Sealing glass tube, Viton standard<br />
[0]: Wall / Panel Mount (not with terminal conn. Box), w/o<br />
[M]: Contacts, Inductive contact, ring type mono-stable<br />
[1]: N° of contacts, 1x (limited adjusting position)<br />
[A]: Terminal box, c/w<br />
[00]: Flow - differential pressure regulator (not with panel mount/ only with NPT conn.), w/o<br />
[0]: Approvals, w/o<br />
[H]: Labeling, Heinrichs<br />
[0]: Marking, w/o<br />
[0]: Certificates, w/o<br />
[0]: Pressure and leak testing, w/o<br />
[0]: Calibration report, w/o<br />
[0]: Cleaning, w/o

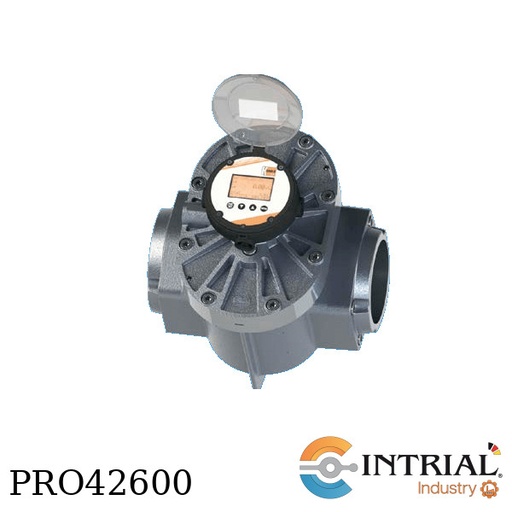

<strong>Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-1-60H-AC-1-E3-N-0</strong><br />
[DON-1]<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 80 °C *<br />
max. pressure 16...64 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material, Aluminio<br />
Rotor material, PPS<br />
[60H]: Measuring range, 150-2500 L/min<br />
[AC]: Mech. connection, ANSI flange 4" 150 lbs<br />
[1]: Seal, FKM for DON-x60<br />
[E3]: Electronic, Z3(dual LCD totaliser/rate, outputs: pulse, analogue), <br />
electronic with ATEX approval (Exi)<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options (please specify in clear text), without<br />
*Not Include Battery

<strong>Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-60H-AC-1-E3-N-0</strong><br />
[DON-2]<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 120 °C *<br />
max. pressure 16...100 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material, st. steel<br />
Rotor material, st. steel<br />
[60H]: Measuring range, 150-2500 L/min<br />
[AC]: Mech. connection, ANSI flange 4" 150 lbs<br />
[1]: Seal, FKM for DON-x60<br />
[E3]: Electronic, Z3(dual LCD totaliser/rate, outputs: pulse, analogue), <br />
electronic with ATEX approval (Exi)<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options (please specify in clear text), without<br />
*Not Include Battery

<strong>All-Metal Variable Area Flowmeter BGN<br />
Model: BGN-S50-206R-U-0-0-0-0-S-2-0-0-H<br />
Brand: Heinrichs (Alemania)</strong><br />
[BGN]: Model<br />
[S50]: Model, Stainless Steel, process temperature < 350°C <br />
[206R]: Connection, size, 2" Class 150 RF ASME B16.5-2003 <br />
[U]: Range (water 20°C, 1 mPas), 2.5-25 m3/h<br />
[0]: Heating / cooling, without heating / Cooling<br />
[0]: Damping / spring stop, without<br />
[0]: Self draining, without<br />
[0]: Certificates, without <br />
[S]: Display,<br />
Standard display housing,<br />
Process temperature < 150°C for electrical output,<br />
Process temperature < 200°C for local indication<br />
[2]: Scale, Measuring range-Scale (Water)<br />
[0]: Switches, without<br />
Ambient temperature, -40° to +80°C<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

<strong>Pelton Wheel Flow Meter<br />
Model: DRB-11-25-N9-Z340<br />
Brand: Kobold (Alemania)</strong><br />
[DRB-11]<br />
Operating principle, Pelton Wheel (4-vane).<br />
Mounting position / flow direction, in all directions/ in direction of the arrow<br />
Protection, IP 65<br />
Max. Temperature, 80 °C.<br />
Max. Pressure, 16 bar<br />
Accuracy of final value, +/-3%<br />
Material Housing, Brass casting<br />
Material Axis, Hard metal<br />
[25]: Measuring range, 30-350 L/min<br />
[N9]: Mech. connection, 2 NPT female<br />
[Z340]: Electronic, Pointer indicator 4-20 mA, plug M12x1

Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-05H-N1-1-Z3-N-0<br />
[DON-2]<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 120 °C *<br />
max. pressure 16...100 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material, st. steel<br />
Rotor material, st. steel<br />
[05H]: Measuring range, 0,5-36 L/h<br />
[N1]: Mech. connection, for range 05H, 1/8 NPT<br />
[1]: Seal, FKM up to DON-x25<br />
[Z3]: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options (please specify in clear text), without<br />
*Not Include Battery

<strong>Compact Thermal Flow Switch<br />
Brand: Kobold (USA)<br />
Model: KAL-D54-15-P-ST3</strong><br />
[KAL-D54]<br />
Specifications<br />
Repeatability: ±2%<br />
Maximum Pressure: 580 PSIG<br />
Temperature Range: -4...176 °F<br />
Wetted Parts: 316L SS<br />
Housing Material: 304 SS<br />
Electrical Protection: NEMA 4/IP65<br />
[15] Fitting Type 1/2 NPT<br />
[P] Type of Switch, PNP N/O<br />
[ST3] Connector, Micro-DC plug, 4-Pin, male<br />

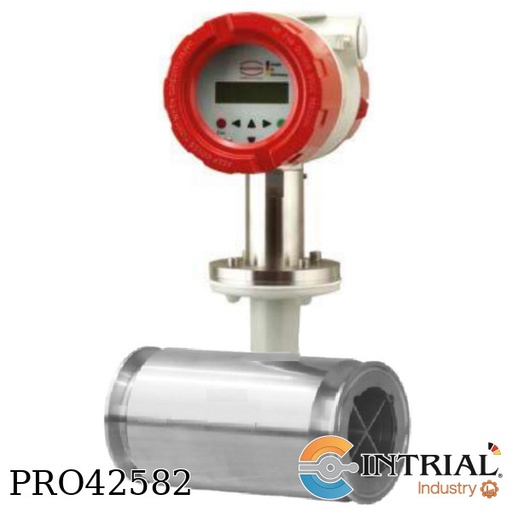

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Heinrichs (Alemania)<br />
Model: EPS-A-7010-G-N-0-1-0+UMF2-A-1-4-G-0BK</strong><br />
[EPS-A]: Sensor<br />
Material Lining Ceramics, Standard 2x Measuring Electrodes<br />
Process Temperature, -20°C…+150°C<br />
[7010]: Process connection, DN25 Tri-Clamp-Connection,<br />
Material Lining / Electrodes / Sealing, Ceramics / Platinum<br />
Max. measuring range (Water 20°C, 1 mPas), 19,1 m³/h<br />
Installation length, 159 mm<br />
[G]: Material Process connection, 316L(1.4404)/EPDM-gasket<br />
[N]: Material electrodes, Platinum / Iridium<br />
[0]: Earthing electrode, w/o<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]: Certificates, w/o<br /><br />
[UMF2]:Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[4]: Power supply, 24V DC (±15%)<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold

<strong>Calorimetric Flowswitch, Compact Version<br />
Model: KAL-K1-2-15-O-PG3<br />
Brand: Kobold (Alemania)</strong><br />
[KAL-K1]<br />
Operating principle: calorimetric<br />
Mounting position: all directions<br />
Indication: DUO-LED and LED-chain<br />
max. temperature: 80 °C <br />
max. pressure: 100 bar<br />
Protection class: IP 65<br />
Connection thread: G<br />
[2]: Probe material, st.st. 1.4305<br />
Version: Standard<br />
[15]: Connection, G 1/2"<br />
[O]: Contact version, N/C<br />
[PG3]: Electron. connection/power supply, M 16x1,5 PNP/NPN 24 VDC

<strong>Variable Area Flowmeter/-switch<br />
Model: DSV-21-03H-R0-R08-Y<br />
Brand: Kobold (Alemania)</strong><br />
Flow from bottom<br />
Mat. Brass, glass, NBR<br />
Range 1-4.5 L/min water<br />
Max. 10 Bar; max 70ºC<br />
1 N/O contact<br />
Max. 250 VAC/DC<br />
Max, 250 VAC/Watt, 1.5 A<br />
Plug acc. DIN 43650<br />
Connection G 1/4 female<br />
RoHS conform<br />
Special option:<br />
******************************************<br />
Special built-up / specialty<br />
Range / measuring range: 2-6 Nm3/h Air<br />
As in order number 0446961<br />
******************************************

<strong>Thermal Flow Switch<br />
Model: KAL-7215<br />
Brand: Kobold (USA)</strong><br />
[KAL-7215]<br />
Operating principle: calorimetric<br />
Indication: DUO-LED and LED-chain<br />
max. temperature: 80 °C <br />
max. pressure: 100 bar<br />
Protection class: IP 65<br />
Fitting, 1/2" NPT<br />
Material, 304 SS<br />
Range Water (GPM): 0.08 - 4

<strong>Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-05H-R1-1-Z3-M-0</strong><br />
[DON-2]<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 120°C<br />
Max. pressure: 16…100 bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: st. steel<br />
[05H] Measuring range, 0,5-36 L/h<br />
[R1] Mech. connection, for meas. range 05H G 1/8<br />
[1] Seal, FKM up to DON-x25<br />
[Z3] Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br />
[M] Cable entry, M20 <br />
[0] Options, without<br />
*Not include Battery.<br />
flow direction:  is from bottom to top

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Kobold- Heinrichs <br />
Model: EPS-P-214R-1-H-0-1-0+UMF2-A-1-4-G-0BK</strong><br />
[EPS-P]: Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, <br />
Process temperature, -20°C...150°C<br />
[214R] Process connection, 10" Class 150 RF ASME B16.5-2003<br />
Max. measuring range, 1786 m³/h,<br />
length, Installation, 450 mm<br />
[1] Material Process connection, Flange steel painted<br />
[H] Material electrodes, Hastelloy C276<br />
[0] Earthing electrode, w/o<br />
[1] Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP67<br />
[0] Certificates, w/o<br /><br />
[UMF2] Transmitter<br />
[A] IP67; Mounting Integrated transmitter IP 67 standard<br />
Thread - electrical connection ½" NPT<br />
[1] Display and control unit, integrated<br />
[4] Power suppy, 24V DC (±15%)<br />
[G] Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, Kobold

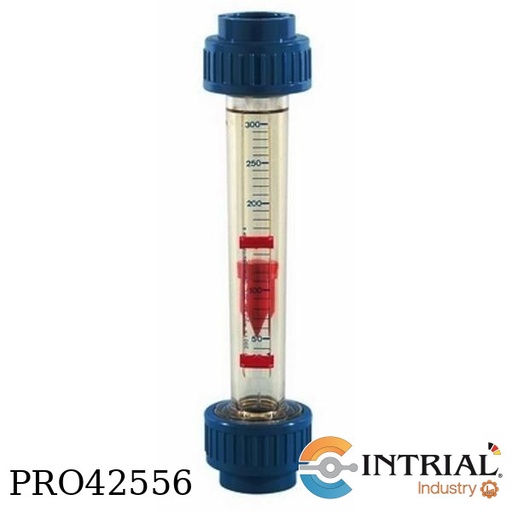

<strong>Low Volume Flowmeter/-switch<br />
Brand: Kobold (Alemania)<br />
Model: KSK-1-999-P25-00</strong><br />
[KSK-1]<br />
Operation principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Material Trogamide<br />
Accuracy Class 4<br />
Max. temperature 60 °C<br />
Max. pressure PN 10<br />
Seal EPDM<br />
[999] Measuring range, 100...1000 L/h water<br />
[H] Scale, L/h waterscale<br />
[P25] Connection for size, PVC G 1 female<br />
[00] Option contact, w/o

<strong>Rotating Vane Flow Meter<br />
Model: DPM-1-5-40-N1-L343<br />
Marca: Kobold (Alemania)</strong><br />
[DPM-1]<br />
Operating principle, Rotating vane<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
max. temperature ,80 °C<br />
max. pressure, 16 bar<br />
Accuracy, +/-1,0 (2,5)%<br />
Protection, IP 65<br />
[5] Material, st. st.<br />
[40] Measuring range, 0,05-4,0 L/min<br />
[N1] Mech. connection, 1/8 NPT female<br />
[L343]: Evaluating Electronic: Analogue output 4-20 mA, M12x1, 3-wire<br /><br /><strong>Include:<br />
Accessories round plug<br />
Model: ZUB-KAB-12-K002</strong><br />
M12x1 box 2 m cable, 4-pin
