Single Gas Detector
Model : E1000-CO2
Marca Hanwei
Dislplay : LCD Screen
Audible : >80dB at 1m
Alarm method : Visual, audible, and vibrative signals
Battery : DC3, 7v 1800mAh, Lithium battery
Charging Time : 4 a 6 hrs
Protección : IP66
Exgrade : Ex Ib IIC T4
Weight : 190g
Dimensions ; 108mm, 61mm, 36mm

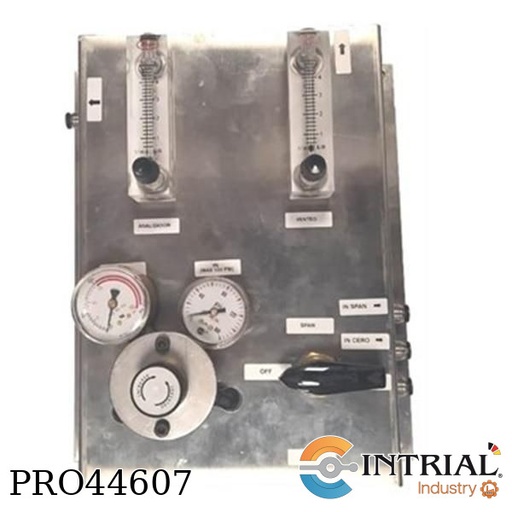

Panel de Calibración Analizador Oxigeno
Incluye:
• 02 Flujometro Dwyer 0.6 a 5 LPM
• 01 Regulador de presión de Alta a Baja con sus manometros
• Salida regulada de 5 Psi
• Máxima presión de ingreso de 50 Psi
• 1 Valvula de 3 vias (selectora)
• 1 Panel de Acero inoxidable
ADICIONALES(Incluye)
• Conector para Medicion de Oxígeno en las habitaciones
• Conector para Medicion de Oxígeno en cilindros de 6, 8 y 10 m3
• Conector para Medicion de Oxígeno en Planta PSA de Oxigeno
• Otros accesorios que se puedan necesitar para medir en los puntos arriba indicados
* * Regulador con 2 manometros oxigeno (PRO35110)

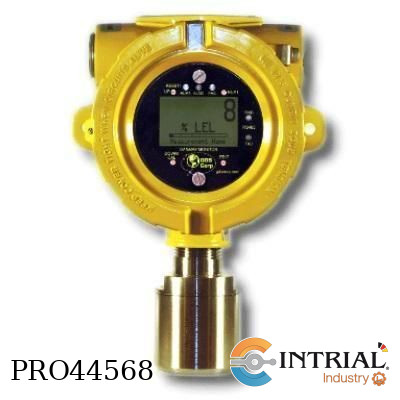

GASMAX EC Gas Monitor, Loop-Powered Gas Monitor for Toxic Applications<br />
- Power Input 10-30VDC at less than 0.75 watts<br />
- Display 64 x 128 pixel LCD with 30-minute trend, bargraph and<br />
- engineering units display.<br />
- Input Accepts microamp-level signals from local or remote<br />
- GDS Corp toxic or oxygen deficiency sensors<br />
- Accuracy +/- 5% of full scale range (typical)<br />
- Standard<br />
- Output<br />
- Standard 2-wire 4-20mA current sink output. Max loop R<br />
- is 600 ohms with nominal 24VDC power supply.<br />
- Temp Electronics -40°C to +60°C. See Echem Sensor Manual<br />
- for additional information<br />
- Housing Aluminum housing with epoxy paint standard; #316<br />
- stainless steel optional<br />
- Dimensions Width 5.4” (137 mm), Height 8” (203 mm), Depth 5”<br />
- (127 mm) Shipping weight 6.5 pounds (3 kg)<br />
- Approvals CSA Certified Div 1 & 2 Groups B, C, D. Suitable for<br />
- explosion-proof installations<br />
- CSA Certified Div 1 & 2 Groups A, B, C, D. Intrinsically<br />
- safe. IMPORTANT: Intrinsically Safe installations<br />
- require IS barrier #10-0263 (MTL 7787P+) or equivalent.<br />
- ATEX Certified EX II 2 G EEx d IIB + H2 T5<br />
- Warranty Two years on electronics and one year on sensors.<br />
//////////CODIGOS PARA ORDENAR///////<br />
- GM-EC: GASMAX EC Gas Monitor, Loop-Powered Gas Monitor for Toxic Applications<br />
- 3: Sensor Head (Local sensor head for reactive gases IS)<br />
- 20: Sensor Type (Ammonia)<br />
- 6:  Target Gas Range (0 - 100 ppm)

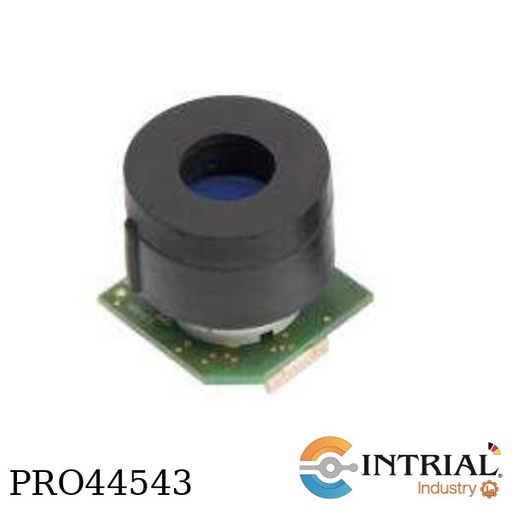

H2S-Sensor 350 ppm<br />
Brand: WOHLER<br />
field replacable<br />
for Wöhler A 550 / A 550 INDUSTRIAL<br />

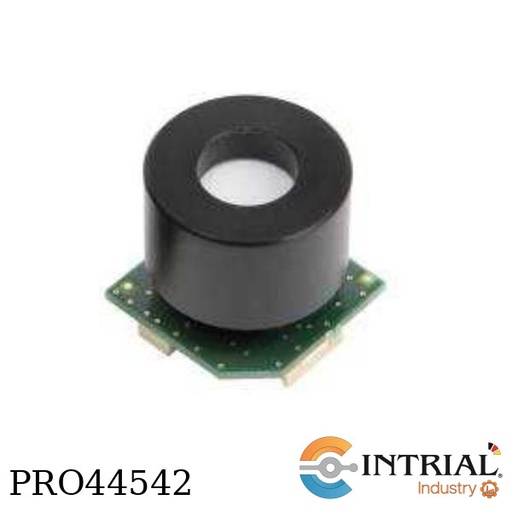

CO2 NDIR-Sensor 0...40 Vol. %<br />
Brand: WOHLER<br />
field replaceable<br />
for Wöhler A 550 / A 550 INDUSTRIAL<br />

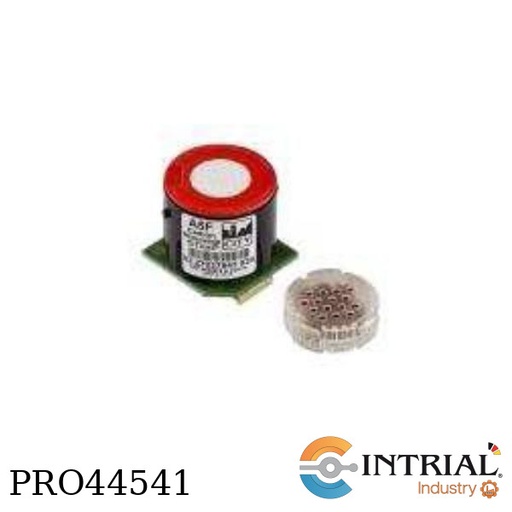

CON-SENSOR 10.000 PPM WÖHLER A 550<br />
Brand: Wöhler<br />

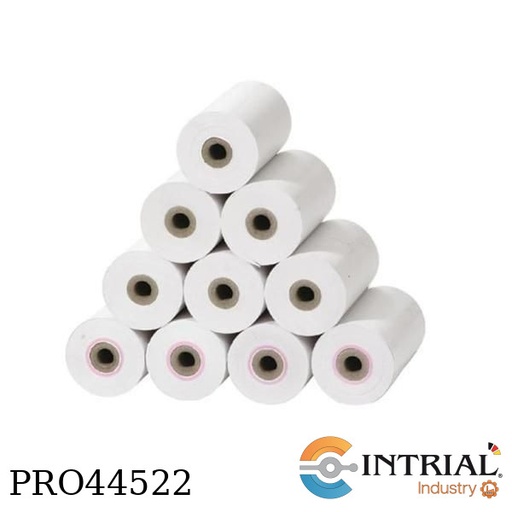

THERMAL PAPER<br />
Brand: WOHLER<br />
57 mm width, 12 m long/ roll, 10 rolls<br />
for Thermal Printer Wöhler TD 100<br />

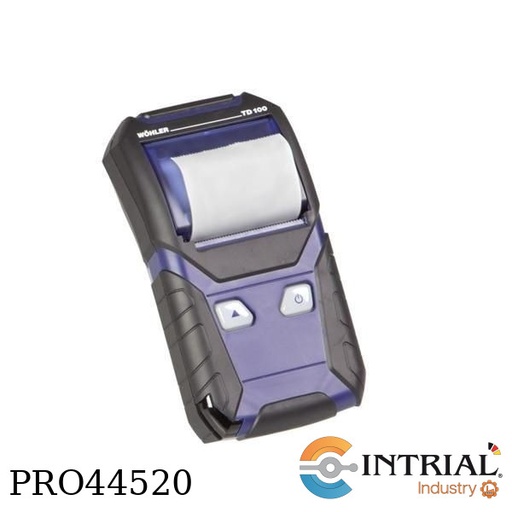

TD 100 THERMAL FAST PRINTER<br />
Brand: WÖHLER<br />
Infrared printer with 1 roll thermal paper and four batteries

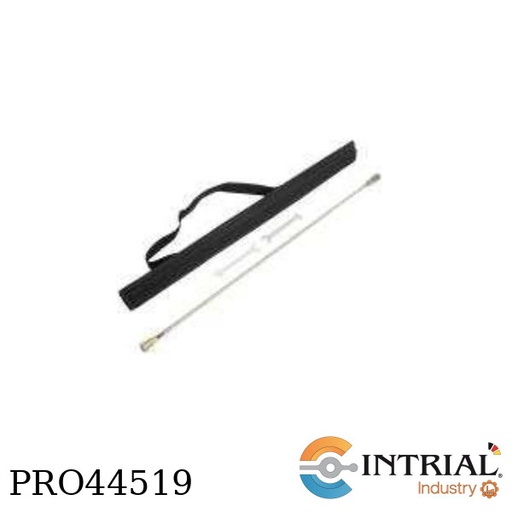

HIGH TEMPERATURE PROBE 1000 MM<br />
Brand: WÖHLER<br />
for measurements up to 1200 °C<br />
for Wöhler A 550 Industrial<br />
with pre-filter and carrying bag<br />

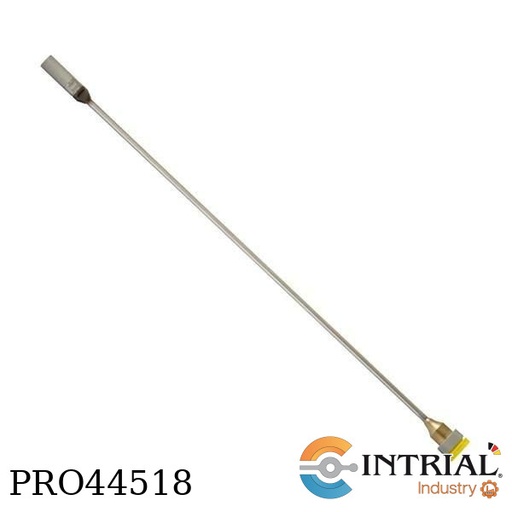

GAS PROBE 1.000 MM<br />
Brand: WÖHLER<br />
with stainless steel sinter-filter<br />
up to 800 °C<br />

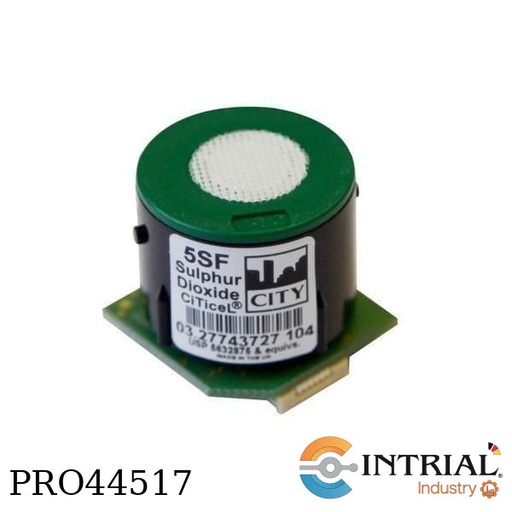

SO2-SENSOR 5,000 PPM<br />
Brand: WÖHLER<br />
for Wohler A 550/550 INDUSTRIAL<br />
field replaceable

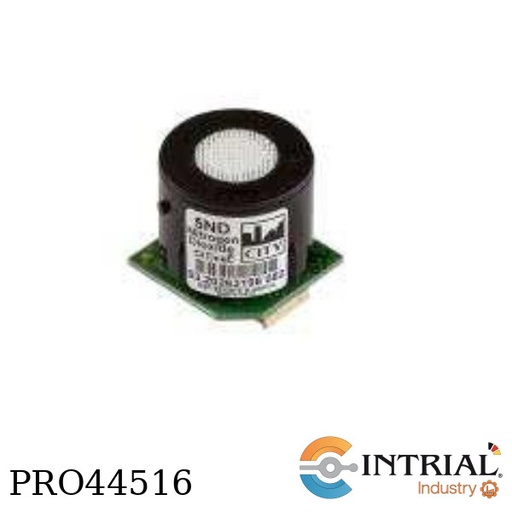

NO2-SENSOR 1.000 PPM<br />
Brand: WÖHLER<br />
field replaceable<br />
for Wöhler A 550 / A 550 INDUSTRIAL<br />

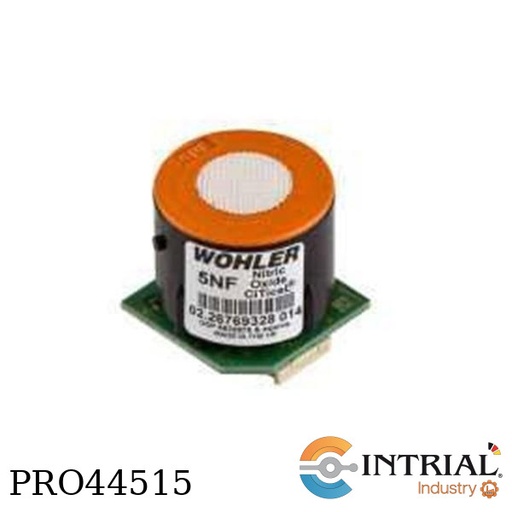

NO-Sensor 3.000 ppm<br />
Brand: WÖHLER<br />
field replaceable<br />
for Wöhler A 550 / A 550 INDUSTRIAL<br />

COH-SENSOR 100.000 PPM<br />
Brand: WÖHLER<br />
field replaceable<br />
for Wöhler A 550 / A 550 INDUSTRIAL<br />

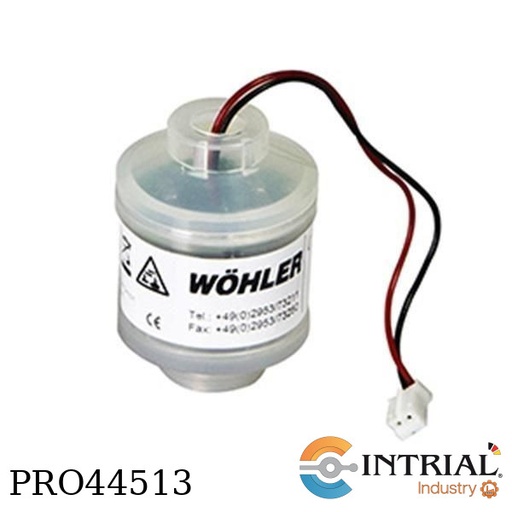

O2-SENSOR 0…21 VOL. %<br />
Brand: WÖHLER<br />
For Wöhler A 550 / A 550 INDUSTRIAL<br />

REGULADOR CON FLUJOMETRO<br />
Cuerpo totalmente cromado que trabaja a gran presión<br /><span lang="es" xml:lang="es">Conexión CGA-540</span><br />
Máxima presión de entrada de 3000 PSI<br />
Diafragma durable de neoprene<br />
Filtro sinterizado para extender la vida del regulador<br />
Manómetro de 2” de diámetro (0-4000 PSI)<br /><span style="font-size:11.5pt;font-family:Arial, sans-serif;">Preseteado a 50 PSI (Presión de trabajo del Flujómetro)</span><br /><span style="font-size:11.5pt;font-family:Arial, sans-serif;">Flujómetro rango doble escala graduada de ½ a ½ hasta 5 y de 5 a </span><span lang="es-mx" xml:lang="es-mx">15 graduado de litro en litro </span><br />
Válvula Estándar<br />
Conexión de salida : DISS 1240<br />
Modelo : <span class="value">PRO44492</span>

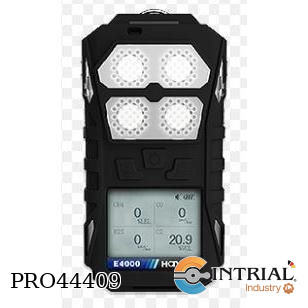

Portable Multi Gas Detector<br /><span lang="en-us" style="font-size:11pt;font-family:Calibri, sans-serif;" xml:lang="en-us">Model : </span>
<ul><li><span lang="en-us" style="font-size:11pt;font-family:Calibri, sans-serif;" xml:lang="en-us">E4000-CH4-O2</span></li>
<li lang="en-us" style="font-size:11pt;font-family:Calibri, sans-serif;" xml:lang="en-us">Modulo sensor intercambiable</li>
<li lang="en-us" style="font-size:11pt;font-family:Calibri, sans-serif;" xml:lang="en-us">Niveles ajustables de Alarma y valores de calibraciòn</li>
<li lang="en-us" style="font-size:11pt;font-family:Calibri, sans-serif;" xml:lang="en-us">Funcion de auto diagnostico y auto correción</li>
<li lang="en-us" style="font-size:11pt;font-family:Calibri, sans-serif;" xml:lang="en-us">Intrinsicamente seguro</li>
<li lang="en-us" style="font-size:11pt;font-family:Calibri, sans-serif;" xml:lang="en-us">Alarma de STEL y TWA para gases toxicos</li>
<li lang="en-us" style="font-size:11pt;font-family:Calibri, sans-serif;" xml:lang="en-us">Reloj en tiempo real</li>
<li><span lang="en-us" style="font-size:11pt;font-family:Calibri, sans-serif;" xml:lang="en-us">Alarmas visual y audible</span></li>
</ul>

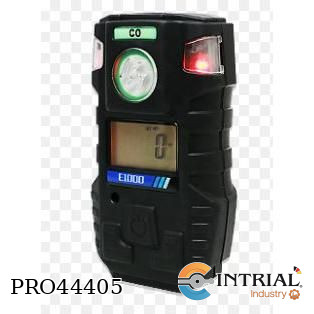

Single Gas Detector
Model : E1000-Fosfina
Marca Hanwei
Dislplay : LCD Screen
Audible : >80dB at 1m
Alarm method : Visual, audible, and vibrative signals
Battery : DC3, 7v 1800mAh, Lithium battery
Charging Time : 4 a 6 hrs
Protección : IP66
Exgrade : Ex Ib IIC T4
Weight : 190g
Dimensions ; 108mm, 61mm, 36mm

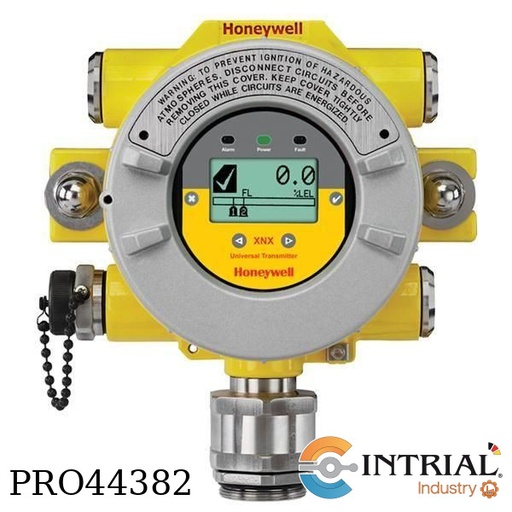

Modelo: XNX-UTSI-NNIV1
<ul><li>Honeywell Gas Transmitter</li>
<li>U : Aprovación UL/CSA</li>
<li>T : 3/4" NPT</li>
<li>S : Material Acero Inox</li>
<li>I : Interfaz para productos infrarrojos</li>
<li>N : Ninguna opcion instalada</li>
<li>N : Ninguna opcion instalada</li>
<li>IV1 : IR 0-100% LEL (o 0-5% vol.) Metano</li>
</ul>

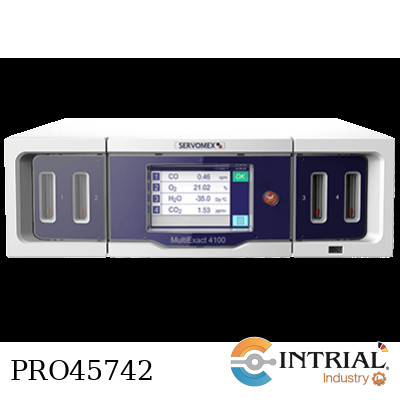

With the following configuration:<br />
Analyser Reference 08100A1-1110CXXXXXXXXXXXXXXJU<br />
Series Code MultiExact 4100<br />
Type Standard N2 Background<br />
Sample System Flow Driven<br />
  MODULE 1 .<br />
Measurement O2 Trace<br />
Flowmeter Not Required<br />
External S/S Filter Required w/ Standard Filter<br />
Configurable Alarms Two Alarms<br />
Isolated Analogue Output Isolated 4-20mA<br />
0-10 VDC Output Not Required<br />
Dual Analog Output Single<br />
Digital Input Not Required<br />
Isolated Analogue Input Not Required<br />
  MODULE 2 .<br />
Measurement None<br />
  MODULE 3 .<br />
Measurement None<br />
  MODULE 4 .<br />
Measurement None<br />
  AQUAXACT .<br />
AquaXact Required<br />
Gas Moisture<br />
Measurment Range Universal<br />
Transducer Type Al2O3 - Moisture<br />
Options Sample Blk, NPT 1/4" Swagelok<br />
Transducr Cables 5 Meter Cable Digital<br />
Adapter 3/4" AquaXact Required<br />
1688 Transducer Tip (Extra) Not Required<br />
  GENERAL CONFIGURATION.<br />
Power Cord UK<br />
Serial Communications Not Required<br />
Modbus TCP/IP Not Required<br />
Mounting Rack Mount w/ears<br />
Autocal Not Required<br />
Relay Contacts 4 Relay Contacts<br />
Operator Manual English<br />
Extended Chassis Not Required<br /><br />
