High pressure Corrosometer wire loop probe,,element pipe grade CS, 24.50 length for 24" line, ,Span 10 mil, Shield for 60ft/sec gas, 260C 6000Psi

Strip Coupon Holder in AISI 316 Stainless Steel ,Lenght: 24.50"

-DETECTOR MULTIGÁS PORTÁTIL  ,<br />
-Marca:SCOTT SAFETY,<br />
-Kit de monitor PROTEGE,O2/H2S/LEL(Incluye mo,nitor de gas,cargador,herramienta torx,manual,,CD con software para PC,cable USB y adaptador de c,alibración.  ,<br />
-Sensores:O2:0% a 25%,H2S:0 a 500 ppm,,O2:Combustible:0% a 80% límite explosivo  ,<br />
-Aprobaciones:U,L:Clase 1,Div. 1 Grupos A,B,C,D T4,CSA:Clase ,1,<br />
Div. 1 Grupos A,B,C,D T4,ATEX:Ex d ia IIC T4,,<br />
Australia:Ex d ia IIC,T4,Homologación IP 67:cumplimiento probado por terceros,<br />
EMC:Directiva E,MC(2004/108/EC) Marca CE

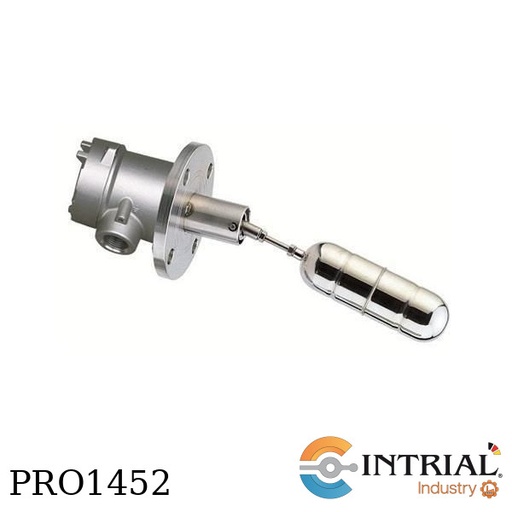

INTERRUPTOR FLOTADOR<br />
Marca: FINETEK<br />
Temperatura de Operación: -10°C~100°C<br />
Contacto eléctrico: SPDT (1C)<br />
Capacidad contacto: 5A/250VAC<br />
Elemento de contacto: Microswitch<br />
Carcaza: Aleación de aluminio IP65<br />
Flotador: Acero Inox.<br />
Tipo de Flotador: <br />
D: Ø50x150 (OPERATION PRESSURE 30kg/cm2 <br />
Gravedad especifica 0.55) <br />
Conexión: 1 ½” NPT

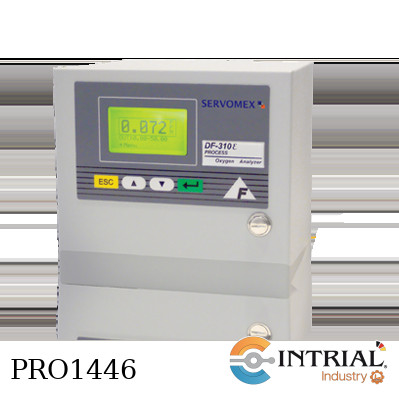

Modelo:  DF-310E- XDF310EV05<br />
•    HIGH RELIABILITY TRACE AND PERCENT OXYGEN MEASUREMENTS IN PURE AND<br />
•    MULTI-GAS BACKGROUNDS, IDEAL FOR INDUSTRIAL GAS PROCESS/QUALITY CONTROL<br />
•    DF 310E Process Oxygen Analyser ,-Special,<br />
•    With the following configuration<br />
•    Sensor: Basic<br />
•    Sensor Resolution: High,Single<br />
•    Range: 0-100 ppm<br />
•    Power Input: 220 VAC Input Power<br />
•    Battery Backup: Not Required<br />
•    Certification: CE Certified<br />
•    Sensor Location: Local Sensor<br />
•    Pump: No Pump<br />
•    Case Purge: Not Required<br />
•    Mounting / Cabinet: Single Rack Mount<br />
•    Key Lock: Not Required<br />
•    Flow Alarm: Required<br />
•    Relay Contacts: Two Relay Contacts<br />
•    Sample Inlet: Stainless ,Steel (Standard)<br />
•    Isolated Output: 4-20mA with ,live zero (2-20mA)<br />
•    Stainless Steel Tags: Required<br />
•    Electrolyte Type: Blue<br />
•    Electrolyte Shipment Method: From ,factory (add line item),

3001-W80-K03005-24<br />
Corrosometer Probe Replacement Insert Model 3001<br />
*Temp. rating + 500 F/ 260C<br />
*Pressure Rating 1000PSI/6.9 Mpa<br />
*Element Type W80 (20 mil useful life)<br />
*Element Alloy: K03005 (Carbon Steel)<br />
*Lenght of Probe: 24"<br />
*Brand: COSASCO

Universal Flow Meter for Circulating Air<br />
specified as:LN = Large Vane Style Normal Pressure<br />
D = Aluminum = Housing Material<br />
S=Stainless Steel = Internal Moving Parts<br />
B= Buna = Seal Material<br />
300 = 300 GPM=Max Flow Rate<br />
GLM = Gallons & Liters per Minute Dual,Scale Range<br />
24F =3” ANSI Style Flange = Port Connection<br />
500V.87 = Viscosity Number = 500 SSU<br />
TTL3 = TTL Box 4-20mA Transmitter with<br />
Digital Display, optional<br />
High Amp Mechanical Switch<br />
Separate,Junction Boxes for Switch & Transmitter = One,SPDT (4 Wire)<br />
W = Weatherproof Type 4 = Service<br />
R = Right to Left = Flwo Direction

<strong>Pressure Transmitter PAS <br />
Brand: Kobold (Alemania)<br />
Model: PAS-G-EE-5-S-4-N-S-0-M</strong><br />
[PAS-G]<br />
Pressure type, gauge pressure <br />
Accuracy (% of calibrated span), ± 0,075% <br />
Measuring principle, piezoresistive<br />
Medium temperature, -30..+120 °C <br />
Power supply, 12-45 VDC (17,5-45 VDC with HART)<br />
[EE] Material (Diaphrgm/other), st.steel 1.4404/1.4401<br />
[5] Measuring range, 0...50 bar (0...5.000 kPa) <br />
[S] Filling liquid, Silicone<br />
[4] Process connection, 1/2-14 NPT IG (standard)<br />
[N] Electr. Connection, 1/2-14 NPT Epoxy-polyester painted Aluminium<br />
[S] Approvals, Standard (IP 67)<br />
[0] Manifold Valve, w/o<br />
[M] Options, Housing in st.steel

MAG-PB<br />
Salida de Pulsos<br />
(MAG Hall Eff ect Pickup),<br />
Marca:AW FLOW METERS(USA)

<strong>Medidor de flujo tipo turbina para Liquidos(Agua aceite y combustibles)<br />
Marca: AW FLOW METERS(USA)</strong><br />
Versión completamente en acero inoxidable para,alta duración y trabajo forzado<br />
Aplicación para medir aceites<br />
Rango de trabajo de 13 a 200 GPM,•Precisión:0.5%<br />
Conexión 2” NPT,•Max presión: 5000psI<br />
Temperatura: -100 a 230 C<br />
////////INCLUYE////////<br />
MAG-PB<br />
Salida de Pulsos MAG Hall Effect Pickup

MODEL: RBS-25<br />
SYSTEM RETRIEVER KIT<br />
Brand: COSASCO Two-Inch <br />
Pressure Rating: 6000 Psi; <br />
Temperature Rating: 232 C<br />
Meets NACE MR 0175 and MR0103<br />
Stroke length: 25 in

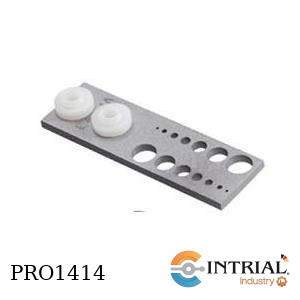

<div>CI-SC-G10180-0000<br />
3” Strip SCALE Coupon, COSASCO Two-Inch High Pressure System<br />
• Dimentions: 2 7/8"x7/8"x1/8" (7.3x2.2x0.32cm)<br />
• Alloy: G10180 Carbon Steel<br />
• Drilled with a series of different sized holes (.031, .063, .094, .125, .187, .25 & .312) to collect scale deposits.<br />
• Exposed surface area is 5.25 sq.in. (33.9 sq. cm.)</div>

SENSOR PT-100 CARTUCHO, 3 HILOS<br />
Rango de aplicacion -200°C A 600°C<br />
Bulbo Inox SS316<br />
Diámetro del Bulbo 6 mm.<br />
Largo del Bubo Total 360 mm.<br />
Punta de Cobre Largo 10 mm.<br />
Con 2 mts. Cable Siliconado<br />
Calibre 3 x 0,22 mm<br />
Marca: Intrial (Fabricación Alemana)

<p>AV685 Severe Mill Duty Hollow Shaft Magnetic<br />
Encoder, 1 1/8" Bore, Including the following features & options:<br />
• Temperature Rating (N): -20°C to +80°C (Standard)<br />
• Anti-Rotational Theter (1): 12inch Threaded Rod Tether (B32809)<br />
• Shaft Mounting (E): Standard (End of Shaft) Mount<br />
• Left Output Line Driver (8): 5-24v in, 5-24v out hi-power standard (HX)<br />
• Left Output PPR (J): 960 PPR<br />
• Right Output Line Driver (8): 5-24v in, 5-24v out hi-power standard (HX)<br />
• Right Output PPR (J): 960 PPR<br />
• Connector Options (T): 5 ft. Flex Conduit with Terminal Box<br />
• Modifications: 000 – none</p>

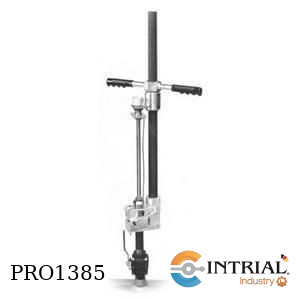

Retractor System Model 60<br />
• Quick Mounting & Release<br />
• Lightweight<br />
• Working pressure: 1500PSI<br />
• Convenient Carrying Case<br />
• Compatible with the RSC Retractable System of access fitting, probes, sensors and injection devices.  It is also compatible with a standard 1” full port ball valve and nipple assembly<br />
• Ordering Length: 24” (Retractor Overall Length 35")<br />
• For devices up to 24" lenght<br />
• Brand: COSASCO<br />
• See Datasheet  for more information
