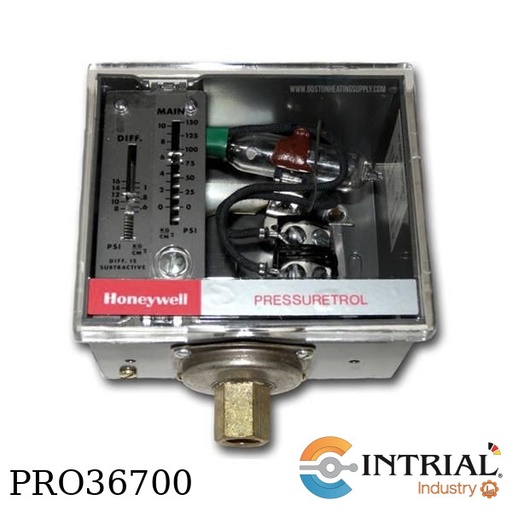

PRESSURETROL CONTROLLER
BRAND: HONEYWELL
MANUAL RESET
2-15PSI
25PSI MAX. 1/4INCH NPT FEMALE FITTING
SURFACE MOUNT
STAINLESS STEEL

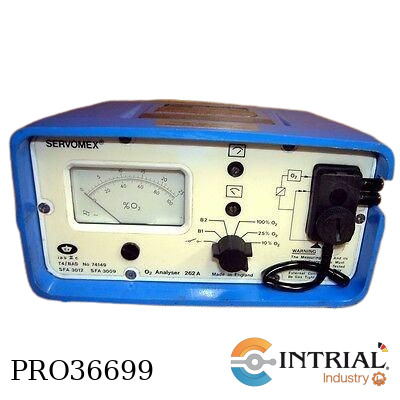

Analizador de Puereza de Oxigeno Hazardous Area
Marca  SERVOMEX(Inglaterra)
Rango 0-10, 25, 100%
Tecnología: paramagnética
Precisión:  0.3 % O2( 0-10%O2range: ±5%)
Tiempo de respuesta T90= 10 segundos
Batería:   Si Incluye
Estado.  Equipos de segundo uso: 100% Operativo
Hazardous Area:  ZONE 1
Nota.- El equipo es de segundo uso y Analogico y trabaja con Bateria

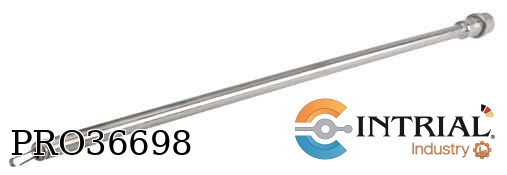

Replacement Probe Insert for CYLINDRICAL Probe
•    For Cylindrical Probe Model 3500
•    Probe Body Stainless Steel
•    Element Probe: K03005
•    Element T20 (10 mils Probe Span)
•    Length: 24"
•    Include: Standard Protective Shield

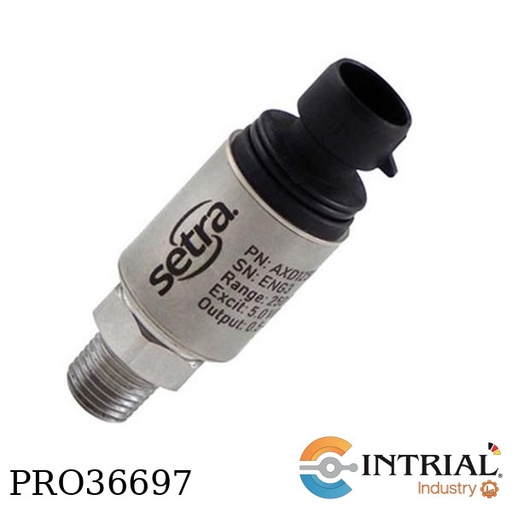

​ACCUSENSE AXD PRESSURE SENSOR
Brand: SETRA
AXD1: Material: 17-4 SS
010B: Pressure Unit: Bar
Pressure Range: 0-10
G: Pressure Type: Gauge
L4: Pressure Fitting: 1/4in SAE-F w/deflater
fitting
11: Output: 4 to 20 mA
M4: Electrical Termination: M12, 4 Pin
F: Accuracy: +/- 0.25% FS

EPS Electromagnetic Flow Meter
Model: EPS-P-208R-1-H-0-1-0+ UMF2-A-1-2-G-0BK
Brand: Heinrichs (KOBOLD Group)
[EPS-P]: Sensor Model
Material Lining, PTFE
Electrodes, Standard 2x Measuring Electrodes
Process temperature, -20°C...150°C
[208R]: Process connection, 3" Class 150 RF ASME B16.5-2003
Max. measuring range, 170 m³/h, length, Installation, 272 mm
[1]: Material Process connection, Flange steel painted
[H]: Material electrodes, Hastelloy C276
[0]: Earthing electrode, w/o
[1]: Transmitter mounting, Integrated transmitter
Protection class, IP67
[0]: Certificates, w/o
UMF2-A-1-2-G-0BK
[UMF2]:Transmitter
[A]: Mounting, Integrated transmitter IP 67
Thread - electrical connection, 1/2 NPT
[1]: Display and control unit, integrated
[2]: Power supply, 115V AC (+10%, -15%), 50/60Hz
[G]: Output Signal:
current output: 1x 0/4-20 mA c/w HART protocoll
pulse output: passive Um=24 VDC
status output: passive Um=24 VDC
[0BK]: Design, Kobold


FLOWMETER E6-2600/H
Brand: ASA
Fluid H2O
Flow range 30-330 kg/h
Limit temperature 30°C
Operating temperature 0°C/+120°C
Operating pressure 1 bar g
Max pressure 11 bar
Delta P 16 mbar
Specific gravity 1 kg/l
Flanged connections 1/2" ANSI 150 RF
Flanges material AISI 316L stainless steel
Inlet vertical
Outlet vertical
External housing material Carbon steel
Metering tube material pyrex glass
Float material AISI 316L stainless steel
Seals material Viton
Float-stops material AISI 316L stainless steel
Wetted parts AISI 316L stainless steel
Type of float with guiide
Scale length 240 mm
Accuracy (+- f.s.v.) 2%
Protection plexiglass

MICROFAST MOLDED CORDSETS
BRAND: TURCK ELEKTRONIK
1/2 IN FEMALE TO PIGTAIL
2 METERS

Low Volume Flowmeter/-switch
Brand: Kobold (Alemania)
Model: KSK-2-050-H-P08-00

[KSK-2]:
Operation principle variable area
Mounting position vertical
Flow direction from bottom
Material Polysulfone
Accuracy Class 4
Max. temperature 100 °C*
* with PVC-Connection max. 60 °C
Max. pressure PN 10
Seal EPDM
[050] Measuring range, 5...50 L/h water
[H] Scale, L/h waterscale
[P08] Connection for size,

Low Volume Flowmeters
Brand: Kobold (Alemania)
Model: KSV-14-35
[KSV-14]
Operating principle, variable area
Mounting position vertical, from bottom
Accuracy ± 6% FS
Max. temperature, 120 °C
Max. pressure 6 bar
Needle valve (only KSV-1), bottom
Connection,1/8 NPT female on rear
Seal, NBR
Housing material, Polysulfone
[35]: Measuring range, 0.35...1.5 Nm³/h air

Low Volume Flowmeter
Brand: Kobold (Alemania)
Model: KDF-92-85-N-V-0-00-0
[KDF-92]
Mounting length: 90 mm
Operating principle: variable area
Flow direction: from bottom to top
Body material: st.st.
Glass: Borosilicate
Accuracy: class 3
Max. temperature: without/with contact 100
°C / 70 °C
Max. pressure: PN 16
[85]: Measuring range: 4,0...40 L/h water
[N]: Connection, 1/4 NPT
[V]: Seal, FPM
[0]: Wall mounting kit, w/o
[00]: Contacts measuring range: w/o
[0]: Flow differential pressure regulator, w/o

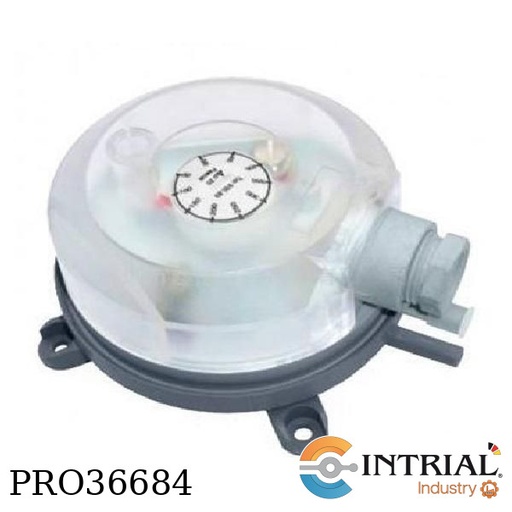

DIFFERENTIAL PRESSURE SWITCH
BRAND: HONEYWELL
ADJUSTABLE UPPER TRIP PRESSURE
20-200 PA TRIP RANGE
5000 PA MAX OPERATING PRESSURE
1.5 AMP/250 VAC SWITCHING CAPACITY
IP54 ENCLOSURE PROTECTION

DIGITAL THERMOSTAT WITH WIDE LCD DISPLAY
Brand: HONEYWELL
Application: 2-pipe or 4-pipe
Mounting: Vertical mounting on 86 x 86 mm junction box or 2x4 junction box
Electrical Ratings: Rating for Fan: 4(2)A rating for valve: 2(1)A
Frequency: 50 Hz; 60 Hz
Operating Humidity Range (% RH): 5-90%
Supply Voltage: 220 Vac +10%,-15%
Switch Positions (System): HEAT-OFF-COOL
Color: white with green ring
Display:  None
Changeover: Manual
Setting Temperature Range (F):  50 F to 90 F
Setting Temperature Range (C): 10 C to 32 C

TEMPERATURE SENSOR
Brand: DWYER
Housing: Duct Flange In Housing
Sensor Type: 10K Type III Thermistor
Insertion Length:  6"
Probe Diameter: 1/4" Double Encapsulated
Cable Configuration: 4" Flying Leads with Spade Terminals
Connection Size: None - Replacement Probe

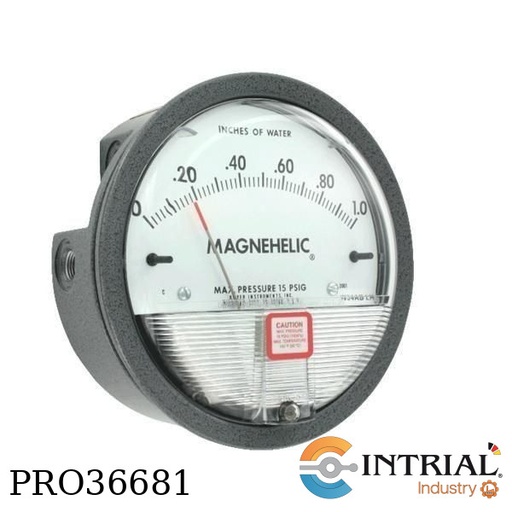

MAGNEHELIC - MANOMETRO PRESION DIFERENCIAL
ZERO CENTER RANGES
MARCA: DWYER INSTRUMENTS
Rango: .25-0-.25 Inches of water
Conexión: 1/8 NPT hembra
Dial: 4"
Precisión: +/-4%

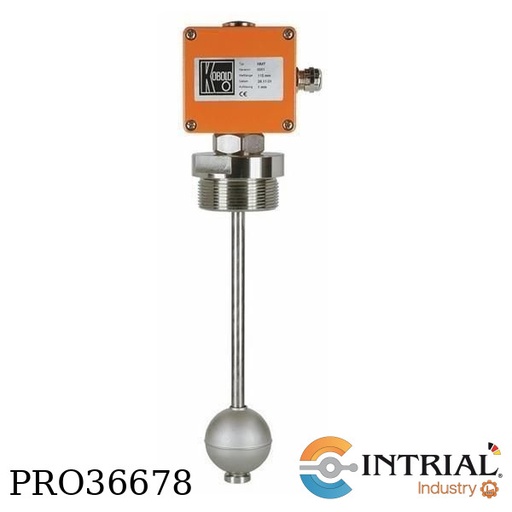

Magnetostrictive Level Meter
Brand: Kobold (Alemania)
Model: NMT-12-08-N50
[NMT-12]:
Guiding tube St. St.
Connection St. St.
Float St. St.
Max. temperature 70 °C
Max. pressure PN 10
Output 4..20 mA
Power supply 24 VDC
Measuring length = 1000 mm
[08]: Medium density, 0,7 kg/dm³
[N50]: Connection, 2 NPT

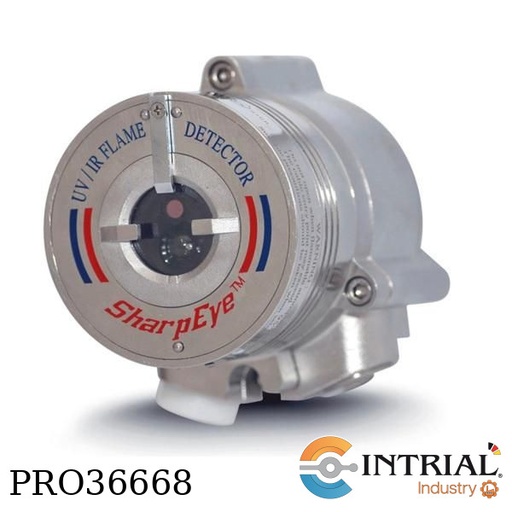

FLAME DETECTOR WITH UV (ULTRAVIOLET) AND IR(INFRARED)
Brand: SHARPEYE
sensor for hydrocarbon-based fuel and gas fires
hydroxyl and hydrogen fires
metal and inorganic fires.
3 Relays (Alarm, Fault and Auxiliary)
0-20mA stepped
compatible with RS-485 Modbus.
Built-in-test (BIT) optional.
Ex approved for Zone 1, ATEX, IECEx, FM and CSA Class I Div 1.

FLOW SWITCH
Brand: HONSBERG
Nominal diameter: 22 mm
Connection: Connection for system
Housing: Aluminium
Pressure resistance: PS 100
Internal parts: Stainless steel 1.4571 flanged piston
O-ring: CR
Media temperature: -40 ... +100 °C (medium)
Switch point H2O: Adjusted 10 l/min H2O, falling
Switching head: Plastic PC
Adjustment: None
Electrical connection: Round plug connector M12x1, 4-pin
Electrical contact: Reed switch
Max. contact load: 24 V DC 0.5 A 10 W
Connection diagram: Normally-open contact, connection diagram no. 0.419
Protection type: IP67
Flow direction: Horizontal

DIAPHRAGM OPERATED PRESSURE SWITCH
Pressure Limit: 1200 psig (82.6 bar).
Brand DWYER
EC-Type Certificate KEMA 04ATEX2186 X
ATEX Standards: EN 60079-0:2009; EN 60079-1:2007
IECEx Certified for Ex d IIC T6 Gb
IEC Standards: IEC 60079-0:2007; IEC 60079-1:2007
IECEx Certificate of Conformity: IECEx DEK 11.0095X
Switch Type: SPDT or DPDT snap switch.
Electrical Rating: See model chart.
Electrical Connections: Screw terminal.
Conduit Connection: 3/4˝ female NPT.
Process Connection: 1/2˝ female NPT.
Mounting Orientation: Within 20° of vertical.
Set Point Adjustment: Internal 7/16˝ hex nuts.
Weight: 3.5 lb (1.6 kg).
Deadband: See deadband chart.

Plastic Flowmeter/-switch
Brand: Kobold (Alemania)
Model: KSM-1-120-M-P40-R0
[KSM-1]:
Operating principle: variable area
Mounting position: vertical
Flow direction: from bottom
Armature material: Trogamide
Accuracy: ±4 % FS
Max. temperature 60 °C
Max. pressure 16 bar
[120]: Measuring range, 1200...12000 L/h water
[M]: either scales for liquid media, L/min water
[P40]: Option connection for size 120, PVC G 1 1/2 female
[R0]: Option contact, w/o contact

RF100ChD402(0a160PSI)
MANÓMETRO TIPO BOURDON CON GLICERINA
Marca: AFRISO (Alemania)
Rangos: 0 a 160 PSI
Diámetro de Carcasa: 4''(100 mm)
Precisión: 1.0
Temperatura operación medio: Max 150°C
Material caja /conexión: Acero inoxidable
304/Acero Inoxidable 316
Doble escala: PSI/BAR

MD30(31417W)(PFA)
SELLO DE DIAFRAGMA
Marca: AFRISO (Alemania)
Presión Nominal: PN25
Conexión a Proceso: ½” NPT
Material del cuerpo: Acero Inoxidable
Material del diafragma: PFA
