EPS Electromagnetic Flow Meter
Model: EPS-H-345B-1-S-S-1-0+UMF2-A-1-1-G-0BH
Brand: Kobold-Heinrich
[EPS-H]: Material Lining, Hard Rubber (Ebonit)
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, Process-Temperature 0°C...95°C
[345B]:Process connection,DN150 PN16 Form B1 DIN EN 1092-1
Max. measuring range, 632 m³/h, Installation length, 300 mm.
[1]: Material Process connection, Flange steel painted
[S]: Material electrodes, st.st. 1.4571 (316 -TI)
[S]: Earthing electrode, st.st. 1.4571 (316 TI)
[1]: Transmitter mounting, Integrated transmitter, Protection class, sensor, IP67,
[0]:Certificates, w/o
UMF2-A-1-1-G-0BK
[UMF2]:Transmitter
[A]: Mounting IP 67, Integrated transmitter IP 67 standard
Thread - electrical connection, ½" NPT (f)
[1]: Display and control unit, integrated
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz,
[G]: Output Signal:
current output: 1x 0/4-20 mA c/w HART protocoll
pulse output: passive Um=24 VDC
status output: passive Um=24 VDC
[0BK]: Design, Kobold

HD2K-025GM025E
Flow Switch
Brand: HONSBERG
Nominal diameter: DN 25 - G 1
Connection: Female thread
Connection material: Brass CW614N nickel-plated
Seals: NBR
Pressure resistance: PN 200
Media temperature: -20 ... +85 °C
Environmental temperature: -20 ... +70 °C
Switching range: 2.5 ... 25 l/min oil 30 ... 330 mm²/s
Flow direction: Horizontal from the left
Electrical connection: Via Evaluation electronics

OMNI-HD-2KISO
Flow Meter / -Switch OMNI-HD
Brand: HONSBERG
For base device: Viscosity compensated
Housing: Stainless steel 1.4305, oil filled
Media temperature: -20 ... +85 °C
Environmental temperature: -20 ... +70 °C
Programming: Via POM adjusting ring
Voltage supply: 18 .. 30 V DC
Analogue output: Current output 0/4 ... 20 mA
Limit values: Min and max adjustable
Electrical connection: For round plug connector M12x1, 5-pin
Switching output: 2 x push-pull output
Protection type: IP67
Hysteresis: Adjustable
Display: Graphic LCD , backlit + red signal LED
Dimension display: l/min
Options 1: Tropic version with oil filling

HD2K-025GM060E
Flow Switch
Brand: HONSBERG
Nominal diameter: DN 25 - G 1
Connection: Female thread
Connection material: Brass CW614N nickel-plated
Seals: NBR
Pressure resistance: PN 200
Media temperature: -20 ... +85 °C
Environmental temperature: -20 ... +70 °C
Switching range: 12 ... 60 l/min oil 30 ... 330 mm²/s
Flow direction: Horizontal from the left
Electrical connection: Via Evaluation electronics

OMNI-HD-2KISO
Flow Meter / -Switch OMNI-HD
Brand: HONSBERG
For base device: Viscosity compensated
Housing: Stainless steel 1.4305, oil filled
Media temperature: -20 ... +85 °C
Environmental temperature: -20 ... +70 °C
Programming: Via POM adjusting ring
Voltage supply: 18 .. 30 V DC
Analogue output: Current output 0/4 ... 20 mA
Limit values: Min and max adjustable
Electrical connection: For round plug connector M12x1, 5-pin
Switching output: 2 x push-pull output
Protection type: IP67
Hysteresis: Adjustable
Display: Graphic LCD , backlit + red signal LED
Dimension display: l/min
Options 1: Tropic version with oil filling

HD2K-025GM040E
Flow Switch
Brand: HONSBERG
Nominal diameter: DN 25 - G 1
Connection: Female thread
Connection material: Brass CW614N nickel-plated
Seals: NBR
Pressure resistance: PN 200
Media temperature: -20 ... +85 °C
Environmental temperature: -20 ... +70 °C
Switching range: 6 ... 40 l/min oil 30 ... 330 mm²/s
Flow direction: Horizontal from the left
Electrical connection: Via Evaluation electronics

OMNI-HD-2KISO
Flow Meter / -Switch OMNI-HD
Brand: HONSBERG
For base device: Viscosity compensated
Housing: Stainless steel 1.4305, oil filled
Media temperature: -20 ... +85 °C
Environmental temperature: -20 ... +70 °C
Programming: Via POM adjusting ring
Voltage supply: 18 .. 30 V DC
Analogue output: Current output 0/4 ... 20 mA
Limit values: Min and max adjustable
Electrical connection: For round plug connector M12x1, 5-pin
Switching output: 2 x push-pull output
Protection type: IP67
Hysteresis: Adjustable
Display: Graphic LCD , backlit + red signal LED
Dimension display: l/min
Options 1: Tropic version with oil filling

HD2K-025GM008E
Flow Switch
Brand: HONSBERG
Nominal diameter: DN 25 - G 1
Connection: Female thread
Connection material: Brass CW614N nickel-plated
Seals: NBR
Pressure resistance: PN 200
Media temperature: -20 ... +85 °C
Environmental temperature: -20 ... +70 °C
Switching range: 0.5 ... 8 l/min oil 30 ... 330 mm²/s
Flow direction: Horizontal from the left
Electrical connection: Via Evaluation electronics
OMNI-HD-2KISO
Flow Meter / -Switch OMNI-HD
Brand: HONSBERG
For base device: Viscosity compensated
Housing: Stainless steel 1.4305, oil filled
Media temperature: -20 ... +85 °C
Environmental temperature: -20 ... +70 °C
Programming: Via POM adjusting ring
Voltage supply: 18 .. 30 V DC
Analogue output: Current output 0/4 ... 20 mA
Limit values: Min and max adjustable
Electrical connection: For round plug connector M12x1, 5-pin
Switching output: 2 x push-pull output
Protection type: IP67
Hysteresis: Adjustable
Display: Graphic LCD , backlit + red signal LED
Dimension display: l/min
Options 1: Tropic version with oil filling

TEMPERATURE MONITOR
Brand: HONSBERG
Switching range: 40 °C on
Connection material: Brass
Connection: Thread G ½ A
Connection type: Screw-in thread
Pressure resistance: PN 100
Media temperature: -20 ... +90 °C
Environmental temperature: -20 ... +70 °C
Electrical connection: Plug DIN 43650-A / ISO 4400
Electrical contact: Bi-metal
Max. contact load: 250 V AC 10 A
Connection diagram: Normally-open contact, connection diagram no. 0.212
Protection type: IP65
Switching point tolerance: ±10 K
Hysteresis: 10 ... 20 K

SENSORES MAGNETORRESTRICTIVOS
Marca: BALLUFF
Consumo de corriente máx. para 24 V CC 120 mA
Corriente de pico de conexión ≤ 500 mA/10 ms
Protección contra sobretensión Ub hasta 36 V
Retardo de conexión máx. 600 ms
Separación galvánica no
Señal de error Ia creciente 3.6 mA
Señal de error Ua creciente ~ -0.25 V
Señal de error Ua decreciente ~ -0.25 V
Tensión de servicio Ub 10...30 VDC
Diámetro de la carcasa 79 mm
Fijación Brida Ø18h6 más agujeros
Longitud de montaje desde la superficie de apoyo 300 mm
Salida analógica Corriente analógica 4…20 mA

REVERSE MOUNT PROBE
Brand : Bently Nevada

HEAVY-DUTY, HOLLOWSHAFT ENCODER
Brand: DYNAPAR
PPR: 006
Bore Size: 6mm
Fixing: Same as B with 56C cover (Single Output)
Output Format: ABZ, 5-26VDC O/C (7273)
Termination: 10 Pin Connector
Options: Reverse Phasing (A leads B, CCW)
Housing Material Aluminum
Max. Operating Speed 6,000 RPM
Protection Class (IP) IP67
Approvals / Certifications CE, ROHS
Operating Temperature Range -40ºC to +100ºC
Storage Temperature -40ºC to +100ºC
Enviroment Non-Hazardous

BIMETAL THERMOMETER
Brand: DWYER
Wetted Materials: 304 SS.
Housing Material: Series 300 SS.
Lens: Glass.
Accuracy: ±1% FS.
Response Time: ≤ 40 s.
Process Connection: 1/2˝ NPT on 3˝
Stem Diameter: 1/4˝ OD. Immersion Depth: Minimum 2˝ in liquids, 4˝ in gas.
Dial Size: 3”
Stem Length: 2-1/2˝
Connection: Back
Range °F (°C): 0 to 200 (-20 to 100)
Degree Div °F (°C): 2 (2)

INDUSTRIAL DIRECT READING FLOWMETERS
Brand: DWYER
Service: Liquids or gases.
Temperature Limit: 200°F (93°C).
Pressure Limit: 200 psi (13.8 bar)
Repeatability: ±0.5% of FS.
Turn-Down Ratio: 10:1.
Scale: Dual scale GPM and SCFM.
Mounting: Vertical.
Front Shield: Polycarbonate.
Side Panels: 304 SS.
Maximum Flow Rate: 14 (50) Water GPM (LPM); 62 (1800) Air SCFM (LPM)
Tube Size: 4
Press. Drop (in H2O): 24

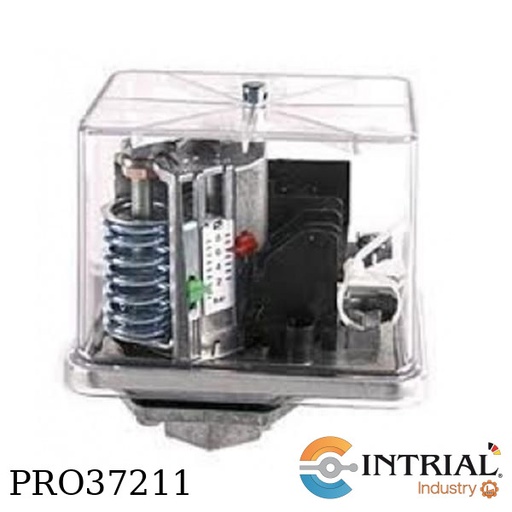

PRESSURE SWITCH
Brand: TIVAL
Upper switch pt. adjustable (bar): 0,5 ... 8
Lower switch pt. adjustable (bar): 0,2 ... 7,5
Smallest diff.* (bar): 0,3 0,5
Max. Operating pressure (bar): 30
Max. test pressure (bar): 40
Standard setting (bar) 2 / 6
G 3/8“ Female thread
DIN 1725/2
ALSi 12. VDE 0660

HUMIDITY/TEMPERATUREDEW POINT TRANSMITTER
Brand: DWYER
Accuracy: 2% accuracy
Housing: North American style wall mount
Humidity/Dew Point Output: 4-20 mA/0-5 VDC/0-10 VDC
Temperature Output: None

Screw-in resistance thermometer
1 x Pt 100 Ohm DIN EN 60751, class B,
2-wire
probe tip sleeve ø 12,7 x 103,2 mm
tube ø 6 x 210 mm, nominal length 313,2mm,
material 1.4571
sliding screw connection 1/2 "NPT
SW22, thread length 13,6 mm
connection head type B
with 5000 mm connection cable glass silk/glass
silk/steel braided (cable no. 117A),
temperature range: -50 up to +200°C
Incluye Calibracion de 3 puntos
like to your drawing

Srew-in resistance thermometer
1 x Pt 100 Ohm DIN EN 60751
class B, 2-wire,
probe tip sleeve ø 18 x 104,1 mm,
Tube ø 6 x 140 mm,
nominal length 244,1mm,
material 1.4571,
sliding screw connection 1 "NPT,
SW36, thread length 22,5 mm
connection head type B
with 5000 mm connection cable glass silk/glass silk/steel
braided (cable no. 117A)
temperature range: -50 up to +200°C, like to your drawing
Incluye Calibracion de 3 puntos

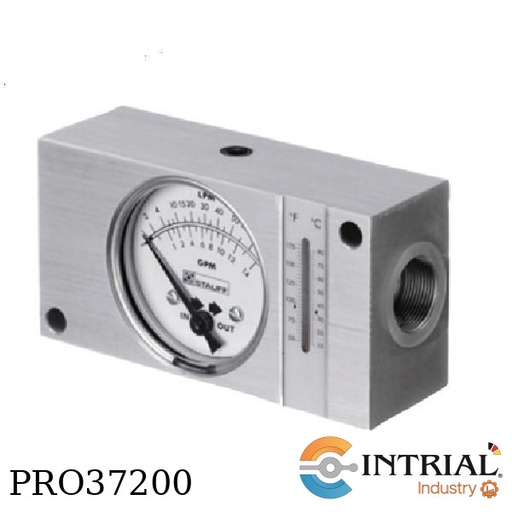

FLOW INDICATOR TYPE SDM
Brand: STAUFF
Size: 1500 (only SDM)
Housing Material: Aluminium
Max. Working Pressure (bar/PSI): 350 / 5075
Flow Range (l/min/US GPM) Aluminum Units: 20 – 300 / 4-80
Connection: G1-1/2

TEMPERATURE SWICHGAGE
Brand: MURPHY
2-1/2 inch/64 mm dial
Range: 130 – 250°F (54 – 121°C)
Adapter Nut: 1/2-14 NPT
Capillary: PVC armored copper; 8 ft.
Sensing Bulb: Copper
Maximum Temperature: 310°F (154°C)
Standard Settings: 210°F (99°C)
Capillary: PVC armored copper; 20 ft.

TEMPERATURE SWICHGAGE
Brand: MURPHY
2-1/2 inch/64 mm dial
Range: 130 – 250°F (54 – 121°C)
Adapter Nut: 1/2-14 NPT
Capillary: PVC armored copper; 8 ft.
Sensing Bulb: Copper
Maximum Temperature: 310°F (154°C)
Standard Settings: 210°F (99°C)
Capillary: PVC armored copper; 8 ft.

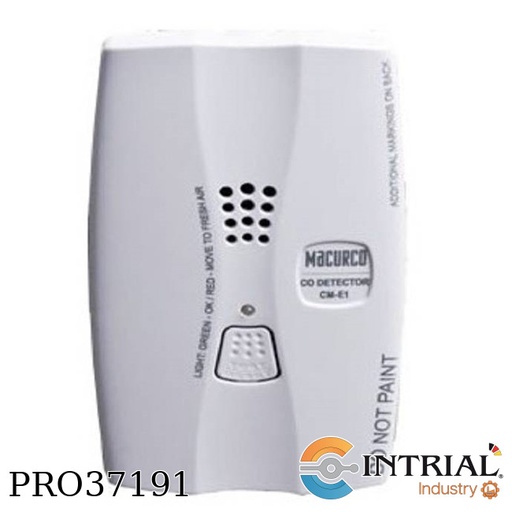

DETECTOR DE MONOXIDO DE CARBONO
Marca: MACURCO
Voltaje: 9-32 VDC
Corriente (normal / alarma): 15mA / 35mA @ 9-32V
Tamaño: 3-1/8 X 5-1/8 X 1-1/2 pulgada (7.94 x 13.02 x 3.81 cm)
Relevador de Alarma: SPST, 100mA, 40VDC
Relevador de Avería: SPST, 100mA, 40VDC
Calificación de Sonador/Bocina: 85 dBA a 10 Pies
Temperatura de funcionamiento. Rango: 40° F a 100° F (4.4 ° C a 37.8° C)

TERMOHIGRÓMETRO DIGITAL
Marca: DELTATRAK
Modelo: 13309
T° Interna: 14°F a 122°F(-10°C a 50°C)
Sonda Externa: -58°F a 158°F (-50°C a 70°C)
Humedad: Interna: 10% a 99%
