Precios en Soles
Ordenar por: Destacado

Automatización Industrial

Flujometro Electromagnetico EPS, 17.6 m3/h, 1" Class 150 RF, Hard Rubber, Electrodo Hastelloy C276,
EPS MAGNETIC INDUCTIVE FLOWMETER
Brand: Kobold–Heinrichs
Material Lining, Hard Rubber
Process connection, 1" Class 150 RF
Material electrodes, Hastelloy
Earthing electrode, Hastelloy
Power supply, 230VAC (+10%, -15%), 50/60Hz
Output signal, 1x 0/4-20 mA
Cable, 15 m
S/ 8,664.29 8664.29 PEN
FLUJOMETRO EN POLICARBONATO, 1 a 11 GPH, 130°F (54°C), 100 psi (6,9 bar)
FLUJOMETRO EN POLICARBONATO
 Marca: DWYER
RMA 2" escala
 42: Rango:  1 a 11 GPH;  Aire
Proceso de conexión: 1/8"
Precision: 4%
Límite de temperatura: 130°F (54°C)
 Límite de presión: 100 psi (6,9 bar)
Materiales en contacto: Cuerpo: en policarbonato
 O-ring: neopreno y buna-N
 Piezas de metal: Acero Inoxidable
Flotador: Acero Inoxidable
S/ 567.61 567.61 PEN

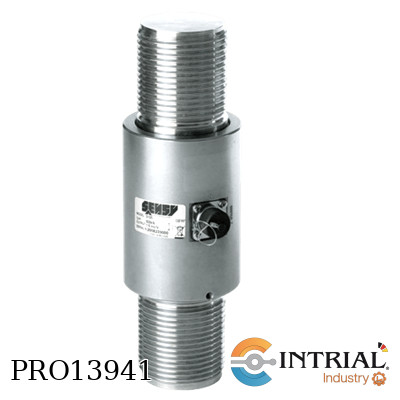

LOAD CELL Capacity 50kN Accuracy class 0.05 Cable length 3 m
LOAD CELL 5105-50Kn
Brand: SENSY
Tension and compression load cell
Nickel plated steel
Capacity 50kN
Breaking Load 300 %
Maximum operating load 150 %
Accuracy class 0.05
sizes  M= M24x2.
Cable length 3 m
Protection IP66
Output signal ( sensitivity) ±1.5 mV/V
S/ 7,287.38 7287.38 PEN

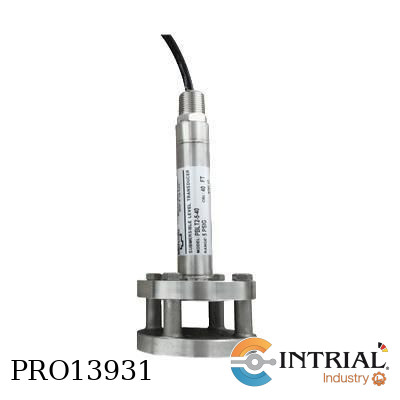

SUBMERSIBLE LEVEL TRANSMITTERS, 20 PSI , 316 SS, 316L SS, ±0.25% FS
SUBMERSIBLE LEVEL TRANSMITTERS
 BRAND: DWYER
 Range: 20 PSI
 Cable Length 500 feet
 Service: Compatible liquids.
 Wetted Materials: 316 SS, 316L SS; cable ETFE
 Accuracy: ±0.25% FS (includes linearity, hysteresis, and repeatability).
 Temperature Limit: PBLT2: 0 to 200°F (-18 to 93°C)
Compensated Temperature Range: PBLT2: 0 to 180°F (-18 to 82°C)
 Thermal Effect: ±0.02% FS/°F.
 Pressure Limit: 2X FS.
 Power Requirement: PBLT2: 13 to 30 VDC.
 Output Signal: 4 to 20 mA DC, two wire.
 Response Time: 50 ms.
 Loop Resistance: 900 Ω.
 Electrical Connection: Wire pigtail.
 Mounting Orientation: Suspended in tank below level being measured.
 Electrical Protection: PBLT2: Lightning and surge protection
Weight: 4.3 lb (2.0 kg).
 Agency Approvals: PBLT2: CE.
S/ 12,011.36 12011.36 PEN
Flujometro Electromagnetico EPS, 282 m3/h, 4" Class 150 RF, PTFE, Electrodo Hastelloy C276, HART, Ca
EPS MAGNETIC INDUCTIVE FLOWMETER
Brand: Kobold–Heinrichs
Material Lining, PTFE
Process connection, 4" Class 150 RF
Material electrodes, Hastelloy
Earthing electrode, w/o
Power supply, 24VDC (±15%)
Output signal, 1x 0/4-20 mA c/w HART protocol
Cable, 10 mts
S/ 9,607.70 9607.7 PEN
Flujometro Electromagnetico EPS, 180 m3/h, 3" Class 150 RF, PTFE, Electrodo Hastelloy C276, HART, Ca
EPS MAGNETIC INDUCTIVE FLOWMETER
Brand: Kobold – Heinrichs
Material Lining, PTFE
Process connection, 3" Class 150 RF ASME
Material electrodes, Hastelloy
Earthing electrode, w/o
Power supply, 24 VDC (±15%)
Output signal, 1x 0/4-20 mA, HART protocol
Cable,10 m
S/ 9,424.41 9424.41 PEN
Flujometro Electromagnetico EPS, 70 m3/h, 2" Class 150 RF, PTFE, Electrodo Hastelloy C276, Cable 10
EPS-P-206R-1-H-0-2-0
EPS MAGNETIC INDUCTIVE FLOWMETER
Brand: Kobold – Heinrichs (Germany)
[EPS]: Model Sensor
[P]: Material Lining, PTFE,
Standard 2x Measuring Electrodes, -20°C...150°C
[206R]: Process connection, 2" Class 150 RF ASME B16.5-2003,
Max. measuring range (Water 20°C, 1 mPas), 70 m³/h
[1]: Material Process connection, Flange steel painted
[H] :Material electrodes, Hastelloy (Standard for PTFE / PFA -lining)
[0]: Earthing electrode, w/o, (Standard for PTFE / PFA / ceramic - lining)
[2]: Transmitter mounting, Remote Transmitter IP 67 terminal conn.box via M 20 x 1,5 cable > 10m add. term. Conn.box on transmitter
[0]:Certificates, w/o
UMF2-C-1-4-G-0BH-2
[UMF2]: Model Transmitter
[C]: Mounting, Remote transmitter, Thread - electrical connection, ½” NPT (f)
[1]: Display and control unit, integrated
[4]: Power supply, 24V DC (±15%)
[G]: Output: current output: 1x 0/4-20 mA c/w HART protocol
pulse output: passive Um=24 VDC
status output: passive Um=24 VDC
[0BH]: Design, Heinrichs
[2]: Longer cable, 10m breakout cable
S/ 9,035.88 9035.880000000001 PEN
MEDIDOR DE AGUA INDUSTRIAL, 1 1/2” NPT, 5 A 100 GPM, 11-13/16 Pulg (300 mm)
MEDIDOR DE AGUA INDUSTRIAL
Marca: DWYER INSTRUMENTS
Cuerrpo Laton
Conexion: 1 1/2” NPT
Flujo maximo: 100 GPM
Rango flujo nominal: 5 A 100 GPM
Longitud del medidor: 11-13/16 Pulg (300 mm)
Materiales en contacto: Cuerpo: Latón, polietileno; Conexiones: latón; Medición
Cámara: polietileno, plástico ABS, ferrita, acetal.
Precisión: Transición: ± 5%; Caudal nominal: ± 2%.
Límite de temperatura: 104 ° F (40 ° C).
Límite de presión: 232 psi (16 bar).
Orientación de montaje: Horizontal.
S/ 1,647.90 1647.9 PEN
MEDIDOR DE AGUA INDUSTRIAL, 1” NPT, 3 A 50 GPM, 10-1/4 Pulg (260 mm), ± 5%
MEDIDOR DE AGUA INDUSTRIAL
Marca: DWYER INSTRUMENTS
Cuerrpo Laton
Conexion: 1” NPT
Flujo maximo: 50 GPM
Rango flujo nominal: 3 A 50 GPM
Longitud del medidor: 10-1/4 Pulg (260 mm)
Materiales en contacto: Cuerpo: Latón, polietileno; Conexiones: latón; Medición
Cámara: polietileno, plástico ABS, ferrita, acetal.
Precisión: Transición: ± 5%; Caudal nominal: ± 2%.
Límite de temperatura: 104 ° F (40 ° C).
Límite de presión: 232 psi (16 bar).
Orientación de montaje: Horizontal.
S/ 1,061.98 1061.98 PEN

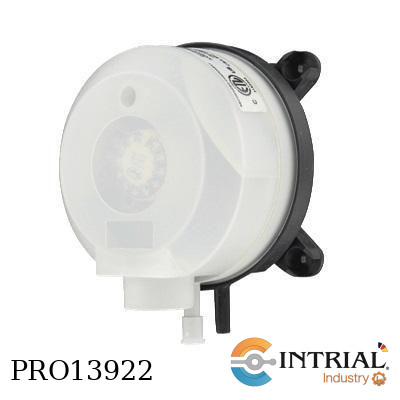

DIFFERENTIAL PRESSURE SWITCH, 0.08 – 1.20” w.c, -20 – 60°C., 10kPa. , NEMA 13 (IP54).
DIFFERENTIAL PRESSURE SWITCH
Brand: DWYER
Range: 0.08 – 1.20” w.c with M20 connection
Temperature Limits: -20 – 60°C.
Pressure Max: 10kPa.
Switch Type: Single-pole double-throw (SPDT)
Electrical connections: Push-on screw terminals. 1/2" NPT connection M20.
Enclosure Rating: NEMA 13 (IP54).
Weight: 160 g.
S/ 252.68 252.68 PEN
MINIHELIC DIFFERENTIAL PRESSURE GAGE, 0 – 3.0”, ±5% of F.S. , -6.67 – 48.9 °C, 30 psi
MINIHELIC DIFFERENTIAL PRESSURE GAGE
Brand: DWYER
Range: 0 – 3.0”
Housing: Glass filled nylon; polycarbonate lens.
Accuracy: ±5% of F.S.
Pressure Limits: 30 psi
Temperature Limits: -6.67 – 48.9 °C
Process Connections: Barbed, for 3/16" ID tubing (standard); 1/8" male NPT (optional).
Weight: 170.1 g
S/ 362.54 362.54 PEN
INDUSTRIAL DIRECT READING FLOWMETERS, 5” w.c., 93°C, 2” female NPT.
INDUSTRIAL DIRECT READING FLOWMETERS
Brand: DWYER
Maximum Flow Rate: 41 GPM (155 LPM) Water, 160 SCFM (4531 LPM) Air.
Tube size: 6
Pressure drop: 5” w.c.
Process Connection: 2” female NPT.
Temperature Limit: 93°C
Accuracy: ±3% of F.S.
Repeatability: ±0.5% of F.S.
Mounting: Vertical.).


S/ 5,976.38 5976.38 PEN
ROTATABLE SCALE FLOWMETERS, ±7% FS., 30 SCFM, 5 GPM, 121°C
ROTATABLE SCALE FLOWMETERS
Brand: DWYER
Max. Flow Rate: 30 SCFM (900 SLPM) air, 5 GPM (20 LPM) Water.
Accuracy: ±7% FS.
Repeatability: ±0.25% FS.
Scale: Direct Reading 127 mm scales for air and water.
Connections: Two 3/8" female NPT.
Temperature Limit: 121°C
Pressure Limit: 150 psig


S/ 2,556.08 2556.08 PEN
Hawk Cert-01
CERT-01
Include the following Certificate
•    ITP Certificate (Inspection Test Plan)
•    5 Points Calibration Certificate
•    Quality and Guarantee Certificate
S/ 2,235.07 2235.07 PEN
Mounting Extension Pipe 5mts Lenght
OSIRMEL 5
Mounting Extension Pipe
* Stainles Steel Pipe
* Lenght: 5 mts
S/ 2,235.07 2235.07 PEN
Flujometro Electromagnetico EPS, 17.6 m3/h, 1" Class 150 RF, Hard Rubber, Electrodo St. St., Cable 1
EPS MAGNETIC INDUCTIVE FLOWMETER
Brand: Kobold–Heinrichs
Material Lining, Hard Rubber
Process connection, 1" Class 150 RF
Material electrodes, st.st. 1.4571
Earthing electrode, st.st. 1.4571
Power supply, 230VAC, 50/60Hz
Signal output, 1x 0/4-20 mA
Cable, 15m
S/ 8,664.29 8664.29 PEN
Flujometro Electromagnetico EPS, 70 m3/h, 2" Class 150 RF, Hard Rubber, Electrodo St. St., Cable 15
EPS MAGNETIC INDUCTIVE FLOWMETER
Brand: Kobold–Heinrichs
Material Lining, Hard Rubber
Process connection, 2" Class 150 RF
Material electrodes, st.st. 1.4571
Earthing electrode, st.st. 1.4571
Power supply, 230VAC, 50/60Hz
Signal output, 1x 0/4-20 mA
Cable, 15m
S/ 8,807.11 8807.11 PEN
Flujometro Electromagnetico EPS, 180 m3/h, 3" Class 150 RF, Hard Rubber, Electrodo St. St., Cable 15
EPS MAGNETIC INDUCTIVE FLOWMETER
Brand: Kobold–Heinrichs
Material Lining, Hard Rubber
Process connection, 3" Class 150 RF
Material electrodes, st.st. 1.4571
Earthing electrode, st.st. 1.4571
Power supply, 230VAC, 50/60Hz
Signal output, 1x 0/4-20 mA
Cable, 15m
S/ 0.00 0.0 PEN
Flujometro Electromagnetico EPS, 274 m3/h, 4" Class 150 RF, Hard Rubber, Electrodo Hastelloy C276
EPS MAGNETIC INDUCTIVE FLOWMETER
Brand: Kobold–Heinrichs
Material Lining, Hard Rubber (Ebonit),
Process connection, 4" Class 150 RF
Material electrodes, Hastelloy
Earthing electrode, Hastelloy
Power supply, 230VAC, 50/60Hz
Signal output, 1x 0/4-20 mA
Cable,15m
S/ 0.00 0.0 PEN

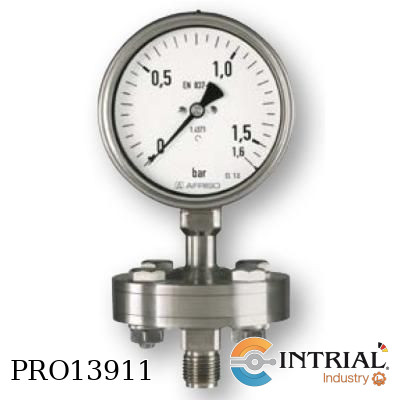

Manometro 4" sello diafragma 6bar
Modelo: RF100Ch,D402 (86525401) + MD30 (31417W)
RF100 Ch,D402 (0 a 6 Bar)
MANÓMETRO TIPO BOURDON CON GLICERINA
•         Marca: AFRISO (Alemania)
•         Rangos: 0 a 6 bar
•         Diámetro de Carcasa: 4''(100 mm)
•         Precisión: 1.0
•         Temperatura operación medio: Max 150°C
•         Material caja /conexión: Acero inoxidable 304/Acero Inoxidable 316
•         Doble escala: PSI/BAR
MD30 (31417W)
SELLO DE DIAFRAGMA MD 30 EN ACERO INOXIDABLE
•         Marca: AFRISO (Alemania)
•         Presión Nominal: PN25
•         Conexión a Proceso: ½” NPT
•         Conexión a Instrumento: Conexión Soldada
•         Material del diafragma: Acero Inoxidable 316
S/ 1,867.62 1867.6200000000001 PEN
