WATER LEAK SENSOR
Brand: SERVERSCHECK
Probe with 17ft/5m water detection cable
Detects presence of water anywhere along the cable.

SIGHT WINDOW
Shows Level or Contents of Tanks, Pipelines; Fused Glass and Steel Construction
Brand: DWYER
Service: Compatible gases and liquids.
Wetted Materials: Window: Glass; Body: Plated steel.
Temperature Limit: 200°F (93°C).
Pressure Limit: 125 psig (8.6 bar).
Connections: 1/2" male NPT

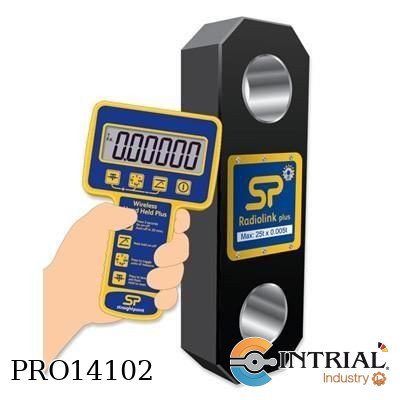

WIRELESS DYNAMOMETER WITH REMOTE DISPLAY
Brand: RADIOLINK-PLUS
165000 lb / 75te
without shackles
Accuracy: +/- 0.1% of Full Scale
Supplied with Traceable Calibration Certificate
2.4 GHz Wireless with Industry Leading Range (700 meters / 2300 feet)
IP67 (Dynamometer)/IP65 (Hand-Held Display)

WIRELESS DYNAMOMETER WITH REMOTE DISPLAY
Brand: RADIOLINK-PLUS
220000 lb / 100te
without shackles
Accuracy: +/- 0.1% of Full Scale
Supplied with Traceable Calibration Certificate
2.4 GHz Wireless with Industry Leading Range (700 meters / 2300 feet)
IP67 (Dynamometer)/IP65 (Hand-Held Display)

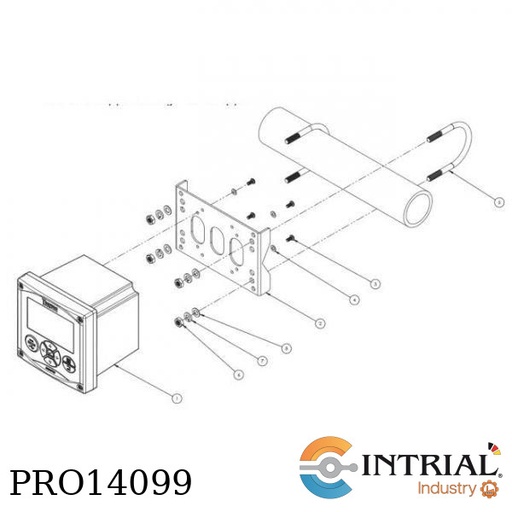

Pipe Mounting Kit
Hardware to mount Aquapro on a vertical or horizontal pipe
The hardware will accommodate pipe diameters between 1 inch and 2 inches.

AQUAPRO
Multi-Input Intelligent Process Analyzer
Controls up to 4 parameter with 4-20mA output for each one.
Display all 4 parameter in just one screen
Chanel 1: PH Analog
Chanel 2: Conductivity Sensor
Chanel 3, Chanel 4, Empty Channels
Power Supply: 90 to 240 VAC with 3 relays / NEMA 4X, Enclosure for indoor/Outdoor use
Output: Two 4-20mAmp.
Brand: Thermo Scientific

Model L4-SS-F2S1

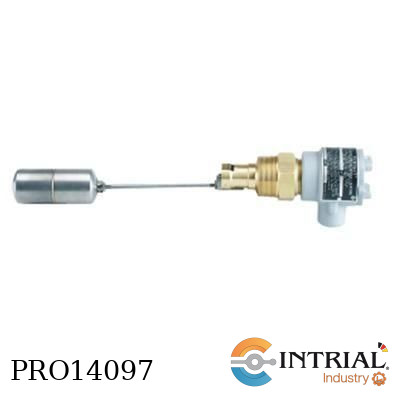

FLOTECT FLOAT SWITCH
First Set of Options
SS: 316 Stainless Steel Body (430SS Magnet Keeper)
Flanges/Bushings
F2S1: 2" 316SS 150# Flange
Brand: DWYER
Brass body, side wall mounting
Service: Liquids compatible with wetted materials.
Wetted Materials: Float and Rod: 316 SS; Body: Brass or 316 SS standard;
Magnet Keeper: 430 SS standard
Temperature Limits: 4 to 275°F (-20 to 135°C) standard
Pressure Limit: Brass body 1000 psig (69 bar)
Standard float rated 100 psig (6.9 bar)
Enclosure Rating: Weatherproof and Explosion-proof. **Listed with UL and CSA
for Class I, Groups C and D; Class II, Groups E, F, and G.
ATEX 0344 II 2 G Ex d IIB T6 Gb -20°C≤Tamb≤73°C.
Switch Type: SPDT snap switch standard,
Electrical Rating: UL, FM, ATEX and IECEx models: 10 A @ 125/250 VAC (V~).
CSA models: 5 A @ 125/250 VAC (V~); 5 A res., 3 A ind. @ 30 VDC (V ). MV
option: 1 A @ 125 VAC (V~); 1 A res., .5 A ind. @ 30 VDC (V ). MT option: 5 A @
125/250 VAC (V~). [MT and MV option not UL, CSA, FM, ATEX or IECEx].
Electrical Connections: UL and CSA models: 16 AWG, 6" (152 mm) long. ATEX and IECEx unit: terminal block.
Conduit Connection: 3/4" (19.05 mm) female NPT standard or M25 with –BSPT option.
Process Connection: 1-1/2" (38.10 mm) male NPT or 1-1/2" (38.10 mm) male
BSPT standard, 2-1/2" (63.50 mm) male NPT or 2-1/2" (63.50 mm) male BSPT standard optional floats.
Mounting Orientation: Horizontal installation standard, optional vertical top mount.
Dead Band: 3/4" (19 mm) for standard float.
Specific Gravity: 0.7 minimum with standard float. For other floats see model chart.
Weight: 4 lb 9 oz (2.07 kg).
Agency Approvals: ATEX, CE, CSA, FM, IECEx, UL**.

TURBINE FLOW METER
Turbine Body: Material Stainless steel
Fitting Type: NPT female
Turbine Size: 3/4" bore (2 to 20 GPM / 7.6 to 75.7 LPM)
Electronics: Local display 2-button computer, field configurable
Calibration: Gallons/minute

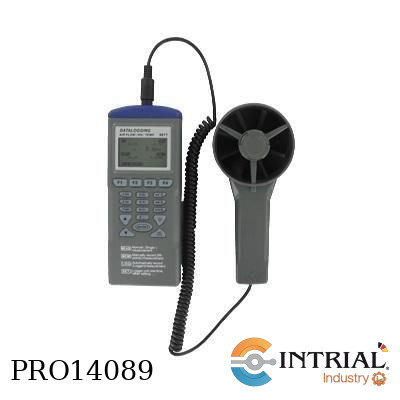

MULTI-FUNCTION VANE THERMO-ANEMOMETER
Brand: DWYER
AIR VELOCITY
Range: 118 to 6299 ft/min (0.6 to 32
m/s).
Accuracy: ±5% of reading or last
significant digit (whichever is greater).
Resolution: 0.1 ft/min (0.1 m/s).
Response Time: 1 second.
TEMPERATURE
Range: -4 to 140°F (-20 to 60°C).
Accuracy: ±1°F (±0.6°C).
Resolution: 0.1°F/°C.
Response Time: 60 seconds.
RELATIVE HUMIDITY
Range: 0 to 100%.
Accuracy: ±3% @ 25°C from 10 to
90% RH. Outside this range: ±5%.
Resolution: 0.10%.
Response Time: 60 seconds.
AIR VOLUME
Range: 0 to 99999 (CFM or m3/s).
Accuracy: ±5% of reading or last
significant digit (whichever is greater).
Resolution: 0.1 (0 to 9999.9) or 1
(10000 to 99999).
Response Time: 1 second.
WET BULB
Range: -7.6 to 158°F (-22 to 70°C).
Resolution: 0.1°F/°C.
METER
Display: 1 x 1.8 (26 x 45 mm).
Serial Communications: 9600 bps, 8
data bits, no parity.
Power Requirements: (4) AAA
alkaline batteries, included, user-replaceable.
Battery Life: 100 hours.
Vane Diameter: 3" (77 mm).
Weight: 6 oz (170 g).
Agency Approvals: CE.

MA-2 Mounting Accessories
Consisting of:
•    MA2-UW (2” UHMW Windows) and
•    MA2-WC (Mild steel weldment/coupling)

AWRT10T4XXXC15XX
Acoustic Wave Remote Transducer
10 kHz for applications up to 40m
Face Material: Teflon 80 C
Transducer Housing of Polypropylene
Connection IP68 Sealed Unit with cable
Cable Length: 15 m

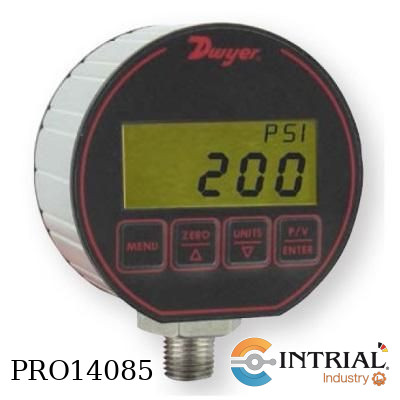

DPGAB-08
Digital pressure gage w/ boot, range 0-100 psi
DIGITAL PRESSURE GAGE
DPGAB: Air and compatible gases
DPGWB: Liquids and compatible gases
Wetted Materials: DPGAB: 316L SS, silicone sensor;
DPGWB: Type 316L SS
Housing Materials ABS plastic
Accuracy:±0.5% F.S. (includes linearity, hysteresis, repeatability)
Pressure Limits: 2X pressure range. Vacuum range max. pressure is 30 psig.
Temperature Limits:30 to 120°F (-1 to 49°C)
Thermal Effect:0.05% FS/°F.
Size:2.62" O.D. x 1.52" deep.
Process Connections:1/4" male NPT
Display: 4-digit LCD (.425" H x .234" W digits)
Power Requirements:Power Requirements:
Auto Shut-off:20 minute auto shut-off.
Weight:5.6 oz (160 g)

C08-10-4
* Focaliser Cone
* 8" cone for 10 kHz
* Polypropylene

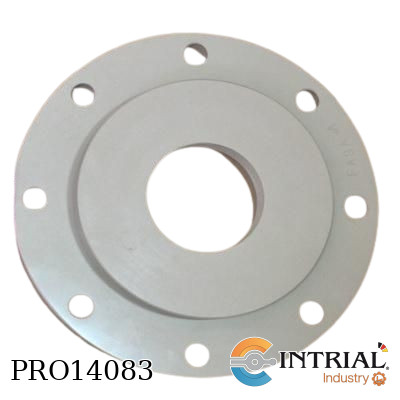

FA8-A4
*Flange ANSI
*8" Acoustically isolated flange (Fits 3" & 3.5" Units)
*Cone Mounted (Standard)
*Polypropylene

VISI-FLOAT® ACRYLIC FLOWMETERS
Brand: DWYER INSTRUMENTS
Range: .6 - 5 GPM Water
Wetted Materials: Body: Acrylic plastic;
Accuracy: VFB = 3% of FS
Process Connection: VFB ranges 85 and 86 have 1/4" NPT
back connections or 3/8" NPT end connections. These ranges not available with
brass valves.
Scale Length:VFB 4".

G1 Microwave Swith Series
Circular Polarization
• Gladiator 1” Microwave Integral RECEIVER, 1 Relay with Failsafe
• Electronic Housing: Powder Coated Aluminium
• Power Supply: 12-30VDC and 80-260VAC
• Mounting Thread: 1” NPT
• Approvals: ATEX  Grp II Cat 3 GD T85°C IP67 Tamb -40°C to 70°C

G1 Microwave Swith Series
Circular Polarization
Gladiator 1” Microwave Integral SENDER
Electronic Housing: Powder Coated Aluminium
Power Supply: 12-30VDC and 80-260VAC
Mounting Thread: 1” NPT
Approvals: ATEX Grp II Cat 3 GD T85°C IP67 Tamb -40°C to 70°C

GAS DETECTOR FLUORIDE OF HYDROGEN
Brand: GDS Corp. GASMAX/EC
Two-Wire Gas Monitor
with Local sensor head for reactive gases (IS)
configured for Hydrogen Fluoride
with range 0-10.0
ppm with 4-20mA output

AP13XXK-AP0PIPKT

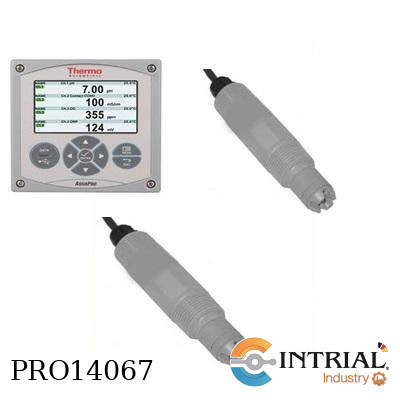

AQUAPRO
Multi-Input Intelligent Process Analyzer
Controls up to 4 parameter with 4-20mA output for each one.
Display all 4 parameter in just one screen
Chanel 1: PH Analog
Chanel 2: Conductivity Sensor
Chanel 3, Chanel 4, Empty Chanels
Power Suppy: 90 to 240 VAC with 3 relays / NEMA 4X, Enclosure for indoor/Outdoor use
Output: Two 4-20mAmp.
Brand: Thermo Scientific
ACCESORIES
Mounting Kit for Pipes 1, 1.5 and 2 inches
SP31A9E20
AquaSensors AnalogPlu
Differential pH Sensor – 1.0 Inch
Range: 0-14 pH
Resolution: 0.01 PH / Accuracy: 0.1% of reading
Temperature range: -5 to 95C (PEEK sensor Head)
Electrode Type: STANDARD
Maximun Flow Rate: 10 ft/sec
Proces Conection: 1" NPT / O-ring : VITON
Cable Lenght 20' (6.0 mts)
Brand: Thermo Scientific
More details: See PDF Attached
SC31B120
Conductivity/Resistivity Sensor 1.0 Inch
Aquasensor Analog Plus / Two Eletrode conductivity Sensor
Sensor Tip: 1.0 Cell (Conductivity)
Range 0 to 5000 uS/cm
Body Material: PEEK / Temperature Range: -5 C to 95 C / Max. Pressure: 150 Psig at 95C
Electrode Type: Titanium
Electrode spacing: Concentric
Cable Lenght: 20 Feet (6 Mts)
NOTA: Montaje Transmisor tuberia 1.5" a 2" /Sensores para aplicaciones Generales Waste Water etc.
