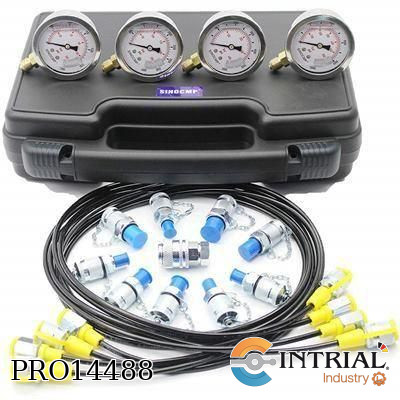

Hydraulic Pressure Gauges Kit - SINOCMP
Hydraulic Gauge Kit for Komatsu Excavator, 13
Couplings, 4
160cm Long Test Hoses and
4 Pressure Gauges,
Lightweight Black Plastic Box 3KG,
Contains:
Max Work Pressure: 10000PSI/600BAR/60MPa · Gauge: Ø63mm-0-100 Bar/0-1500 PSI, 1 PC
· Gauge: Ø63mm-0-250 Bar/0-4000 PSI, 1 PC  · Gauge: Ø63mm-0-400 Bar/0-6000 PSI, 1 PC
· Gauge: Ø63mm-0-600 Bar/0-10000PSI, 1 PC  · Test Hose Assembly Test hose: Length= 63IN, 4 PCS
Test Coupling:
· Test Coupling: · Test coupling: G1/8, 1 PC  · Test coupling: G1/4, 1 PC  · Test coupling: G3/8, 1 PC
· Test coupling: M10*1, 1 PC  · Test coupling: M10*1.25, 1 PC  · Test coupling: M14*1.5, 1 PC
· Test coupling: UNF7/16-20, 1 PC  · Test coupling: UNF9/16-18, 1 PC  · Test coupling: NPT1/4 , 1 PC
· Test coupling: M8*1.0, 1 PC

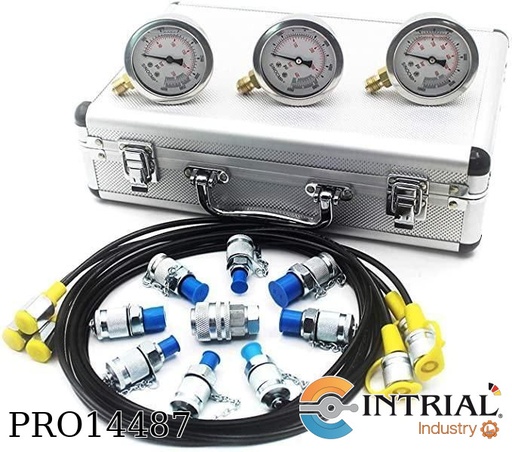

SINOCMP Excavator Construction Machinery Hydraulic Pressure Test
Probador de presion HidraulicaTestedor de presion hidraulicaManómetro hidráulico para excavadoras

Coupling Kit Excavator Hydraulic Test Gauge Hoses
Product Specification:
Max Work Pressure: 8700PSI/600BAR/60MPa
Contains:
Gauge: Ø63mm-0-250 Bar/0-3500 PSI, 1 PC
Gauge: Ø63mm-0-400 Bar/0-5800 PSI, 1 PC
Gauge: Ø63mm-0-600 Bar/0-8700PSI, 1 PC
Test Hose Assembly Test hose: Length= 60 inches, 3 PCS
Test Coupling:
Test coupling: M10*1, 1 PCS
Test coupling: M10×1.25, 1 PCS
Test coupling: G1/4, 1 PCS
Test coupling: G1/8, 1 PCS
Test coupling: UNF9/16-20, 1 PCS
Test coupling: 7/16-18, 1 PCS
 Aluminum box packaging can better protect the hydraulic test gauges, can have a greater resistance to pressure, you can use more longer.
Package: standard retail carton
Product Specification:
· Generally, item will be shipped within 2 working days after the payment is received.
· Products will be carefully checked before sending out.
· The possible additional cost such as tax and customs charges will be charged form buyer. We are always making our most efforts to lessen this cost.
· All items come with tracking number, which can be tracked online.
· Sometimes the package may stay customs for long time. Please understand international shipping. When you don’t receive the package in 15 days after delivery, please inform us or contact your local express agency, this way we could check about the delivery problems.

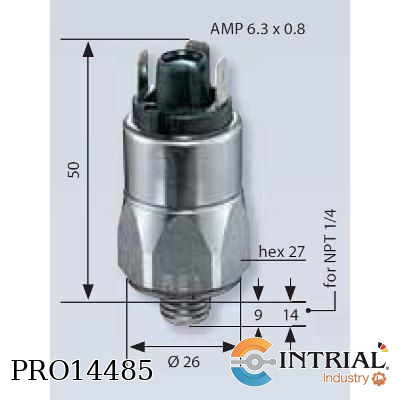

Presostato de membrana,seteo Marca :SUCO
Presostato de membrana,,
Marca :SUCO
Modelo : 0170-45703-3-003
• Interruptor de Presion
• Marca: SUCO,
• Conexión G 1/4
• Presión Max : 1.5 bar
• Incluye: Protector de caucho

FILTRO DE COMBUSTIBLE
Marca: CIM TEK FILTRATION
Tipo de Filtro: Eliminación de Partículas
Clasificación de Micras: 30
Caudal Máximo: 30 GPM

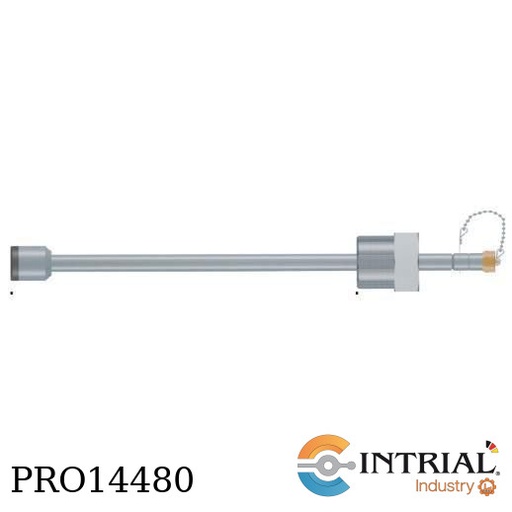

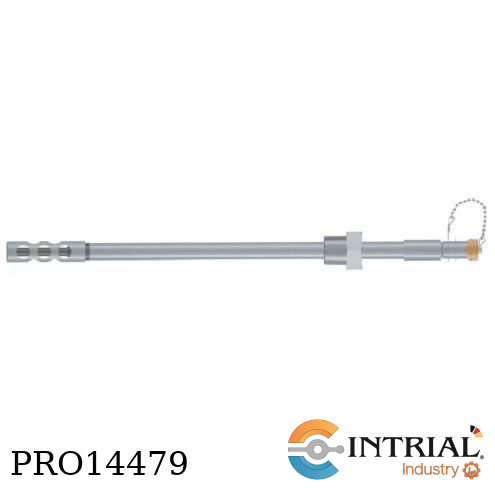

M2700-F20-K03005-5-0
Microcor FLUSH Element FIXED
* Mounting: : 1.1/2”  NPT
* Temp. Rating for Model M3500 — 425°F 218°C
* Pressure Rating for Model M3500 — 1500 PSI/10.3 MPa
* Element Type: F20 (10 mils probe span)
* Element Alloy: K03005 (Carbon Steel)
* Length: 5" Standard Lenght

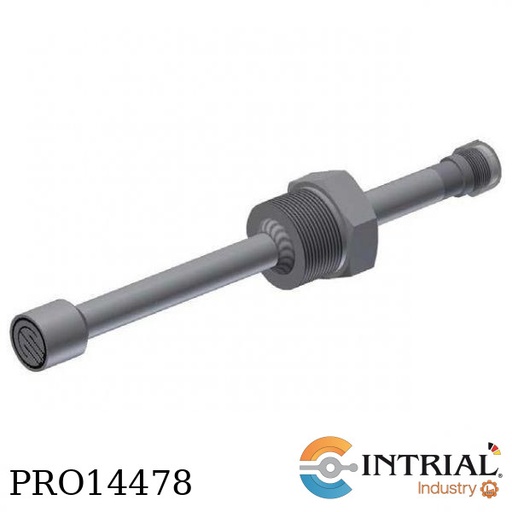

2700-S10-K03005-5
Probeta de Resistencia eléctrica Tipo Flush FIJA
Montaje: 1 1/2" NPT Fija
Temperatura: 260 C
Presión: 4000 Psi
Material del cuerpo: SS
Forma del elemento (S10): Espesor de 10mil (5 mil de vida útil)
Longitud: 5.0” (desde 1.5” hasta 12” el precio es igual)

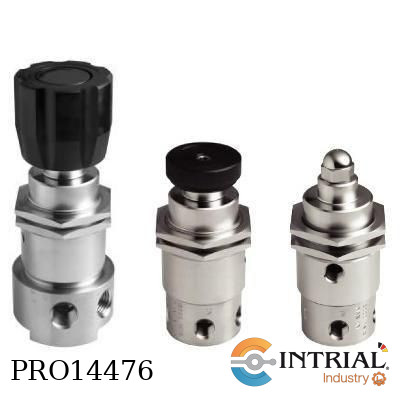

Modelo:          50-11962-2X2C8XXX
50-11962:       SINGLE STAGE DIAPHRAGM Pressure Regulators
2:  BODY MATERIAL : 316 Stainless Steel, cleaned per spec #515
X:  DIAPHRAGM 2 MATERIAL: 316 Stainless Steel Diaphragm
2:  OUTLET PRESSURE: - 0 to 50 PSIG / 0 - 3.45 bar (0-100 PSIG gauge)
C: GAUGES: 2” diameter, inlet & outlet, stainless steel wetted gauges
8:  PANEL MOUNTING NUT: No nut (standard)
X:  PORTING  OPTIONS: Blank
X:  PORT TYPE:  NPT (1/4”)
X:  MAIN VALVE: Cv 0.08 (Standard)

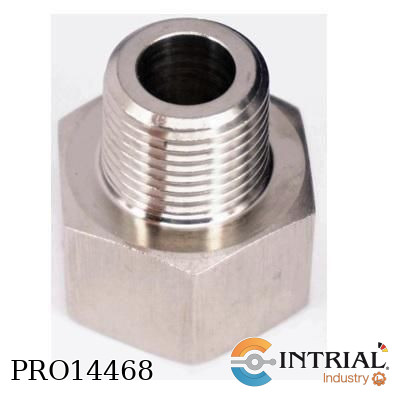

ADAPTADOR HIDRAULICO
ACERO INOXIDABLE
CON ROSCA MACHO 1/4"NPT A ROSCA HEMBRA M14 x 1.5

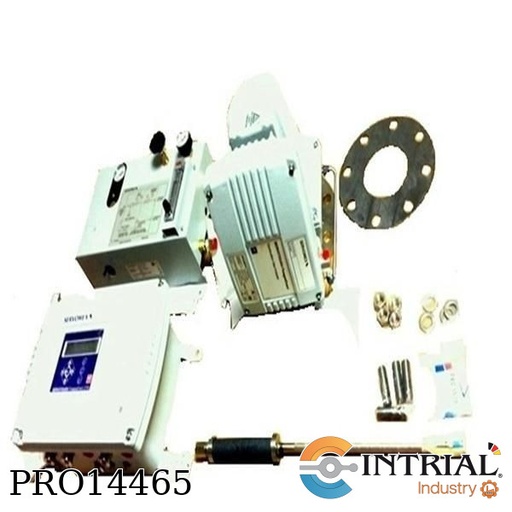

1.01.- SUMINISTRO DE ANALIZADOR DE OXIGENO.
========================================
Analizador SERVOTOUGH FluegasExact 2700
Model: 02700D1
• Unidad de Control: Área Clasificada Case I Div 2
• Certificación ATEX Cat. 3 /Encapsulado IP65
• Sensor Head: Medicion O2, Oxido de Zirconio, Area Clasificada I Div 2, ATEX Cat3
• Alimentación: 220-240VAC  50/60Hz
• Unidad de Control: Feature - rich, Teclado de 8 botones con interacciones intuitivas y retroiluminado LCD
• Sample probes:  Alloy de Alta temperatura (700 - 1000 °C) / lenght: 0.5mts
• Sensor:  Incluye solo 01 sensor de medición de O2, Oxido de zirconio (zirconia)
• Accuracy (intrinsic error): +- 1% de la lectura o 0.1% O2
• Repetibilidad: < 0.1 % O2
• Zero drift: < 0.5 % del rango ó 0.05 % O2
• Rango de trabajo:  0-25% O2
• Sensor head: Acero inoxidable (303 y 316)
• Sensor de oxigeno: Acero inoxidable (310 y 316), zirconia
• Tiempo de respuesta (T90): 10 segundos
• Salida analógica: Configurable isolated 4-20mA (1k ohms. Max).
• Condiciones ambientales: Sensor head: Head: -20°C to +70°C / Control Unit: -10°C to + 55°C
• Requerimiento de aire comprimido: Presión: 3.5psig típicamente (3 to 5 psig - 0.2 to 0.3barg) / Flujo: <1.5 litros/min típicamente
• Unidad de calibración: Aire (20.95% O2 en Nitrógeno) Span (High) / 0.3% O2 en Nitrógeno Zero (Low) / Tubing de diámetro ¼ inch SS 316 / Unión recta de ¼ OD SS 316.
• Montaje de sensor con Brida estándar de 4” ANSI
• UNIDAD DE CALIBRACION: Regulador de aire de aspiración y Sistema de Calibración Manual
* Controlador MiniPurge Pressure (60Psi-115Psi), Max. Flow (10 Lt/min) ClassI, DIV 2, Carcasa en Inoxidable.

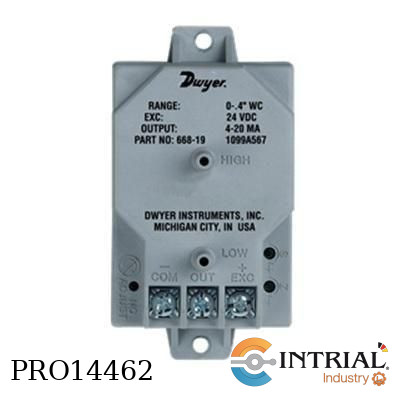

COMPACT DIFFERENTIAL PRESSURE TRANSMITTER
Brand: DWYER
Service: Air and non-conductive gases.
Range: 0 to 0.25 in w.c.
Accuracy: ±1% of full-scale (RSS)
includes non-linearity, hysteresis, and
non-repeatability).
Temperature Limits: Operating: 0 to
150°F (-18 to 65°C); Storage: -40 to
185°F (-40 to 85°C).
Pressure Limits: 10 psig (0.69 bar).
Compensated Temperature
Range: 0 to 150°F (-18 to 65°C).
Thermal Effects: 0.033% FS/°F
(0.018% FS/°C).
Supply Voltage: 12 to 30 VDC.
Output: 4 to 20 mA, 2-wire.
Zero and Span Adjust: ±1 mA, noninteractive.
Response Time: < 60 ms.
Loop Resistance: 0 to 800 Ω.
Electrical Connection: Terminal strip.
Pressure Connection: 3/16" OD fitting
for 1/4" ID tubing.
Housing: Fire retardant glass filled
polyester.
Weight: 3 oz (85 g).
Agency Approvals: CE.

UTILITY GAGES
Brand: DWYER
Range: 0 to 160 psi
Service: Compatible gases and liquids.
Wetted Materials: Brass connector, phosphor bronze tube.
Housing: Black painted steel.
Lens: Polycarbonate.
Accuracy: UGK: 1.5% FS.
Temperature Limits: -4 to 140°F (-20 to 60°C).
Size: UGK: 2.5" (63 mm).
Process Connection: UGK: 1/4"
male NPT.
Weight: UGK: 5.1 oz (145 g) bottom, 5.5 oz (155 g) black.

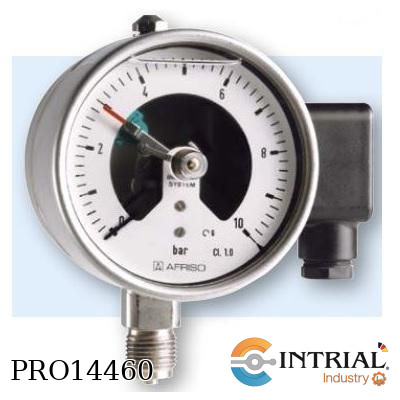

MANÓMETRO TIPO BOURDON CON CONTACTOS ELÉCTRICOS, PARA APLICACIONES QUÍMICAS
Marca: AFRISO (Alemania)
Diámetro de la carcasa: 160 mm
Conexión: ½ "NPT inferior
Range.0 / 40 bar
Dial: escala individual 0/40 Kg / cm²
Carcasa: acero inoxidable 304 con bisel de bayoneta 304
Material en contacto con: acero inoxidable 316 Ti / 316 L
Ventana: Plástico (Makrolon) con dispositivo de ajuste
Precisión: 1,0
Contacto: Simple; contactos de acción (inductiva) - IK1.1 Función eléctrica hacia la derecha: - normalmente abierta (NO): se cierra con el aumento de la presión
Conexión eléctrica: Caja de conexiones.

MEDIDOR DE CAUDAL  MÁSICO TIPO CORIOLIS
Modelo: TCM-7900-AJ-S-G-S-S-C-A-D-S
CORIOLIS FLOW METER
Brand: TRICOR
Fluid: Argon (Gas)
Pressure: 12 bar
Temperature: 25 °C
Density: 19.6 kg/m3
Viscosity (dyn.): 0.000 Pa s
Max. Flow: 150 Nm3/h
TCM-7900 - 7900 kg/h; 290 lb/min; 34.8 gpm; 1,190 bbl/d; 7.900 l/h
AJ - 1½" ASME flange class 150, slip on, process connection dim. + facing acc. ASME B16.5
S - -40°C…+100°C (-40°F…212°F) with junction box - or meter mount (Non-ex) or for meter mount (Exn)
G - Rupture disc, burst pressure 4 Bar (58 Psi): Operating pressure (Standard - see datasheet)
S - Standard, basic accuracy ±0.1% o.r. for liquids (±0.5% o.r. for gas)
S - 1½" ASME flange class 150, slip on, process connection dim. + facing acc. ASME B16.5
C - Meter mount electronics (TCE 8000) ALU, NPT
A - RS485 (Modbus RTU) and HART
D - 24V DC
S - Standard (no option)

MEDIDOR DE CAUDAL  MÁSICO TIPO CORIOLIS
Modelo: TCM-7900-AJ-S-G-S-S-C-A-D-S
CORIOLIS FLOW METER
Brand: TRICOR
Pressure: 12 bar
Temperature: 25 °C
Density: 13.6 kg/m3
Viscosity (dyn.): 0.000 Pa s
Max. Flow: 150 Nm3/h
TCM-7900 - 7900 kg/h; 290 lb/min; 34.8 gpm; 1,190 bbl/d; 7.900 l/h
AJ - 1½" ASME flange class 150, slip on, process connection dim. + facing acc. ASME B16.5
S - -40°C…+100°C (-40°F…212°F) with junction box - or meter mount (Non-ex) or for meter mount (Exn)
G - Rupture disc, burst pressure 4 Bar (58 Psi): Operating pressure (Standard - see datasheet)
S - Standard, basic accuracy ±0.1% o.r. for liquids (±0.5% o.r. for gas)
S - 1½" ASME flange class 150, slip on, process connection dim. + facing acc. ASME B16.5
C - Meter mount electronics (TCE 8000) ALU, NPT
A - RS485 (Modbus RTU) and HART
D - 24V DC
S - Standard (no option)

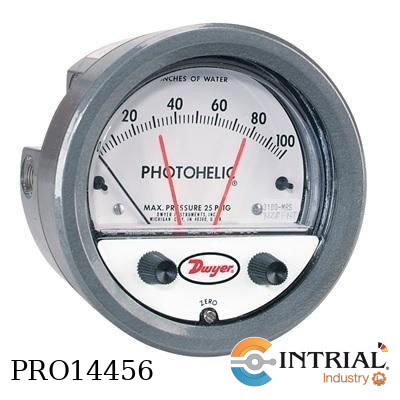

PHOTOHELIC® SWITCH/GAGES
Combines Differential Pressure Gage with Low/High Set-Points, Compact Size
Brand: DWYER
Range: 0-3.0 In w.c.
Minor Divs: 0.10
GAGE SPECIFICATIONS
Service: Air and non-combustible,
compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±2% of FS (3000-0 ±3% ofFS). (3000-00 ±4% of FS).
Pressure Limit: -20" Hg. to 25 psig
(-0.677 bar to 1.72 bar). MP option: 35
psig (2.41 bar), HP option: 80 psig (5.52bar).
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
Process Connections: 1/8" female NPT(duplicated side and back).
Size: 4" (101.6 mm) dial face, 5" (127mm) OD x 3-1/8" (79.38 mm)
-SS bezel:4-3/4" (120.7 mm) OD x 2-21/32 (67.5mm).
Weight: 1.8 Ib (816 g).
SWITCH SPECIFICATIONS 3000MRS
Switch Type: Each setpoint has a solid state relay.
Switching Voltage: 20-280 VAC (47-63 Hz).
Switching Current: 1.0 amp (AC) max.,
0.01 mA (AC) min., (2) SPST NO.
Electrical Connections: 18" (46 cm)
cable assembly with 6 conductors,
optional lengths to 100´ (30.5 m).
Power Requirements: 24 VDC,
regulated ±10%.
Mounting Orientation: Diaphragm in
vertical position. Consult factory for other position orientations.
Set Point Adjustment: Adjustable knobs on face.
Agency Approvals: CE.

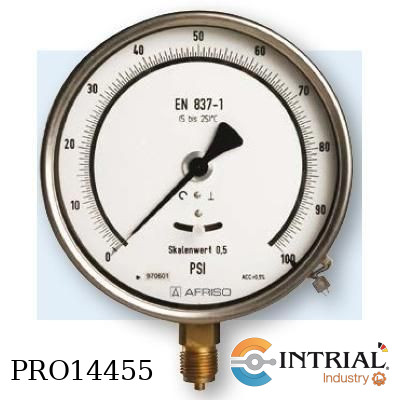

Modelo: RF160F,D401(0 a 25 Bar/Psi)
MANOMETRO PATRON TIPO BOURDON
Marca: AFRISO (Alemania)
Housing Ø: 160 mm
Material Housing: Stainless steel 304 with bayonet bezel
Measuring element: Copper alloy
Precision: 0.25
Conexion:1/2 npt
Rango: 0 a 25 Bar
Doble escala Bar/PSI

MANOMETRO PATRON TIPO BOURDON
Marca: AFRISO (Alemania)
Modelo: RF160F,D401(0 a 10 Bar/Psi)
Housing Ø: 160 mm
Material Housing: Stainless steel 304 with bayonet bezel
Measuring element: Copper alloy
Precision: 0.25
Conexion:1/2 npt
Rango: 0 a 10 Bar
Doble escala Bar/PSI

Modelo: RF160F,D401(0 a 4 Bar/Psi)
MANOMETRO PATRON TIPO BOURDON
•    Marca: AFRISO (Alemania)
•    Housing Ø: 160 mm
•    Material Housing: Stainless steel 304 with bayonet bezel
•    Measuring element: Copper alloy
•    Precision: 0.25
•    Conexion:1/2 npt
•    Rango: 0 a 4 Bar
•    Doble escala Bar/PSI
