E4400 Gas Analyzer including:,O2 Sensor               0 to 25 %,CO Sensor              0 to 8000 ppm*, *With Auto-Range up to 50,000 ppm,NO/NOx Sensor     0 to 4000 ppm,SO2 Sensor             0 to 4000 ppm,CO2 Calculated       0 to 99.9 %,Flue Gas & Air Temperature Measurement,Draft & Differential Pressure Measurement,Efficiency, Losses, & Excess Air Calculations,300mm Probe, 800oC max, with 3m Dual Hose,External Water Trap with Filter Cartridge,Rechargeable Li Ion Batteries & AC Charger,Internal Memory, 900 Tests,Internal Impact Printer (Non-Thermal),Rubber Holster with Magnetic Support,PC Software Package with USB Cable,ABS Hard Plastic Carrying Case,Operating Instructions & Calibration Cert.

Insertion Tube Flange STL Compact,SPECIALIZED FLANGE 15mm INSERTION TUBE,CONTINUOUS N2 PURGE AND BACK-UP STEAM PURGE,FLANGE DEFAULT SIZE=ANSI 2” 150 LB

Model 2900 Utility Panel,THIS IS AN OPTION,This purge panel includes gas pressure regulators,and flowmeters to control the instrument and,flange purge flows. This panel facilitate handling,of instrument air at the installation site

SERVOTOUGH Laser Compact,With the following configuration,Area Classification Safe Area,Supply Voltage 110 - 220Vac 50/60Hz,Maximum Flange Temperature Not Required,Maximum Ambient Temperature <60°C,Measurement 14203 NH3 Compact Monitor,Measuring Range 0 - 15,Measurement Units % vol,Dual Measurement Not Required,Gas Component 1 N2,Stream Comp 1 Normal Range 54%,Gas Component 2 O2,Stream Comp 2 Normal Range 13%,Gas Component 3 H2O,Stream Comp 3 Normal Range 22%,Gas Component 4 NH3,Stream Comp 4 Normal Range 7%,Stream Comp 4 Low Range 5%,Stream Comp 4 High Range 15%,Process Dust (mg/m3) 0,Stream Temperature (ºC) 78,TU/RU Connecting Cable 5-15m 5,21417 TU/PSU Cable (L5) 3,TU Optical Path Length L1 (mm) 150,Process Optical Path L2 (mm)305,RU Optical Path Length L3 (mm) 150,Process Pressure Units Bar,Process Pressure 1.5,Optical Window Purging Instrument Air,Mounting Flange ANSI 2"/150lbs,Transmission Output 13475 Addnl 4-20mA - Trans O/P,Ethernet Output 15021 Ethernet/Modbus TCP Conn,TU Purge Fitting Size 14513

Manómetro tipo Fenolico estilo Torre,Diámetro 130 mm (4.1/2”),Rango 0 - 7 Bar/ 100 Psi,Serie “Frente Sólido” de Seguridad con ,tapa posterior expulsable,Clase precisión 0,5 % según ANSI B40.1,Grado 2A (a 20°C) Caja y anillo de material,polipropileno negro,Anillo hilado,Ventana de Plexiglass,Tubo Bourdon,mecanismo, y racord de ,conexión inferior AISI 316 con hilo macho ,1/2” NPT, Dial Aluminio fondo blanco, marcas,y graduación negro, Aguja indicadora micro ,ajustable de aluminio negro IP 65 - EN 60 529/ ,IEC 529 empaque de goma neopreno,Temp. Máx. de fluido 200 °C, T° ambiente ,-40 a 65 °C, llenos con glicerina ,(+15 a +100°C), llenos con aceite de Silicona ,(- 45a +100°C),Versión seca y versión llena con liquido protector,Marca Tecsis, Alemán

CAUDALIMETRO PARA PANEL
Marca HIDROTEK
Rango: 1 a 7LPM ( 60 a 420L/h). (agua)
Material del cuerpo: Acrilico.
Conexión posterior: G½

MEDIDOR DE FLUJO MÁSICO TIPO CORIOLIS
MODELO: TCM-3100-AA-SGSS-CAMS
TCM:  Meter Type Coriolis Mass Meter ,
3100:  Flow Range: up to 0.01 to 0.5 Kg/S,
AA:  Flange: 150# Flange , 1/2”,
S:  Temperature range -20 to 100C,
G = pressure rating 1450 psi,
S= accuracy, standard,
S = length , standard,
C= Electronics, on site electronics,
A= Interface, HART,
D= Power, supply 24 VDC (standard),Tube Material: 316L SS ,Flow Splitter Mat’l: 316 SS ,Accuracy: 0.10% + Zero stability ,Density: +/-0.001 g/cm^3 e,Electronics: ,8000 Series ,Meter Mount Electronics,Dual Line Display,24VDC,Outputs: 2 outputs of  4-20mA(flow and density)

Medidor de flujo másico tipo coriolis
MODELO: TCM-5500-AA-SGSS-CAMS
TCM:  Meter Type Coriolis Mass Meter ,
5500:  Flow Range: up to 0 to 5500 kg/Hr  ( 0 to 1,
AA:  Flange: 150# Flange , 1/2”,S:  Temperature range -20 to 100C,
G= pressure rating 1450 psi,
S= accuracy, standard,
S= length , standard,
C= Electronics, on site electronics,
A= Interface, HART,
D= Power, supply 24 VDC (standard),Tube Material: 316L SS ,Flow Splitter Mat’l: 316 SS ,Accuracy: 0.10% + Zero stability ,Density: +/-0.001 g/cm^3 ,Electronics: ,8000 Series ,Meter Mount Electronics ,Dual Line Display ,24VDC,Outputs:2 outputs of 4-20mA(Flow and density)

Digital Indicator and Controllers
Model: DAG-S4-V-0-0-0-2-R
Brand: Kobold
[DAG-S4]
Housing (mm), 96 x 48
Mounting depth w/o plugable fixing (mm), 70
Digital display, 5-digit
Standard Options, Min. / Max memory, 30 points, zero key, Tara, Hold, totalizer
Over-/Underflow Indication, horizontal bar top/bottom
Ambient temperature, 0...50 °C
Housing material / Protection (front), Polycarbonate, black / IP 65
Mounting (DIN 43 835), Latching quick plugable fixing
[V]: Input, 0(4)...20 mA, 0-10 V
[0]: Supply voltage, 230 VAC
[0]: Output/Interface, w/o
[0]: Sensor supply voltage, w/o
[2]: Contacts (Indication is flashing), 2 SPDT contacts (max. 250 VAC/2AAC, 30V/2ADC)
[R]: Indication, red

PTD-635-0152,S e n s o r P T -100, Doble Señal, 6 hilos,bulbo Inoxidable SS316,Diametro del bulbo 1/4",Largo del bulbo 6'' (Segun Thermowell),Conexion a Proceso 1/2" Npt Hi,Cabezal Aluminio Grande,THI-950-0151, T h e r m o w ell Ac. Inoxidable SS316.,Diametro del bulbo 3/8"(9.5 mm),Para bulbo de Ø 6.35 mm,Largo del bulbo 6'' + Hilo,Conexión a instrumento 1/2'' Hi Npt,Conexión a proceso 1/2" He Npt.

TERMOPOZO
Ac. Inoxidable SS316
Diametro del bulbo 3/8"
Largo de bulbo 150mm mas hilo
conexion a instrumento 1/2'' Hi Npt,
Conexión a proceso 1/2" He Npt

Sensor PT -100, Doble Señal, 6 hilos,bulbo Inoxidable SS316,Diametro del bulbo 1/4",Largo del bulbo 6'' (Segun Thermowell),Conexion a Proceso 1/2" Npt Hi,Cabezal Aluminio Grande

Termocupla "K" cartucho,Bulbo Inoxidable SS316,Tº Maxima 800ºC,Diametro del Bulbo 1/4'',Largo del bulbo 100 mm. + Hilo,Conexion a Proceso 1/4'' Npt He,Con 2 mts Cable PVC calibre 2x0.22mm,Temperatura Maxima del Cable 80ºC

TERMOMETRO BIMETALICO 3"
Termometro Bimetalico diametro 3",Rango :  0 a 200ºC,Conexión: 1/2 NPT Inferior,Bulbo :  1/4" x 2  1/2" Longitud
Marca : Dynamic - USA,Material : Todo Acero Inoxidable

RF100Dif;D201(85615201)
Manometro diferenical
Rango de 0-10 bar,,
conexión 1/ NPT inferior,
Marca Afriso

Model:62-AAEF-0720-AB,Modelo:M050590 series 60 ,heavy Duty Descripcion:Heavy Duty bearing w/ 1/2'', diameter shaft LED optical light source Unbreakab,le disk Wide selection of resolutions available up, tp 2500 PPR,servo ring and face mount options mo,del:Bidirectional,Heavy Duty,Housing:Standard ,Housing for single Shaft 1/2''Dia.1.0''len w/ Fla,t Output:Single Ended,Voltage:5 to 15 VDC,Puls,e/rev 0720,writing MS connector,Misc Shaft seals

INTERRUPTOR DE  PRESION
Marca: SUCO
15 BAR,
Incluye: Protector de caucho

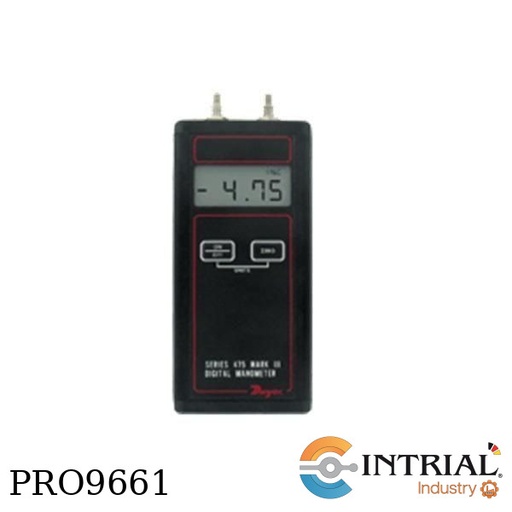

MANOMETRO DIGITAL DE MANO,
Marca:DWYER,
Ran,go:0 – 20.00 in  w.c.,
Presión Max:10 psig
Precisión:0.5% F.S
Limite de Temperatura:,0 to 140°F(-17.8 to 60°C)
Display:0.42''(10.,6 mm) 4 digit LCD
Power Requirements:9 volt a,lkaline battery.
