Measuring tube Borosilicate glass

BRAND: METER

Connections Flanged 4” ANSI 150 RF

Body structure Polypropylene

Gaskets PTFE

Float PTFE + INOX

Fluid BRINE

Flow rate 20 ÷ 150 M3/h

Temperature 75 °C

Pressure 2 bar

Accuracy +/- 5 % E.O.S.

Flow direction Upwards

Features Diaphragm milled in the structure, without by pass

neddle valve, Pressure drop at EOS: 0,6 bar

AWR2SBFXGPX
Sultan Remote Transmiter
* Remote 2 Wire, No Relays, 12-30 VDC only, Modbus
* Housing: Polycarbonate
* Power Supply: 12-30 VDC
* Aditional Comm: Foundation Fieldbus
* Approval: CSA Equip Clase 2; Pollut Deg 2;
  Tamb: -20C to 75C
====================
AWRT20T4XXGPC15XX
* Acosutic Wave Remote Transducer 3"
* 20 kHz for aplications up to 20m
* Face Material: Teflon 80 C
* Transducer Housing of Polypropylene
* Approval: CSA Equip Class 2; Pollution deg 2; Tamb -20°C to 75°C
* Connection IP68 Sealed Unit with cable
* Cable Length: 15 m
==================
ACCESORIES
Flange: (FA4-A4)
* ANSI 4"
* Cone Mounted
* Flange Material: Polypropylene
Focaliser Cone (CO4-4)
* 4" Cone for 20Khz and 3" Transducer
* Cone Material: Polypropylene

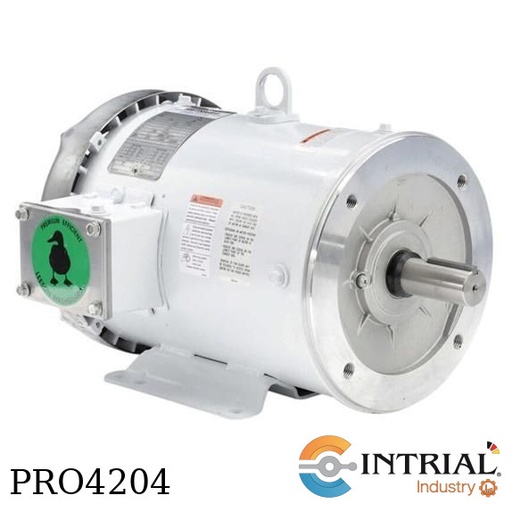

MOTOR ELECTRICO TIPO WASHGUARD
Marca: LEESON ELECTRIC
5HP,1760RPM
230/460VAC, 60 Hz
Trifasicom TEFC
Frame 184TC
FS 1.15
F.L.A. 12.6/6.3 AMPS
Inevrter Duty
Aislamiento clase F
89.5% Eficiencia NEMA PREMIUN
Servicio Continuo
Montaje con Base y Brida Tipo C
Carcasa de Acero Rolado
Pintura epoxica blanca
Revestimiento interior resistente a la humedad y la corrosion
Placa de acero inoxidable
Eje de acero inoxidable
Peso: 42 Kg

MOTOR ELECTRIC
•    Marca: LEESON ELECTRIC
•    0.5HP; 1725RPM
•    208-230/460 V
•    FRAME S56C,
•    60HZ
•    1.9-2/1 AMPS, SF. 1.15,
•    CODE L, EFF 73, PF 62, DESIGN B,
•    CAT NO. 102860.00


TRANSFORMADOR
•    Marca: Siemens
•    Fases: 1
•    Potencia: 0.8, 3.4 kVA
•    Tensión primaria: 460 – 440 VAC
•    Tensión secundaria: 115 VAC
•    Frecuencia: 60 Hz
•    Temperatura ambiente: 40 °C
•    Clase de aislamiento: B
•    Tipo de terminales de conexión: atornillado

320 MICROWAVE POINT LEVEL SWITCH

• Brand: DELAVAN

• (S) Standard, NEMA 4X enclosure

• (851) Standard (Pair Of Sensors) C.S. direct coupled, 2 1/2" NPT

• (U) 4" C.S weldment and UHMW window

• (P100) Pair of 100

SENSOR DE VIBRACION
MARCA: METRIX(USA)
CARACTERISTICAS:
151- 1.0 plg/s (25.4mm/s) RMS
4- Carcasa SS 303, M8x1.0- 12 macho
1- CSA/NRTL/C, Clase I, Div 2, Grps A-D
0- Conductores flexibles 24", 2-cables; (sólo
salida 4-20mA
0- 2 Hz (estándar)
0- 1500 Hz (estándar)

HMFDHI-OO O1=200 O2=265
LEVEL SWITCH
Brand: HEMOMATIK
L1 200MM, L2 265MM

FLOW CONVERTER

Brand: Krohne

Mounting Configuration: Integral mount 45°

(for horizontal pipes)

Power Supply: 12-24 VDC

Outputs: Current (incl. HART®), pulse, frequency,

status output and/or limit

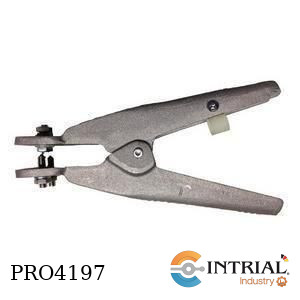

K78160ASRS (Grapas)
•    GROUNDING CLAMP
•    Special Technical Services

DIGITAL CALIBRATION PRESSURE GAGE
Brand: DWYER
Range: 0-1000 psig
Service: Compatible, non-combustible liquids and gases.
Wetted Materials: 316 SS.
Other Materials: Housing: Aluminum alloy; Display: Acrylic MR200; Buttons: Silicon
gel; Back plate: 304 SS; Back seal: Oil-proof latex.
Accuracy: 0.05% FS; ±1 least significant digit.
Temperature Accuracy: ±1°C.
Pressure Limits: 120% FS.
Temperature Limits: 14 to 122°F (-10 to 50°C).
Compensated Limits: 32 to 122°F (0 to 50°C).
Process Connection: 1/2" male NPT.
Display: 5-digit LCD with blue backlight.
Power Requirements: 9 V alkaline battery, not included, or power adapter
accessory.
Battery Life: Up to 10,000 hours (600 working hours @ default 3 times/s).
Auto Shut-Off: Backlight: On/off, 10 s, 20 s, 30 s.
Weight: 1.28 lb (0.58 kg).
Agency Approvals: CE.

DIGITAL CALIBRATION PRESSURE GAGE
±0.05% FS Accuracy, 316 SS Wetted Parts
Brand: DWYER (USA)
Range: 0 to 100 PSIG
Service: Compatible, non-combustible liquids and gases.
Wetted Materials: 316 SS.
Other Materials: Housing: Aluminum alloy; Display: Acrylic MR200; Buttons: Silicon
gel; Back plate: 304 SS; Back seal: Oil-proof latex.
Accuracy: 0.05% FS; ±1 least significant digit.
Temperature Accuracy: ±1°C.
Pressure Limits: 120% FS.
Temperature Limits: 14 to 122°F (-10 to 50°C).
Compensated Limits: 32 to 122°F (0 to 50°C).
Process Connection: 1/2˝ male NPT.
Display: 5-digit LCD with blue backlight.
Power Requirements: 9 V alkaline battery, not included, or power adaptor
accessory.
Battery Life: Up to 10,000 hours (600 working hours @ default 3 times/s).
Auto Shut-Off: Backlight: On/off, 10 s, 20 s, 30 s.
Weight: 1.28 lb (0.58 kg).
Agency Approvals: CE.

APT8000-G76N-N-NPN-NN

• APT8000:Smart Pressure Transmitter APT8000

• G: Gauge pressure transmitter

• 7: Pressure range, 0 a 35 Bar ( 0 a 508 PSI)

• 6:Process connector material, Stainless steel 316

• N:Diaphragm material, Stainless steel 316L

• N: Process connections:1/2''NPTF

• N: name plate material, Stainless steel 304

• P:electrical connector, 1/2” NPT(Female)

• N: Mounting bracket: None

• Precisión: 0.075%

• Ratio: 1 a 100

• Salida electrónica:4 a 20 mA y protocolo HART

• Indicador LCD(5 Digitos)

• Indication Type: Digital, LCD with Backlight

• Power Supply: 12 a 45 VDC Loop Powered

• Marca:ALIA





DD-A-20N6-N03-N

• REMOTE DIAPHRAGM SEAL MODEL D SERIES

• D: Direct-mount (APT8000 Only)

• A: Process connection: ANSI 150#

• 2: Flange Size: 2" (Diaphragm Diameter If Extended: 49mm)

• 0: Diaphragm Extension Length : Flush Diaphragm

• N: Diaphragm Material: Stainless Steel 316L

• 6: Flange Material : Stainless Steel 316L

• N: Fill Fluid : Silicone (Max. Temperature 130 °C)

• 03: Capillary Length: 3 Meters

• N: Option: None

• Marca:ALIA

Guided Radar Level Transmitter NGM (1300 mm)
NGM-2-220-G5-A4-00 (1300 mm)
NGM-2:
Version, Coaxial
Measuring range, 1-20 m
Sensor diameter (wire rope for NGM-4), 4 mm
min. dielectric Constant, 1,8
max. viscosity, 5000 cP
max. temperature, -40..+150°C
max. pressure, -1 ..+40 bar (with PTFE coating 0..+4 bar)
220: Material Probe/O-Ring, st. steel 1.4404/PEEK/FKM O-ring
G5: Connection, G 3/4 male
A4: Output, 4-20 mA, contakt PNP
00: Option, without
Probe length (to be specified in mm), Coaxial: 1300 mm
Datasheet:
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/n2gb_ngm.pdf

Contactor de 38AMP
Marca: ABB
AC3
50AMP/AC1
100-250 VAC/DC

CONTACTOR DE 53AMP
Marca: ABB
AC3
100AMP/AC1
100-250Vac/dc

PULLCORD SWTICH

• Marca: Crouse Hinds
