Modelo: Actuador-ED23/5S-A

• Actuador ED23/5S-A Para freno Mondel MST

• Voltaje 230/460V, 3 fases, 60 Hertz

• Sellos NBR

• Fluido C10

• Temperatura ambiente -25 a 50°C



• Nota: No incluye resorte de compresión

Profibus DP for BIOLYZER
Brand: AFRISO
Modelo:  69637

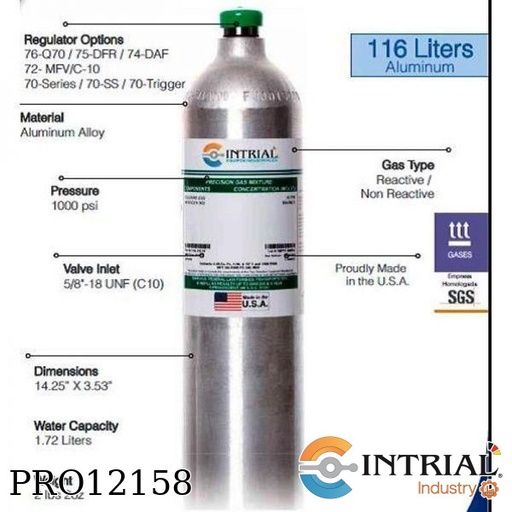

Model : GP-116L-98-10
• Calibration Gases for analyzer, gas detector and laboratory applications
• Brand: Marca: INTRIAL(made in USA)
• Material: Aluminum Alloy or Steel
• Valve Inlet: 5/8”-18 UNF (C10)
• Gas Type: Reactive/ Non Reactive
• Dimensions: 14.25” X 3.53” (362mm X90mm)
• Water Capacity: 1.72 Liters (116 Liters of Gas)
• Weight: 2 lbs 2oz(964 gr aprox)
• Gas Shelf Life:
Non-Reactive, 48 Months
• Reactive, from 6 to 24 Months ( depend on each concentration)
• Four-Gas Mix With (Hydrogen Sulfide and/or Sulfur Dioxide),24 Months
• See attached PDF file for more information
//// 10 ppm H2S, Balance Nitrogeno ////

MULTI-JET WATER METER WITH PULSED OUTPUT
Brand: DWYER
Serie WMT
Connection: 2” NPT
Max Flow: 160 GPM
Nominal Flow Range: 80 a 160
Pulse output (REED SWICHT).
Electrical Rating: 0.01 A @ 24 VAC/DC.
Mounting Orientation: Horizontal with the register face pointing up
Temperature Limit: 104°F (40°C).
Pressure Limit: 232 psi (16 bar).
Electrical Connections: Color-coded lead wires, 4.5´ (1.5 m) long.
Mounting Orientation: Horizontal with the register face pointing up

477AV-5

HANDHELD DIGITAL MANOMETER

Measures Pressure; Flow and Velocity

Range: 0 to 20.0 PSI

Service: Air and compatible gases.

Accuracy: ±0.5% FS, 60 to 78°F (15.6

to 25.6°C); ±1.5% FS from 32 to 60°F

and 78 to 104°F (0 to 15.6°C and 25.6 to 40.0°C).

Pressure Hysteresis: ±0.1% FS.

Temperature Limits: 0 to 140°F (-17.8 to 60°C).

Compensated Temperature Limits: 32 to 104°F (0 to 40°C).

Storage Temperature Limits: -4 to 176°F (-20 to 80°C).

Display: 0.42" (10.6 mm) 4 digit LCD.

Resolution: See chart.

Units of Pressure: in w.c., ft w.c., in Hg,

psi, oz/in2, mm w.c., cm w.c., mm Hg,

mbar, Pa, kPa, hPa.

Units of Velocity: fpm, fps, mph, m/h,

m/s, k/h, knot.

Units of Flow: cfm, m3/h, m3/s.

Power Requirements: 9 V alkaline

battery, installed non-functional, user replaceable.

Weight: 10.2 oz (289 g).

Process Connections: Two barbed connections for use with 1/8"

(3.18 mm) or 3/16" (4.76 mm) ID tubing

Two compression fittings for use with 1/8"

Agency Approvals: CE.

Marca: DWYER

MINERAL ISULATED THERMOCOUPLE
2 x type K
Sheath ø 6 mm
Junction point indirect
Length : 180+1/-4 mm
Material 1.4541
With over sleeve ø 6,35 x 30 mm
High temperature sealed
With shinking hose
With 2 x 72” connection cable glass silk/glass silk
(cable no. 102), with free ends
Brand: INTRIAL (German manufacture)
*According your drawing 309-306871-007**

DIGIHELIC® 3 DIFFERENTIAL PRESSURE CONTROLLER
Range: 0-0.25 in w.c.
Brand: DWYER INSTRUMENTS
Service: Air and non-combustible,compatible gases.
Housing Material: Die cast aluminum case and bezel.
Accuracy: ±1.5%
Stability: < ±1% per year.
Temperature Limits: 32 to 140°F (0 to 60°C).
Compensated Temperature Limits: 32 to 140°F (0 to 60°C).
Thermal Effects: 0.020%/°F (0.036/°C) from 77°F (25°C).
For 0.25 in and ±0.25 in w.c. ranges: ±0.03%/°F (±0.054%/°C).
Power Requirements: 12-28 VDC, 12-28 VAC 50 to 400 Hz.
Power Consumption: 3 VA max.
Output Signal: 4-20 mA DC into 900 Ω max.
Zero & Span Adjustments: Accessible via menus.
Response Time: 250 ms (damping set to 1).
Display: Backlit 4 digit LCD 0.4" height
LED indicators for set point and alarm status.
Electrical Connections: 15 pin male high density D-sub connection.
18" (46 cm) cable with 10 conductors included.
Process Connections: 1/8" female NPT
Side or back connections.
Mounting Orientation: Mount unit in vertical plane.
Size: 5" (127 mm) OD x 3-1/8" (79.38 mm).
Weight: 1.75 lb (794 g).
Agency Approvals: CE.
SWITCH SPECIFICATIONS
Switch Type: 2 SPDT relays.
Electrical Rating: 1 A @ 30 VAC/VDC.
Set Point Adjustment: Adjustable via keypad on face.

Pump type:VBH-M-I-2-1-0-BH1
* Art.No: 0110035 (New Code: 2110035)
• HP Industry pump for oils and combustible
• Flow: 1500 l/h (9 bar)
* Drilling for H1
• Brand: Hp Technik

CHD-NOR-TM-CL0-CAT 2/10.1-N7-X
DESCRIPCION GENERAL
**************Características Generales***************
• CHAQUETA Normal Antiflama, inhertemente anti-llama
• Norma ASTM F 1959
• Tencate Tecasafe Plus 700, 7.0 oz/yd² Twill,
• NFPA 70E HRC, NFPA 2112"
 **************Detalles de confección***************
Según Foto enviada por el cliente
*****************CERTIFICACIONES******************
• Certificación de tela por fabricante TENCATE (ASTM F 1959/F 1959M-06ae1)
DESCRIPCION ESPECIAL
**************Especificaciones***************
CHD= Chaqueta Dama
NOR= Normal (Verano)
TM= Talla M
CL0= No incluye cintas reflectivas
CAT2/10.1 = Certificación: HRC2 (nivel de ATPV , 10.1 cal/cm2, HRC nivel 2)
N7= Color Azul Marino (Navy 700-A)
X= Fabricación de Chaqueta con Diseños Especial

Modelo: RF160F,D801(0 a 100 Bar/psi)
MANOMETRO PATRON TIPO BOURDON
Marca: AFRISO (Alemania)
Housing Ø: 160 mm
Material Housing: Stainless steel
Measuring element: Copper alloy
Precision: 1.0
Conexion: 1/2 npt, Bronce
Rango: 0 a 100 Bar
Doble escala Bar/psi

Sensor Inductivo
Marca : Sick A. G.
Model : IM18-05BUS-ZU0
Dimensiones : M18 x 80 mm
IP67
Sn : 5mm
Señal : Rele / NO
Voltaje : 20 - 250 VAC
mA: 350, Hz : 25
Montaje Rasante.
Con cable : 2.5 m

HIGH SPEED “MICROCOR” ER probes
COSASCO 2" Flush Probe
• Flush Element Probe F10: 10 mils thickness (5 mils probe span)
• Corrosion rate of 10mpy detected in less than 01 hour
• Probe element Alloy: K03005 (Carbon Steel)
• Length: 1.5"

DIFFERENTIAL PRESSURE GAGE
Series 2000 Magnehelic®
Brand DWYER (USA)
Range 0-1000 Pa.
Accurate within 1%
OPTIONS - INTEGRATED MOUNTING PLATE
AHU1 :  Furnished with attached surface mounting plate

Model 2000-750PA-AHU1
Differential pressure gage,
Series 2000 Magnehelic®
Brand DWYER (USA)
Range 0-750 pa.
Accurate within 1%

​AVG AUTOMATION - MODULE
Model : SACQDNET010
Marca : AVG AUTOMATION AUTOTECH

Pump type:VBH-M-I-3-1-0-BH1
* Art.No: 0110035 (New Code: 3110035)
• HP Industry pump for oils and combustible
• Flow: 1500 l/h (9 bar)
• Pressure Stage (6-25 bar)
* Drilling for H1
• Brand: Hp Technik

VALVULA DE BOLA DE 1/4" NPT-F, FULL PORT,
SERIE 1000, SS316, LOCKING DEVICE
MARCA: GENEBRE

SOPORTE DE POLIPROPILENO DE 1/4" O.D CON
PLACAS,PERNOS Y BASE EN ACERO

DN-4-S
TUERCA 1/4 O.D. SS316
MARCA: DK LOK
