POWER WINDER, FUNNEL AND ANCHOR DRUM CONDUCTIX AT17-4-173-A-01-1

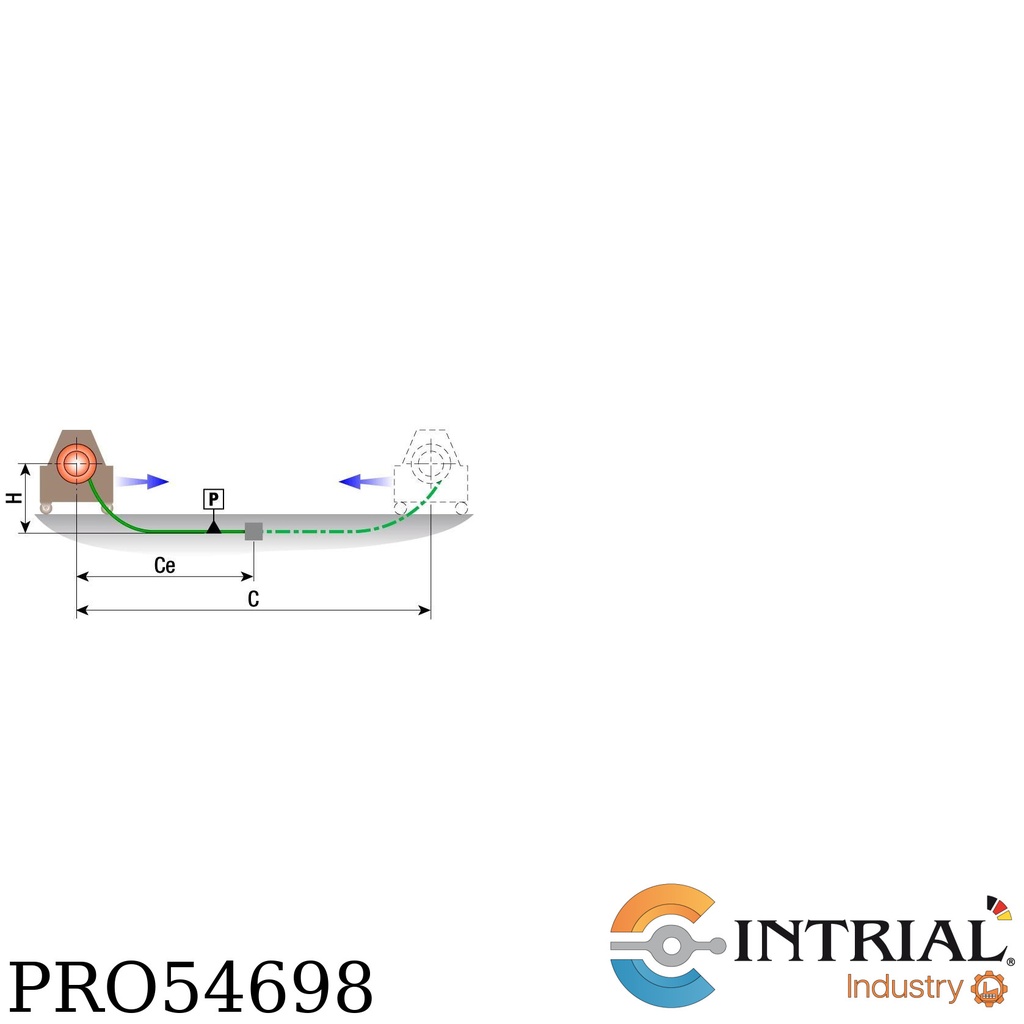

<strong>POWER WINDER, FUNNEL AND ANCHOR DRUM<br />
BRAND: CONDUCTIX<br />
MODEL:  AT17-4-173-A-01-1 <br />
(BNA30.1CN88.M1131RS17TC080+CableRXP-14G4(820,21ft)+Copper surcharge+TA250+RE250+LVconnection-box-400x300x210)</strong><br />
<br />
<u><strong>[BNA30.1CN88.M1131RS17TC080]</strong></u><br />
Motorised cable reel<br />
Gearbox<br />
Type: Bevel gear.Cast iron housing<br />
Model: 1 main gearbox type BNA30 + 1 additional gearboxe(s) type 88<br />
Cable gland: 304 Stainless steel HRD split seal<br />
Protection Paint: SP200 / final colour: Orange RAL 2009<br />
Maintenance The gearbox and gear reducers all have gears running in grease for 5 years or 15,000 operating hours without any maintenance.<br />
<br />
Drive<br />
Motor: 1 x AC induction motor, 1.5 kW. 460 V AC - 60 Hz - three phase - Class F <br />
Severe environment package :<br />
- IP65<br />
- 300 hours salt-spray resistance<br />
- Stainless steel external screws and nameplate<br />
- Heating resistance (220-240V 50-60Hz)<br />
- PTC temperature sensor<br />
- Canopy<br />
Mag Drive: 1 permanent magnet coupler(s) type CN preventing the cable from spooling off the reel when the motor is not powered.<br />
<br />
Spool<br />
Type Type Monospiral spool / Spool delivered on frame in 2 parts / Reinforced welded spool<br />
<br />
Model M1131RS<br />
Inner diameter 3,609ft<br />
Outer diameter 10,171ft<br />
Number of dead turns 2<br />
Number of extra spare turns 1<br />
Protection Spool in galvanized steel<br />
<br />
Slipring(1)<br />
Model 17TC080<br />
Rings 17 control rings C080 + ground<br />
Maximum Amperage 20A<br />
Maximum voltage 500V<br />
Slipring service factor 100% (S1)<br />
Description: Molded bronze rings each fitted with a double brush holder including 2 carbon copper alloy brushes and 2 springs for constant pressure<br />
Slipring housing Heating resistance<br />
100W/110-250V AC Economic housinground shape IP55 galvanized steel housing<br />
<br />
Rotary switch<br />
Model Stromag 51<br />
Number of contacts 4<br />
Number of turns 125<br />
Location Mounted on the main gearbox<br />
<br />
Protection IP66<br />
Electrical diagram F-E-410N005<br />
Empty reel weight 1124,34 lb<br />
<br />
<u><strong>[CableRXP-14G4(820,21ft)]</strong></u><br />
Cable RXP - 14G4 (820,21ft)<br />
Voltage rating 0.6/1 kV<br />
Outer diameter (min/max) 0,96 / 1,04 In<br />
Temperature range -40°F / 194°F<br />
Weight 0,7 lb/ft<br />
Maximum pull 314,62 lb<br />
<br />
<u><strong>[Copper surcharge]<br />
<br />
[TA250]</strong></u><br />
Anchoring drum TA250<br />
Radius 250 mm<br />
Protection body : galvanized<br />
Number of clamps 1<br />
<br />
<u><strong>[RE250]</strong></u><br />
Entry funnel RE250<br />
Radius 250 mm<br />
Protection body : galvanized<br />
<br />
<u><strong>[LVconnection-box-400x300x210]</strong></u><br />
LV connection box - 400x300x210 - 304 stainless steel < 35mm²<br />
Heating resistor with thermostat 45W/110-250<br />
For 17TC080<br />
Stainless steel identification plate
