VÁLVULA SCHRADER  métrica 10x1,5<br />
Marca: SCHRADER

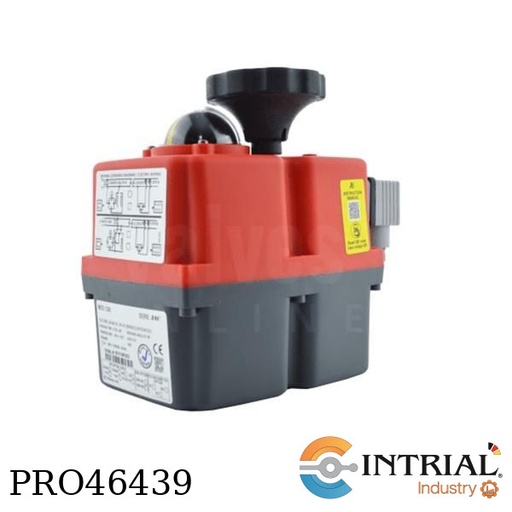

SMART ELECTRIC ACTUATOR<br />
Brand: JJ BCN<br />
Voltage Range: 24 - 240V DC/AC (50/60 Hz)<br />
Current Draw: 0.16 A – 1.28 A<br />
Run Time @ 90°: 9s ± 10%<br />
Heater: 3.5 W<br />
Max. Break Torque: 25 Nm<br />
Max. Operating Torque: 25 Nm<br />
Duty Rating: 75%<br />
IP Rating (IEC 60529): IP67<br />
Temperature Range: -20°C - +70°C<br />
Flange: F03/F04/F05 - F07 via Kit<br />
Connections: EN175301-803 Form A & Form C<br />
Housing Material: Polyamide (PA6)<br />
End of Travel Confirmation: SPST NO 5A 125V AC / 3A 250V AC<br />


ADAPTER ADAPTER G2-M50X1,5-SW70 NP:R901252865 MARCA: REXROTH

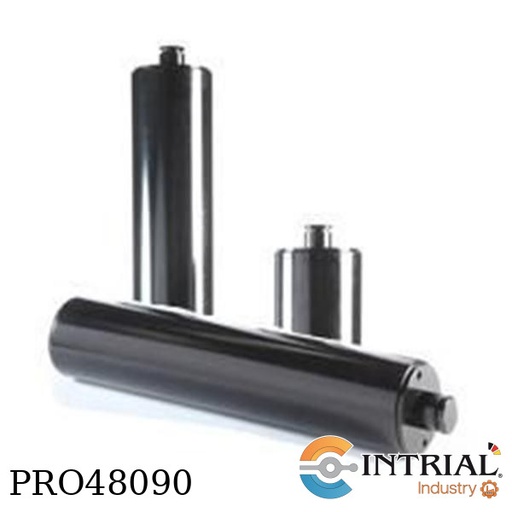

PISTON ACCUMULATOR<br />
Brand: HIDRAER<br />
Max Allowable Pressure / bar: 250<br />
Gas capacity / liter: 1,5<br />
Dimensions ID / OD / L: 80/90/385<br />
Standard Fluid Port: G¾"

GAS DAMPER<br />
Brand: LAMTEC<br />
Model: 662R23V<br />
Operating pressure, 0 to 4 bar<br />
Type of control, for electrical actuators<br />
Design, butterfly disc without limit-stop<br />
Differential pressure delta Pmax,<br />
DN25-DN50 4 bar<br />
DN65-DN100 2 bar<br />
Leakage rate without stop bar, 1 % of K VS -value 90<br />
Operation permissible temperature range, -20...+60 °C/-4...140 °F<br /><br /><br />

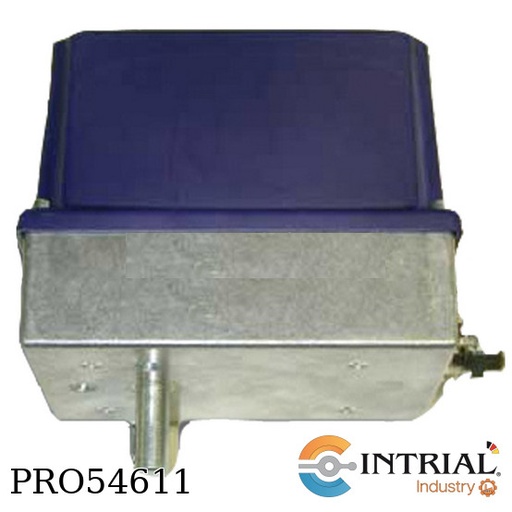

ACTUATOR<br />
Brand: LAMTEC<br />
Model: 662R2111-D-020/C02/2305/060/090/DPS/5K/0/HV1/65/ES2/ZS1/1R/S/S/1B/1S/SO0/     <br />
[662R2111]:<br />
Actuator 20 Nm<br />
230 VAC<br />
Running time 60 sec. to 90°<br />
TPS<br />
Position feedback POTENTIOMETER 5 KOhm<br />
Conductive platic<br />
TUV approved<br />
2 end switches<br />
1 additional switch<br />
Without electr. override<br />
IP54<br />
[C02]: Form id shaft, Round shaft 12x30 mm with parallel key 4x4x14 mm<br />
[2305]: Power supply voltage, 230 VAC/50 Hz<br />
[060]: Running time to 90°, 60 seconds<br />
[090]: Angular displacement, 90°<br />
[DPS]: Controlling, Three-point-step position feedback "POTENTIOMETER USE"<br />
[5K]: Position feedback, 5 kOhm (conductive plastic), TUV approved, positive,<br />
free of backlash, only possible with Three-point-step-controlling<br />
[0]: Additional position feedback, without<br />
[65]: IP protection class, IP65 with metal cover<br />
[ES2]: End switches, 2 end switches<br />
[ZS1]: Additional switches, 1<br />
[1R]: Direction of rotation to the right, clockwise<br />
[S]: Gear, standard<br />
[S]: Adaption, 3x M6, hole circle 50mm<br />
[1B]: Colour, cover blue<br />
[1S]: Cable glands, 2x M20<br />
[SO0]: Special configuration, without

ACTUATOR<br />
Brand: LAMTEC<br />
Model: 662R2111-D/2L-020/C02/2305/060/090/DPS/5K/0/HV1/65/ES2/ZS1/2L/S/S/1B/1S/SO0/<br />
[662R2111]:<br />
Actuator 20 Nm<br />
230 VAC<br />
Running time 60 sec. to 90°<br />
TPS<br />
Position feedback POTENTIOMETER 5 KOhm<br />
Conductive platic<br />
TUV approved<br />
2 end switches<br />
1 additional switch<br />
Without electr. override<br />
IP54<br />
[C02]: Form id shaft, Round shaft 12x30 mm with parallel key 4x4x14 mm<br />
[2305]: Power supply voltage, 230 VAC/50 Hz<br />
[060]: Running time to 90°, 60 seconds<br />
[090]: Angular displacement, 90°<br />
[DPS]: Controlling, Three-point-step position feedback "POTENTIOMETER USE"<br />
[5K]: Position feedback, 5 kOhm (conductive plastic), TUV approved, positive,<br />
free of backlash, only possible with Three-point-step-controlling<br />
[0]: Additional position feedback, without<br />
[65]: IP protection class, IP65 with metal cover<br />
[ES2]: End switches, 2 end switches<br />
[ZS1]: Additional switches, 1<br />
[2L]: Direction of rotation to the left, anti-clockwise<br />
[S]: Gear, standard<br />
[S]: Adaption, 3x M6, hole circle 50mm<br />
[1B]: Colour, cover blue<br />

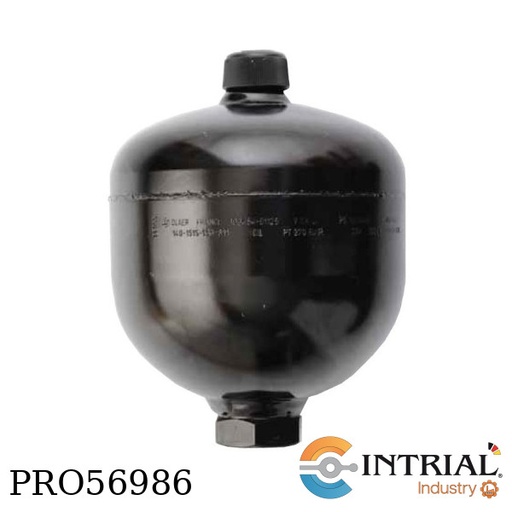

MEMBRANE HYDROPNEUMATIC ACCUMULATOR<br />
BRAND: PARKER<br />
MODEL: ELM-0,32/250<br />
GAS VOLUME: 0.32<br />
PRESSURE: 250<br />
GAS SIDE: M28X1.5<br />
1/2" - M33X1.5 - DOUBLE THREAD<br />
<br />
<br />

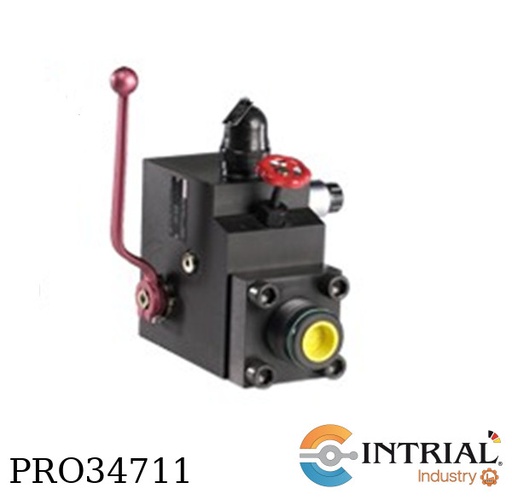

ACCUMULATOR SHUT OFF BLOCK<br />
Brand: BOSCH REXROTH<br />
Nominal diameter; DN20<br />
Unloading; Manual<br />
Pressure adjustment bar [psi]; 330 [4785] <br />
Pressure relief valve; type tested (with CE mark)<br />
Accumulator adapter; G2<br />
Seal material (elastomer); FKM seals
<div>
<div class="gtx-trans-icon"></div>
</div>

<div>
<div class="gtx-trans-icon"></div>
</div>

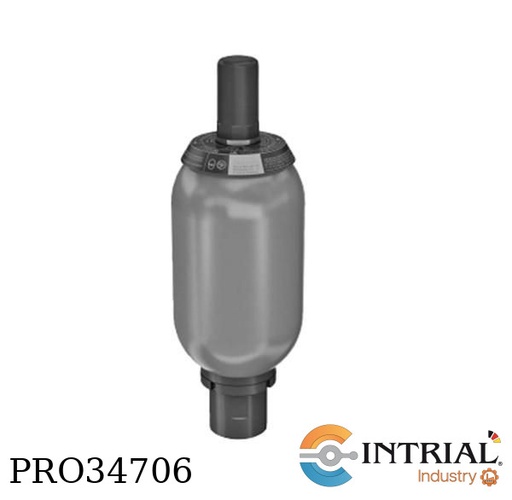

BLADDER-TYPE ACCUMULATOR  <br />
Brand: BOSCH REXROTH<br />
Nominal volume; 20 liters<br />
Maximum operating pressure; 330 bar (1 ... 50 liters)<br />
60 … 69: unchanged installation and connection dimensions<br />
Gas filling pressure; 0 bar<br />
Port size for hydraulic fluid; G2<br />
Type of mounting; Thread with sealing surface, radial on the inside<br />
Gas port form; Gas valve for filling and test device<br />
Bladder material; NBR<br />
Tank material; Steel
