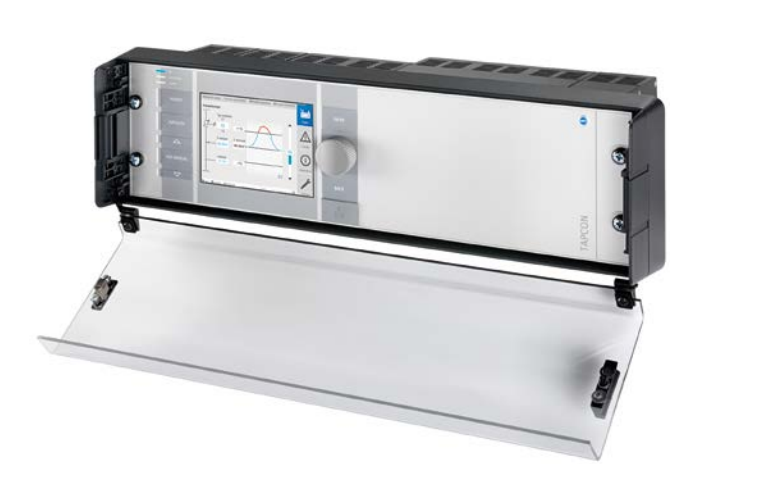

TENSION REGULATOR

TENSION REGULATOR
Brand: REINHAUSEN
Model : TAPCON-BU
Display:
HMI front assembly
Full graphics 5.7" color display, 640 x 480 pixels
Operation via cursor wheel and function keys
RJ45 front interface for setting device parameters using PC/laptop
Internal power supply 24 VDC
Supply voltaje:
85-265V AC/DC
Un 100-240V AC
Un 107-240V DC
Product description:
Automatic voltage regulator for regulating,controlling, and monitoring regulated power transformer in 19" racks in accordance with DIN 41494 Part 5 (W x H x D 483 x 133 x 178 mm; 84HPx3HU).
Modular hardware equipment, basic equipment consisting of:
CPU (central processing unit) Communication interfaces:
3 x RJ45 SCADA/device parameter setting (local & remote)
1 x RS232 System interface
1 x RS232/422/485 Control center communication
2 x CAN Parallel operation communication and decentralized I/O modules
1 x USB Firmware/software/database upload and download
Operation:
Operating modes: Local and Remote
Control function: AVR Manual and AVR Auto
Full graphics, web-based visualization on the device and PC/laptop with intuitive operator guidance and navigation, including help function.
Commissioning wizard for assisted initial parameterization.
Documentation available as PDF file on the device.
Safety:
Role-based user management
Encrypted data transmission (SSL) to visualize and upload/download data and parameters
Adjustable variables:
Voltage regulation for regulated power transformers
