Repuestos para DON-2-45H-AB-3-Z3-N-0<br />
Brand: Kobold<br />
Model: Accesorios (DON)<br />
Set O-ring for models; Code :3<br />
Set Rotors for models: Set Rotors for models: <br />
Key Pad with Cover:  Key Pad with Cover<br />
dual LCD totaliser/rate, outputs: pulse, analogue; Code :Z3

KOBAR pitot tube<br />
Brand: Kobold<br />
Model: ANU-Y<br /><br />
Diff. Pressure probe <br />
KOBAR<br />
Model DCR<br />
Type: Venturi Tube welded, see ISO5167<br />
Dimensions: 10” SCH 20<br />
Cylindrical inlet section connected to a conial (21)<br />
Convergent section, and connected to the cylindrical part “d”.<br />
Output divergend conical at 15°<br />
Total length: to confirm by calculation<br />
Diameter “d”: to confirm by calculation<br />
Process connection: Flanged ANSI B16.5 Slip-on 10” 150#-RF<br />
Pressure taps: 4 pressure taps ½” NPT-F to 90°D and 4 to 90° D/2<br />
Material: 316SS<br />
Not include: Manifold, transmitter and condensate pot<br />
Documentation include: Dimensional drawing<br />
Calculation ISO5167-2<br />
Certificat 3.1.B

KOBAR pitot tube<br />
Brand: Kobold<br />
Model: ANU-Y<br /><br />
Diff. Pressure probe <br />
KOBAR<br />
Model DCR<br />
Type: Venturi Tube welded, see ISO5167<br />
Dimensions: 6” SCH 20<br />
Cylindrical inlet section connected to a conial (21)<br />
Convergent section, and connected to the cylindrical part “d”.<br />
Output divergend conical at 15°<br />
Total length: to confirm by calculation<br />
Diameter “d”: to confirm by calculation<br />
Process connection: Flanged ANSI G16.5 Slip-on 6” 150#-RF<br />
Pressure taps: 4 pressure taps ½” NPT-F to 90°D and 4 to 90° D/2<br />
Material: 316SS<br />
Not include: Manifold, transmitter and condensate pot<br />
Documentation include: Dimensional drawing<br />
Calculation ISO5167-2<br />
Certificat 3.1.B

KOBAR pitot tube<br />
Brand: Kobold<br />
Model: ANU-Y<br /><br />
Diff. Pressure probe <br />
KOBAR<br />
Model DCR<br />
Type: Venturi Tube welded, see ISO5167<br />
Dimensions: 8” SCH 20<br />
Cylindrical inlet section connected to a conial (21)<br />
Convergent section, and connected to the cylindrical part “d”.<br />
Output divergend conical at 15°<br />
Total length: to confirm by calculation<br />
Diameter “d”: to confirm by calculation<br />
Process connection: Flanged ANSI B16.5 Slip-on 8” 150#-RF<br />
Pressure taps: 4 pressure taps ½” NPT-F to 90°D and 4 to 90° D/2<br />
Material: 316SS<br />
Not include: Manifold, transmitter and condensate pot<br />
Documentation include: Dimensional drawing<br />
Calculation ISO5167-2<br />
Certificat 3.1.B

<div>Pitot tube<span> </span></div>

<div>Brand: Kobold (Alemania)<span> </span></div>

<div>Model: ANU-C2-N60-E-ES-00<span> </span></div>

<div>[ANU-C2]<span> </span></div>

<div>Operating principle Differential Pressure<span> </span></div>

<div>Version, for compact mounting<span> </span></div>

<div>Accuracy ± 1% of measured value<span> </span></div>

<div>Max. temperature + 400 °C (higher on request)<span> </span></div>

<div>Max. Pressure, 50 bar with compressed fitting<span> </span></div>

<div>Sensor diameter, 25 mm<span> </span></div>

<div>Available probe length withoput end support, DN100..600<span> </span></div>

<div>[N60]: Connection, 1" NPT<span> </span></div>

<div>[E]: Material probe / connection, st.st 1.4404 (316L)<span> </span></div>

<div>Pipeline size (L)*<span> </span></div>

<div>[ES]: (for welding on customer tube), st.st 1.4404 (316L)<span> </span></div>

<div>[00]: Options, without</div>

<div>Pitot tube<span> </span></div>

<div>Brand: Kobold (Alemania)<span> </span></div>

<div>Model: ANU-C1-N60-E-00-00<span> </span></div>

<div>[ANU-C1]<span> </span></div>

<div>Operating principle Differential Pressure<span> </span></div>

<div>Version, for compact mounting<span> </span></div>

<div>Accuracy ± 1% of measured value<span> </span></div>

<div>Max. temperature + 400 °C (higher on request)<span> </span></div>

<div>Max. Pressure, 50 bar with compressed fitting<span> </span></div>

<div>Sensor diameter, 13 mm<span> </span></div>

<div>Available probe length withoput end support, DN50..150<span> </span></div>

<div>[N60]: Connection, 1" NPT<span> </span></div>

<div>[E]: Material probe / connection, st.st 1.4404 (316L)<span> </span></div>

<div>Pipeline size (L)*<span> </span></div>

<div>[00]: (for welding on customer tube), without<span> </span></div>

<div>[00]: Options, without</div>

<strong>Transmitter Magnetostrictive NBK<br />
Brand: Kobold (Alemania)<br />
Model: NBK-( Model: T )</strong><br />
[Model T]<br />
Output: 4 ... 20  mA <br />
Supply voltage:  24 VDC, max. 150 mA <br />
Load:  max. 500Ω<br />
Length:  1650 mm  <br />
Medium  temperature: - 40 ... +120 °C <br />
Ambient  temperature: - 20 ... + 80 °C<br />
Accuracy:  ±1 mm <br />
Housing: aluminium pressure-cast  <br />
Protection: IP 65

BG-ET-Produkt-Skala<br />
BGN-producto a escala de aluminio / elox.<br />
dimensiones: 126x126x1.5<br /><br />
Nota:<br />
2 Units of Scale 0-1,600 l / h Diesel <br />
Flowmeter Model: BGN-S109CN000-1-S51-0 <br />
Serial Number: 249381 ………………..(2 unidades)

Certificate of material DON

Set Rotors<br />
Brand: Kobold<br />
Para modelo DON-2-50H-AB-1-Z3-N-0

Set O-ring<br />
Brand: Kobold<br />
Para modelo DON-2-50H-AB-1-Z3-N-0

Set Rotors<br />
Brand: Kobold<br />
Para modelo DON-2-45H-AB-1-73-N-0

Set O-ring<br />
Brand: Kobold<br />
Para modelo DON-2-45H-AB-1-73-N-0

Electronic Board for Pulse Output<br />
Part Number:  ERS-DON-923012<br />
Brand: Kobold<br /><br />
Para Medidor de Caudal DP<br />
Model: DON-2-35H-A9-1-Z3-N-0<br />
S/N: 373650D<br /><br />
* Incluye servicio de reparación de tarjeta.

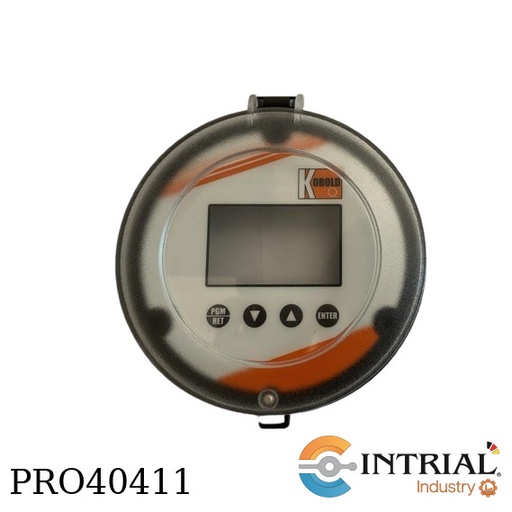

Key Pad with Cover

BG-ET-Produkt-Skala<br />
BGN-producto a escala de aluminio / elox.<br />
dimensiones: 126x126x1.5<br /><br />
Nota:<br />
Scale 0-42,000 l / h Diesel <br />
Flowmeter Model: BGN-S131CV000-1-S50-0 <br />
Serial Number: 255666 ………………..(2 unidades)<br />
Serial Number: 255667 ………………..(2 unidades)<br />
Serial Number: 255668 ………………..(2 unidades)

Accessories for KDF<br />
Tubo de vidrio calibrado para KDF-9285NV0000

BG-ET-Produkt-Skala<br />
BGN-producto a escala de aluminio / elox.<br />
dimensiones: 126x126x1.5<br />
Art. No: 60016895<br /><br />
Process conditions<br />
Range [l/min] : 68 - 667<br />
Fluid : Water<br />
Density [kg/m³] : 1000<br />
Viscosity [mPas] : 1<br />
Process temperature [°C] : 20<br />
Process pressure [pe bar] : 40<br /><br />
Reemplazo para serie. no.: 283090

BG-ET-Anzeigeteil-Ö-1xSJ3,5N;-kpl'<br />
Unidad de indicación BGN / BGF con KEI1 (SJ3,5N) compl. con, escala blanc, cover-alu, rodamiento, puntero y sellado Art.-No: 60013198<br />
Reemplazo para serie. no.: 283090

Cable de control apantallado 4VX 16AWG   200 mtr
