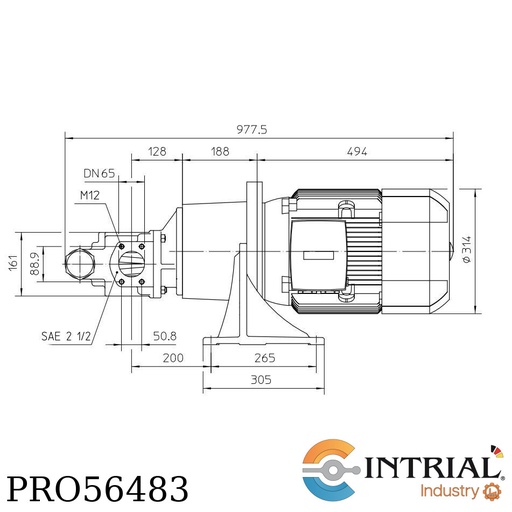

<strong>Gear pump unit: SF 6/180 RD-VLFM<br />
STEIMEL part-no.: ASF6-180RD210197R</strong><br />
dimensional drawing: DPA056D-180689R<br />
list of spare parts: DET056180RD--165R<br />
Suction and Pressure:<br />
connections: SAE 2 ½<br />
casing parts: EN-GJL-250 (GG-25)<br />
shafts: 16MnCrS5, case-hardened.<br />
gear wheels,<br />
noise-optimized: EN-GJS-400-15 (GGG-40)<br />
ionitrided, helical toothed<br />
shaft sealing: radial shaft sealing ring<br />
elastomers: FKM<br />
flow medium: lube oil<br />
viscosity: 50-5000 cSt<br />
temperature: 10-60°C<br />
flow rate: approx. 165 / 198 ltr/min.<br />
pressure: 5 bar<br />
speed: 950 / 1140 1/min.<br />
pressure relief valve.<br />
opening pressure: 8 bar<br />
range of adjustment: 2-16 bar<br />
sense of rotation: clockwise<br />
test run: yes, with HLPD 46<br />
coupling: BKUA095-2442-301<br />
pump mount with base: BLF056350188LA21<br />
three-phase motor: LDM160-06-059 (Birkenbeul)<br />
MOTOR DATA:<br />
power 1/2: 7,5 kW<br />
speed 1/2: 1000 / 1200 1/min.<br />
voltage / frequency 1: 400/690 Volt +/-10% at 50 Hz<br />
voltage / frequency 2: 460 Volt +/-10% at 60 Hz<br />
efficiency class: IE3<br />
degree of protection: IP 55<br />
insulation class: F<br />
form of construction: B 5<br />
specially: UL/ CSA - design<br />
finish: primer HDO058 - green<br />
type plate: ETY924-D-E--PE02<br />
motor junction box:turned 90° to suction side.

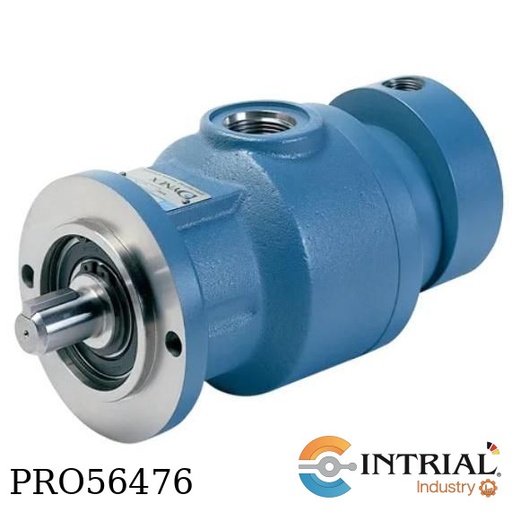

High Pressure Checkball Piston Pumps<br />
Brand: DYNEX<br />
Model: PF1002-2978<br />
Pump Type, Fixed Displacement Checkball Pump<br />
Output Flow, 1.5 gpm (5,7 L/min)<br />
Operating Pressure, Standard Pressure<br />
Drive Shaft, Keyed, 0.875 inch (22,20 mm) diameter

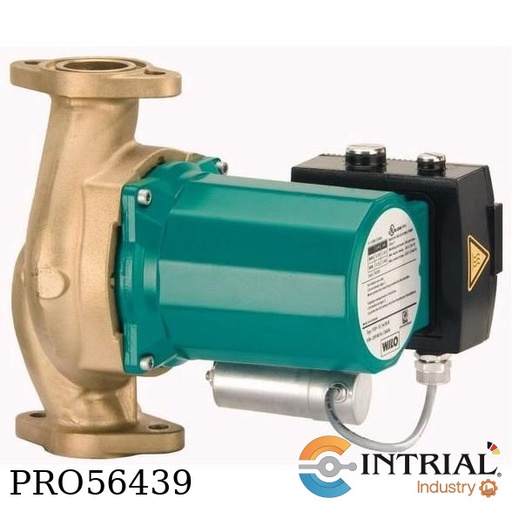

Lead-Free Bronze Circulator<br />
Brand: WILO<br />
Model: 2088046<br />
Two Speed<br />
Flange Type, 2" HV Four Bolt<br />
3 PH<br />
208/230V<br />
1 1/2 HP<br />
Maximum Head, 38.7 ft<br />
Maximum Flow, 160.7 GPM

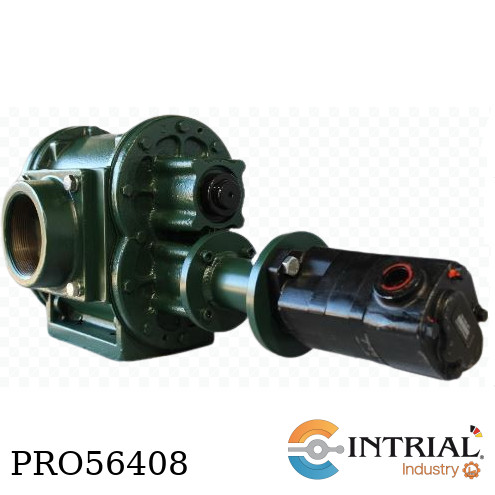

ROTARY PUMP<br />
Brand: BOWIE PUMP<br />
Model: 3700 XP/SS/HP/ALR/F/DOT<br />
1 3/8" Stainless Steel<br />
Shafts<br />
Wear Plates<br />
Alum Lantern Rings<br />
3"FNPT Flanges<br />
Heavy Duty(Both Front and Back Plate)<br />
Front Plate Drilled and Tapped for Hydraulic Adapter

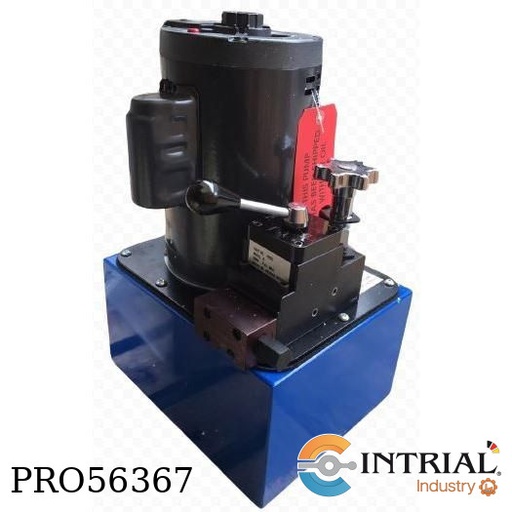

Bomba Hidraulica con accionamiento eléctrico<br />
Marca: POWER TEAM<br />
Modelo: 64529<br />
Motor eléctrico universal<br />
 1 hp,<br />
 60 Hz,<br />
 115/230 V,<br />
 1725 RPM,<br />
 Corriente alterna monofásica.<br />
Presión máxima, 700 bar (10,000 PSI)<br />
Válvula manual de 3 vías y 4 posiciones con compensación de la presión modelo 64529<br />
Válvula de seguridad exterior regulable de 70 a 700 bar.<br />
Válvula de seguridad a 700 bar.<br />
Depósito metálico de aceite de con 9.5 litros de capacidad mínima. (2.5 galones)

MULTISTAGE HORIZONTAL HIGH-PRESSURE CENTRIFUGAL PUMP<br />
Brand: WILO<br />
Model: MHI205-1/E/3-60-2/IE3<br />
[2]: Volume flow, 2 m3 /h<br />
[05]: Number of impellers, 5<br />
[1]: Material, 1.4301 (AISI 304)<br />
[E]: Type of gasket, EPDM<br />
[3]: 3~ (three-phase AC)<br />
[60]: Frequency, 60 Hz<br />
[2]: Number of poles, 2<br />
<br />

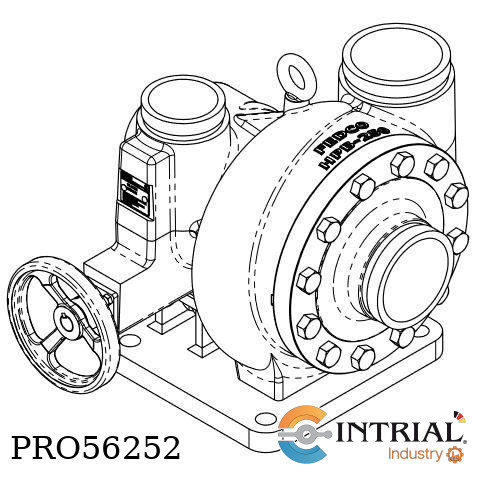

HYDRAULIC PRESSURE BOOSTER<br />
Brand: FEDCO<br />
Model: HPB-250<br />
Feed Flow, 180.0 m³/h<br />
Brine Flow, 54.0 m³/h<br />
Membrane Pressure, 24.0 bar<br />
Brine Pressure, 22.0 bar<br />
Brine Outlet Pressure, 1.0 bar<br />
Feed Temp, 20.0 °C<br />
Feed Boost Pressure, 3.1 bar<br />
Pump Outlet Pressure, 20.9 bar

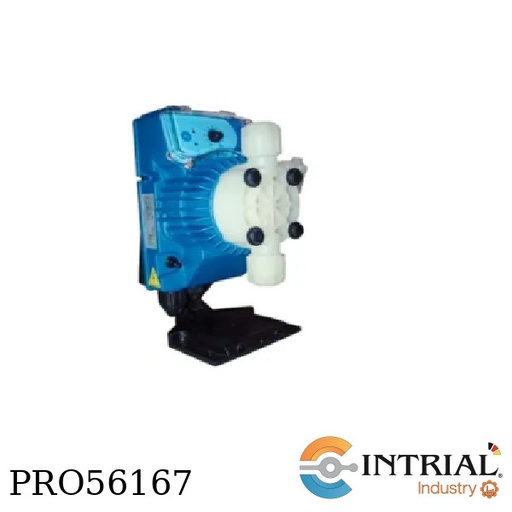

DOSING PUMP<br />
BRAND: SEKO<br />
MODEL:AKL600NHP1000<br />
PRESSURE [BAR]: 20 - 8<br />
FLOW RATE [L/H]: 2.5 - 7<br />
FREQUENCY MAX [STROKE/MIN]: 120<br />
STROKE CAPACITY [CC/STROKE]: 0.35<br />
CONNECTION [MM]<br />
SUCTION: 4/6<br />
DOWNLOAD: 4/7<br />
POWER SUPPLY: 100÷240 VAC<br />
CONSUMPTION [W]<br />
MIN: 14.0<br />
MAX: 19.0<br />
50/60 HZ<br />
220 V

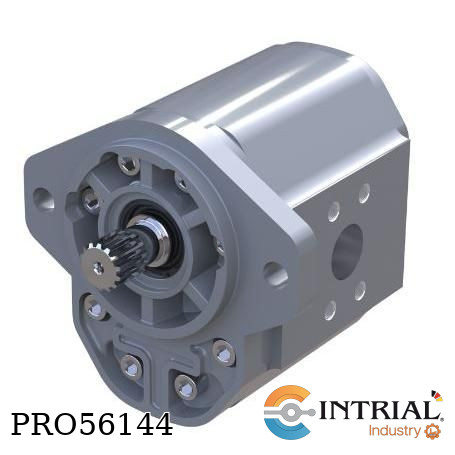

GEAR PUMP<br />
Brand: DANFOSS<br />
Model: TAP4NN/106-R-N-01BA-P1-A6-A5-SD-N-N-NNN-N-N<br />
[TAP4NN]: Family, Group 4 pumps from 60 up to 200 cc<br />
[106]: Displacement, 103,4 cc<br />
[R]: Rotation, Right rotation<br />
[N]: Project version, Std Version of Project<br />
[01BA]: Mounting flange, European 4 bolt - Pilot Ø63,5<br />
[BA]: Drive gear, Taper 1:8-M20x1,5-Key 6,375<br />
[P1]: Rear cover, Standard cover for pump<br />
[A6]: Inlet size; I Outlet size, 50x42,88x77,77x1/2-13UNC<br />
[A5]: Inlet size; I Outlet size, 37,5x35,71x69,85x1/2-13UNC<br />
[SD]: Ports positions & Special body, Body width side ports=151mm (Std for 02 Flange)

Bomba Dosificadora<br />
Marca: LMI<br />
Modelo: AD21<br />
Fluído, MIBC<br />
Caudal máximo, 0.8 lph<br />
Presión máxima, 17.2 bar<br />
Temperatura, 20 °C<br />
Material húmedo, PP<br />
Válvula de bola, Cerámico<br />
Sello, PTFE

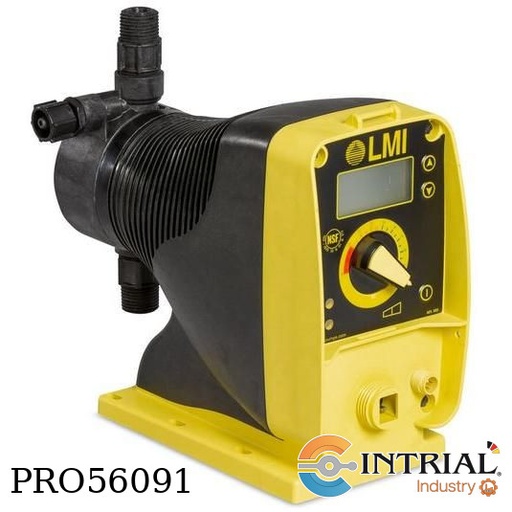

Bomba Dosificadora<br />
Marca: LMI<br />
Modelo: AD24<br />
Fluído, H2SO4 98%<br />
Caudal máximo, 1.9 Lph<br />
Presión máxima, 17.2 bar<br />
Temperatura, 20 °C<br />
Material húmedo, PVDF<br />
Válvula de bola, Cerámico<br />
Sello, PTFE

Bomba Dosificadora<br />
Marca: LMI<br />
Modelo: AD21<br />
Fluído, A-404<br />
Caudal máximo, 0.8 lph<br />
Presión máxima, 17.2 bar<br />
Temperatura, 20 °C<br />
Material húmedo, PP<br />
Válvula de bola, Cerámico<br />
Sello, PTFE

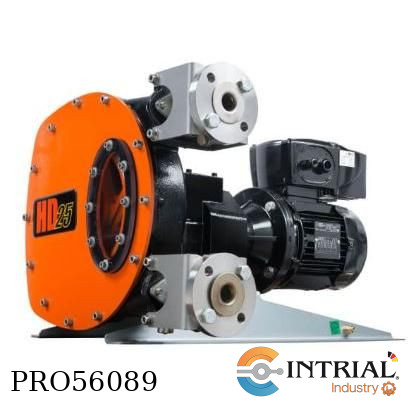

BOMBA PERISTÁLTICA<br />
Marca: ABAQUE<br />
Modelo: HD10<br />
Caudal, 30 LPH servicio continuo<br />
Presión, 2 Bar<br />
Construcción/ Materiales:<br />
Insertos, Acero inoxidable<br />
Manguera, Hypalon<br />
Diámetro interior manguera, 10mm<br />
Incluye Motorreductor 0.HP, 440V, trifásico, 60Hz

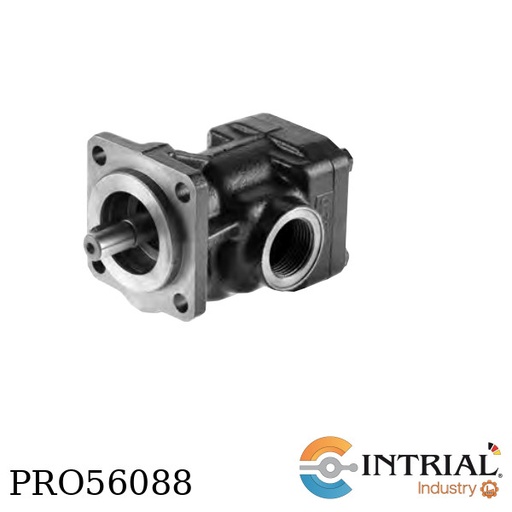

WASTE OIL TRANSFER PUMP <br />
BRAND: KRACHT<br />
MODEL: KF-32-RF-1-D15<br />
<br />
MATERIAL HOUSING: GREY CAST IRON EN-GJL 250<br />
MATERIAL INTEGRATED VALVE: GREY CAST IRON EN-GJL 250<br />
MATERIAL GEARS: STEEL, CASE HARDENED<br />
SEAL MATERIAL: NBR<br />
SHAFT SEALING: SINGLE RADIAL LIP-TYPE SEAL<br />
BEARING: MULTI COMPONENT SLEEVE BEARINGS P10<br />
GEOMETRICAL DISPLACEMENT: 32,12 CM³/R<br />
DIRECTION OF ROTATION: CLOCKWISE (SEEN ON SHAFT END)<br />
TYPE OF FIXATION: DIN FLANGE<br />
OUTBOARD BEARING: NO<br />
TYPE OF PIPE CONNECTION: FLANGE CONNECTION SAE 1 1/2"<br />
SHAFT END: CYLINDRICAL Ø 24MM<br />
INTEGRATED VALVE: D-VALVE 0...15 BAR<br />
OPERATING PRESSURE (SUCTION SIDE):<br />
-0.4...+6 BAR (MAX 750 RPM), -0.4...+5 BAR (MAX 1000 RPM)<br />
-0.4...+4 BAR (MAX 1500 RPM),-0.4...+3 BAR (MAX 2000 RPM)<br />
-0.4...+2 BAR (MAX 3000 RPM), -0.4...+1.5 BAR (MAX 3600 RPM)<br />
MAX. OPERATING PRESSURE (PRESSURE SIDE): 25 BAR (DEPENDING ON VISCOSITY, SPEED AND POWER)<br />
FLUID TEMPERATURE: -20°C...+90°C<br />
AMBIENT TEMPERATURE: -20°C...+60°C<br />
MINIMUM VISCOSITY:<br />
1.4 MM²/S (MAX. 3 BAR)<br />
6 MM²/S (MAX. 12 BAR)<br />
12 MM²/S (MAX. OPERATING PRESSURE)<br />
MAXIMUM VISCOSITY: DEPENDING ON SUCTION CONDITIONS, SPEED AND POWER<br />
SPEED RANGE: 200...3600 RPM (DEPENDING ON PRESSURE, VISCOSITY AND POWER)<br />

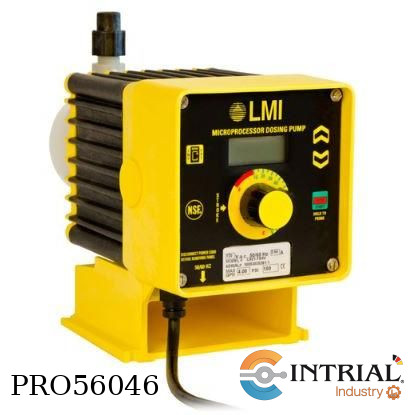

BOMBA DOSIFICADORA<br />
Marca: LMI<br />
Modelo: B943-318SI<br />
Caudal máximo, 26.5 LPH<br />
Presión máxima, 2 bar<br />
Material húmedo, PVC<br />
Válvula de bola, Cerámico<br />
Valvula, FV<br />
Fitting, PVC<br />
Alimentación, 220/440 vac

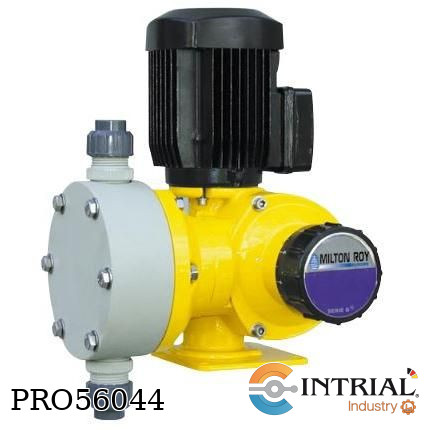

ELECTROBOMBA DOSIFICADORA<br />
Marca: MILTON ROY<br />
Modelo: GM240D40N3V<br />
Caudal máximo, 240LPH<br />
Presión máxima, 7 bar<br />
Material húmedo, PVdf<br />
Válvula de bola, Cerámico<br />
Valvula, FV<br />
Modo, VariPulse 4-Wire Cable (3 metros)

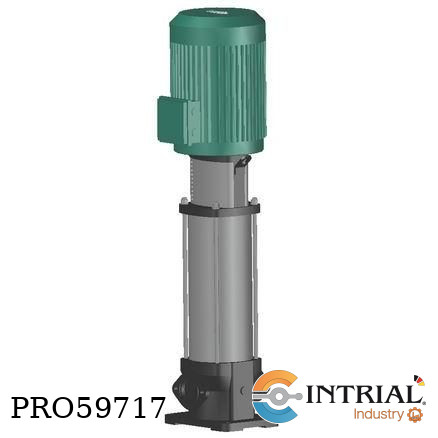

BOMBA CENTRIFUGA<br />
Marca: WILO<br />
Modelo: HELIX V606-2/25/V/KS/60<br />
[6]: Caudal nominal, 6 m3/h<br />
[06]: Número de rodetes, 6<br />
[2]: Material, Acero inoxidable de la carcasa de la bomba 1.4404 (AISI 316L)<br />
+ Conjunto hidráulico 1.4404 (AISI 316L)<br />
[25]: Conexión de tubería, bridas redondas PN 25<br />
[V]: Código del tipo de junta, FKM<br />
[K]: Junta de cartucho<br />
[S]: Linterna orientada en línea con la tubería de aspiración<br />
[60]: Frecuencia del motor, 60 Hz<br />
3.0 HP 3F 220/440V

Positive Displacement Pump<br />
Brand: SEKO<br />
Model: 2Y86N2SSA<br />
Service/Liquid, Sulfuric Acid (90-98%)<br />
Type, Hydraulic Double Diaphragm NEXA Type<br />
Flowrate (total), 3650 l/h @ 9,8 barg (MAWP 14 barg)<br />
SPM, 161<br />
NPSHr, 5<br />
Motor, 3 kW /6 poles /460 V /60 Hz /3 Phase /Frame 132-B5<br />
Temperature, Fluid 45° C / ambient 36° C<br />
Connections, 2" ANSI 150# WN-RF<br />
Adjustment, Manual<br />
Materials<br />
 Pump Head, Hastelloy C-276<br />
 Diaphragm, PTFE<br />
 Ball, Hastelloy C-276<br />
 Valves seat, Hastelloy C-276<br />
 Gasket, PTFE

Vertical high-pressure multistage centrifugal pump in in-line design<br />
Brand: WILO<br />
Model: HELIXV-1607-1/25/E/KS/60-15HP<br />
[16]: Nominal volume flow, 16 m³/h<br />
[07]: Number of impellers, 7<br />
[1]: Pump material,<br />
Pump housing stainless steel 1.4301 (AISI 304) +<br />
hydraulics 1.4307 (AISI 304)<br />
[25]: Pipe connection, round flanges PN 25<br />
[E]: Seal type, EPDM<br />
[K]: Cartridge seal, versions without “K” are equipped with simple mechanical sea<br />
[S]: Lantern orientation align with suction pipe<br />
<br />

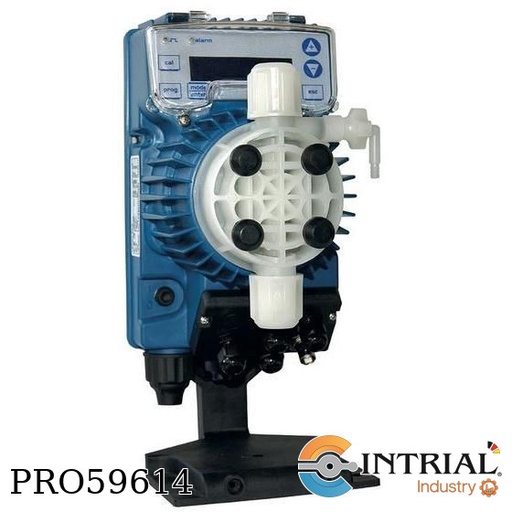

BOMBA DOSIFICADORA<br />
Marca: SEKO<br />
Modelo: TPG603NHH1000<br />
Digital<br />
4-8 LPH<br />
12-2 BAR<br />
220 V<br />
50/60 Hz<br />
Cabezal de PVDF<br />
Kit de instalación
