VÁLVULA A SOLENOIDE <br />
Marca: JEFFERSON<br />
NC, conexión 1/2” <br />
De aluminio BSP con asientos de nitrilo<br />
(Temp. máx.: 176 F)<br />
Orificio de 18 mm<br />
Cv: 4.095 - Acción directa<br />
Presión diferencial mín./máx. 0 / 3 PSI

VALVULA BOLA<br />
Marca: HAYWARD<br />
Material: PVC<br />
Nominal Size: 1"<br />
Connections: Soc & FPT<br />
Seals: EPDM

VÁLVULAS DE DIAFRAGMA<br />
Marca: DWYER<br />
[DCV] Construcción; Bobina integrada<br />
[25] Tamaño; 1˝<br />
[C] Conexión; Coupling<br />
[1D] Voltaje; 110 VAC (solo para bobina integrada)<br />
Servicio: Gases compatibles, filtrados y exentos de aceite.<br />
Materiales húmedos: Cuerpo: aluminio; Recorte: 304 SS; Diafragma y juntas: <br />
NBR; Disco de diafragma: poliamida.<br />
Límites de presión: Mínimo de 4,4 psi (0,3 bar), máximo de 124,7 psi (8,6 bar).<br />
Límites de temperatura: -4 a 122 ° F (-20 a 50 ° C) para modelos DCV<br />
Consumo de energía: 12 W, irrupción: 17 VA; retención: 14,5 VA para modelos DCV.<br />
Conexión eléctrica: Conexión DIN para modelos DCV.<br />
Clasificación de la caja: NEMA 4X (IP65) para modelos DCV

Card MVA impulse<br />
Brand: BURKERT<br />
Interface 24 V only for MX systems<br />

PUSHBUTTON STATION<br />
BRAND: GENERAL ELECTRIC<br />
600VAC<br />
START/STOP

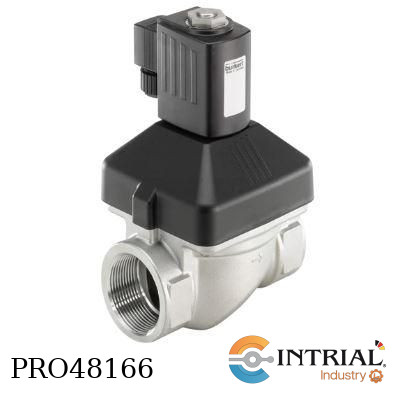

ELECTROVÁLVULA DE 2/2 VÍAS <br />
Marca: BURKERT<br />
Servoacoplada<br />
2/2 - A - normalmente cerrado <br />
Puerto de entrada 1 (P/NC)<br />
13,00 mm (1/2 pulgada)<br />
0,00 bar - 10,00 bar ,Acero inoxidable<br />
Rosca interior - NPT1/2 , 120,00 V - 120,00 V <br />
EPDM (Caucho de etileno propileno dieno) <br />
-30,00 °C - 100,00 °C <br />
Válvula completa<br />

VÁLVULA DE AGUJA DE BLOQUEO Y PURGA<br />
MARCA: PARKER<br />
MATERIAL: ACERO INOX SS316<br />
PACKING: PTFE<br />
1/2"NPT MACHO x 1/2"NPT HEMBRA<br />

ADAPTER ADAPTER G2-M50X1,5-SW70 NP:R901252865 MARCA: REXROTH

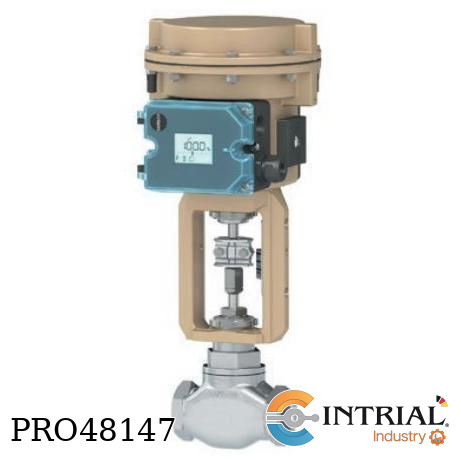

<strong>Pneumatic Control Valve <br />
Model: 3522+KITS<br />
Brand: SAMSON</strong><br />
Type 3522 Compact Valve (Little Tex) <br />
NPS 1; Class 300; Body stainless steel A 351 CF8M; Screwed <br />
ends with female thread NPT acc. to ANSI/ASME B1.20.1; Kvs <br />
10/Cv 12; Equal percentage characteristic; 15 mm rated travel; Plug <br />
with metal sealing; Plug material 316L; Plug stem material 316L; <br />
Seat material 316L; Seat with metal sealing; PTFE-carbon packing, <br />
spring-loaded; Body gasket A240 316/316L - AT; Actuator <br />
connection for Type 3271 Actuators up to 240 cm² or Type 3277 <br />
Actuators up to 120 cm² (3290033)<br /><br />
Include:<br />
* Type 3277 Pneumatic Actuator<br />
15 mm operating travel; Type 3277-5, diaphragm area 120 cm²; <br />
Diaphragm material NBR; Bench range 1.4 to 2.3 bar; Fail-safe <br />
action "Stem extends" (1089719) <br /><br />
* Type 3725 Electropneumatic Positioner <br />
Safe Area; Hardware version device index: 00; Software version V <br />
1.12; Packed (4293101)<br /><br />
* Mounting kit for Type 3725 <br />
Direct attachment with switchover plate; Consisting of:; Mounting <br />
parts for direct attachment to Type 3277, 120 cm², (1402-0239); <br />
Pressure gauge mounting block 1/4 NPT (1402-0238); Two <br />
pressure gauges (1402-1637) (5300795) <br /><br />
* Samstation Supply Pressure Regulator <br />
Version 01; Connecting thread 1/4-18 NPT; Set point range 0.5 to <br />
6.0 bar; With one pressure gauge, 0 to 6 bar, stainless steel body; <br />
Aluminum connecting part; 20 µm filter; Temperature range -20 to <br />
+60 °C; Filter receptacle with transparent filter housing (5944430)<br /><br />
* Screw cap, black, for Type 4708/7029 (20 pcs.) (1402-1165)

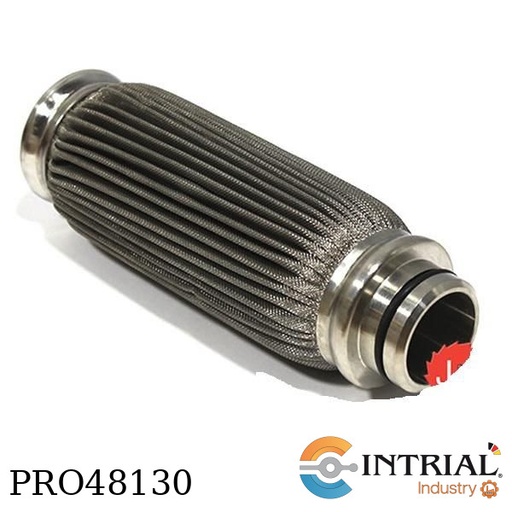

FILTER ELEMENT<br />
Brand: HYDAC<br />
Model : SZ-1-25-D-V (1345122)<br />
Filtration rating 25 µm

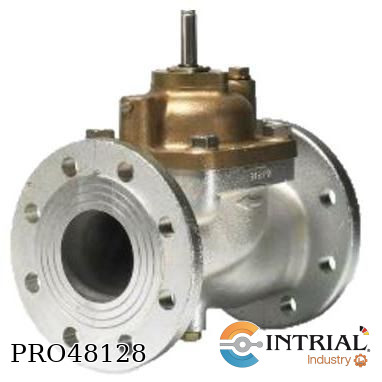

EV 220B 65 CI 2 1/2" bridada, NBR, 0.25 a 10 bar, Fierro Fund., NC<br />
Válvula Solenoide Normalmente cerrada<br />
Marca: Danfoss<br />
Origen: Dinamarca<br />
Modelo: EV220BConexión: 2.1/2” Bridado<br />
Material de la válvula: Fierro Fundido<br />
Material del diafragma: NBR<br />
Fluidos: Agua, aceite, aire comprimido, gases neutros.<br />
Presión diferencial: 0.3 a 10 Bar

ELECTROVALVULA 2/2 <br />
MARCA: GENEBRE <br />
Modelo: 4425-06-220V<br />
NORMALMENTE CERRADA. <br />
VOLTAJE 220/230 VAC<br />
Conexión: R1

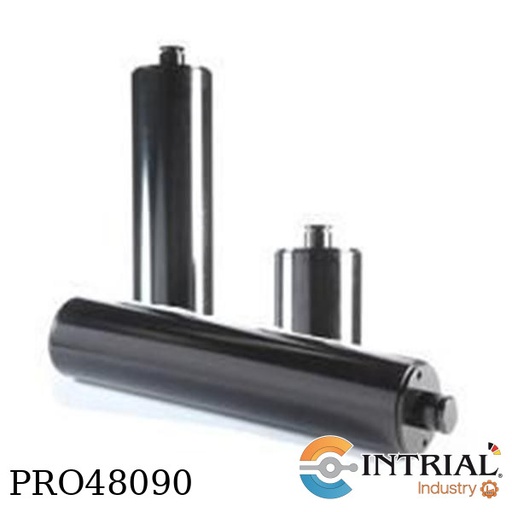

PISTON ACCUMULATOR<br />
Brand: HIDRAER<br />
Max Allowable Pressure / bar: 250<br />
Gas capacity / liter: 1,5<br />
Dimensions ID / OD / L: 80/90/385<br />
Standard Fluid Port: G¾"

ELECTROBOMBA<br />
Marca: PENTAX<br />
SUCC/DESC: 1 1/4" X 1"<br />
TRIFASICO 220/380V

MINOR KIT C3EBC-162<br />
Brand: IMO<br />
Model: KIT C3EBC-162<br />
3242/350RA<br />

SCREW PUMP<br />
Brand: Imo<br />
Model: C3EBC-162<br />
Part Number: 3242/350-1<br />
Pump Size: 162<br />
Pump Model: 3E<br />
Suction Port: 2"<br />
Discharge Port: 1.5"<br />
Material: Pearlitic Gray Iron

4 Way / 2 Position Versa Air Valve<br />
Brand: VERSA<br />
Product Series: V; V-Series Valve, Pneumatic<br />
Left End Actuator: G , Solenoid-Pilot<br />
Right End Actuator: G; Solenoid-Pilot<br />
Functional Type: 3 Four-Way<br />
Body Size: 5 1/2" Body Size<br />
Body Details: 2: Sideported-Internal Pilot<br />
Spool Details: 2; Two Position<br />
Suffix option: -D; Dust Proof, Venting End Caps to Exhaust, <br />
Dust Filter on Solenoid Exhaust<br />
Suffix Option: -M5R; Unguarded Locking Knob Manual Override<br />
Suffix Option: -PC; Potted Coil, NEMA 4/4X<br />
Suffix Option: -U; Upright Solenoid<br />
Suffix Option: -3; Viton Inserts in Solenoid Plunger<br />
Suffix Option:-F120; 120/50 VAC

SOLENOID VALVE<br />
Brand: DANA HOLDING CORPORATION

<strong>Gear pump , Spare parts <br />
Brand: Steimel </strong><br />
Model: IDP057X2V<br />
o-ring<br />
VITON<br />
*Include Kits (2 und.)

<strong>Gear pump spare parts Type SF 6/132 RD - O<br />
Brand: Steimel<br />
Model: ITW16X13-5 </strong><br />
Clamping <br />
DC01C390 (EN 10139), H 16/13X13,5<br />
* Include Kits (2 und)
