KIT VALVE<br />
Brand: CAT PUMP<br /><br />

KIT SEAL<br />
Brand: CAT PUMP<br />


PLUNGER CERAMIC<br />
Brand: CAT PUMP<br /><br />

SEAL OIL BUNA-N<br />
Brand: CAT PUMP<br /><br />

BEARING<br />
Brand: CAT PUMP<br />


O-RING BUNA-N<br />
Brand: CAT PUMP<br /><br />

ROD CONNECTING<br />
Brand: CAT PUMP<br /><br />

ROD PLUNGER<br />
Brand: CAT PUMP<br /><br />

SEAL OIL BUNA-N<br />
Brand: CAT PUMP<br />

WASHER OIL SEAL M51<br />
Brand: CAT PUMP<br /><br />

<strong>VIBRATION METER KITS<br />
Brand: WILCOXON<br />
Model: MAC810</strong><br />
Include MAC800<br />
Specifications:<br />
Vibration Meter:<br />
Size 7.95 x 2.36 x 1 in. (20 x 6 x 2.6 cm)<br />
Max frequency resolution 75 CPM at 800 lines FFT setting<br />
Displayed frequency units CPM or RPM<br />
Input range ±60 g<br />
Dynamic range, 0.01 g resolution 96 dB<br />
VA bands Auto set-up<br />
Display OLED full color, high contrast<br />
Selectable languages English (default), <br />
Spanish, Portuguese, French, Italian, German<br />
Power supply 2x AA batteries<br />
Battery life 20 hours normal use<br />
USB docking cradle<br />
Protective boot<br />
Carrying case<br />
Strobelight attachment (MAC004)<br />
DataMate PRO software (MAC005)<br /><br />
Sensor:<br />
Sensor 780FM-2-J88C integral cable accelerometer<br />
Sensitivity 100 mV/g<br />
Sensitivity tolerance ±15%<br />
Acceleration range 80 g<br />
Frequency range, ±3 dB 0.4 Hz to 12 kHz<br />
Acceleration limit 500 g<br />
Cable 6 ft. coiled cable<br /><br /><br />
Include:<br />
Calibración(Sensor y medidor)

<strong>VIBRATION METER KITS<br />
Brand: WILCOXON<br />
Model: MAC800</strong><br />
Specifications:<br />
Vibration Meter:<br />
Size 7.95 x 2.36 x 1 in. (20 x 6 x 2.6 cm)<br />
Max frequency resolution 75 CPM at 800 lines FFT setting<br />
Displayed frequency units CPM or RPM<br />
Input range ±60 g<br />
Dynamic range, 0.01 g resolution 96 dB<br />
VA bands Auto set-up<br />
Display OLED full color, high contrast<br />
Selectable languages English (default), <br />
Spanish, Portuguese, French, Italian, German<br />
Power supply 2x AA batteries<br />
Battery life 20 hours normal use<br />
USB docking cradle<br />
Protective boot<br />
Carrying case<br /><br />
Sensor:<br />
Sensor 780FM-2-J88C integral cable accelerometer<br />
Sensitivity 100 mV/g<br />
Sensitivity tolerance ±15%<br />
Acceleration range 80 g<br />
Frequency range, ±3 dB 0.4 Hz to 12 kHz<br />
Acceleration limit 500 g<br />
Cable 6 ft. coiled cable<br /><br /><br /><strong>Include:<br />
Calibración(Sensor y medidor)</strong>

VÁLVULA SILENT CHECK TIPO GLOBO BRIDADA DE 18”<br />
Marca APCO (DEZURIK)<br />
Material del cuerpo: hierro dúctil<br />
Material del tapón y asiento: Acero inoxidable 316<br />
Material de superficie del asiento: Metal<br />

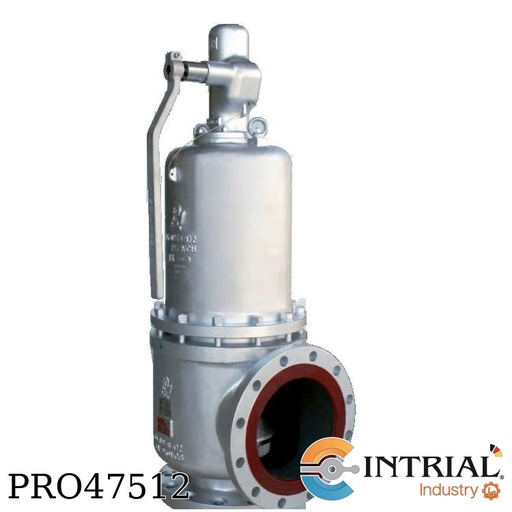

<strong>Válvula de Seguridad Technical<br />
Brand: Technical - Italia<br />
Model: 320-D10-16</strong><br />
Modelo 30000 / 3A0-D1P*-H6, 1” x 2”, orificio D, <br />
conexiones 150# RF x 150# RF, <br />
cuerpo en A216 WCB, tobera en A351 CF3M / A479 316L +ST., <br />
disco fabricado en A564 17-4PH H900, con fuelle, <br />
bonete cerrado, sin palanca, sin test gag. Marcado CE.

VÁLVULA DE CONTROL TIPO GLOBO CON JAULA PARA MICROFLUJO A ALTA PRESIÓN<br />
Marca: HITER<br />
Modelo: [1000-1070-1-900-RTJ-WC9-SOL-CE3-GG-3-JM-PC-M11-BH-BF-Y-AB-Y-Y-NF/DC008I-JF/SP7-10/MPC2AM]<br />
Serie 1000 de 1" clase #900 RTJ (ASME B.16.34),<br />
Cuerpo en aleación de acero al carbón ASTM A 216 Gr. WC9,<br />
Conexión bridada ASME B.16.5 clase 900#<br />
Bonete extendido<br />
Sellos del vástago de Grafito<br />
Empaques de acero inoxidable con grafito<br />
Característica de flujo equiporcentual<br />
Capacidad de flujo CV 0.5, obturador de acero inoxidable 316 con recubrimiento Stellite<br />
Sello clase IV<br />
Actuador neumático tipo diafragma normalmente cerrado<br />
Máxima presión de aire 3.45 bar (g).<br />
Incluye posicionador electro/neumático digital<br />
Señal de control 4-20 mA HART<br />
Manómetros y filtro/regulador de aire 1/4" NPT 40 μm

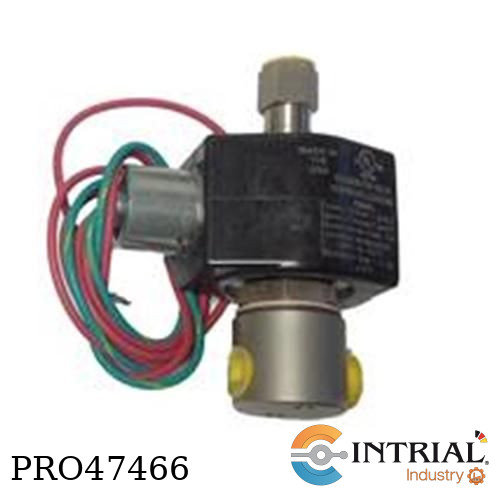

SOLENOID VALVE <br />
Brand: JEFFERSON<br />
Normally Closed<br />
CV: 0.1053 GPM<br />
Seat: Nitrile (Buna) Seats <br />
Port Size: 1/4’ NPT<br />
Max. / Min differential pressure: 0/290 PSI<br />
Body Material: AISI 304 with Nickel Plated Treatment<br />
Type of housing and coil: 24 V/DC Explosion Proof

2/2- MAGNETVENTIL(SOLENOIDE VALVE)<br />
Brand: END ARMATUREN<br />
G1", Ed/NBR, 24VAC-Ex , 0.5-16bar, servogesteuert, ATEX<br />
Voltage : 24V AC-ATEX(II 2G EEx m II T4, II 2D IP65 T 130C)<br />
Nominal size : 1"<br />
Body material : Stainless Steel<br />
Function: servo-assisted - NC<br />
Body material : 0<br />
Seals material: NBR<br />
Stem seals material :0<br />
Connection type: female / female<br />
Connection size: 1"<br />
Nominal pressure min. [bar] : 0,5<br />
Nominal pressure max. [bar] : 16<br />
Body test pressure PT [bar]: 24<br />
Temperature range min. [°C] -20<br />
Temperature range max. [°C] +50<br />


ANGLE SEAT VALVE<br />
Marca : Dwyer<br />
Service: Gases and liquids compatible with wetted materials.<br />
Wetted Materials: Valve body: SAV-ST: AISI 316L SS; Plug and <br />
stem: AISI 316L SS; Stem O-ring: Fluoroelastomers;<br />
Seat and seal: PTFE.<br />
Line Sizes: 1/2˝ NPT<br />
Pressure Limits: Max. Line Pressure 230 // Max. Steam Pressure: 150<br />
Flow Leakage: Meets ANSI Class VI<br />
Flow Direction: Overseat<br />
Temperature Limits: 14 to 358°F (-25 to 180°C).<br />
ACTUATOR<br />
Normally closed, Actuator Diameter: 2.76˝<br />
Type: Piston/pneumatic spring.<br />
Pilot Connections: NAMUR solenoid mounting pad.<br />
Pilot Media: Air, water, inert gas.<br />
Min. Pilot Pressure: 60 // Max. Pilot Pressure: 143<br />
Temperature Limit: 185°F (85°C)

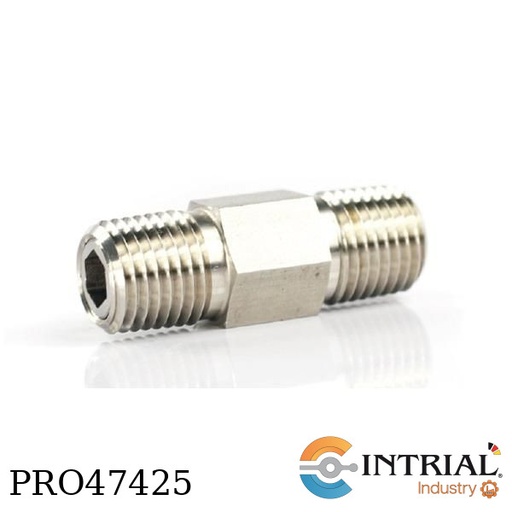

CHECK VALVE<br />
Brand: SAILUOKE FLUID EQUIPMENT<br />
One-piece body<br />
Max. working pressure: 3000 psig<br />
Inlet and outlet type and<br />
size: Male NPT 1/4 inch<br />
Seal material: Fluorocarbon FKM<br />
Cracking pressure: 1 psig<br />
Body material: 316 S.S.<br />

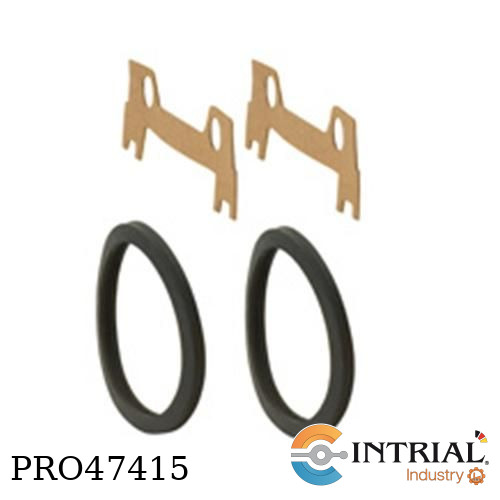

SEAL KIT FALK<br />
Marca: FALK <br />
