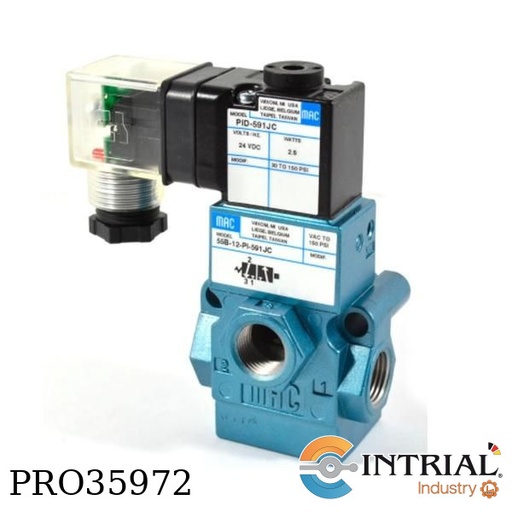

ELECTROVALVULA<br />
Marca: MAC VALVES<br />
Modelo: 55B-14-PI-611JA<br />
[61]: Voltage, 24 VDC (8.5 W)<br />
[1]: Manual operator, Non-locking<br />
[JA]: Electrical connection, Square connector

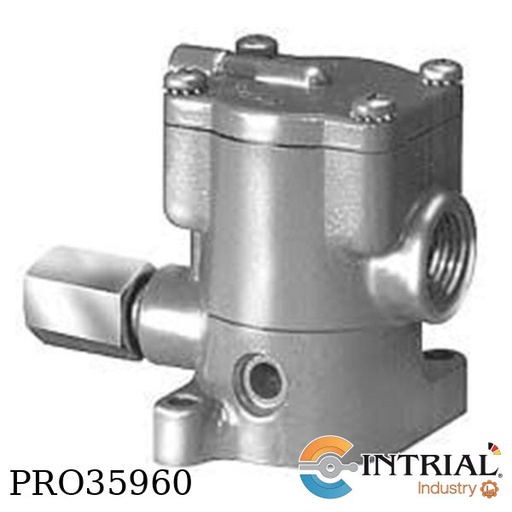

PILOT VALVE<br />
Brand: PARKER<br />
Function 3-Way N.O.<br />
Exhaust External<br />
Pressure range 0-140 PSIG

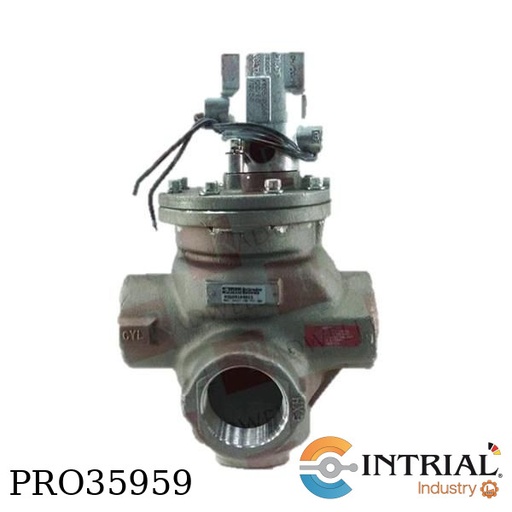

VALVE<br />
Brand: PARKER<br />
Fitting Size: 1-3/4 IN<br />
Max Pressure: 140 PSI<br />
Thread Type: NPT<br />
Coil Voltage (AC): 120 V-AC

Conector en codo<br />
Brand: BALLUFF<br />
Procedencia Alemana,<br />
para transductor lineal BTL

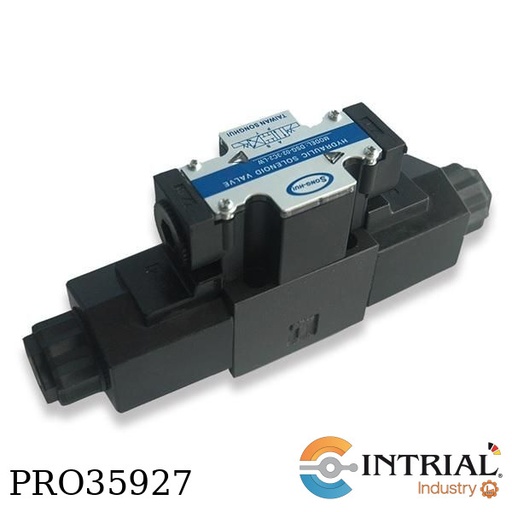

3/8 SOLENOID OPERATED DIRECTIONAL VALVES<br />
Brand: YUKEN<br />
Max. Flow(ℓ/min): 120<br />
Rated Voltage: DC24V<br />
SpoolSpring Arrangemen: Spring Centred<br />
Number of Valve Positions: Three Positions<br />
Application: Single Item<br />
Spool Type: 2<br />
Max. Operating Pressure: 31.5MPa<br />
Types of Valve: Electromagnetic Switching Valve

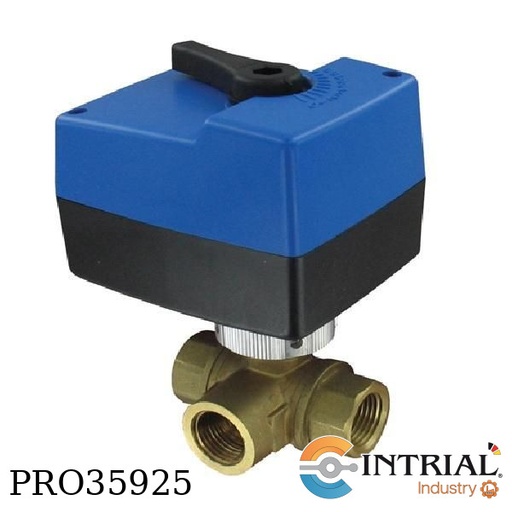

THREE-WAY DETACHABLE ELECTRIC BALL VALVE<br />
Brand: DWYER<br />
Service: Compatible fluids.<br />
Body: 3-way, NC.<br />
Line Size: 2˝ NPT<br />
End Connections: Female NPT.<br />
Pressure Limits: Max: 375 psi (25 bar); Close off: 87 psi (6 bar).<br />
Temperature Limit: Ambient: -22 to 158°F (-30 to 70°C); Process: 23 to 122°F (-5 to 50°C)<br />
Input: Floating: 3-wire; Modulating: 4 to 20 mA (24 VAC power only).<br />
Power Requirements: 24 VAC<br />
Input: Floating: 3-wire<br />
Enclosure Rating: NEMA 1 (IP10).

KIT REPARACION <br />
MARCA GOYEN<br />
MEMBRANA VITON

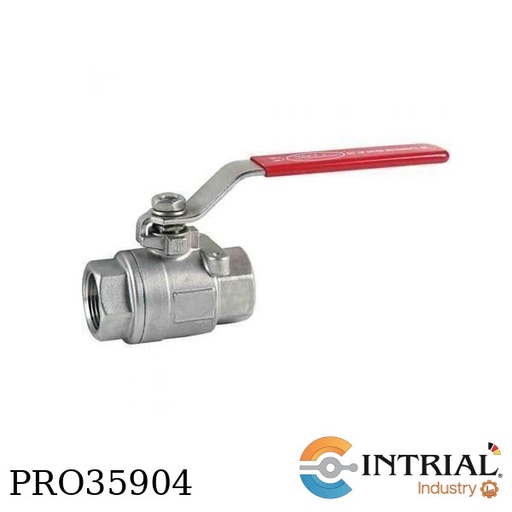

STAINLESS STEEL BALL VALVE<br />
Brand: DWYER<br />
Size: 1˝<br />
End Connections:: Female NPT<br />
Pressure Limits: 1000 psi (69 bar) WOG, 150 psi (10.3 bar) SWP.<br />
Wetted Materials: Body, Ball, End Cap: CF8M stainless steel; Stem: 316 stainless steel; Seat, Thrust Washer: RTFE; End Gasket, Stem Packing: PTFE<br />
Temperature Limits: -20 to 450°F (-29 to 232°C).<br />
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/ EU (RoHS II).<br />

STAINLESS STEEL BALL VALVE<br />
Brand: DWYER<br />
Size: 3/4˝<br />
End Connections:: Female NPT<br />
Pressure Limits: 1000 psi (69 bar) WOG, 150 psi (10.3 bar) SWP.<br />
Wetted Materials: Body, Ball, End Cap: CF8M stainless steel; Stem: 316 stainless steel; Seat, Thrust Washer: RTFE; End Gasket, Stem Packing: PTFE<br />
Temperature Limits: -20 to 450°F (-29 to 232°C).<br />
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/ EU (RoHS II).<br />

STAINLESS STEEL BALL VALVE<br />
Brand: DWYER<br />
Size: 1/2˝<br />
End Connections:: Female NPT<br />
Pressure Limits: 1000 psi (69 bar) WOG, 150 psi (10.3 bar) SWP.<br />
Wetted Materials: Body, Ball, End Cap: CF8M stainless steel; Stem: 316 stainless steel; Seat, Thrust Washer: RTFE; End Gasket, Stem Packing: PTFE<br />
Temperature Limits: -20 to 450°F (-29 to 232°C).<br />
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/ EU (RoHS II).<br />

FKM, 2-20 bar, G 1 / SAE 1, geräuschoptimiert<br />
gear pump : SF 2/5 RD<br />
STEIMEL part-no. : BZP052005FLE-165R<br />
dimensional drawing : DMB052D-02<br />
list of spare parts : DET052005RD--150R<br />
suction and pressure connections : G 1 / SAE 1<br />
materials:<br />
casing parts : EN-GJL-250 (GG-25)<br />
pinion shafts : 16MnCrS5, case-hardened / helical toothed,<br />
tooth flanks grinded / toothing : noise-optimized<br />
bearing : multilayer MD<br />
shaft sealing : radial shaft sealing ring<br />
elastomers : FKM / flow medium : lube oil<br />
viscosity : 50-5000 cSt / temperature : 10-60°C<br />
flow rate : 7,0 ltr/min // pressure : 5 bar<br />
speed : 1470 1/min  // pressure relief valve<br />
range of adjustment : 2-20 bar<br />
opening pressure : 8 bar<br />
sense of rotation : clockwise<br />
finish : primer HDO058-green<br />
type plate : ETY924-D-E--PE01<br />
with free shaft end<br />
Net weight : +/- 7 kg<br /><br />
OLD SERIAL-NO: PU123612 / ASF2/5RD--123612R :<br />
no longer available.<br />
We quoted now a pump without motor

PZZ-000346370<br />
000346370 ASF6-180RD-VLFM<br />
gear pump unit incl. IE3-motor<br />
gear pump unit : SF 6/180 RD-VLFM<br />
STEIMEL part-no. : ASF6-180RD-(130747R)<br />
dimensional drawing : DPA056D-130747R<br />
list of spare parts : DET056180RD--165R<br />
suction and pressure connections : SAE 2 ½<br />
casing parts : EN-GJL-250 (GG-25)<br />
shafts : 16MnCrS5, case-hardened, gear wheels,<br />
noise-optimized : EN-GJS-400-15 (GGG-40)<br />
ionitrided, helical toothed<br />
shaft sealing : radial shaft sealing ring<br />
elastomers : FKM  /  flow medium : lube oil<br />
viscosity : 50-5000 cSt  /  temperature : 10-60°C<br />
flow rate : approx. 165 / 198 ltr/min.<br />
pressure : 5 bar  //  speed : 950 / 1140 1/min.<br />
pressure relief valve / opening pressure : 8 bar<br />
range of adjustment : 2-16 bar<br />
sense of rotation : clockwise<br />
test run : yes, with HLPD 46<br />
coupling : BKUA095-2442-301<br />
pump mount with base : BLF056350188LA21<br />
three-phase motor : LDM160-06- (Birkenbeul)<br />
moto data<br />
power 1/2 : 7,5 / 8,6 kW<br />
speed 1/2 : 1000 / 1200 1/min.<br />
voltage / frequency 1 : 400/690 Volt +/-10% at 50 Hvoltage / frequency 2 : 460 Volt +/-10% at 60 Hz<br />
efficiency class : IE3 / degree of protection : IP 55<br />
insulation class : F / form of construction : B 5<br />
specially : electrically acc. to . NEMA and CSA - definish : primer HDO058 - green<br />
type plate : ETY924-D-E--PE02<br />
motor junction box : turned 90° to suction side!<br />
Net weight : +/- 142 kg<br /><br />
OLD SERIAL-NO: PU130747 / ASF6-180RD-130747R :<br />
no longer available.<br />
We quoted now a replacement pump unit.

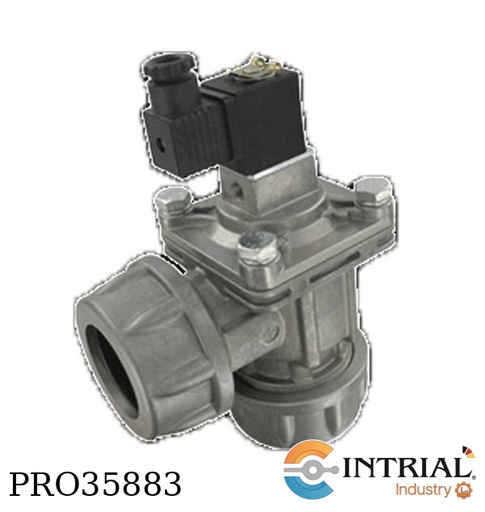

SPRINGLESS DIAPHRAGM VALVES<br />
Brand. DWYER<br />
Pressure Limits: Min. of 4.4 psi (0.3 bar), max. of 124.7 psi (8.6 bar).<br />
Temperature Limits: Ambient: -4 to 140°F (-20 to 60°C);, Operating: -4 to 185°F (-20 to 85°C).<br />
Power Requirements: 110 VAC, 220 VAC, or 24 VDC for DCS models.<br />
Power Consumption: 12 W; Inrush: 17 VA; Holding: 14.5 VA for DCS models.<br />
Electrical Connection: DIN connection for DCS models.<br />
Enclosure Rating: NEMA 4X (IP65) for DCS models.<br />
Process Connection: NPT <br />
Size; 1˝<br />
Solenoid; Integral*<br />
Number of Diaphragms; 1<br />
Cv Factor (gal/min): 23

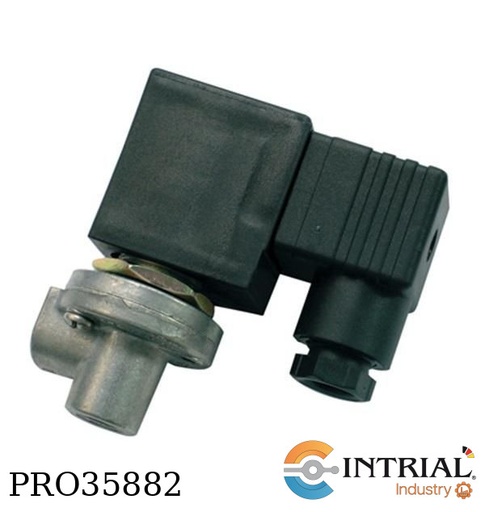

PILOT SOLENOID VALVE<br />
Brand: DWYER<br />
Voltage: 110 VAC<br />
Wetted Materials: Body: Aluminum; Core and spring: 304 SS; Seals: NBR<br />
Pressure Limits: Min of 4.4 psi (0.3 bar), max of 124.7 psi (8.6 bar).<br />
Temperature Limits: Ambient: -4 to 122°F (-20 to 50°C); Operating: -4 to 185°F (-20 to 85°C).<br />
Power Requirements: 110 VAC, 220 VAC, or 24 VDC.<br />
Power Consumption: 12 W, inrush: 17 VA, holding: 14.5 VA.<br />
Enclosure Rating: NEMA 4X (IP66).<br />
Electrical Connection: DIN connection or wire leads, 18 AWG, 22˝ (55 cm) long.<br />
Process Connection: 1/8˝ female NPT.<br />
Mounting Orientation: Any position.

BOMBA DOSIFICADORA ELECTRONICA<br />
Marca: WALCHEM<br />
Caudal Nominal 5.5(340) GPH(mL/min)<br />
Presión máxima de trabajo 150 PSI<br />
Golpe por minuto (SPM) 360<br />
Conexión succión/descarga Adaptador para manguera de 3/8" diam. <br />
Interno x 1/2" diam. externo.<br />
Cabezal PVC<br />
Diafragma PTFE(Teflón)(Con respaldo de EPDM)<br />
Bolas o válvulas antiretorno Céramica<br />
Asiento de valvula FKM (Vitón)<br />
Sellos FKM (Vitón)<br />
Manguera LLDPE (Polietileno lineal de baja densidad)<br />
Material Termoplástico reforzado con Fibra de vidrio.<br />
Anclaje Base ranurada para alojar 4 pernos o tornillo autoroscantes<br />
Protección IP65<br />
Suministro eléctrico 220VAC,50/60 Hz<br />
Consumo de potencia 48 watt<br />
Consumo de Amperaje 0,8 A

BOMBA DOSIFICADORA ELECTRONICA<br />
Marca: WALCHEM<br />
Caudal Nominal 20.0(1250) GPH(mL/min)<br />
Presión máxima de trabajo 30(2.07) PSI(bar)<br />
Golpe por minuto (SPM) 360<br />
Conexión succión/descarga Adaptador para manguera de 3/8" diam. <br />
Interno x 1/2" diam. externo.<br />
Cabezal GFRPP<br />
Diafragma PTFE(Teflón)(Con respaldo de EPDM)<br />
Bolas o válvulas antiretorno Céramica<br />
Asiento de valvula FKM (Vitón)<br />
Sellos FKM (Vitón)<br />
Manguera LLDPE (Polietileno lineal de baja densidad)<br />
Diseño Modular unidad electrónica debidamente protegida en parte inferior del DRIVE.<br />
Material Termoplástico reforzado con Fibra de vidrio.<br />
Anclaje Base ranurada para alojar 4 pernos o tornillo autoroscantes<br />
Protección IP65<br />
Consumo de potencia 48 watt<br />
Consumo de Amperaje 0,8 A

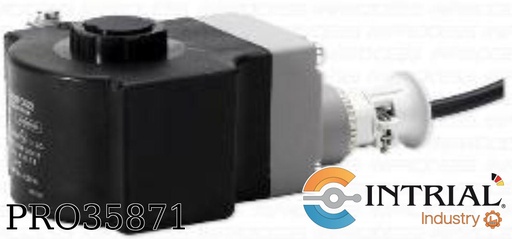

Bobina para valvula Solenoide<br />
Bobina BO, 24Vdc 11W, IP67, ATEX<br />
Marca: Danfoss<br />
Origen: Dinamarca<br />
Modelo:  <span style="font-family:'myriadpro-regular', arial, sans-serif;font-size:16px;background-color:rgb(255,255,255);">BO</span><br />
Alimentación : 24vdc<br />
Consumo : 11 W<br />
Cable : 5mts<br />
IP67<br />
ATEX<br />
<br />

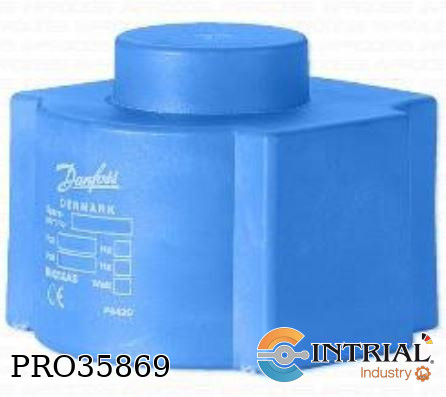

Bobina BN 24Vdc, 20W,<br />
Marca: Danfoss<br />
Grado de Protección : IP67<br />
Código de la bobina:  (018F6968)<br />
Modelo: BN<br />
Alimentación: 24Vdc, 20W<br />
<br />


VALVULA SOLENOIDE Normalmente Cerrada<br />
Marca: Danfoss<br />
Origen: Dinamarca<br />
Modelo: EV220B<br />
CODIGO: 032U7540<br />
Conexión: 1"NPT, <br />
Material de la válvula: Latón<br />
Material del diafragma: FKM<br />
Fluidos: Agua, aceite, aire, gases neutros.<br />
Presión diferencial: 0.3 a 10 Bar

SF3/50RD-O<br />
GEAR PUMP WITHOUT COUPLING, LANTERN, MOTOR!<br />
Brand: STEIMEL<br />
gear pump unit : SF 3/50 RD<br />
STEIMEL part-no. : BZP053050RD--165<br />
dimensional drawing : DMB053D-02R<br />
list of spare parts : DET053050RD--165R<br />
suction and pressure connections : SAE 1 1/2<br />
casing parts : EN-GJL-250 (GG-25), pinion shafts,<br />
noise-optimized : 16MnCrS5, case-hardened,<br />
helical toothed / bearing : multilayer<br />
shaft sealing : radial shaft sealing ring<br />
elastomers : FKM / flow medium : lube oil<br />
viscosity : 50-5000 cSt / temperature : 10-60°C<br />
flow rate : approx. 56 ltr/min.<br />
pressure : 5 bar  //  speed : 1150 1/min.<br />
pressure relief valve // range of adjustment : 2-18 bar<br />
opening pressure : 8 bar // sense of rotation : clockwise<br />
test run : yes, with HLPD 46<br />
finish : primer HDO058 - green<br />
type plate : ETY924-D-E--PE01<br />
Weight : +/- 16 kg
