Modelo:    1.5F2 JBS-E-15-A<br />

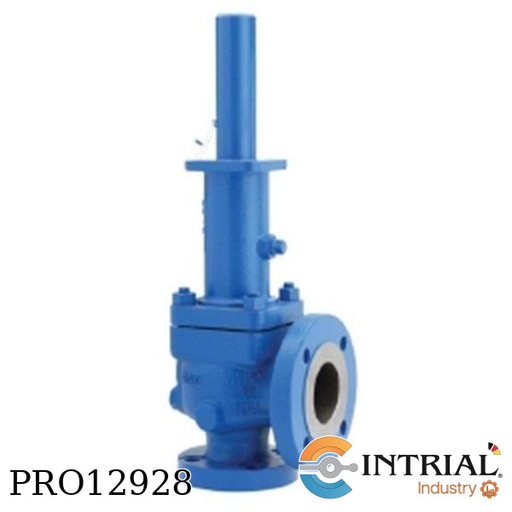

 CROSBY J-SERIES<br />
DIRECT SPRING PRESSURE RELIEF VALVES<br />
C/S Body, S/S Trim<br />
1-1/2” 150# RF Inlet x 2” 150# RF Outlet<br />
Bellows Type<br />
Closed Cap

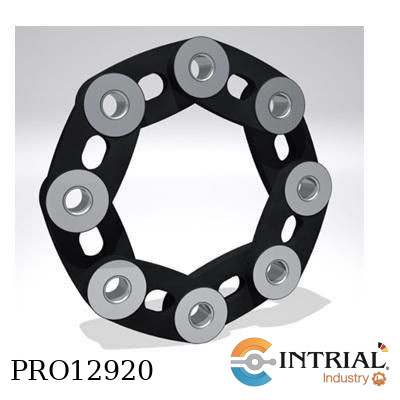

<div><strong>SGFLEX® LINK COUPLING ASSEMBLY WITH TENPU® </strong></div>

<div><strong>•<span> </span>Brand: SGF (Germany)</strong></div>

<div>•<span> </span>fiber technology is used in many different applications. It is elastic, temperature-resistant, and compensates for shifting.</div>

<div>•<span> </span>Produkt benefits:</div>

<div>•<span> </span>Top-quality - Made in Germany - proved a million times</div>

<div>•<span> </span>High operating temperature up to 100°C (higher temperatures upon request)</div>

<div>•<span> </span>Compensation for radial, axial and angular misalignment</div>

<div>•<span> </span>Low restoring forces</div>

<div>•<span> </span>Easy to install</div>

<div>•<span> </span>Backlash-free power transmission</div>

<div>•<span> </span>Able to be used at high speeds</div>

<div>•<span> </span>Damping of torque peaks</div>

<div>•<span> </span>Robust and durable</div>

<div>•<span> </span>Noise and vibration insulating</div>

<div>•<span> </span>Electrically insulating design available upon request</div>

<div>•<span> </span>technical data</div>

<div>•<span> </span>Torque (Nm) 3.600</div>

<div>•<span> </span>Thread type 8x M24</div>

<div>•<span> </span>Outer ø (mm) 324.3</div>

<div>•<span> </span>Width (mm) 37</div>

<div>•<span> </span>Bolt circle ø BCD (mm) 160</div>

<div>•<span> </span>Center hole ø (mm) 170.4</div>

<div>•<span> </span>Bushing inner ø (mm) 24</div>

<div>•<span> </span>Weight (kg) 3,12</div>

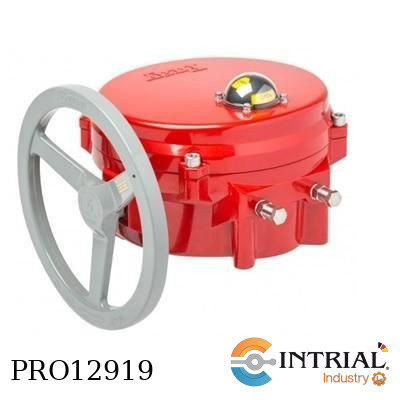

ACTUADOR ELÉCTRICO CUARTO DE VUELTA DECLOCHABLE<br />
Marca: Bray<br />
Torque 600 Lb-In<br />
Velocidad 30 sec/90° <br />
Operación Continua Con IRB (Interposing Relay Board)<br />
Voltaje 220 VAC 1 Fase<br />
1 Set de Switch Auxiliares<br />
1 Calentador Para Evitar Condensaciones<br />
Switch de Torque.

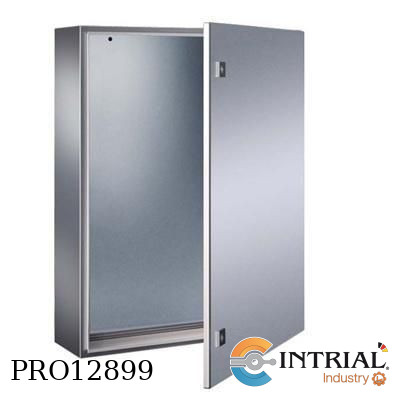

ARMARIO COMPACTO DE ACERO INOXIDABLE<br />
Marca: RITTAL <br />
Ancho (B) mm : UE 300Altura (H) mm: 380Profundidad (T) mm 210Ancho <br />
placa de montaje (F) mm: 275Altura placa de montaje <br />
(G) mm: 334 Material<br />
Acero inoxidable 1.4404 (AISI 316L) Material cierre<br />
Acero inoxidable 1.4404 (AISI 316L)<br />
Peso kg: 8,4<br />
Grado de protección IP según IEC 60 529<br />
IP 66Grado de protección <br />
NEMA: NEMA 4X

<div>ADAPTADOR EN ACERO INOXIDABLE<br />
Model: PRO12893</div>

<div>CON ROSCA 1/2"NPTM x M20 x 1.5 MACHO</div>

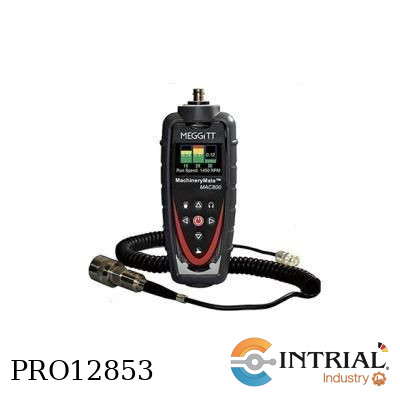

- LAPICERO VIBROMETRO<br />
- Modelo : MAC 800 <br />
- Marca : MEGGITT

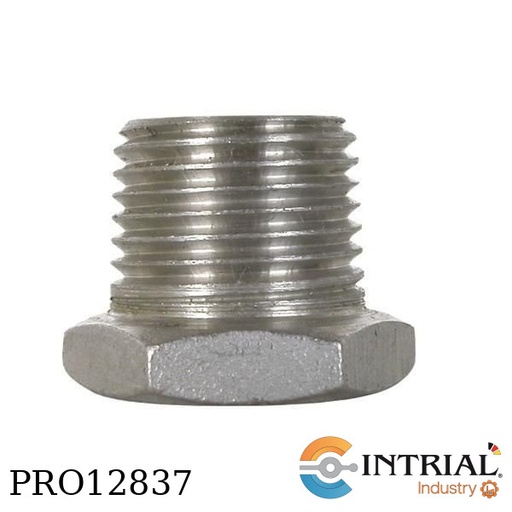

REDUCER BUSHING 304SS<br />
3/4" MALE X 1/2" FEMALE NPT
<div>
<div class="gtx-trans-icon"></div>
</div>

Modelo: EB310024<br />
NON-RETURN VALVE G3/4"<br />
Brand: END ARMATUREN (Germany)<br />
Body: Stainless Steel<br />
Seal: PTFE<br />
PN: 40<br />
Temperature max: 140°C

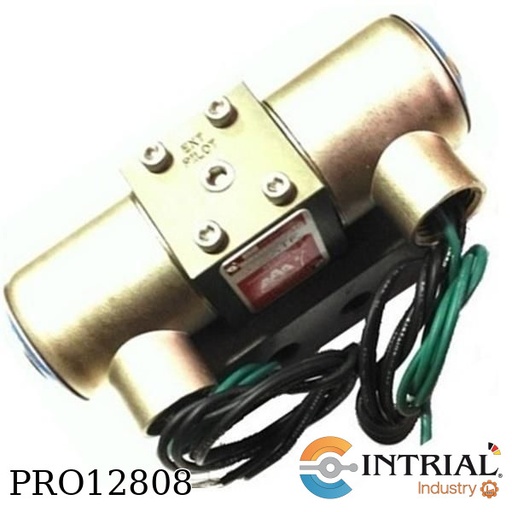

<div><strong>•<span> </span>BLOQUE VALVULA SOLENOIDE DNGP 497VY-4Y</strong></div>

<div>•<span> </span>AAA Model No.:  SY2XTF (220 VAC)<br />
•<span> </span>Material:<span> </span>255733</div>

<div>•<span> </span>Description: ¼” 3 position,<br />
explosion proof,<br />
tapped exhaust,<br />
solenoid valve</div>

<div>•<span> </span>Estimated weight: 3 lbs. ea.</div>

•    Material:    255621    <br />

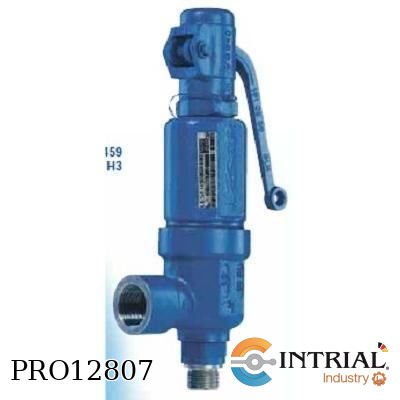

•    VALVULA ALIVIO 459 150PSI-G NPS 1" 4592<br />
•    CONEXIÓN:1" 150# RF X 1" 150# RF DIAMETRO  DE ORIFICIO 13 MM<br />
•    AREA DE ORIFICIO :  133 MM2<br />
•    DISCO CON SELLADO  METÁLICO  / BONETE CERRADO  / PALANCA  EMPACADA CUERPO DE ENTRADA ACERO INOXIDABLE 316L<br />
•    CUERPO DE SALIDA: ACERO AL CARBONO<br />
•    DISCO : ACERO INOXIDABLE ENDURECIDO GUÍA CHROME STEEL TENIFER VÁSTAGO / EJE                                        ACERO INOXIDABLE 420<br />
•    RESORTE:  ACERO AL CARBONO<br />
•    FLUIDO: LIQUIDO<br />
•    PRESIÓN DE SETEO : 150 PSIG<br />
•    MARCA : LESSER(Alemania)

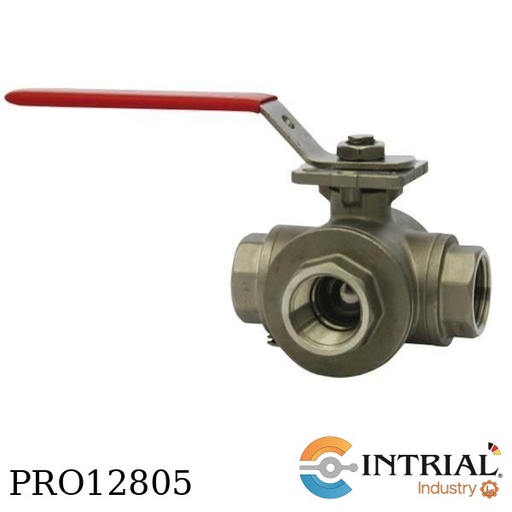

3-WAY NPT STAINLESS STEEL BALL VALVE<br />
FULL PORT, VENTED BALL<br />
Brand: DWYER<br />
WE31: 316 SS; 3-way NPT<br />
EHD00: Size and Range: 1" hand operated<br />
T1: Valve Position: Flow path A<br />
No solenoid<br />
Positioner and Switches: None
<div>
<div class="gtx-trans-icon"></div>
</div>

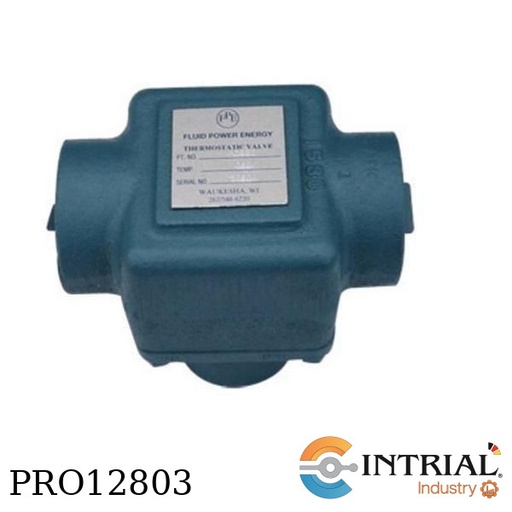

TERMOSTATIC VALVE (* Material: 255888)<br />
•    Brand: FLUID POWER ENERGY<br />
•    Temperature: 140°F<br />
•    Description: Cast Iron, SAE 24, 1 7/8”-12 TCV, Viton O-ring<br />
•    Range: 130 - 150

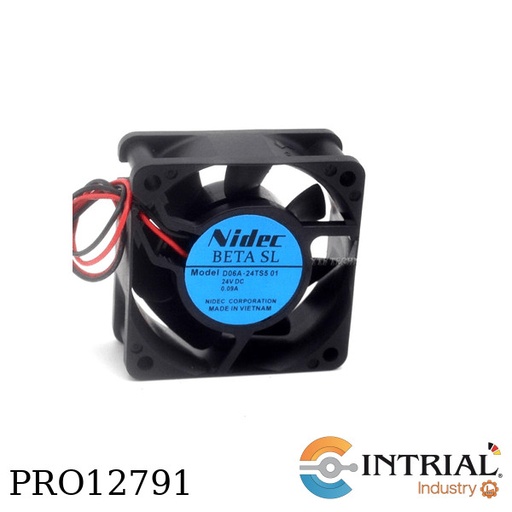

VENTILADOR PARA VARIADOR<br />
•    Marca: NIDEC<br />
•    24Vdc - 0.15A<br />
•    60x60x25mm<br />
•    2pin

CHECK VALVE<br />
• Brand: U.S. VALVE<br />
• 2" 150PSIG<br />
• STL BODY<br />
• 07-1-0SX<br />
• 412032075 / 07-1-0SX

Single Pump Unit Series MOG 5211-FL-SO<br />
Flanged Connection with Integral Overflow Valve<br />
With bypass for connecting a return pipe.<br />
Pump Type: VBHGRP-I-4-10<br />
Flow: 3600 l/h<br />
Connections: DN32<br />
Medium: Diesel<br />
Filter: DN32<br />
Insert: 100um<br />
Oil Pan: 1400x500x80mm<br />
Pressure gage: 0-16 bar

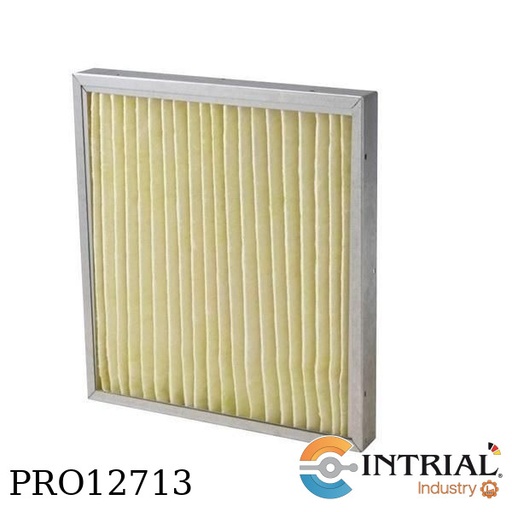

<div>FILTRO PANEL DE ALTA TEMPERATURA 12X24X2"</div>

<div>Media filtrante plisada con malla galvanizada</div>

<div>Eficiencia merv 8</div>

•    Gear Pump Unit  (COMPLETE EQUIPMENT)<br />
•    gear pump unit : T 4 - 95 PDD - GKGM<br />
•    STEIMEL part-no. : AT4-95PDD-(141899R)<br />
•    dimensional drawing : DPA004-141899R<br />
•    list of spare parts : DET004-141899R<br />
•    suction and pressure connections : G 1 ½<br />
•    casing parts : Bronze CuSn 10 (2.1050)<br />
•    drive- and counter pinions : stainless steel 1.4462<br />
•    trunnions/sealing area : hard chrome plated<br />
•    shaft sealing : Buramex SF - packing<br />
•    bearing bushes : bronze CuSn12 (2.1052) (AD)<br />
•    enlarged bearing play : 0,1mm<br />
•    flow medium : adhesive viscosity : supp. 500-1000 mm²/s<br />
•    temperature : supp. 20°C flow rate : 24 / 29 ltr/min.<br />
•    pressure : 6 - max. 8 bar speed : 249 / 299 1/min.<br />
•    without test run, valve adjusted acc. to table<br />
•    pressure relief valve opening pressure : 8 bar<br />
•    sense of rotation : clockwise<br />
•    base plate : EGP913042-18BB01<br />
•    coupling : BKUP078-2020-001<br />
•    coupling protection : EKS918110160BA60<br />
•    supports : EUL---035135BB01<br />
•    spur gear motor : LGMSK172---031<br />
•    power : 1,1 kW speed : 249 / 299 1/min.<br />
•    voltage / frequency 1 : 230/400 V / 50 Hz<br />
•    voltage / frequency 2 : 265/460 V / 60 Hz<br />
•    efficiency class : IE2 degree of protection : IP 55<br />
•    insulation class : F form / position : B 3 / M1<br />
•    junction box / cable entry : 1 / I<br />
•    type : Nord - SK 172.1-90SH/4<br />
•    finish : RAL 9010 (HCN9010, pure white, high gloss)<br />
•    type plate : ETY924-D-E--PE02

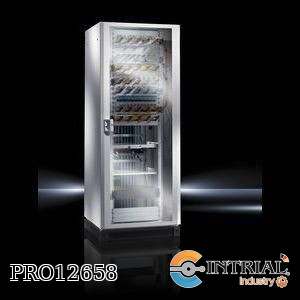

GABINETE AUTOSOPORTADO CON PUERTA TRANSPARENTE DE CRISTAL ESG 3MM TS8<br />
Marca: RITTAL<br />
DIMENSIONES: 800*2000*800MM AN*AL*PR. TS8-8808500 RITTAL<br />
INCLUYE :<br />
2 PZA PLACAS LATERALES ATORNILLABLES DE 800X2000MM (AN*PROF.)<br />
1 JGO ZOCALO FRONTAL Y PÓSTERIOR DE 800X100MM (AN*ALTO)<br />
1 JGO ZOCALOS LATERALES 100X800MM (AL*PROF.)<br />
1 JGO CANCAMOS ACERO GALV.(4PZA)<br />
1 JGO PIEZAS DE CIERRE PARA PUERTA TRANSPARENTE (4PZA)<br />
1 PZA VENTILADOR CON FILTRO 292*292MM 230VAC 770M3/H<br />
1 PZA REJILLA CON FILTRO DE SALIDA 323*323*25

<span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">VALV. ESFERA,T-580-S6-R-66-LL,</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">AC INOX 316,</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">1 NPT,</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">2PC,2000PSI CWP,</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">VAST Y BOLA 316SS PTFE REF,</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">MANUAL</span>

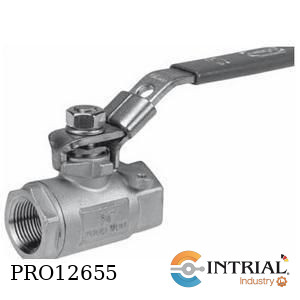

VALV. ESFERA,T-580-S6-R-66-LL,<br />
AC INOX 316,<br />
3/4P NPT,<br />
2PC,2000PSI CWP,<br />
VAST Y BOLA 316SS PTFE REF,<br />
MANUAL
