STAINLESS STEEL BALL VALVES<br />
Brand: DWYER<br />
[WE01]: Series, 316 SS 2-piece NPT.<br />
[DMD01]: Size and Actuator, 3/4” NEMA 4X modulating.<br />
[B]: Actuator Voltage: 220 VAC.<br />
Pressure Limits: 28” Hg – 1000 psi.<br />
Temperature Limits: -30 – 60 °C.<br />
Electrical Connection: ½” female NPT.<br />
Modulating Input: 4 – 20 mA.<br />
T.:-20°C - 200°C (-4°F - 392°F)<br />
W. P.: PRESIÓN DE TRABAJO) <br />
1000 psi  WOG (AGUA, ACEITE GAS) <br />
160 psi  SWP (PRESIÓN DE TRABAJO VAPOR

AGITADOR<br />
Brand: FLUIDMIX<br />
[VHD3] 03 Hélices en directo con soporte<br />
[05] Motor: 0,75 kW, 4 polos, 220 V, 60 Hz III, IP55, IE3<br />
[04] Velocidad de giro: 1722 rpm<br />
Linterna: Palier con eje guiado por rodamiento<br />
[B] Fijación: Brida ø 160/130 mm<br />
[02] Hélice marina ø 128 mm<br />
[14.6] Longitud eje: ø 20 x 1400 mm Eje y móvil: AISI 316 L<br />
[S] Especial.

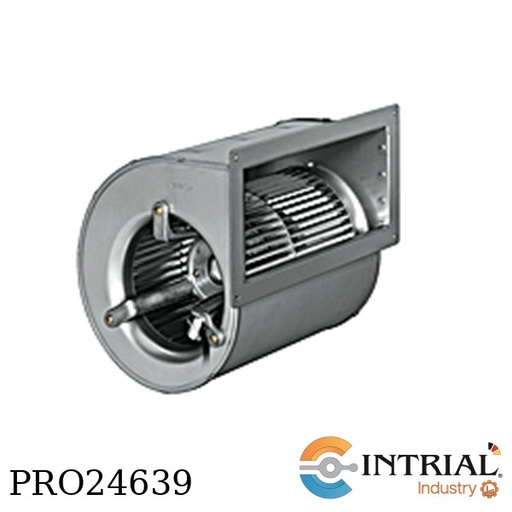

CENTRIFUGAL FAN<br />
Brand: EBM PAPST<br />
230 VAC<br />
50/60 Hz<br />
300/330 W <br />
1.31/1.45A<br />
8 uF

TUBO SIFON TIPO TS<br />
Marca: ASHCROFT<br />
TIPO: COLA DE CHANCHO CON LOS TERMINALES SOLDADOS<br />
MATERIAL: ACERO INOX. AISI-316<br />
CONEXIÓN: 1 ROSCA MACHO Y 1 ROSCA HEMBRA DE 1/2" NPT<br />
LÍMITE DE PRSIÓN Y TEMPERATURA: 650 °C A 50 KG/CM2

GEAR PUMP<br />
Brand: STEIMEL<br />
Model: BZP056180RD--165R<br />
SF6/180RD-O<br />
FKM, 2-16 bar, geräuschoptimiert<br />
gear pump: SF 6/180 RD<br />
Artikel-Nr.: BZP056180RD--165R<br />
dimensional drawing: DMB056D-01R<br />
list of spare parts: DET056180RD--165R<br />
suction and pressure connections: SAE 2 ½ ( 65 )<br />
materials:<br />
casing parts: EN-GJL 250 (GG-25)<br />
shafts: 16MnCrS5<br />
gear wheels: GGG-40, ionitrided<br />
helical toothed<br />
toothing: noise-optimized<br />
bearing: multilayer MD<br />
shaft sealing: radial shaft sealing ring<br />
elastomers: FKM<br />
flow medium: lube oil<br />
viscosity: 50-5000 cSt<br />
fflow rate: approx. 240,5 ltr/min<br />
pressure: 8 bar<br />
speed: 1450 1/min<br />
sense of rotation: clockwise<br />
finish: primer HDO058 - green<br />
type plate: ETY924-D-E--PE01<br />
with free shaft end

PUMP <br />
Brand:IMO <br />
3217/574 / G12DB-275

HIDROXIDO DE POTASIO AL 4.3 % X 100 ML<br />
Marca: SOLUTEST

AGUA DESTILADA EVAPORADA X 1 GLN.<br />
Marca: SOLUTEST

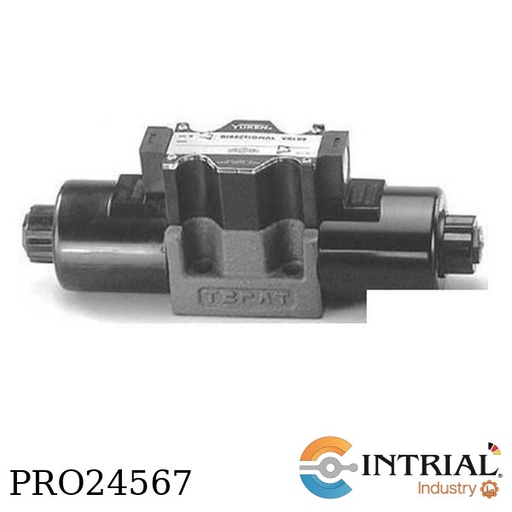

<strong>DIRECTIONAL CONTROLS<br />
Brand: YUKEN</strong><br />
DSG:Solenoid Operated Directional Valve<br />
03: Valve Size<br />
3: Number of Valve Positions: Three Positions<br />
C: Spool-Spring Arrangement: Spring Centred<br />
60: Spool Type: 60<br />
D24: Coil Type: D24<br />
50: Design Number

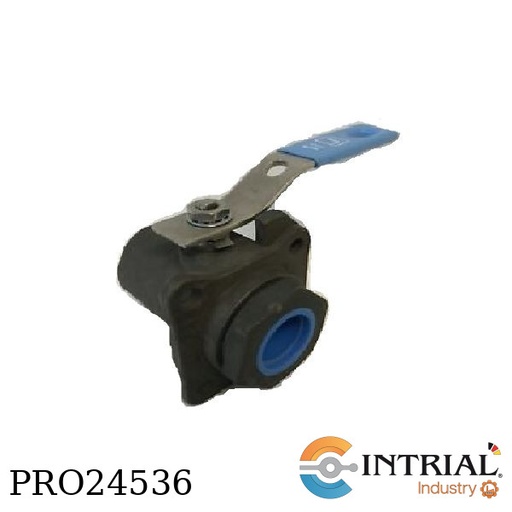

<strong>1-1-2-9FB-2236-XT<br />
BALL VALVE<br />
Brand: JAMESBURRY</strong><br />
Valve Size: 1-1/2 inches; DN 40<br />
Valve Size & Configuration: Fire-Tite Standard<br />
Pressure Class Conformance: Non-ANSI-Class<br />
Special Application/Construction or Service: Standard<br />
Body Material: Carbon Steel (WCB)<br />
Ball & Stem Material: 316 Stainless Steel<br />
Seat & Seal Material<br />
Seats: Xtreme<br />
Seal (Stem & Body): TFM<br /><br /><strong>VPVL100DAB<br />
ACTUATOR<br />
Brand: JAMESBURRY</strong><br />
Series+: Valv-Powr Value-LineDouble-Opposed Piston Actuator<br />
Exterior Protection*: Hard-Anodized PTFE-Coated Body & Polyester-Coated End Caps<br />
Double NG Actuator

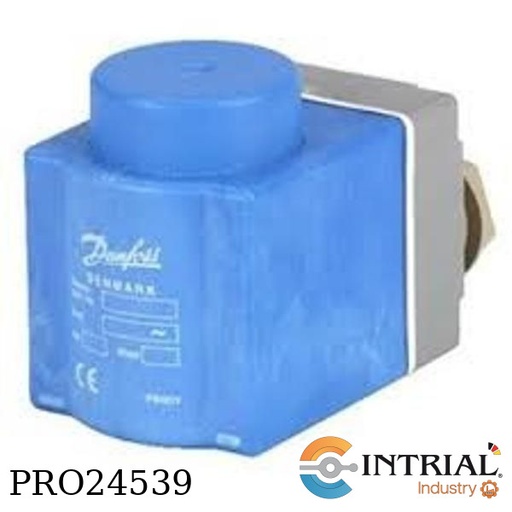

BOBINA PARA VALVULA SOLENOIDE<br />
Marca: Danfoss<br />
Bobina BE 220V, <br />
60Hz, 13W, c/caja terminal, IP67<br />
Código de la bobina:  (018F6714)<br />
Modelo: BE<br />
Alimentación: 220 Vac 60Hz, 10W<br />


<strong>BALL VALVE<br />
Brand: JAMESBURRY</strong><br />
Valve Size: 1-1/2 inches; DN 40<br />
Valve Size & Configuration: Fire-Tite Standard<br />
Pressure Class Conformance: Non-ANSI-Class<br />
Special Application/Construction or Service: Standard<br />
Body Material: Carbon Steel (WCB)<br />
Ball & Stem Material: 316 Stainless Steel<br />
Seat & Seal Material<br />
Seats: Xtreme<br />
Seal (Stem & Body): TFM

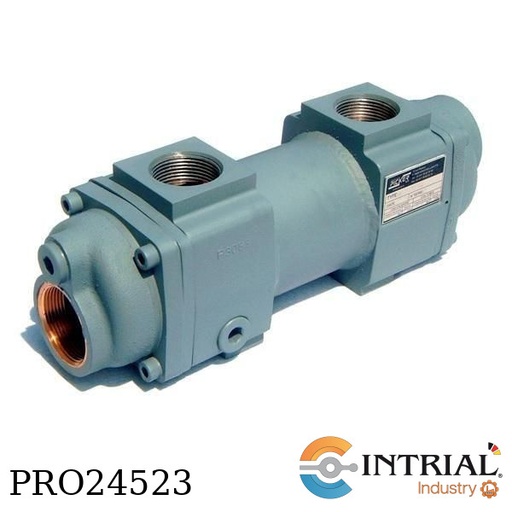

INTERCAMBIADOR DE CALOR<br />
Brand: PICKERS<br />
Excharge surface (m2): 1..14<br />
CAPACITY<br />
SHELL side: 2.9<br />
TUBE side: 2.1<br /><br />
****El intercambiador CC14LFD0AA ya no se fabrica.; es reemplazado por el modelo CC14LFD2AA<br />
Instalación estrictamente lugar a lugar.<br />
La única diferencia está en el material de los tubos del haz: níquel de cobre<br />
en lugar de tubos de cobre.****

<span style="float:none;background-color:rgb(255,255,255);color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;">EWN-R Series Electromagnetic Metering Pumps</span><span style="float:none;background-color:rgb(255,255,255);color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;">​</span><br style="color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;" /><span style="float:none;background-color:rgb(255,255,255);color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;">Brand: WALCHEM</span><br style="color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;" /><span style="float:none;background-color:rgb(255,255,255);color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;">Model: </span><span style="float:none;background-color:rgb(255,255,255);color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;">EJ-B16VCUR</span><br style="color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;" /><span style="float:none;background-color:rgb(255,255,255);color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;">Max Output: 0.8 GPH</span><br style="color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;" /><span style="float:none;background-color:rgb(255,255,255);color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;">Max Pressure: 90 PSI</span><br style="color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;" /><span style="float:none;background-color:rgb(255,255,255);color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;">Pump Head: PVC</span><br style="color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;" /><span style="float:none;background-color:rgb(255,255,255);color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;">Valve Seats: FKM</span><br style="color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;" /><span style="float:none;background-color:rgb(255,255,255);color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;">O-Rings: FKM</span><br style="color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;" /><span style="float:none;background-color:rgb(255,255,255);color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;">Valve Balls: Ceramic</span><br style="color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;" /><span style="float:none;background-color:rgb(255,255,255);color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;">Diaphragm: PTFE (+ EPDM Backer)</span><br style="color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;" /><span style="float:none;background-color:rgb(255,255,255);color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;">Gaskets: PTFE</span><br style="color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;" /><span style="float:none;background-color:rgb(255,255,255);color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;">Tubing: ?" OD PE</span><br style="color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;" /><span style="float:none;background-color:rgb(255,255,255);color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;">Electrical: 115 VAC US Plug</span><br style="color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;" /><span style="float:none;background-color:rgb(255,255,255);color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;">Control Module: Manual Digital Speed Control, External Pulse & Stop/Start Inputs</span><br style="color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;" /><span style="float:none;background-color:rgb(255,255,255);color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;">Average Power: 12 Watts</span><br style="color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;" /><span style="float:none;background-color:rgb(255,255,255);color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;">Max Current: 0.8 Amp</span><br style="color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;" /><span style="float:none;background-color:rgb(255,255,255);color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;">Diaphragm Diameter: 16mm</span><br style="color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;" /><span style="float:none;background-color:rgb(255,255,255);color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;">Weight: 8 lbs</span><br />
Brand: WALCHEM<br />
Model: EJ-B16VCUR<br />
Max Output: 0.8 GPH<br />
Max Pressure: 90 PSI<br />
Pump Head: PVC<br />
Valve Seats: FKM<br />
O-Rings: FKM<br />
Valve Balls: Ceramic<br />
Diaphragm: PTFE (+ EPDM Backer)<br />
Gaskets: PTFE<br />
Tubing: ?" OD PE<br />
Electrical: 115 VAC US Plug<br />
Control Module: Manual Digital Speed Control, External Pulse & Stop/Start Inputs<br />
Average Power: 12 Watts<br />
Max Current: 0.8 Amp<br />
Diaphragm Diameter: 16mm<br />
Weight: 8 lbs

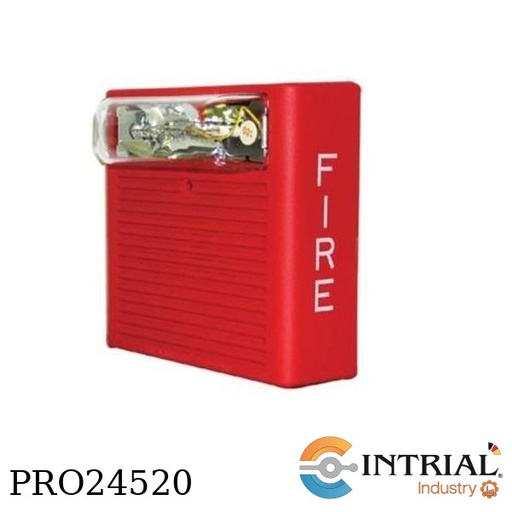

WEATHERPROOF HORN STROBES<br />
Brand: WHEELOCK<br />
24 VDC<br />
75 CANDELA<br />
WALL MOUNT<br />
RED

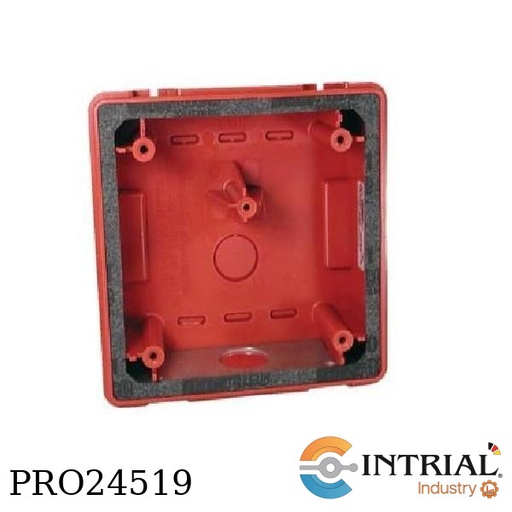

WEATHERPROOF BACK BOX<br />
Brand: WHEELOCK<br />
Resistant back-box for ASWP<br />
RED

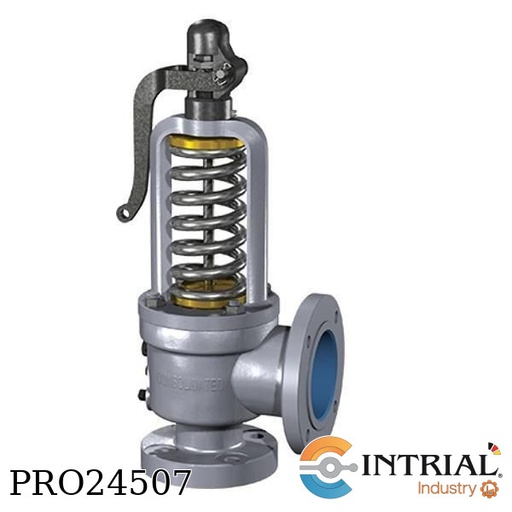

PRESSURE RELIEF VALVE<br />
Brand: DRESSER<br />
TAG=31LBA60AA101<br />
Service= LP-SHO<br />
Valve Type=1811SV<br />
Inlet Size=3 IN.<br />
Rating=ANSI CLASS 300<br />
Facing=RF<br />
Outlet Size=4 IN.<br />
Rating=ANSI CLASS 150<br />
Facing=RF<br />
Set Pressure=102 PSIG / 7 BARG<br />
Operating Pressure=77 PSIG / 5,3 BARG<br />
Operating Temperature=503 DEG F / 261,6 DEG C<br />
Selected Capacity=18186 LB/HR – 8249 KG/HR<br />
Mechanical Design Temperature=516 DEG F / 269 DEG C<br />
Mechanical Design Pressure=131 PSIG / 9 BARG<br />
Serial # DA44176

GEAR PUMP<br />
Brand: KRACHT<br />
KF 63 RF 2 - D 15<br />
P.013219004<br />
Materials<br />
Material Housing Grey cast iron EN-GJL 250<br />
Material integrated valve Grey cast iron EN-GJL 250<br />
Material Gears Steel, case hardened<br />
Material O-rings FKM<br />
Shaft sealing Single radial lip-type seal FKM<br />
Bearing Multi component sleeve bearings P10<br />
Product data<br />
Geometrical Displacement 63,18 cm³/r<br />
Direction of rotation clockwise (seen on shaft end)<br />
Type of fixation DIN flange<br />
Outboard bearing no<br />
Type of pipe connection Flange connection SAE 1 1/2"<br />
Shaft end cylindrical ø 24mm<br />
integrated valve D-valve 0...15 bar<br />
Specific data<br />
Operating pressure (suction side) -0.4...+4 bar (max 1500 rpm),-0.4...+3 bar (max 2000 rpm)<br />
-0.4...+2 bar (max 3000 rpm), -0.4...+1.5 bar (max 3600 rpm)<br />
max. operating pressure (pressure side) 25 bar<br />
(depending on viscosity, speed and power)<br />
Fluid temperature -20°C...+150°C<br />
Ambient temperature -20°C...+60°C<br />
Minimum viscosity 1.4 mm²/s (max. 3 bar)<br />
6 mm²/s (max. 12 bar)<br />
12 mm²/s (max. operating pressure)<br />
Maximum viscosity depending on suction conditions, speed and power<br />
Speed range 200...3600 rpm<br />
(depending on pressure, viscosity and power)<br />
ATEX marking product exec. does not correspond to the ATEX directive

PUMP WITH EPDM<br />
Brand: GENERAL PUMP<br />
Max Flow: 2.3 GPM<br />
Max Pressure: 1500 PSI<br />
RPM: 1750 RPM<br />
Bore: 18 mm<br />
Stroke: 7.5 mm<br />
Crankcase Capacity: 12 oz.<br />
Max Temp: 140º F<br />
Inlet Ports: 1/2" NPTF<br />
Outlet Ports: 3/8" NPTF<br />
Shaft Diameter: 5/8"

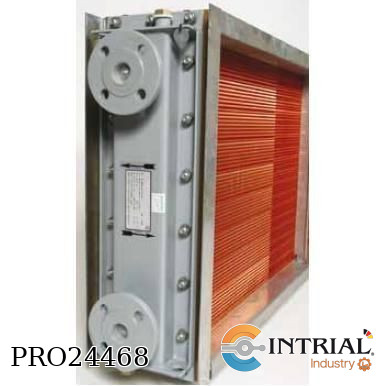

Fabricante: LUVATA (ex Coil-Tech)<br />
Seccion Transversal: 2400x953<br />
Drawing : 119191700<br />
Tipo de Flujo: COUNTERFLOW<br />
• Motor/generator cooler 8 rows, single tube<br />
• Tube in stainless steel 316L<br />
• Fins in Aluminum<br />
• Tube plate in SS316L<br />
• Side casing zinc plated<br />
• Water box: Stainless steel 316L<br />
• Connections in/out: 3" ANSI B 16.5 150lb<br />
• Dry weight: approx: 320 kg/cooler<br />
• Packing: seaworthy packaging, 1 crate/cooler<br />
• Dimensions: approx.: 3000x1300x500 mm<br />
• Total weight: 420 Kg
