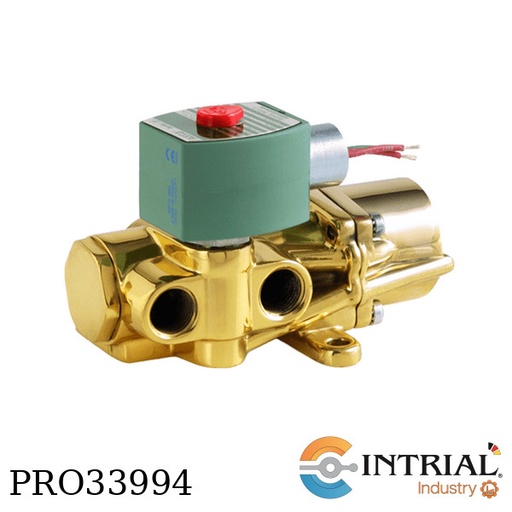

VALVULA SOLENOIDE<br />
FABRICANTE: ASCO<br />
3/8",WETTED MATERIAL: BRASS,<br />
24 VDC.<br />
10 - 250 PSI

NON-RETURN VALVE<br />
Brand: MITSUBISHI<br />
G3/4<br />
PN16<br />
Stainless Steel/FKM

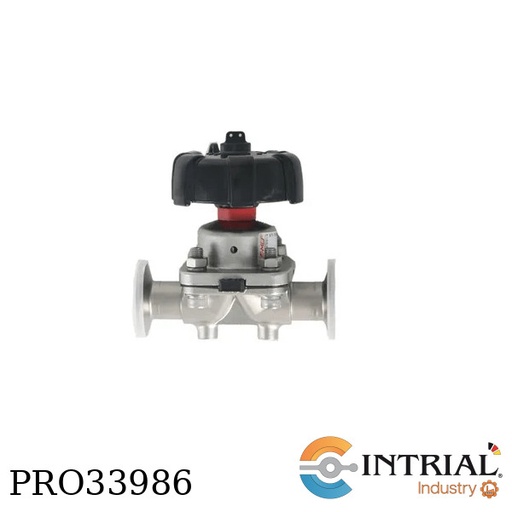

VÁLVULA DE DIAFRAGMA<br />
Marca: GEMU<br />
Tipo de conexión: Brida; Conexión Clamp, Rosca; Rosca hembra, Tubo para soldar<br />
Tipo de actuador: manual<br />
Material del cuerpo: ; 1.4408, microfusión; 1.4435, microfusión<br />
Conformidades: 3A; CRN; EAC; FDA; Oxígeno; Reglamento (CE) n.º 1935/2004; TA-Luft<br />
Presión de trabajo máx.: 10 bar<br />
Temperatura del fluido máx.: 100 °C<br />
Temperatura del fluido mín.: -10 °C<br />
Diámetros nominales: DN 10 (3/8''); DN 12; DN 15 (1/2''); DN 20 (3/4'')<br />
Temperatura de esterilización: max. 150 °C
<p class="MsoNormal"></p>

<p></p>

VÁLVULA DE DIAFRAGMA ACCIONADA POR PISTÓN DE 2/2 VÍAS<br />
MARCA: BAUKERT<br />
2031-A-2-25,0-AD-VP-NM86-C-F * NO01+NO05+PD19<br />
Tipo 2031 2031<br />
función control A NORMALMENTE CERRADA<br />
vías/posiciones 2 2 VIAS / 2 POSICIONES<br />
tamaño orificio 25,0 25 25 25MM (1"")<br />
material junta AD EPDM (CERTIFICADO FDA, E03)<br />
material VP 24602<br />
conexión NM86 ROSCA NPT 1<br />
versión actuador C ESTANDARD-MODEL / INOX (PA-A CTU<br />
tamaño actuador F DM 80MM<br />
Carasterística especial NO01 EXTERIOR GRANALLADO RA <br />
NO05 INTERIOR GRANALLADO RA<br />
PD19 USA-VERSION<br />
***El modelo 467477 solicitado ha sido discontinuado, como sustituto se cotiza el modelo de reeemplazo: 468304***<br /><br /><br />

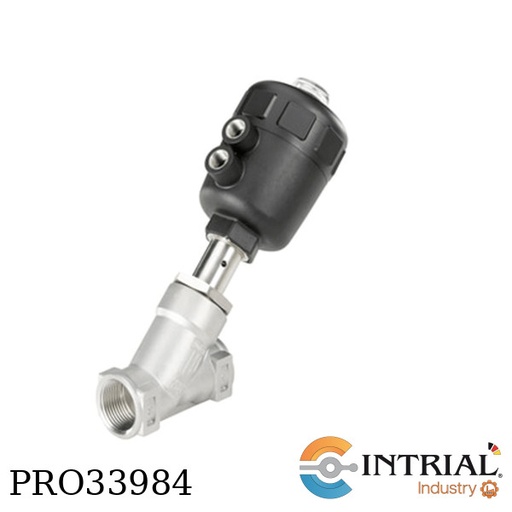

VÁLVULA NEUMATICA INCLINADA 2/2 VIAS<br />
MARCA: BURKET<br />
2000-A-2-15,0-EE-RG-GM84-B-D * MS74+PX51<br />
Tipo 2000 2000<br />
función control A NORMALMENTE CERRADA<br />
vías/posiciones 2 2 VIAS / 2 POSICIONES<br />
tamaño orificio 15,0 15 15 15MM (9/16"")<br />
material junta EE PTFE<br />
material RG BRONCE<br />
conexión GM84 ROSCA G1/2<br />
versión actuador B ESTANDARD MODEL / LATON (PA- ACTU<br />
tamaño actuador D DM 50MM<br />
Carasterística especial MS74 MONTAJE ACC 2000BG21 AN<br />
PX51 EPS 18 ATEX 2 008 X / IECEx EPS 18.0007 X mech. Ex h IIC T4 Gb / Ex h IIIC T135°C Db

Modelo: 2031-A-2-25,0-AD-VP-GM86-C-F+NO01+NO05<br />
<br />

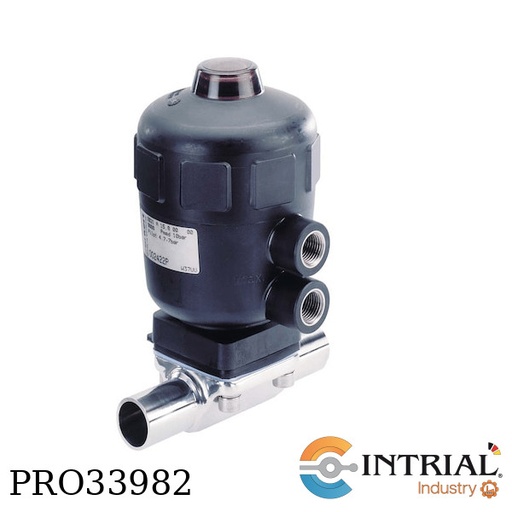

VALVULA DE MEMBRANA DE 2/25 VIAS CON ACTUADOR NEUMATICO DE PLASTICO<br />
Marca: BURKERT<br />
Modelo: 2031-A-2-25,0-AD-VP-GM86-C-F+NO01+NO05<br />
[2031]: Tipo, 2031<br />
[A]: Función control, Normalmente cerrada<br />
[2]: Vias/posiciones, 2 vias/2 posiciones<br />
[25,0]: Tamaño orificio, 25 25 25 mm (1")<br />
[AD]: Material junta, EPDM (certificado FDA, E03)<br />
[VP]: Material, 24602<br />
[GM86]: Conexión, 1" GAS<br />
[C]: Versión actuador, Estandard-model/INOX<br />
[F]: Tamaño actuador, DM 80mm<br />
[NO01]: Caraterística especial, Exterior granallado RA<br />
[NO05]: Caraterística especial, Interior granallado RA<br />
<br />

<p class="MsoNormal"></p>

<p></p>

<p class="MsoNormal" style="margin-bottom:.0001pt;line-height:normal;"><strong>AGITADOR INDUSTRIAL</strong><br /><strong>MODELO: VHS3<br />
MARCA: FLUIDMIX</strong><br /><br />
Motor 0,25 kW – 4 polos – 230/400 V – 60 Hz – IP55 – IE1<br />
Velocidad de giro: 1.056 rpm.<br />
Brida de fijación ø 160/130 mm, PVC con retén de NBR<br />
Longitud de eje: 600 mm, AISI 316 L revestido de PE<br />
Hélice marina ø 128 mm, AISI 316 L revestida de PE</p>

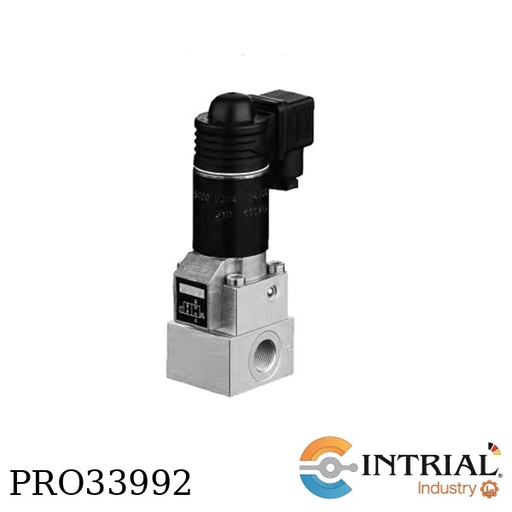

Válvula Solenoide Cartridge 2/2 NC<br />
Bobina de 24VDC<br />
Caudal 75 l/min.<br />
Presión: 350 bar<br />
Marca: HYDAC(Alemania)

SENSOR BTL<br />
DESPLAZAMIENTO HPGR<br />
FABRICANTE: BALLUFF GMBH.
<div>
<div class="gtx-trans-icon"></div>
</div>

HIGH PRESSURE GEAR PUMPS<br />
Brand: KRACHT<br />
[KP]: Product code<br />
[1]: Size, 1<br />
[11]: Nominal displacement, 11

GEAR PUMP<br />
Brand: KRACHT<br />
Materials<br />
Material Housing Grey cast iron EN-GJL 250<br />
Material End cover Grey cast iron EN-GJL 250<br />
Material Gears Steel, case hardened<br />
Seal material FKM<br />
Shaft sealing Double radial lip-type seal for vacuum operation<br />
with connection possibility for Quench<br />
quench tank has to be ordered separately<br />
Bearing Multi component sleeve bearings P10<br />
Product data<br />
Geometrical Displacement 12,58 cm³/r<br />
Direction of rotation clockwise (seen on shaft end)<br />
Type of fixation DIN flange<br />
Outboard bearing no<br />
Type of pipe connection Threaded connection G 3/4"<br />
Shaft end cylindrical ø 14mm<br />
integrated valve no<br />
Mounting position Shaft end horizontal, fluid buffer connection top<br />
Specific data<br />
Operating pressure (suction side) -0,9...+0,2 bar<br />
max. operating pressure (pressure side) 25 bar<br />
(depending on viscosity, speed and power)<br />
Fluid temperature -20°C...+150°C<br />
Ambient temperature -20°C...+60°C<br />
Minimum viscosity 1.4 mm²/s (max. 3 bar)<br />
6 mm²/s (max. 12 bar)<br />
12 mm²/s (max. operating pressure)<br />
Maximum viscosity depending on suction conditions, speed and power<br />
Speed range 200...3600 rpm<br />
(depending on pressure, viscosity and power)<br />
<div>
<div class="gtx-trans-icon"></div>
</div>

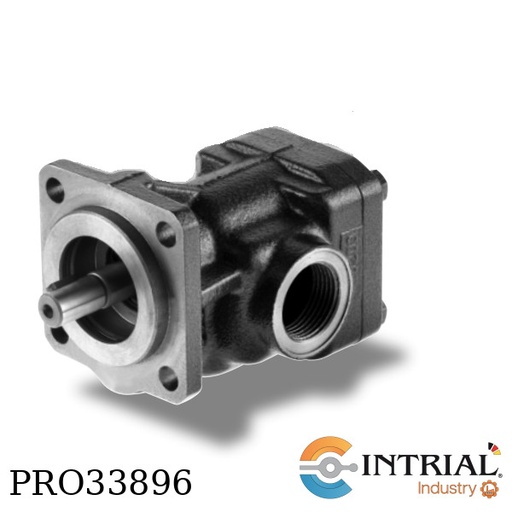

TRANSFER GEAR PUMPS<br />
Brand: KRACHT<br />
Product name, KF<br />
[80]: Nominal size, 80<br />
[R]: Direction of rotation, Right<br />
[F]:Mounting, DIN flange without outboard bearing<br />
[7]: Seal type, Double rotary shaft seal FKM<br />
[74]: Pump with double rotary shaft lip seal<br />
for vacuum operation with mounting hole for<br />
liquid seal (quench), inner rotary shaft lip seal
<div>
<div class="gtx-trans-icon"></div>
</div>

TRANSFER GEAR PUMPS<br />
Brand: KRACHT<br />
Direction of rotation; Whitworth pipe thread<br />
Construction of housing and friction bearing; iron bearing bush<br />
Construction of gear unit; Steel shafts and gear <br />
Kind of sealing; Arolan

TRANSFER GEAR PUMPS TYPE KF<br />
Brand: KRACHT<br />
Direction of rotation; clockwise<br />
Connection type; Flange connection<br />
Shaft end; cyl. without outboard bearing<br />
End cover; Model with DKF<br />
Housing and bearing material; GG-housing with, DU-bearing bush<br />
Sealing; FKM<br /><br />
DKF<br />
PUMP SIZE KF<br />
Brand: KRACHT

TRANSFER GEAR PUMPS BT, BTH<br />
Brand: KRACHT<br />
[BT-1]: Series<br />
[B]: Direction of rotation, clockwise and anticlockwise<br />
[Z]: Pipe connection, Whitworth pipe thread<br />
[OCK]: Construction of housing and friction bearing, iron bearing bush<br />
Construction of gear unit, Steel shafts and gear <br />
[51]: Kind of sealing, Arolan<br />
[21]: Wear and corrosion protected model

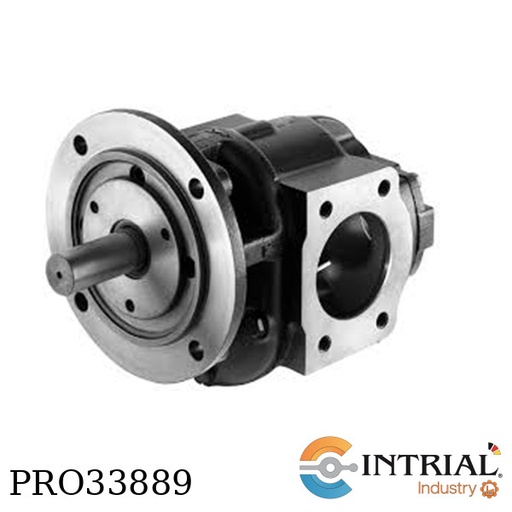

TRANSFER GEAR PUMPS TYPE KF<br />
KF 5/315 H10B N00 0DP<br />
Brand: KRACHT<br />
Nominal displacement; 315<br />
Direction of rotation; clockwise<br />
Connection type; Flange connection<br />
Shaft end; cyl. with outboard bearing<br />
End cover; Model with DKF<br />
Housing and bearing material; GG-housing with DU-bearing bush<br />
Sealing; FKM<br /><br />
DKF-5-D-16  <br />
PUMP SIZE DKF<br />
Brand: KRACHT<br />
Material; Housing GG, Sealing FKM<br />
Pressure range; 8 - 16 bar

HIGH PRESSURE GEAR PUMPS<br />
Brand: KRACHT<br />
Model: KP1/16 L2LAXXF4VL1/370<br />
Size 1<br />
Nominal displacement; 16<br />
flange mounting cover; 2 bolt square flange, LA = 60/60; Ø Z = 52<br />
with O-ring (without shaft seal)<br />
Direction of rotation; Anticlockwise<br />
Outboard flanges or bearing resp.; Baring series: light<br />
Housing side ports; Inlet port dia. 15 with PC 40 to Vg 5.5<br />
Inlet port dia. 20 with PC 40 to Vg 6.3<br />
Outlet port dia. 15 with PC 35<br />
Shaft end / Shaft load capacity; Involute spline B 17 x 14, DIN 5482 / 70 Nmmax<br />
Second shaft end; Involute spline B 17 x 14, DIN 5482<br />
End covers (adaptor pieces); KP1 coupled with KP1 only<br />
Design serial no.; Specified by KRACHT <br />
Type of gearing; Driving and driven gears of case hardening steel tooth flanks grinded and honed<br />
Seals; NBR rotary shaft lip type seals ϑ ≤ 90 °C<br /><br />
Model: KP1/11 020AX0A4VL1/271<br />
Brand: KRACHT<br />
Size 1<br />
Nominal displacement; 11<br />
Direction of rotation; Anticlockwise<br />
Outboard flanges or bearing resp.; without<br />
Housing side ports; Inlet port dia. 15 with PC 40 to Vg 5.5<br />
Inlet port dia. 20 with PC 40 to Vg 6.3<br />
Outlet port dia. 15 with PC 35<br />
Shaft end / Shaft load capacity; Involute spline B 17 x 14, DIN 5482 / 70 Nmmax<br />
Second shaft end; without<br />
End covers (adaptor pieces; End cover (standard type)<br />
Design serial no.; Specified by KRACHT<br />
Type of gearing; Driving and driven gears of case hardening steel tooth flanks grinded and honed<br />
Seals; NBR rotary shaft lip type seals ϑ ≤ 90 °C

FILTRO HIDRAULICO<br />
Marca: INTERNORMEN <br />
Longitud nominal de 4 pulgadas<br />
Diámetro exterior: 1.38<br />
Diámetro interior: 0.48<br />
Clasificación de micras: 80<br />
Medios de malla de acero inoxidable 304SS<br />
Presión de colapso: 435 psi.

VÁLVULA DE RETENCIÓN<br />
Marca: STAUFF<br />
1 1/2" NPT
